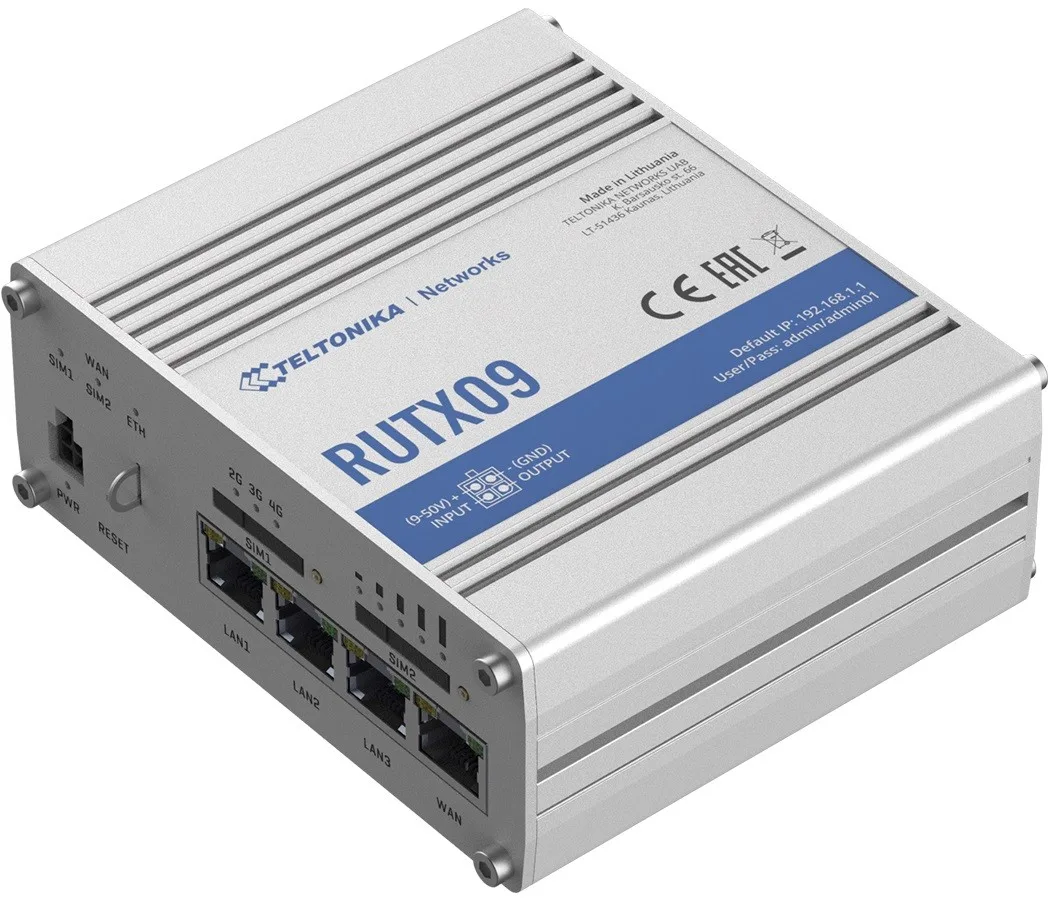

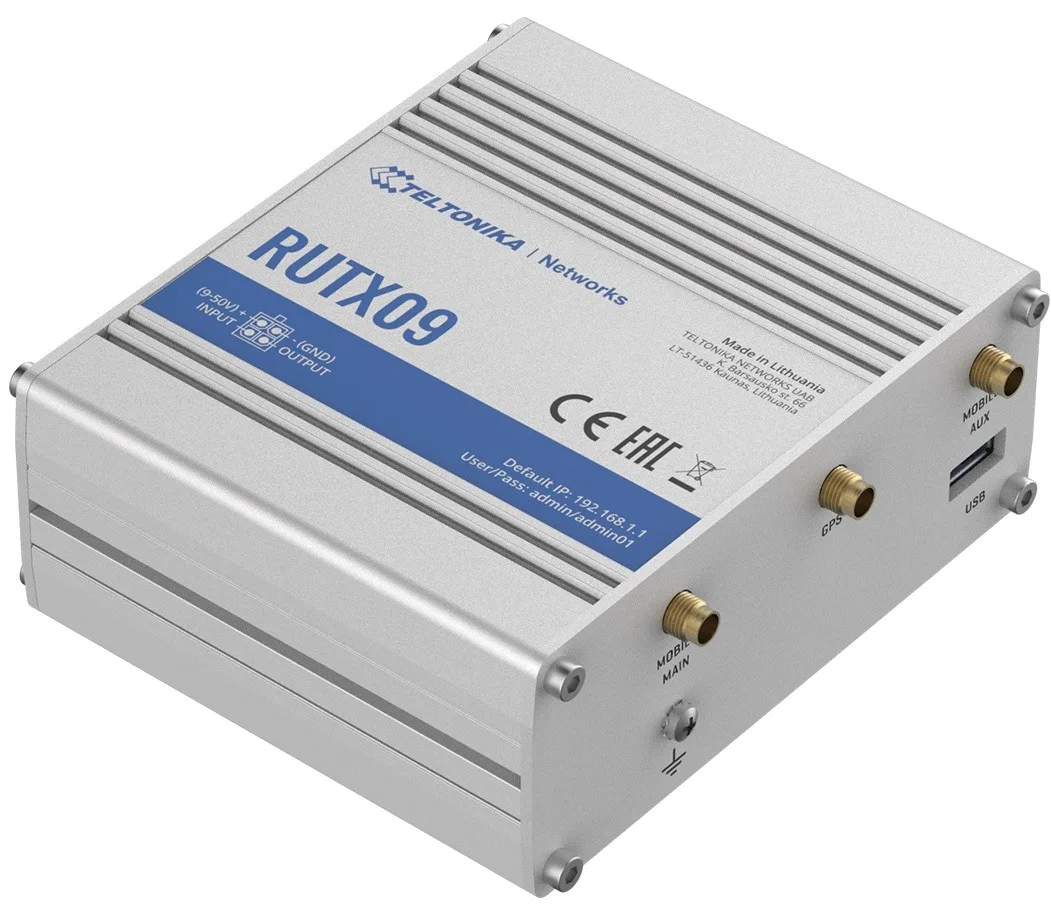

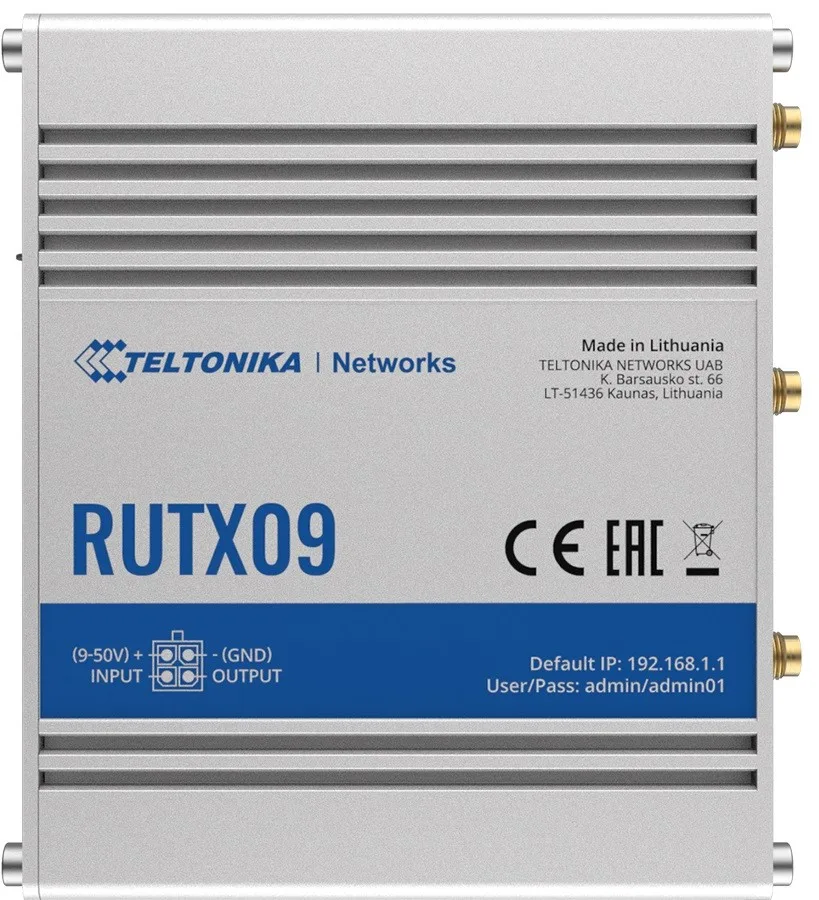

TELTONIKA Router LTE RUTX09 (Cat 6), 4xGbE, GNSS

TELTONIKA Router LTE RUTX09 (Cat 6), 4xGbE, GNSS

Model:

RUTX09

Description:

RUTX09 router

RUTX09 is a LTE-A Cat 6 mobile IoT router with dual SIM slots, carrier aggregation and 4 Gigabit Ethernet interfaces. RUX09 can achieve speeds of up to 300 Mbps and is suitable as a primary, backup Internet source in solutions that require a reliable Internet connection and high data throughput.

The RutOS operating system based on Open WRT provides support for many applications and security functions: firewall, VPN, Ipsec, SNMP, content filtering and many others.

This product is compatible with our Remote Control System (RMS) for convenient monitoring, maintenance and data collection.

Type: GSM 3G/4G
Data transmission: LTE
UMTS network: 2100 MHz
UMTS network: 1800 MHz
UMTS network: 900 MHz
UMTS network: 850 MHz
LTE network: 2600 MHz
LTE network: 850 MHz
LTE network: 900 MHz
LTE network: 2300 MHz
LTE network: 700 MHz
LTE network: 800 MHz
LTE network: 1500 MHz
LTE network: 1800 MHz
LTE network: 2100 MHz
LTE network: 2500 MHz
Aero2 support: No
Standards: 802.3
Standards: 802.3az
Standards: 802.3u
Number of antennas:
Antenna: Detachable external
Management, monitoring, configuration:

• Cellular features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Network protocols: SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
• Network: Failover (Network backup), VLAN, QoS, Load Balancing
• Management and monitoring: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Moble operator
• GNSS: NMEA forwarding, AVL, Geofencing
• Services: DDNS, VRRP, Wake On Lan (WOL), WEB lter, UPNP, Network shares (Samba), Trac Logging
• Administration: Multi user, Conguration proles, Diagnostics, logs, Conguration backup

Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
• SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag based VLAN separation
• Mobile quota control: Custom data limits for both SIM cards
• WEB filter: Blacklist for blocking unwanted out websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

Special functions:
Card reader: None

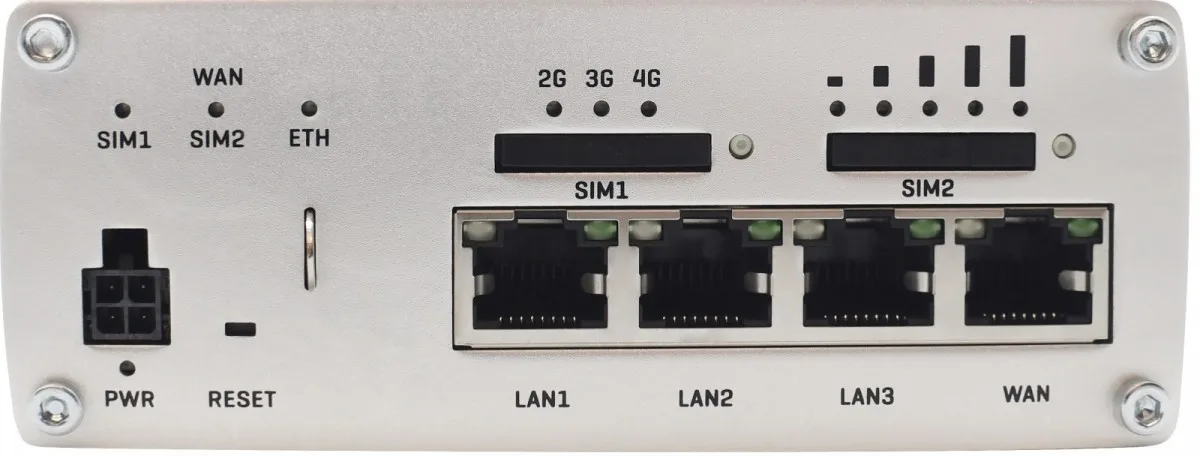

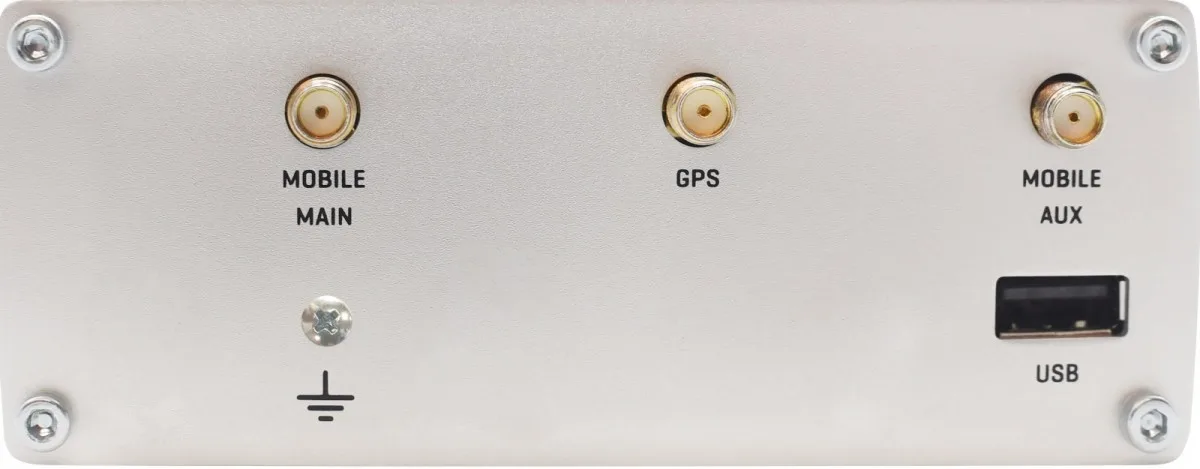

I/O ports: 1 x USB 2.0
I/O ports: 2 x SIM card slot
I/O ports: 4 x 10/100/1000 Mbit/s
SIM card: Mini
Power supply:

4pin power socket, 9-50 VDC

Software:

RutOS (OpenWrt based Linux OS)

Certificates:
System Requirements:
Environment requirements:

• Operating temperature: -40 C to 75 C
• Humidity during operation: 10% to 90% non-condensing

Accessories included:

• RUTX09 router
• 18W power supply
• 2 x LTE antenna (swivel, SMA male)
• GNSS antenna (adhesive, SMA male, 3 m cable)
• SIM Adapter kit
• Ethernet cable (1.5 m)
• Brief user manual
• RMS leaflet

Color: Aluminium
Weight: 455 gram
Dimensions:

115 x 44 x 95 mm

Other features:

• Network support: 4G/LTE (Cat 6), 3G
• CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
• Memory: 256 MBytes Flash, 256 MBytes RAM
• GNSS support: GPS, GLONASS, BeiDou, Galileo, QZSS
• Status LED: 3 x WAN type, 2 x connection type, 5 x signal strength, 8 x Ethernet, power
