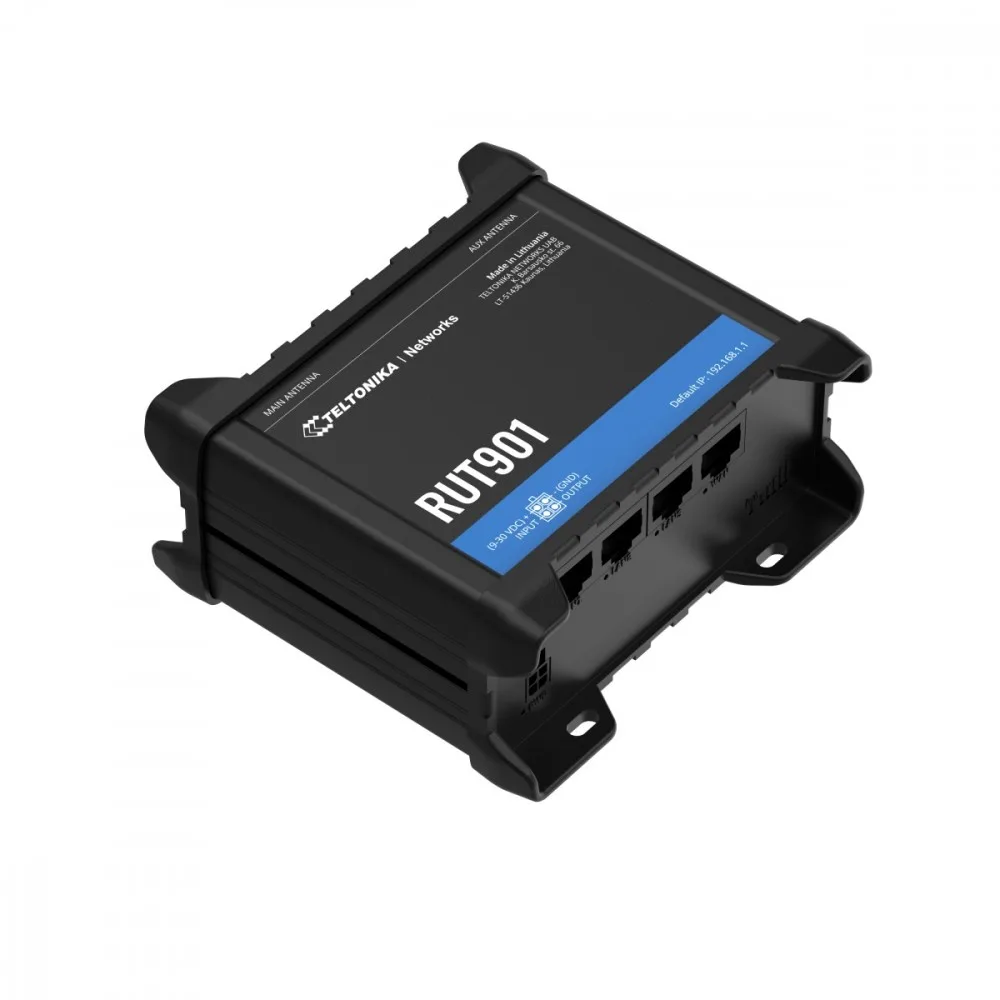

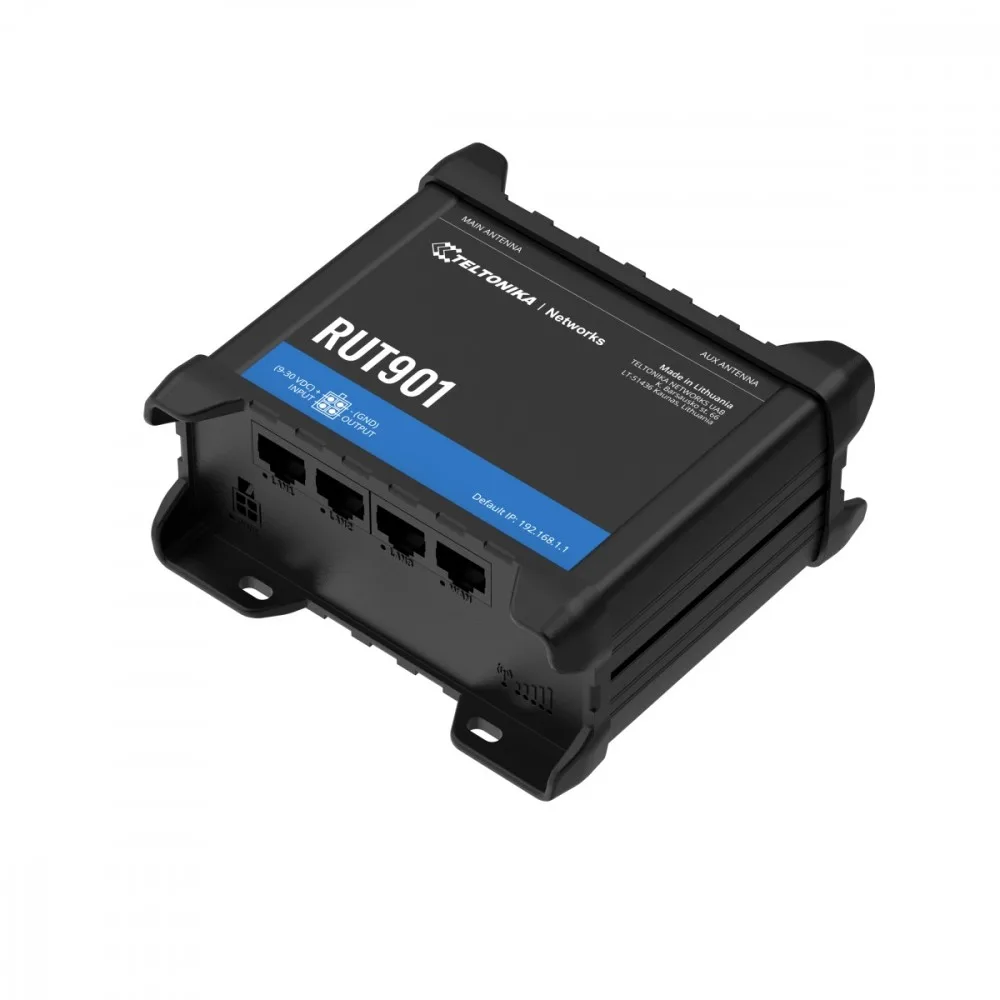

TELTONIKA Router LTE RUT901 (Cat 4), 3G, 2G, 2xSIM

TELTONIKA Router LTE RUT901 (Cat 4), 3G, 2G, 2xSIM

Model:

RUT901

Description:

RUT901 router

The RUT901 cellular router brings to the market the top-rated features of its predecessors, the RUT950 and RUT951. The device delivers high performance by providing automatic WAN failover to an available backup connection, ensuring network continuity and eliminating downtime.

Type: GSM 3G/4G
Data transmission: LTE
Data transmission: UMTS
Data transmission: GPRS
GSM network: 1900 MHz
GSM network: 900 MHz
UMTS network: 2100 MHz
UMTS network: 900 MHz
UMTS network: 850 MHz
LTE network: 2600 MHz
LTE network: 700 MHz
LTE network: 800 MHz
LTE network: 850 MHz
LTE network: 900 MHz
LTE network: 1800 MHz
LTE network: 2100 MHz
LTE network: 2300 MHz
LTE network: 2500 MHz
Aero2 support: No
Standards: 802.11e
Standards: 802.11n
Standards: 802.11b
Standards: 802.3u
Standards: 802.11g
Standards: 802.3
Number of antennas: Four connectors
Antenna: Detachable external
Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag-based VLAN separation
• Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
• Wi-Fi security: WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP, WPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE, Mixed Mode, WPA3-SAE, OWE, AES-CCMP, TKIP, Auto Cipher modes, client separation

Management, monitoring, configuration:

• Mobile functions: SIM switch, Status, SMS, Black/White list, Band management, APN, Bridge, Passthrough
• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard
• Management and monitoring: WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS
• Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud: RMS, Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub
• Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
• SMS functions: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

Special functions:
Card reader: None
I/O ports: 2 x SIM card slot
I/O ports: 1 x 10/100 Mbit/s WAN
I/O ports: 3 x 10/100 Mbit/s
SIM card: Mini
Power supply:

4-pin socket, 9-30 VDC

Software:

RutOS (OpenWrt based Linux OS)

Certificates:
System Requirements:
Environment requirements:

• Operating temperature: -40°C to 75°C
• Operating humidity: 10% to 90% non-condensing

Accessories included:

• RUT901 router
• 9W power supply
• 2 x LTE antenna (rotatable, SMA male)
• 2 x Wi-Fi antenna (rotatable, RP-SMA male)
• Ethernet cable (1.5 m)
• SIM adapter kit
• QSG (Quick Start Guide)

Color: Black
Weight: 297 gram
Dimensions:

110 x 50 x 100 mm

Other features:

• Processor: MediaTek, MIPS 24KEc, 580MHz
• Memory: 16 MB, SPI Flash
• Memory: 128 MB, DDR2
• Housing: Aluminum housing, plastic panels

Designation:
