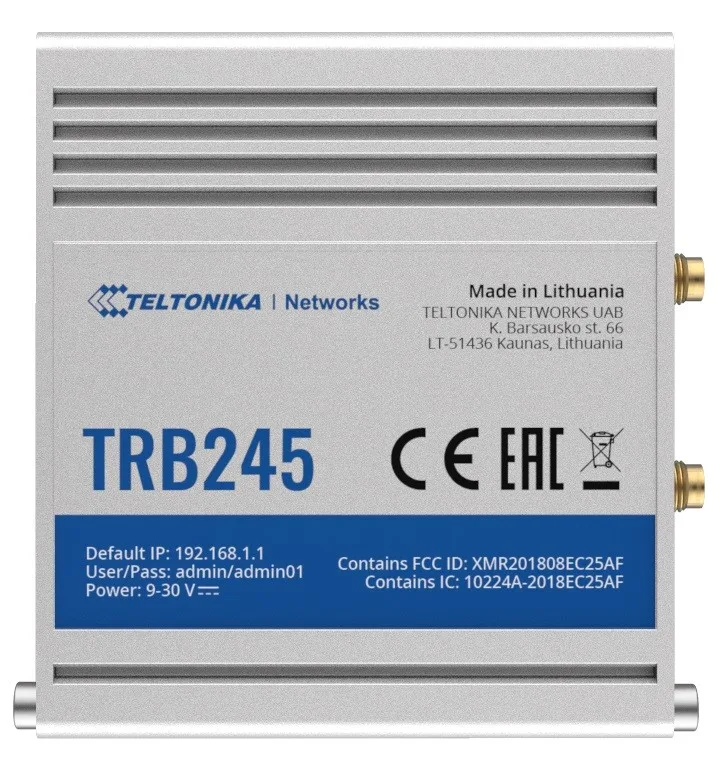

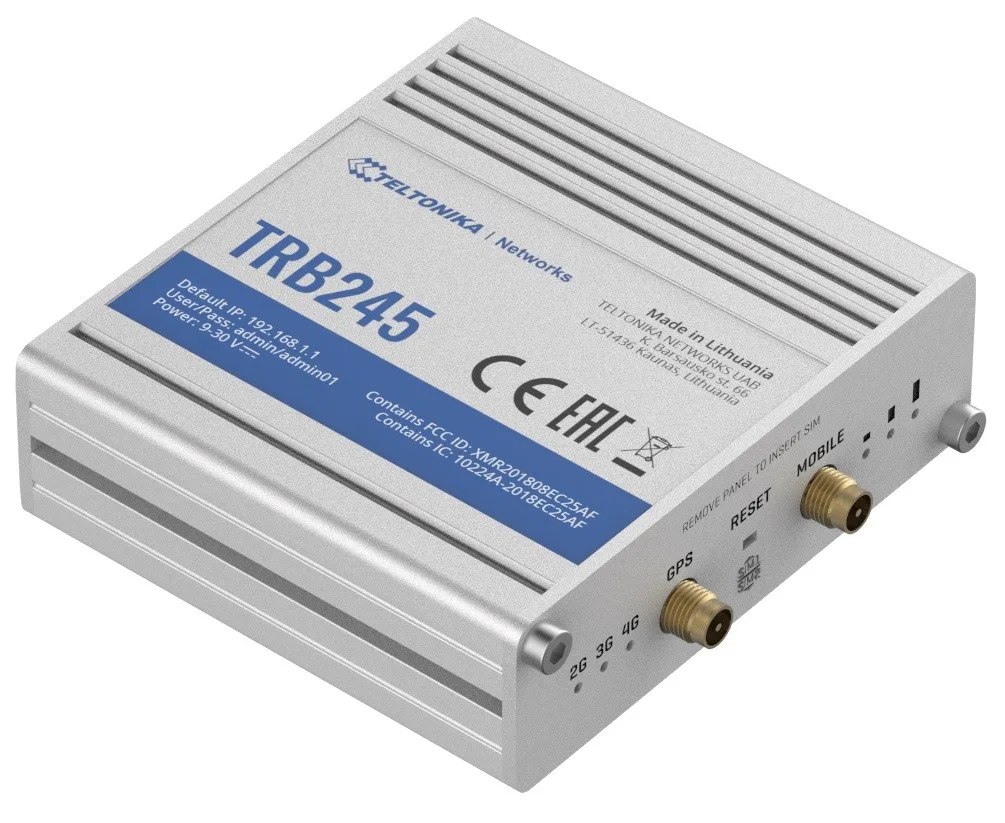

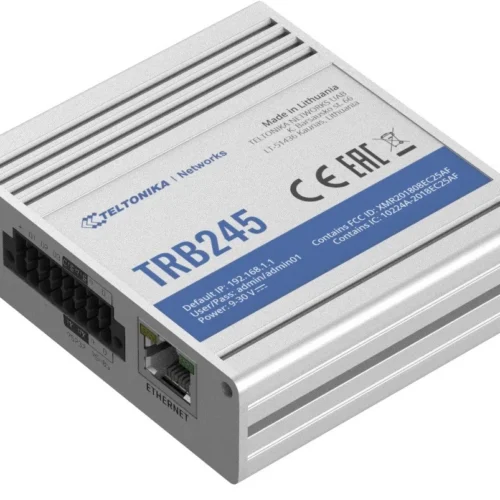

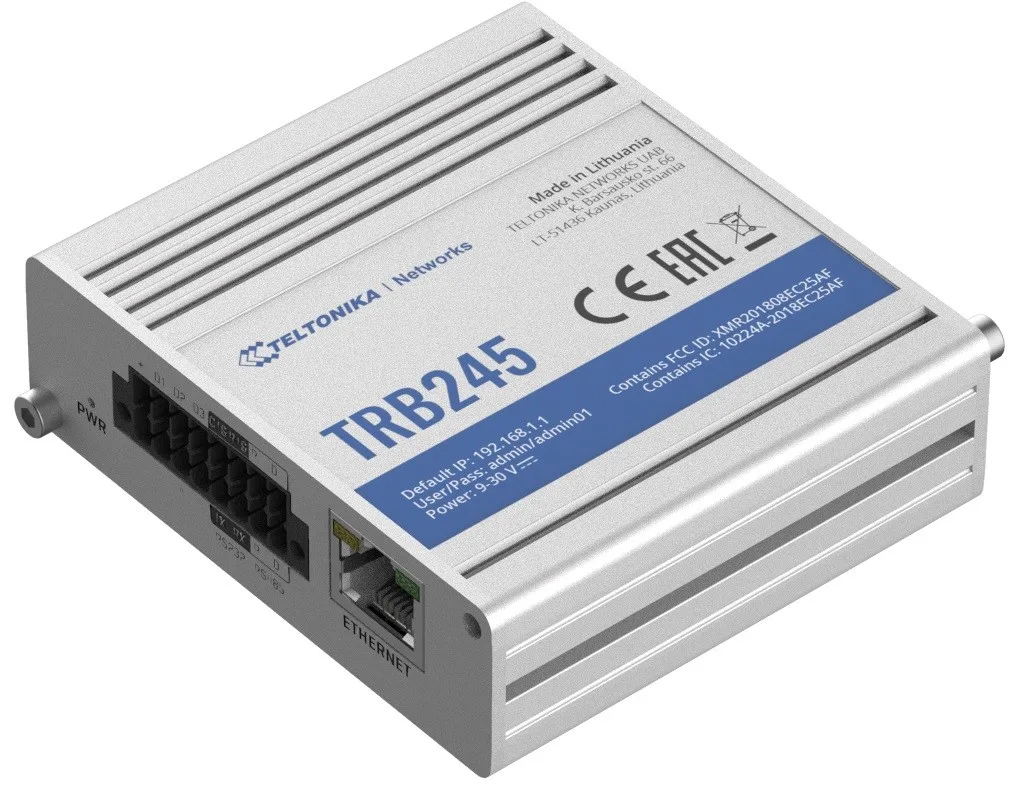

TELTONIKA Gateway LTE TRB245 (Cat 4), 3G, 2G, RS, Ethernet

TELTONIKA Gateway LTE TRB245 (Cat 4), 3G, 2G, RS, Ethernet

Model:

TRB245

Description:

TRB245 gate

TRB245 is an industrial LTE Cat 4 network interface that has elements used in various industries: fast and reliable Internet connection, Ethernet connection and serial communication, GNSS, secure power connection, input/output ports and time synchronization service.

TRB245 is able to connect modern and old industrial devices into one unit via RS232 and RS485 connections.

SMS management, firewall, OpenVPN, IPSec and RMS remote control system ensure data is always protected.

Dual SIM with automatic switching and backup WAN ensures a stable connection even if the original connection is lost.

Type: GSM 3G/4G
Data transmission: LTE
Data transmission: UMTS
Data transmission: GPRS
GSM network: 900 MHz
GSM network: 1900 MHz
UMTS network: 900 MHz
UMTS network: 2100 MHz
LTE network: 700 MHz
LTE network: 800 MHz
LTE network: 2600 MHz
LTE network: 2500 MHz
LTE network: 900 MHz
LTE network: 1800 MHz
LTE network: 2100 MHz
LTE network: 2300 MHz
Aero2 support: No
Standards: 802.11e
Standards: 802.3
Standards: 802.3u
Number of antennas: Two connectors
Antenna: Detachable external
Security:

• Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag-based VLAN separation
• Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

Management, monitoring, configuration:

• Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Monitoring and management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Modbus: TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
• Serial: Console, Over IP, Modem, NTRIP, Modbus
• Administration: Multi user, Configuration profiles, Diagnostics, logs, Configuration backup

Special functions:
Card reader: None

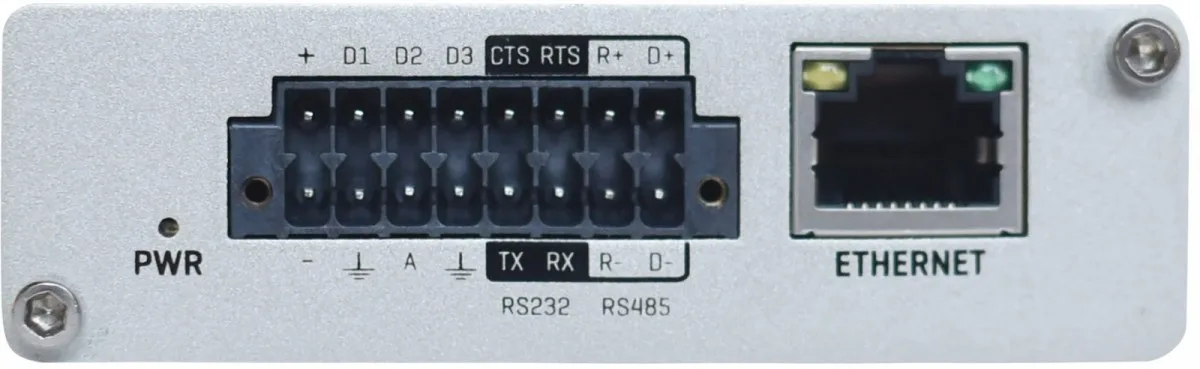

I/O ports: 1 x RS-485
I/O ports: 1 x 10/100 Mbit/s
I/O ports: 1 x Console port (RS-232)
I/O ports: 2 x SIM card slot
SIM card: Mini
Power supply:

Terminal 16 pin, 9-30 VDC

Software:

RutOS

Certificates:
System Requirements:
Environment requirements:

• Operating temperature range: -40 °C to 75 °C
• Humidity range: 10-90%

Accessories included:

• TRB245
• 9W power supply
• Antenna 1 x LTE (rotatable, SMA male), 1x GNSS antenna (self-adhesive mounting, SMA male, 3 m cable)
• 16 pin connector (terminal block)
• Assembly key
• Ethernet cable (1.5 m)
• Quick start guide
• RMS leaflet

Color: Aluminium
Weight: 165 gram
Dimensions:

83 x 25 x 74 mm

Other features:

• Network support: 4G/LTE (Cat 4), 3G, 2G
• CPU: Qualcomm, MIPS 24Kc, 650 MHz
• Memory: 16 MB Flash, 64 MB RAM

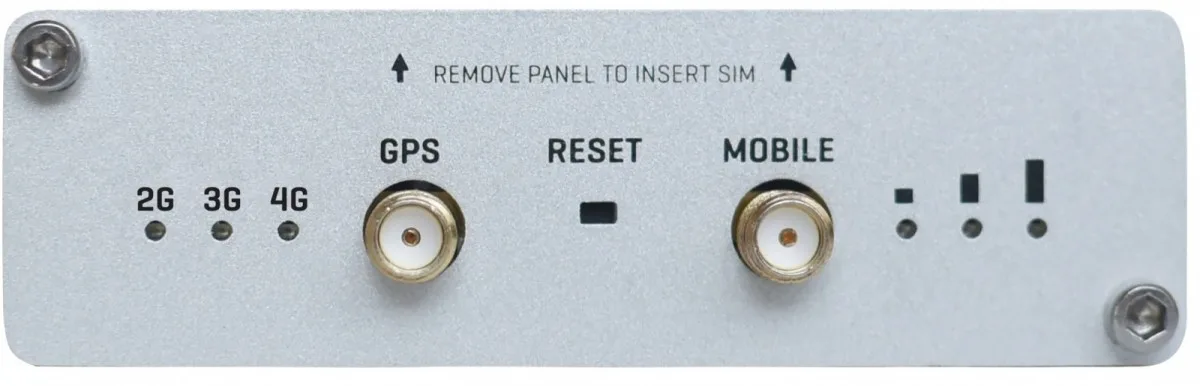

• Antenna connectors: 1 x SMA (Mobile network), 1 x SMA GNSS
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• Status LED: 3 x network type, 3 x signal strength, 2 x Ethernet, 1 x power
• Housing: Aluminum with the option of mounting on a DIN rail
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
