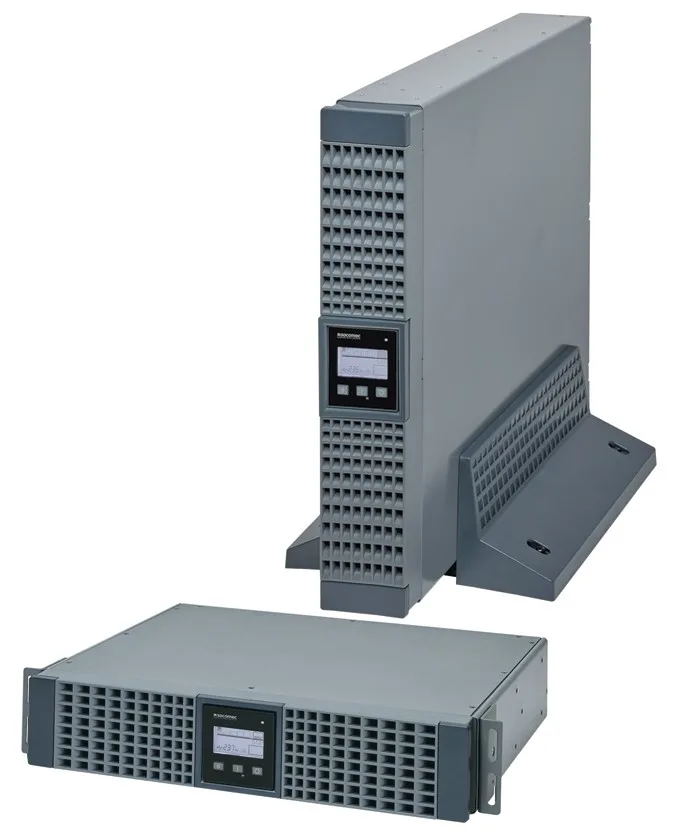

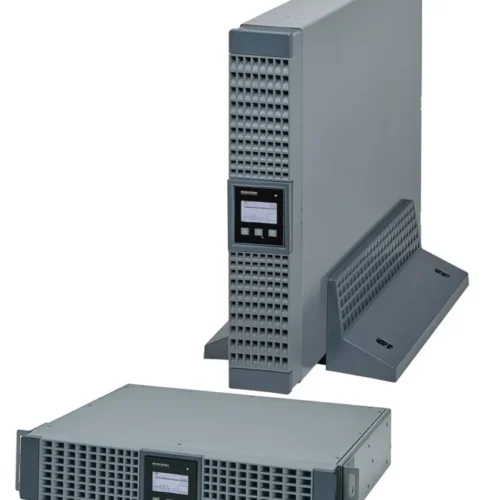

Socomec UPS NETYS RT 2200VA/1800W USB/IEC/EPO/6xC13/1xC19 NRT2-U2200

Socomec UPS NETYS RT 2200VA/1800W USB/IEC/EPO/6xC13/1xC19 NRT2-U2200

Description:

UPS NETYS RT 2200VA / 1800W 230V 50 / 60Hz ON-LINE CONVERTER CONVERSION (VFI), internal battery, telephone line / modem protection, USB and RS232 port, 6xIEC 320 C13 (10A) + 1xIEC 320 C19 (16A), automatic service-mode, EPO output (RJ11 connector), SNMP network card slot, Tower / Rack housing, additional battery connection, graphic LCD display

Simple installation
– IEC input and output connectors
– The small size allows installation in rack cabinets
– Attractive design.

Simple service
– No configuration required at first startup
– A wide range of communication protocols enables integration with LAN or building management systems (BMS)
– Clear LCD display, acoustic signals immediately informing about the UPS status, understandable even for people who do not have specialist knowledge

Adapted to the user’s requirements
– Online double conversion technology and a sinusoidal waveform allow for complete filtration of interference from the mains or network and ensure maximum safety of loads.
– Extended battery life (EBM) modules allow you to meet all requirements in terms of backup time, also after system installation.

Apparent power: 2200 VA
Active power: 1800 Watt
UPS Architecture: on-line
Number of phases input: 1 (230V)
No. of batteries: 1
Voltage: 48 Volt
Backup time (100% load): 8 Minute
Chassis type: Rack
Chassis type: Tower
Filters / protection: Overload
Special functions:

Standard electrical equipment:
– Integrated reverse current protection.
– Protection against atmospheric factors (NTP) on telephone lines / ADSL modems.
– RJ11 connector for emergency stop (EPO).
– Connector for modules extending battery life.

Standard communication equipment:
– LOCAL VIEW: ideal solution for monitoring and shutting down applications, running on Windows&#174,, Linux and Mac OS X&#174, operating systems
– HID: Built-in UPS management service based on Windows&#174, and Mac OS X&#174, – USB interface
– RTU MODBUS (RS232)

Software:

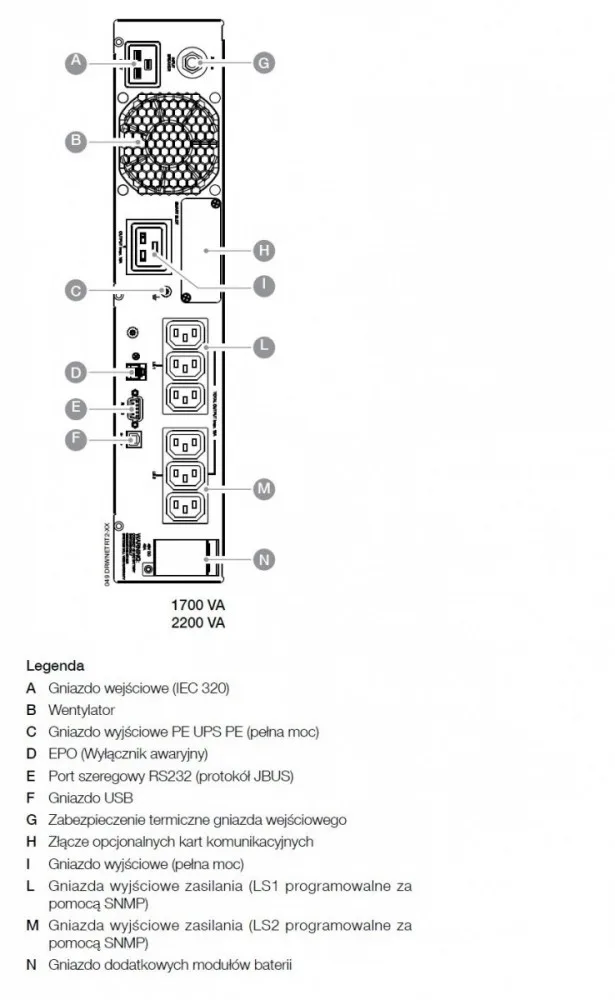

Input power ports: IEC-C20
Output power ports: 1 x IEC-C19
Output power ports: 6 x IEC-C13
I/O connectors: 1 x RS-232 (COM)
I/O connectors: 1 x RJ-11
I/O connectors: 1 x USB (Type B)
Environment requirements:
Accessories included:
Color: Black
Dimensions:

– 440 x 430 x 88.7 mm
– RACK UPS sizes: 2U

Weight: 19 kilogram
Other features:

– High measuring accuracy: IEC / EN 62040-3 (efficiency confirmed by an independent laboratory)
– Standards for safety / electromagnetic compatibility: IEC / EN 62040-1 (T&#220,V-GS certificate), EN 62040-2, AS 62040.1.1, AS 62040.1.2, AS 62040.2
– Certificates: CE, T&#220,V-GS, RCM (E2376)
– Degree of protection IP: IP20

Designation:
