Savio Wi-fi antenna AK-05

Savio Wi-fi antenna AK-05

Designation:
Description:

SAVIO AK-05 WIFI ANTENNA 12dBI 41CM RP-SMA PODS

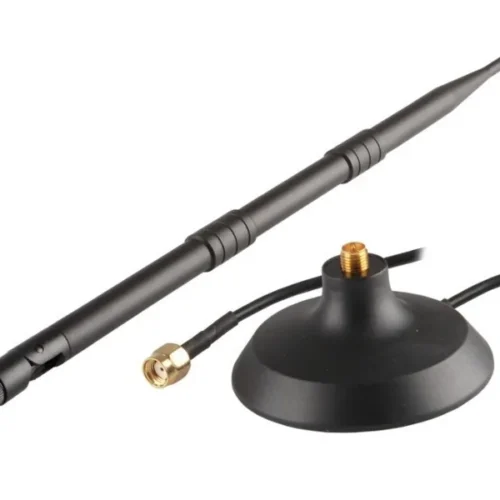

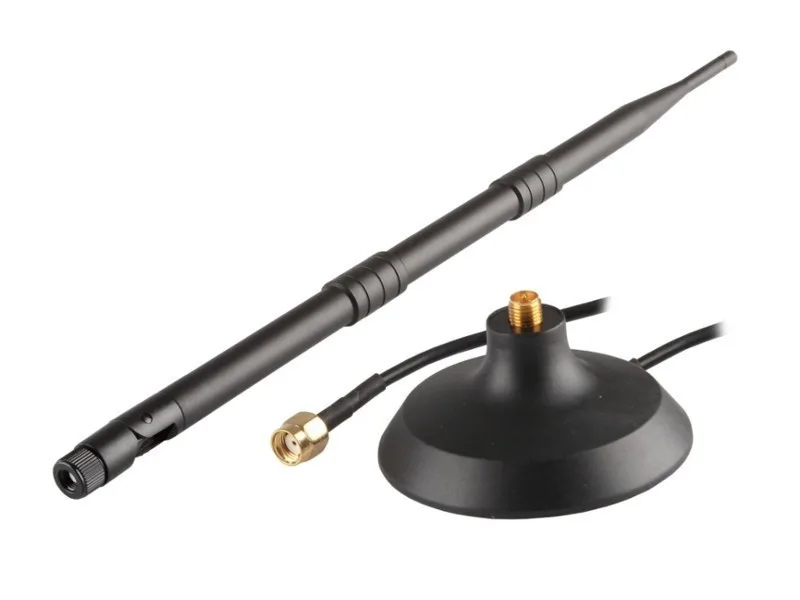

360° omni-directional stick antenna 9~12dBi 2.4GHz, screwed directly into wireless cards (RP-SMA connector on the cable) or directly into Access Points (RP-SMA connector of the antenna).  The antenna can be used in active devices (Access Point, PCI or USB wireless card) as well as in laptops equipped with cards with RP-SMA connector. It allows 300-400% greater range/signal strength compared to a standard 2-3 dBi series-mounted antenna.

Type: Omnidirectional
Usage: Inside
Operating frequency: 2,4 GHz
Antenna gain: 12 dBi
Impedance : 50 Ohm
Polarization: Linear vertical
Antenna connector: RP-SMA
Accessories included:
Dimensions:

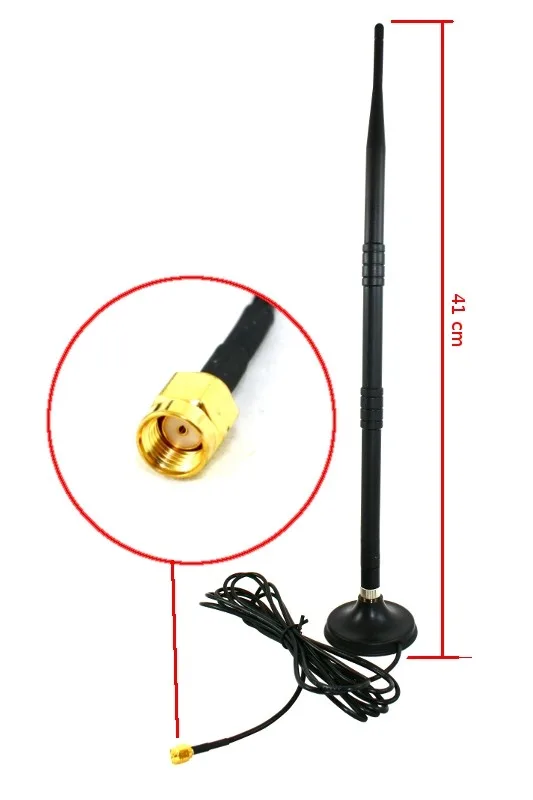

Height: 41 cm

Other features:

• VSWR – Radiation angle in the vertical plane: 12 degrees
• Radiation angle in the horizontal plane: 360 degrees
• Operating temperature: -10 – +60 degrees
• Maximum input power: 50 W
