Qoltec UPS on line Pure Sine Wave, 6kVA, 4.8kW, LCD

Qoltec UPS on line Pure Sine Wave, 6kVA, 4.8kW, LCD

Description:

Choose safe and clean energy

If you’ve ever had to deal with power cuts resulting in equipment failure or the need to restart your computer and, to make matters worse, you’ve lost important data not saved on disk, we have a solution for you. With a Qoltec UPS, you’ll have a constant supply of energy for the stable operation of your computer or server, and you won’t have to worry about power outages or voltage drops.

Pure sine wave – highest quality and security of power supply for your devices

Qoltec’s online UPS provide stable interference-free pure sine wave power. It’s complete protection for your devices, thanks to the double conversion that first converts the AC of the mains supply to DC and then to AC, ensuring the highest level of power quality and protecting against potential mains disturbances such as voltage drops, power outages, surges and failures.

How does UPS Online work?

An Online UPS has a voltage that is continuously recycled, in the event of an unexpected drop in the mains voltage, the UPS maintains the operation of the connected device, thanks to the built-in batteries, which are continuously charged. Thus, mains power is only needed to charge the batteries. Permanently connected devices always receive clean energy, without interference from the battery, so the output voltage of the online UPS will always be constant, regardless of the input voltage. The back-up time of the equipment is a few minutes to several minutes, this is the time to save data and safely shut down the equipment.

A solution worth your attention

The Qoltec UPS is:

• pure sinusoidal energy,
• zero switchover time to battery mode,
• protection against overload, short circuit and overheating,
• double conversion – stable power supply,
• OFF Mode – ensures forced battery operation without connecting the UPS to the mains,
• SNMP card mounting or SNMP adapter connection – this is a network management standard, thanks to which you can quickly and easily collect information about the connected devices and configure their parameters,
• USB port – thanks to the PSU management software, you can continuously monitor its operation and adjust it to your needs,
• built-in set of 16pcs batteries.

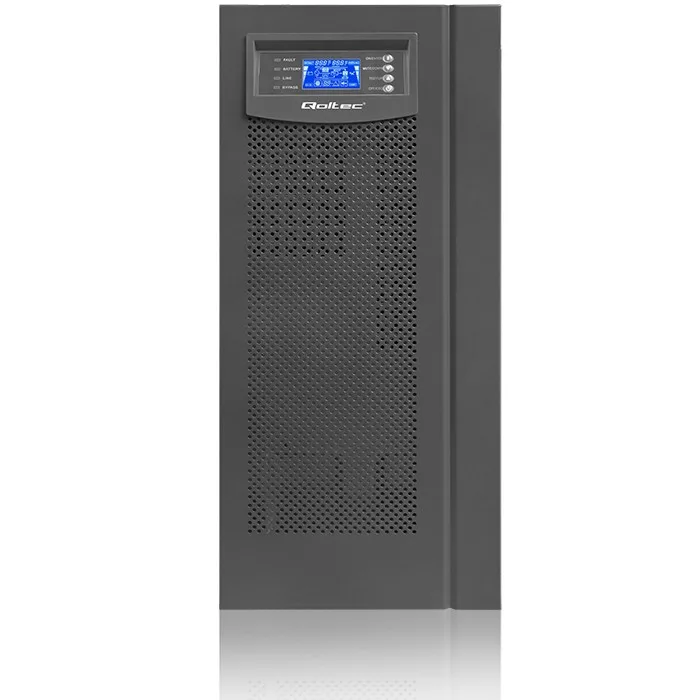

Clear LCD display

The built-in LCD display guarantees free management of the unit’s operation. You are constantly informed of status and parameters, making operation of the power supply easy, fast and reliable.
Apparent power: 6 kVA
Active power: 4800 Watt
UPS Architecture: on-line
The shape of the output voltage: Full sine wave
Number of phases input: 1 (120V)
No. of batteries: 16
Voltage: 12 Volt
Battery capacity: 7 Ah
Hold-up time (maks): 0 second
Transfer time (max): 0 second
Charging time: 6 Hour
Chassis type: Midi Tower
Filters / protection: Circuit
Filters / protection: Overheating
Filters / protection: Overload
Special functions:
Software:

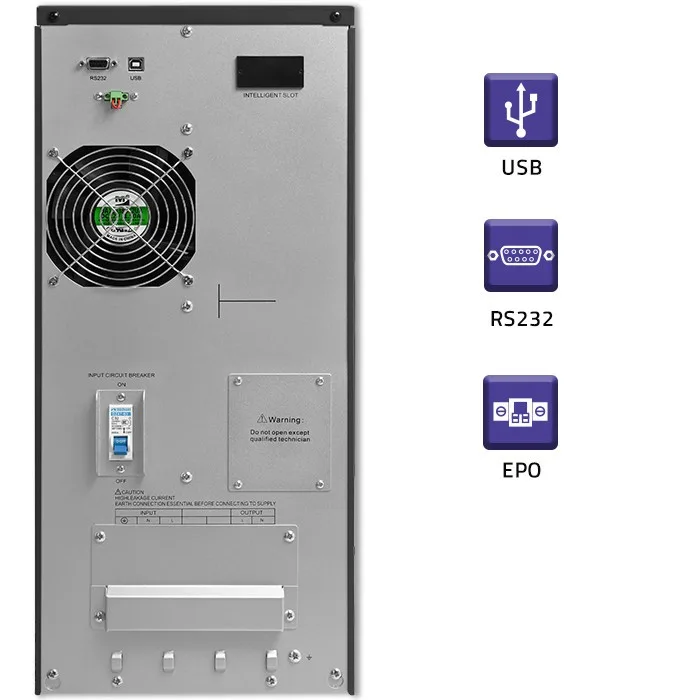

I/O connectors: 1 x Smart-Slot
I/O connectors: 1 x EPO
I/O connectors: 1 x USB (Type B)
Environment requirements:

• Operating temperature: 0C ~ +40C
• Relative humidity: < 95 % without condensation

Accessories included:
Color: Black

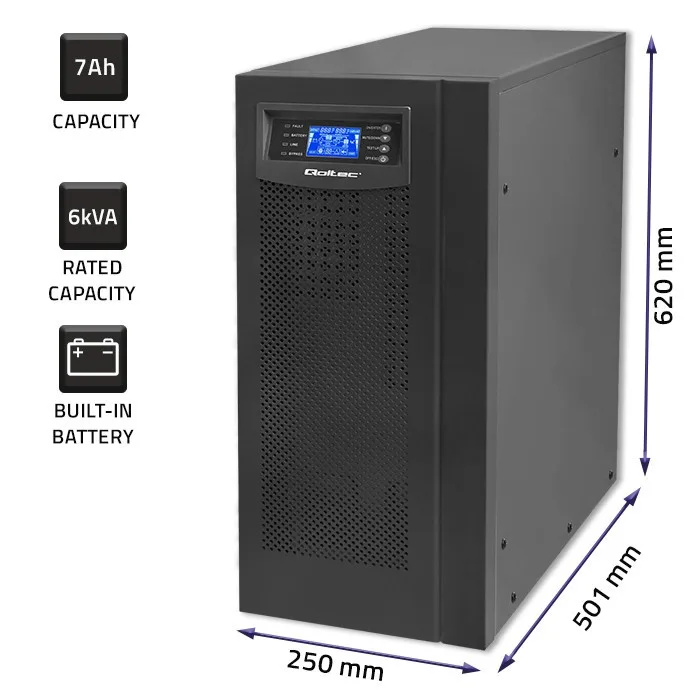

Dimensions:

Dimensions ( W x H x D ): 501 x 250 x 620 mm

Weight: 62 kilogram
Other features:
Designation:
