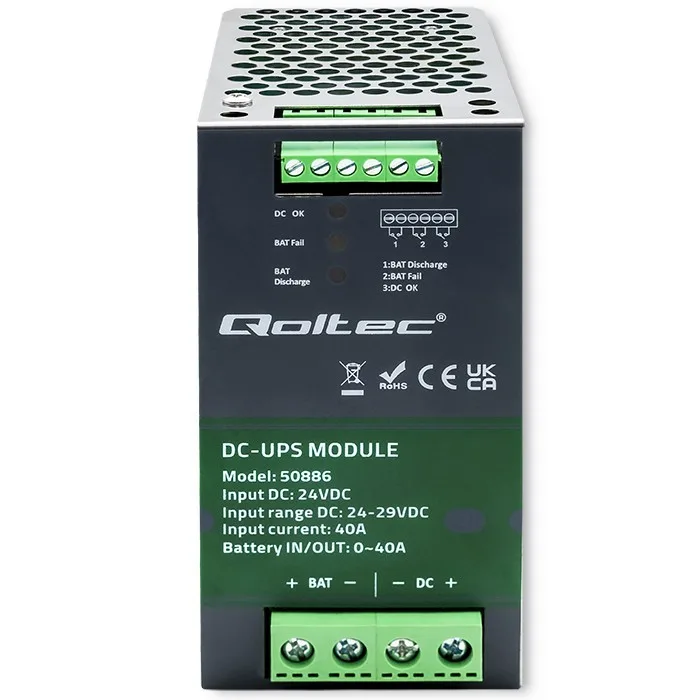

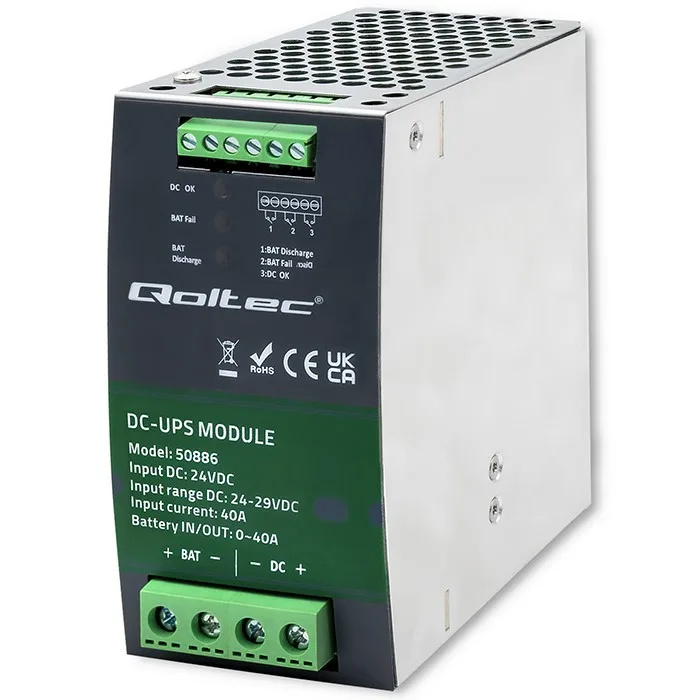

Qoltec UPS DC module for DIN rail, 40A, 24V

Qoltec UPS DC module for DIN rail, 40A, 24V

Description:

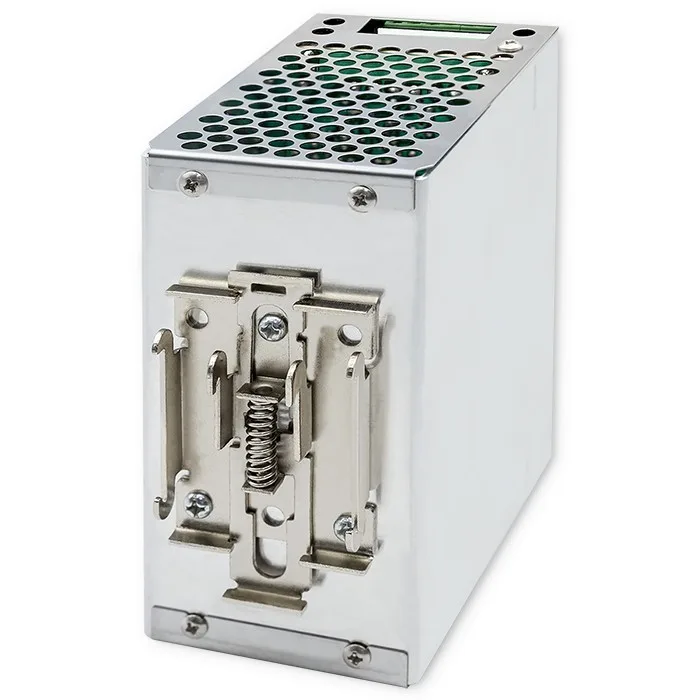

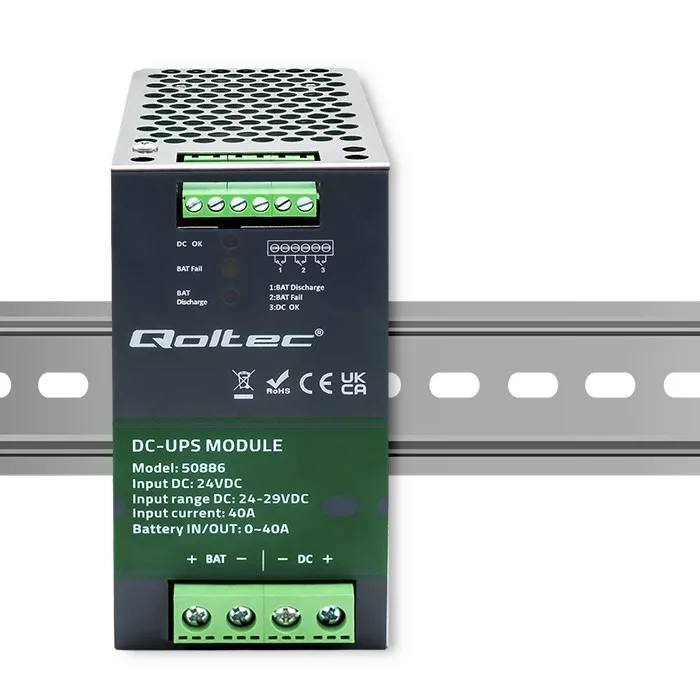

Module DC with UPS function for DIN rail

The DIN rail UPS module from Qoltec is used in many industries and fields thanks to the reliability and ability to provide continuous power even in the event of power cuts. It is a useful component of industrial automation systems, machine control, telecommunications, alarm and monitoring systems, lighting technology and industrial electronics where the size of power supply devices and their adaptation to limited space is important.

Fault-free power supply – strength in stability

By connecting to a power supply and an external battery, the 40A DC UPS module enables power continuity to be maintained in emergency situations. Automatic switching to battery power is instantaneous, eliminating the risk of data loss, system failure or any other unwanted effect associated with loss of power. When mains power is restored, the UPS module reverts to battery charging mode, preparing the system for a possible next power outage. The operating time of the unit depends on the capacity of the connected battery, allowing customisation to meet individual system needs and requirements.

A power supply that will never let you down

The UPS module supports 24V systems and offers an impressive load capacity of up to 40A, making it ideal for a variety of applications. The right choice of power supply will ensure a reliable and safe power supply for your system. The UPS module also has a diagnostic function. If a battery abnormality is detected, the module uses an LED to warn of a fault (red LED) or a discharged battery (yellow LED).

Reliable and safe power supply

The DIN rail module is not only a source of reliable power, but also a device designed with safety and security of your system in mind. Manufactured from the highest quality materials to ensure you get a reliable power supply in any situation. It offers a range of advanced safety features to ensure safe operation even in harsh conditions.
– overload protection
– overvoltage protection
– overheat protection
– over-discharge battery protection
– reverse polarity battery protection.

UPS Architecture: off-line (standby)
Number of phases input: 1 (120V)
Voltage: 24 Volt
Filters / protection: Surge
Filters / protection: Overload
Special functions:
Software:
Environment requirements:

• Working temperature: -30C ~ +70C
• Storage temperature: -40 ~+85
• Working humidity: 20 ~ 90% RH (without condensation)
• Storage humidity: 5 ~ 95% RH (without condensation)

Accessories included:
Color: Silver

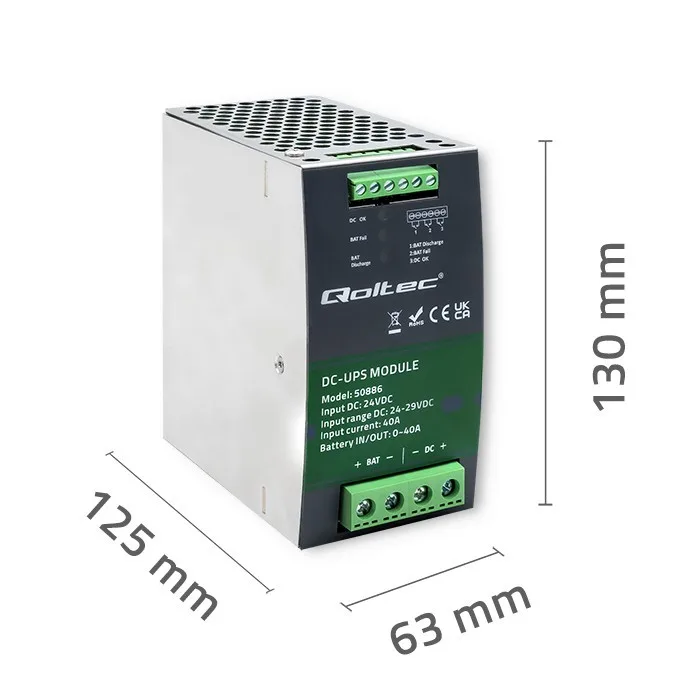

Dimensions:

(D/L x W x H): 130 x 63 x 125mm

Weight: 432 gram
Other features:

Battery capacity: 4AH~135AH

Designation:
