Qoltec Power адаптер CEE 16A 5P 400V for SCHUKO 230V
Qoltec Power адаптер CEE 16A 5P 400V for SCHUKO 230V
Description:

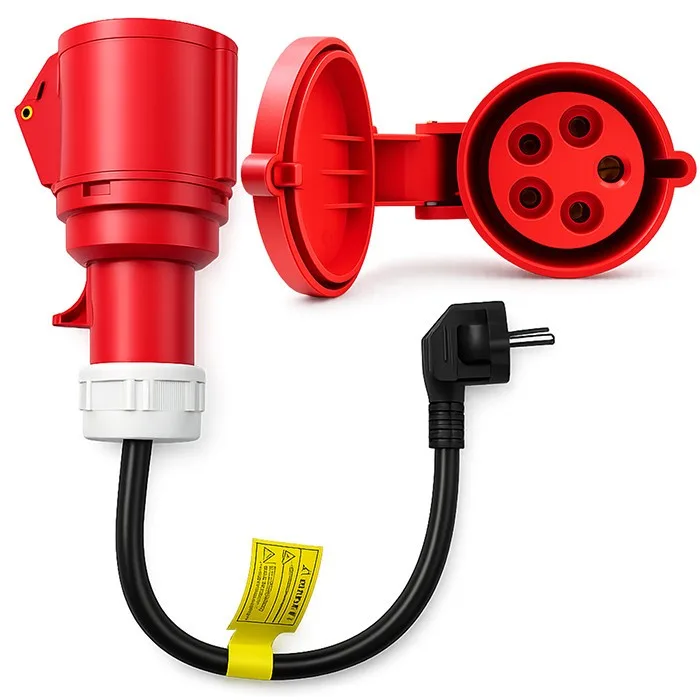

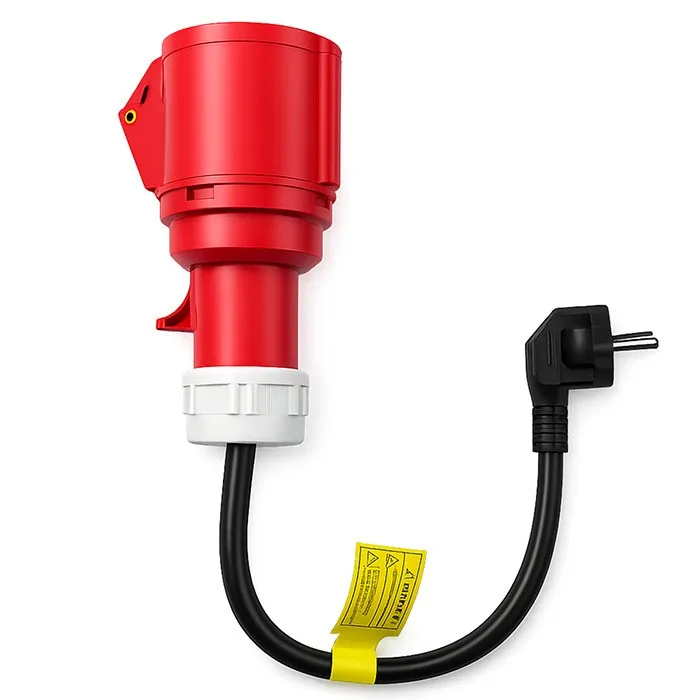

Professional CEE 16A power adapter

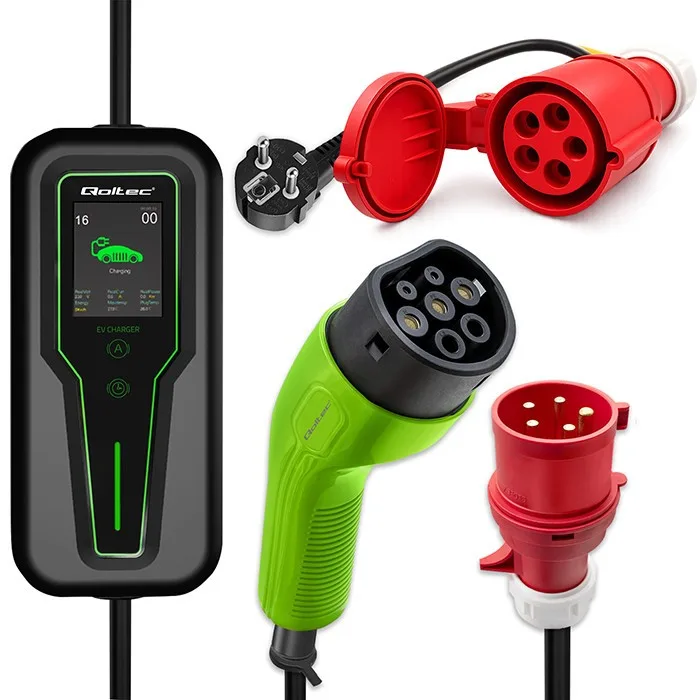

A professional power adapter enabling the power supply of single-phase 230V devices from an industrial 16A three-phase socket. The adapter utilises one phase from a 3-phase installation and provides 230V at the output. This is a practical 400V to 230V adapter designed for technical and workshop applications, as well as for 230V mobile EV chargers. Robust CEE connectors and a 3×2.5 mm cable guarantee stable performance at a maximum load of 16A (3.5 kW).
How to safely use a 16A power adapter?
The adapter must be connected to a serviceable CEE 16A 3P+N+E (400V) socket protected by a suitable overcurrent and residual current circuit breaker. After inserting the CEE plug, ensure that the connection is secure and properly seated. A 230V device can be connected to a SCHUKO socket, bearing in mind that the maximum load must not exceed 16A (3.5 kW). In the case of a mobile EV charger, set the charging current to no higher than 16A. Do not exceed the permissible load or use an adapter with a damaged cable. The adapter does not increase the power of the installation it merely converts the connector type from CEE 16A 400V to 230V SCHUKO.
Where can a CEE 16A adapter for 230V be used?
The adapter is a practical technical solution that enables a safe transition from a 400V power supply to a standard 230V power supply without interfering with the electrical installation.

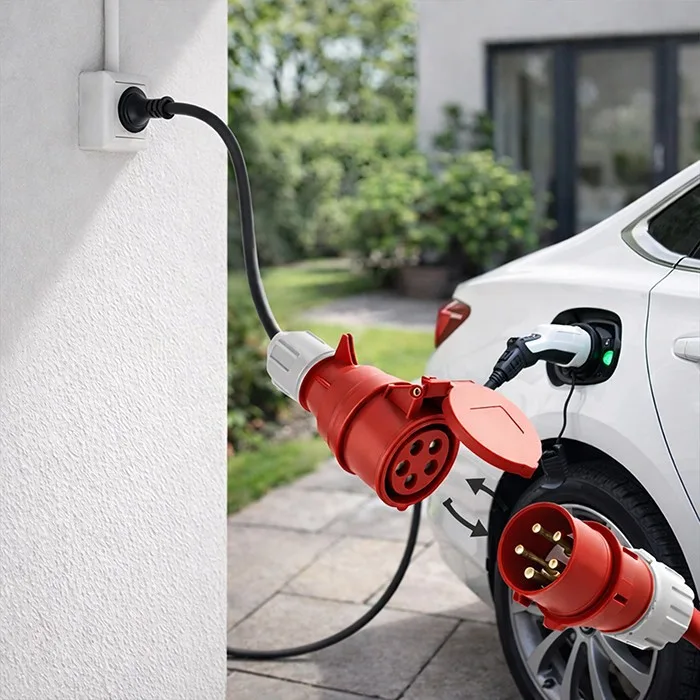

- Mobile single-phase 230V EV chargers
- Power tools and construction equipment
- Service and workshop equipment
- Temporary installations
- Power supply for 230V devices in locations with access only to a 16A power socket
Safe and simple connection

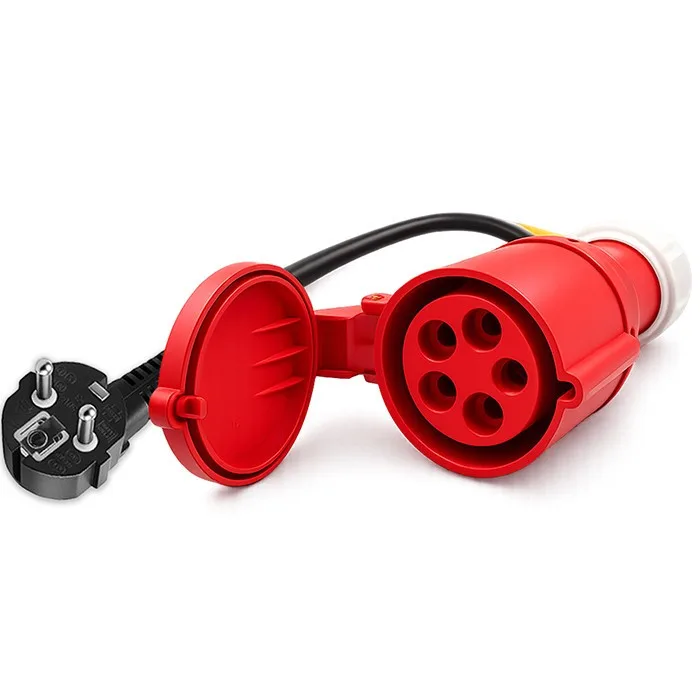

The adapter is equipped with clearly marked connection terminals, which significantly facilitates cable installation. To connect the cable correctly, strip the ends of the wires, insert them into the appropriate marked terminals and tighten the fixing screws securely. The PE protective cable should be connected first. The visible housing with a protective flap additionally protects the contacts from dust and moisture, ensuring durability and safe use of the installation.
- L1, L2, L3 phase wires
- N neutral wire
- PE protective wire (earthing)
When connecting, you should:
1. Strip the ends of the wires.
2. Insert the wires into the appropriate, labelled terminals.
3. Tighten the fixing screws securely.
4. Connect the PE protective conductor first.
13.04 € с ДДС / 25.51 лв.
Времето за доставка е 10 - 12 дни
Налично за предварителни продажби
Qoltec Power адаптер CEE 16A 5P 400V for SCHUKO 230V
Описание:
Professional CEE 16A power adapter
A professional power adapter enabling the захранващ блок of single-phase 230V devices from an industrial 16A three-phase socket. The adapter utilises one phase from a 3-phase installation and provides 230V at the output. This is a practical 400V to 230V adapter designed for technical and workshop applications, as well as for 230V mobile EV chargers. Robust CEE connectors and a 3×2.5 mm cable guarantee stable performance at a maximum load of 16A (3.5 kW).
How to safely use a 16A power adapter?
The adapter must be connected to a serviceable CEE 16A 3P+N+E (400V) socket protected by a suitable overcurrent and residual current circuit breaker. After inserting the CEE plug, ensure that the connection is secure and properly seated. A 230V device can be connected to a SCHUKO socket, bearing in mind that the maximum load must not exceed 16A (3.5 kW). In the case of a mobile EV charger, set the charging current to no higher than 16A. Do not exceed the permissible load or use an adapter with a damaged cable. The adapter does not increase the power of the installation it merely converts the connector Тип from CEE 16A 400V to 230V SCHUKO.
Where can a CEE 16A adapter for 230V be used?
The adapter is a practical technical solution that enables a safe transition from a 400V захранващ блок to a standard 230V захранващ блок without interfering with the electrical installation.
- Mobile single-phase 230V EV chargers
- Power tools and construction equipment
- Service and workshop equipment
- Temporary installations
- захранващ блок for 230V devices in locations with access only to a 16A power socket
Safe and simple connection
The adapter is equipped with clearly marked connection terminals, which significantly facilitates cable installation. To connect the cable correctly, strip the ends of the wires, insert them into the appropriate marked terminals and tighten the fixing screws securely. The PE protective cable should be connected first. The visible housing with a protective flap additionally protects the contacts from dust and moisture, ensuring durability and safe use of the installation.
- L1, L2, L3 phase wires
- N neutral wire
- PE protective wire (earthing)
When connecting, you should:
1. Strip the ends of the wires.
2. Insert the wires into the appropriate, labelled terminals.
3. Tighten the fixing screws securely.
4. Connect the PE protective conductor first.
EAN: 5901878527246
