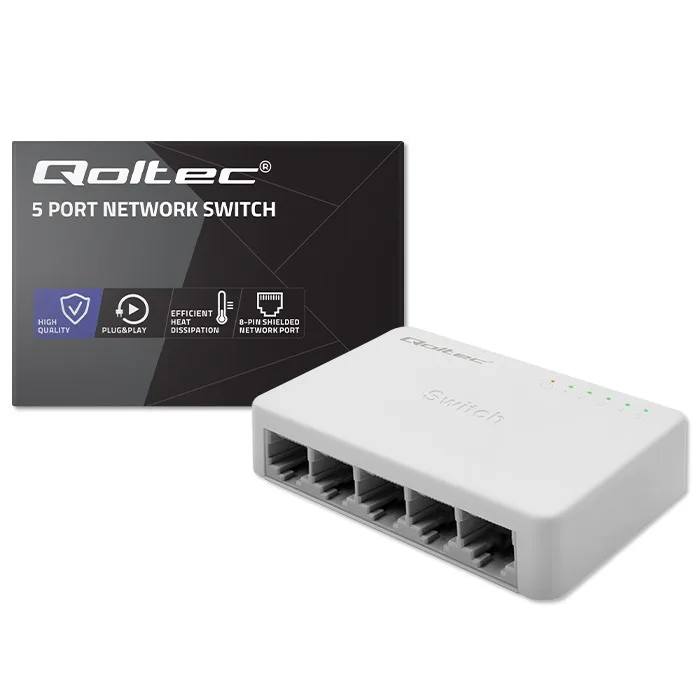

Qoltec Network SWITCH 5xRJ45 port 1000Mbps LAN

Qoltec Network SWITCH 5xRJ45 port 1000Mbps LAN

Description:

Discover the full potential of your network

If you are looking for a reliable and efficient network device that provides you with a stable and fast connection and smooth data transmission, then our switch from Qoltec is the ideal choice. Thanks to its innovative technology and robust design, our device guarantees stable and smooth signal transmission from a single source to up to four devices simultaneously. This functionality allows for an exceptional expansion of the possibilities of use and exploitation of the multimedia system, without the need for additional complex solutions or costly investments in additional equipment. Now you can enjoy your favourite films, video games or presentations on several receivers simultaneously.

Functionality always at hand

Discover new possibilities with the Qoltec device that offers:
– Signal distance up to 150m,
– Equipped with 5 RJ45 ports, each port has an automatic line crossover function,
– 100Mbps at 14880 packets per second, 1000Mbps at 14800 packets per second,
– Enables efficient data exchange in full duplex mode compliant with IEEE802.3X, half duplex data flow control,
– Supports up to 1024 MAC addresses,
– The unit is also distinguished by 8-pin shielded ports to protect against electromagnetic interference, and an efficient heat dissipation system to ensure reliable operation even under intensive loads,
– Has LEDs, which provide information on the current operation of the device.

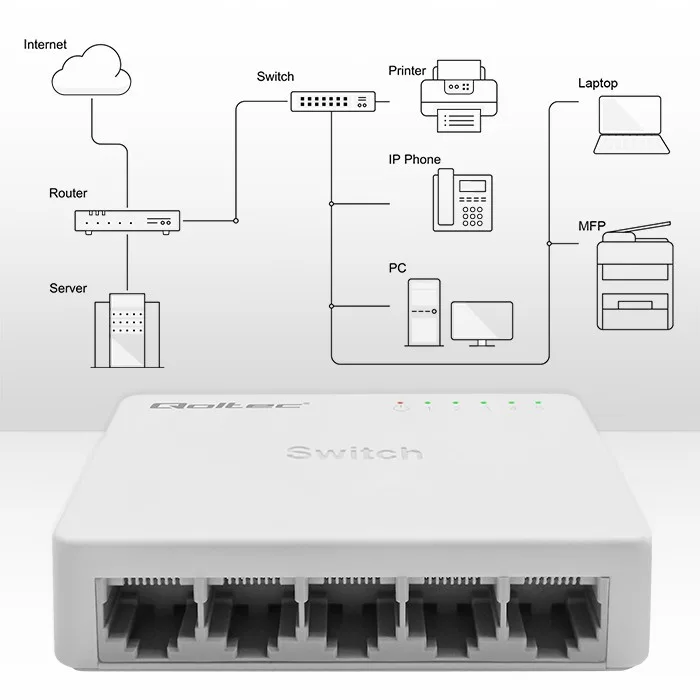

Expand your multimedia capabilities

Our device offers instant and trouble-free installation, thanks to Plug & Play technology, which requires no additional configuration or technical expertise. You only need to follow a few simple steps. Firstly, connect the devices to the appropriate RJ45 ports using the appropriate network cables and then connect one of the ports to your router or access modem. Make sure the LEDs on the switch indicate activity on the ports.

Switch class: Unmanaged
Application: Home and small office
Switch layer: L2
Network architecture: FastEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 5
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of ports 25Gb: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of PoE++ ports: 1
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
SFP28 ports: 1
Number of SFP56 ports: None
Number of QSFP+ ports: None
Number of QSFP28 ports: 1
Console port: No
Forwarding mode: Cut-through
Throughput: 12 Gigabity na sek.
Forwarding rate: 1000 Megabity na sek.
Support for Jumbo frames: No
Stackability: No
VLAN:
Supported protocols and standards:

IEEE802.3X

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Fan : No
Power supply : External
Environment requirements:

Working temperature: -10°C ~ 55

Certificates:

CE

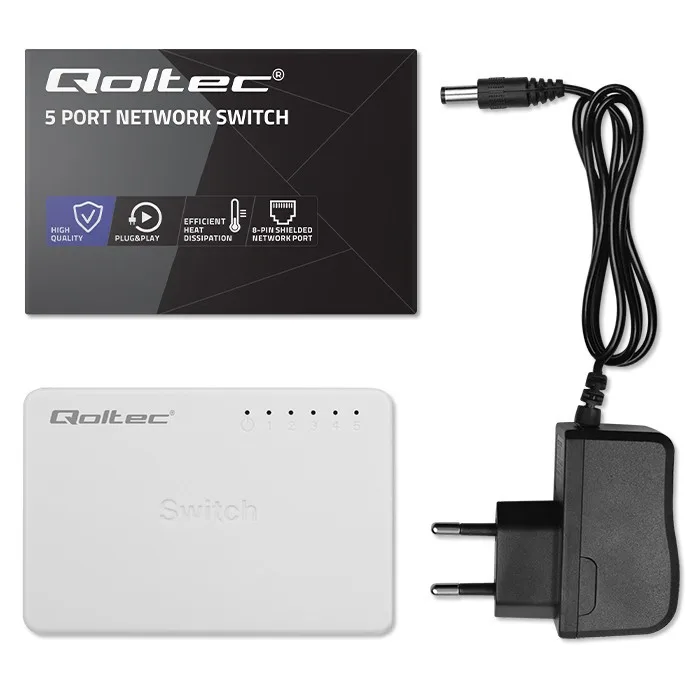

Accessories included:

• 1 x SWITCH
• 1 x Power Adapter
• 1 x User manual

Power supply:

5-12V / 0.6A

Dimensions:

(D/L x W x H): 55 x 85 x 20 mm

Weight: 117 gram
Other features:
Designation:
