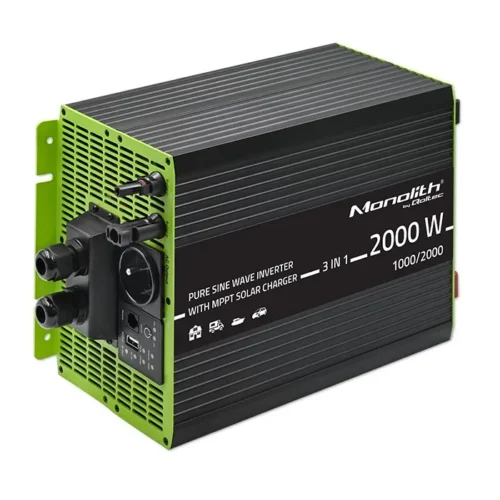

Qoltec 3in1 solar inverter with AC charging funktion

Qoltec 3in1 solar inverter with AC charging funktion

Description:

Inverter with AC Charging Function and MPPT

Inverter with AC charging and MPPT solar charging function, provides optimum performance in combination with both grid and solar panels. MPPT technology guarantees a high efficiency of 97%, maximizing energy production from solar panels. Thanks to the built-in ATS system, the device automatically switches between mains and solar power, ensuring uninterrupted power supply.

Get the most out of MPPT technology

MPPT technology guarantees high efficiency of 97%, Maximizing energy production from solar panels, using the Advanced maximum power point tracking technology. Having this feature significantly affects the efficiency of a photovoltaic installation – can maintain high power output even in low sunlight conditions. In addition, the regulator controls battery operation and the charging process and protects the battery from damage.

Stable Power and Fast Charging from Solar Energy

The inverter generates a pure sine wave, which guarantees stable and safe power supply for sensitive electronic devices. Maximum charging current of 40A from solar panels, provides fast and efficient charging of batteries. The device is Equipped with MC4 connectors for simple and secure integration with solar panels, and USB ports (5V/2.1A), For charging mobile devices. With advanced features and reliable performance, the Monolith 1000W charger is an ideal choice for off-grid systems, emergency power and solar energy optimization.

Your reliable source of energy

– 1000W Inverter generating pure sine wave,
– Dual charging modes: AC and solar MPPT charging,
– Built-in ATS system for automatic switching of power sources,
– 97% efficiency of MPPT solar charger,
– UPS mode for uninterrupted power supply,
– ECO mode to save energy,
– Maximum charging current from PV panels: 40A,

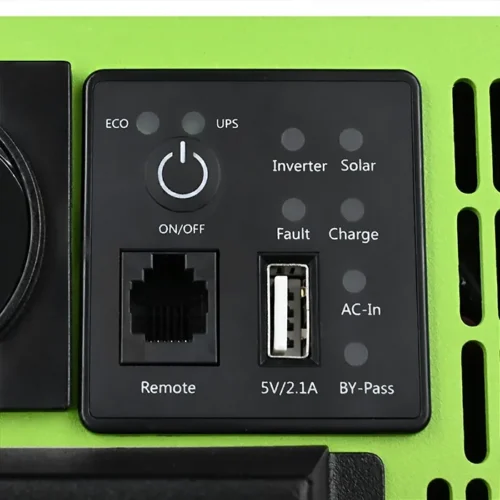

– USB ports: 5V/2.1A charge for mobile devices,
– MC4 connectors for connecting solar panels,
– Built-in grounding For added security.

Advanced 3-stage charging system

The device is equipped with an advanced 3-stage charging system that ensures optimal performance and longer battery life. The three phases of charging include:
– Bulk phase – fast charging, During which the battery is charged with the maximum current.
– Absorption phase – voltage stabilization, to ensure full charge without overcharging.
– Float phase – keeping the battery charged at minimum current, To prevent its discharge.

Safety is our priority

In designing the chargers, we focused primarily on safety and reliability. You can safely and quickly recharge your battery right now. The product has advanced protection features including protection against reverse polarity, overvoltage or overheating. While meeting international safety standards. For complete protection, the charger’s inputs and outputs have been completely isolated.

Advanced security features:
Security UVP – Protection against under-voltage,
Security SCP – is a short circuit protection,
Security OVP – is the protection against too high output voltage,
Security OCP – is the protection against too high current on the line,
Security OTP – is protection against overheating.

Input voltage (max): 12 Volt
Output voltage (max): 230 Volt
Continuous power: 1000 Watt
Instantaneous power: 2000 Watt
Efficiency: 87 Percent
Frequency: 50 Hz
Filters / protection: Circuit
Filters / protection: Thermal
Filters / protection: Voltage drop
Filters / protection: Surge
Filters / protection: Current too high
Accessories included:

• 1 x Pure sine wave inverter

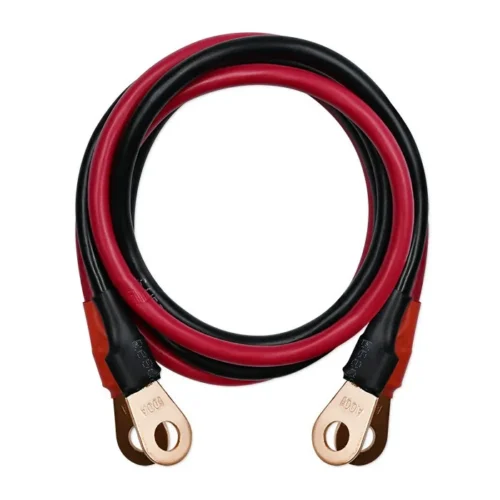

• 1 x Wires
• 1 x User manual

Color: Green
Color: Black
Dimensions:

(D/L x W x H): 220 x 350 x 145 mm

Weight: 5.7 kilogram
Other features:
Designation:
