PowerWalker UPS ON-LINE rack VFI 10000 LICR IOT PF1 10000VA Terminal USB-B RS-232 LCD 4U

PowerWalker UPS ON-LINE rack VFI 10000 LICR IOT PF1 10000VA Terminal USB-B RS-232 LCD 4U

Описание:

Emergency UPS захранващ блок ON-LINE rack VFI 10000 LICR IOT PF1 10000VA USB-B Terminal RS-232 LCD 4U

Space saving and maximum efficiency
We present the latest generation of professional uninterruptible power supplies for 19″ Rack cabinets, equipped with modern lithium iron phosphate (LiFePO4) batteries. These high-performance batteries guarantee exceptional chemical and thermal stability, minimising the risk of overheating and failures. The new models are Съвместим с dedicated 2U Battery Packs. The devices offer integration with IoT systems via the Microsoft Azure cloud and a dedicated mobile application. Thanks to the use of Online topology, they provide the highest level of power protection, while advanced systems maintain a power factor of 1.0, meaning maximum efficiency in utilising stored energy. All UPS status information is available on the built-in LCD display, which enables intuitive device configuration.

Up to 3 times longer backup time
The latest generation of Rack UPS systems uses lithium iron phosphate (LiFePO4) batteries, providing up to three times longer backup time compared to traditional AGM VRLA batteries in ICR models. Thanks to high chemical and thermal stability, the new batteries minimise the risk of overheating and failures, ensuring reliable emergency захранващ блок for electrical and electronic equipment. Resistance to a higher number of charging cycles translates into longer battery life and greater efficiency of the backup power system.

UPS VFI 10000 LICR IOT – uncompromising performance within reach!
The uncompromising performance of our Online UPS systems results from maintaining the Power Factor at the highest possible level of 1.0. This means that almost all power supplied to the device at the input is transferred to the output without energy losses. As a result, the power supplies are exceptionally energy-efficient and effective, while connected devices receive full power support. Additionally, thanks to Online topology, the UPS operates in mains mode with zero switching time (0 ms) to battery power, ensuring uninterrupted delivery of high-quality power to your electrical and electronic equipment, even in the event of a power failure.

Complete security through cloud connection
Thanks to integration with the Microsoft Azure cloud, our UPS systems provide complete power security through remote monitoring and management of the power system from anywhere. All UPS operating data is transmitted to the cloud, providing authorised users with access to real-time information. The dedicated WinPower View mobile application and website enable remote monitoring and basic device configuration, significantly increasing the safety and efficiency of backup power management.

Safety first
Thanks to the use of Online topology, our UPS systems provide the highest output voltage quality, ensuring uninterrupted operation of connected devices. The UPS instantly changes its operating mode, meaning that even the most sensitive equipment will not be affected by sudden power outages, eliminating the risk of failures or damage. Integration with the Microsoft Azure cloud enables secure data transmission, and encrypted communication compliant with GDPR is certified by TÜV Rheinland. The system meets industrial IT cybersecurity standards in accordance with IEC 62443, providing users with complete security and data protection.

Internet of Things (IoT) in your UPS
To fully utilise the capabilities offered by Internet of Things (IoT) technology, simply connect the UPS to a network with Internet access. This can be done in several ways:

Direct connection via RJ-45 cable.
Wireless connection via an optional WLAN module.
Using an optional SNMP module installed in the intelligent slot.

UPS monitoring and management are possible via a website or the WinPower View mobile application, without the need for additional devices. All required components and instructions are included with the uninterruptible захранващ блок.

Convenient operation in the mobile application
Thanks to the dedicated WinPower View mobile application, users gain convenience and full control over connected devices. The application enables continuous monitoring of each UPS and, in the event of a power failure, informs about the remaining battery runtime under the current load. The status of all devices can be viewed in a clear list or pie chart format, with grouping options that simplify the management of multiple UPS units.

Battery test schedule function
The battery test scheduling function allows automated regular checks of the condition of each UPS battery. Users can set the frequency, start time and Тип of test for selected devices, helping to extend battery life and increase efficiency in the event of a power failure. Additionally, each device has an event log that records all status changes. The notification function informs about potential issues through messages in the application or e-mails. The system also allows adding multiple users with different permission levels, from administrators managing the entire system to observers monitoring device status.

Check device status on an elegant LCD screen
The clear, self-dimming LCD display provides an intuitive overview of device operation regardless of lighting conditions. Clear indicators make it easy to read parameters such as output voltage, load level and current operating mode. The built-in buttons below the screen also allow basic hardware configuration, increasing user convenience.

High-performance LiFePO4 Battery Packs in a 2U enclosure
The new UPS systems are Съвместим с high-performance Battery Packs using LiFePO4 technology, housed in 2U enclosures. Battery modules are equipped with an RJ-45 connector for communication with the UPS, and connecting or disconnecting them does not require restarting the device. Once connected, the Battery Pack is automatically detected and displayed in the application, making backup power system management easier.

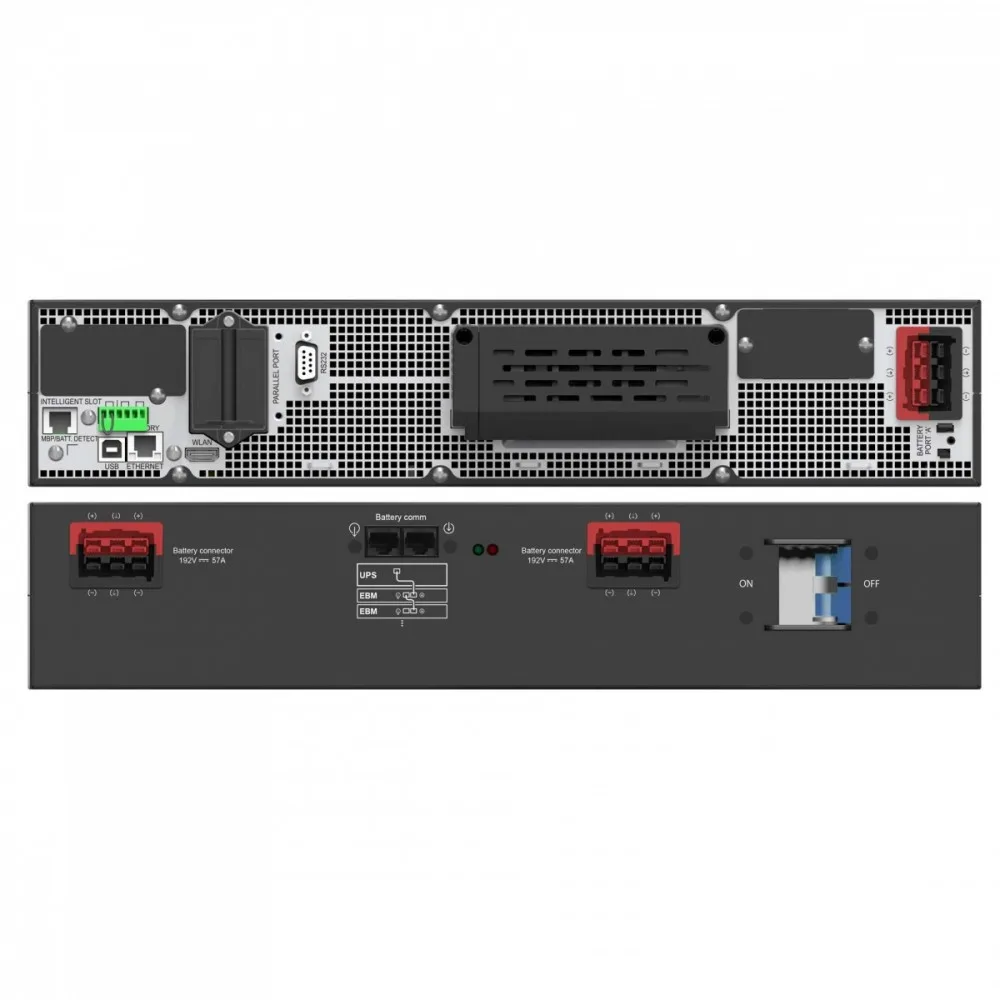

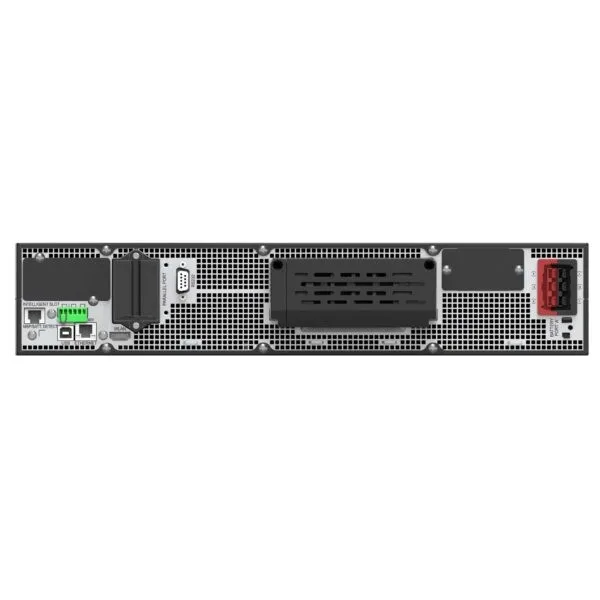

The presented VFI 10000 LICR IOT PF1 set with a total mounting height of 4U includes an empty UPS VFI 10000 LICRE IOT PF1 2U and a separate Battery Pack 10134077 – also with a height of 2U.

EAN: 4260074985238
