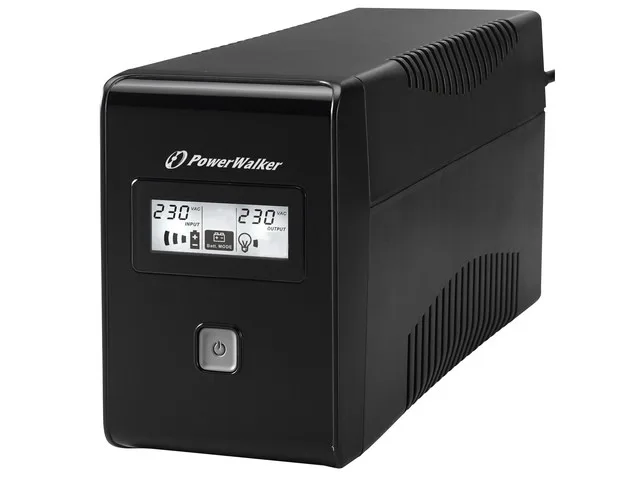

PowerWalker UPS line-interactive 650VA 2X 230V PL OUT, RJ11 IN/OUT, LCD

PowerWalker UPS line-interactive 650VA 2X 230V PL OUT, RJ11 IN/OUT, LCD

Description:

PowerWalker VI 650 LCD provides comprehensive protection and high power density in small and economic package. Compared to tr aditional UP towers of the same size, this UPS is more compact and offers greater comprehensive power protection against surges and spikes. Equipped with a voltage stabilizer, this UPS will continue providing clean and stable power to connected equipment and is perfect for any home or small office application.

– 650VA Line-Interactive UPS

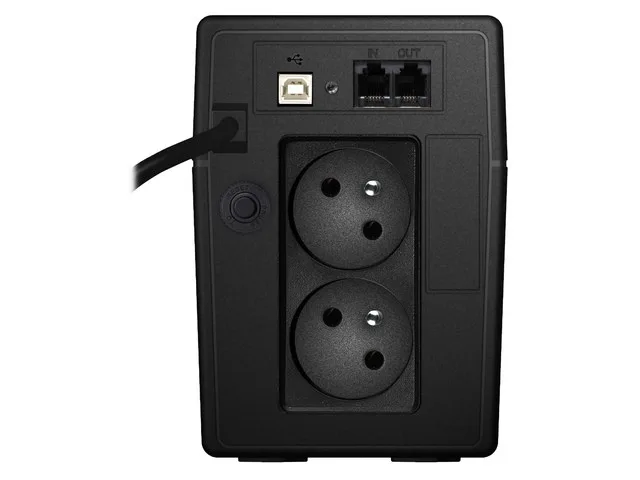

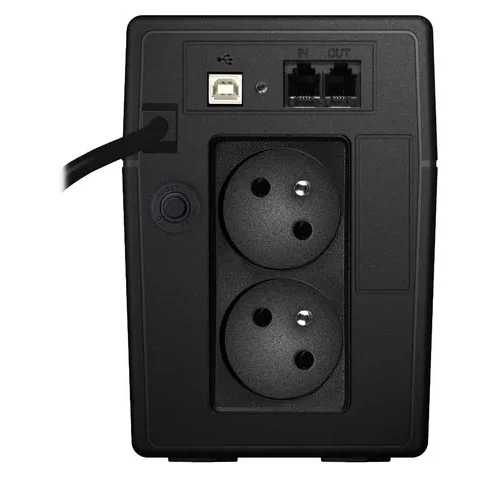

– 2x French Outlet, RJ-11 (in/out)
– USB Connection for monitoring

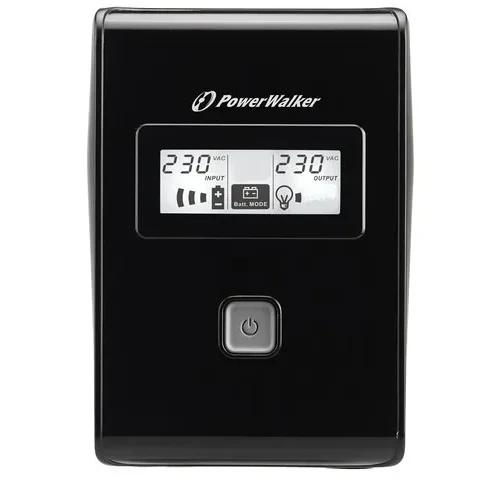

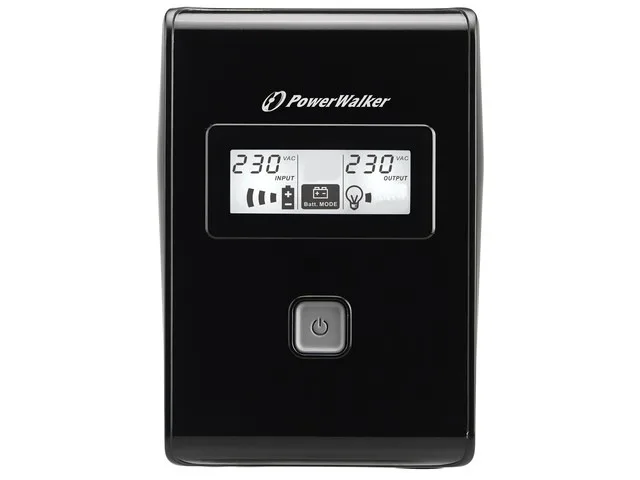

– LCD display to show UPS status
– Cold DC start and AVR function

Datasheet: http://www.powerwalker.com/datasheet/Line-Interactive/PowerWalker%20VI%20650%20LCD-FR.pdf

Apparent power: 650 VA
Active power: 360 Watt
UPS Architecture: line-interactive
Number of phases input: 1 (230V)
No. of batteries: 1
Voltage: 12 Volt
Battery capacity: 7 Ah
Transfer time (max): 6 millisecond
Charging time: 4 Hour
Chassis type: Tower
Filters / protection: Overdischarge
Filters / protection: Data line
Filters / protection: Circuit
Filters / protection: Overcharging
Filters / protection: Thermal
Special functions:

– Super smart charger to shorten charging time
– Built-in boost and buck AVR
– Simulated sine wave
– Auto restart while AC is recovering
– Off-mode charging
– Cold start function
– USB communication port
– RJ-11 surge protection
– Monitoring software included
– LCD display for status view

Software:

ViewPower

Input power ports:
Output power ports: 2 x C/E type
Connectors: 1 x USB (Typ B)
Connectors: RJ-11
Environment requirements:

Environment:
Temperature 0°C40°C
Humidity 090 % (non-condensing)

Accessories included:

– UPS PowerWalker VI 650 LCD
– USB Cable
– Software CD
– Manual

Color: Black
Dimensions:

287 x 100 x 142 mm

Weight: 4.3 kilogram
Other features:

– Power: 360W
– Input voltage: 220/230 / 240VAC
– Voltage range: 160-290VAC
– Output voltage: 220/230 / 240VAC 10%, 50 / 60Hz + -1Hz
