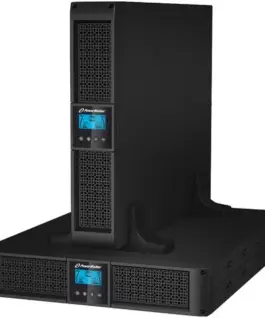

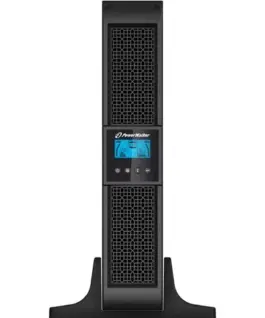

PowerWalker UPS LINE-INTERACTIVE 1000VA 4X IEC OUT, RJ11/RJ45 IN./OUT, USB/RS-232, LCD, RACK 19

PowerWalker UPS LINE-INTERACTIVE 1000VA 4X IEC OUT, RJ11/RJ45 IN./OUT, USB/RS-232, LCD, RACK 19

Description:

Power Walker VI 1000E / RT HID LCD is an advanced Line-Interactive UPS characterized by a pure sine wave and high output power factor 0.9.

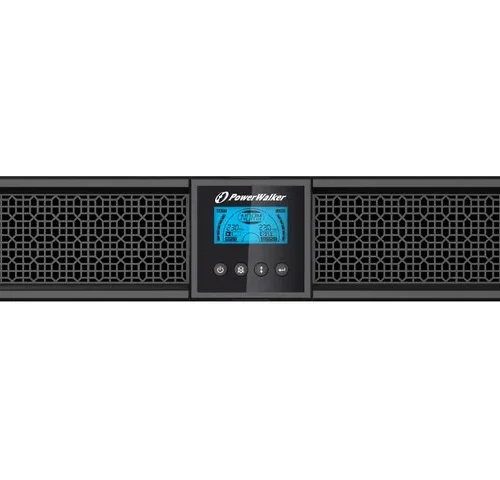

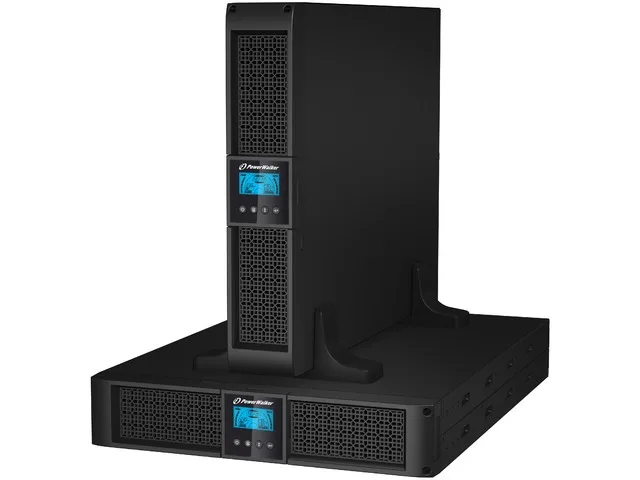

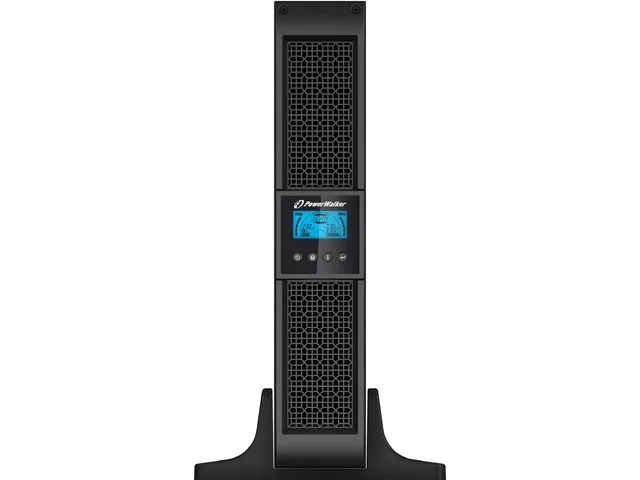

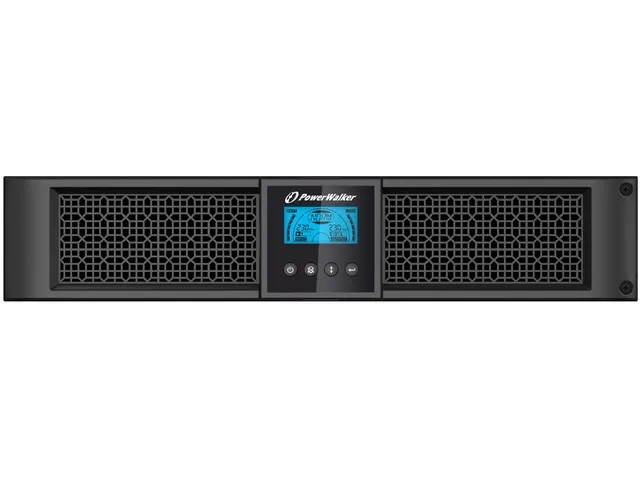

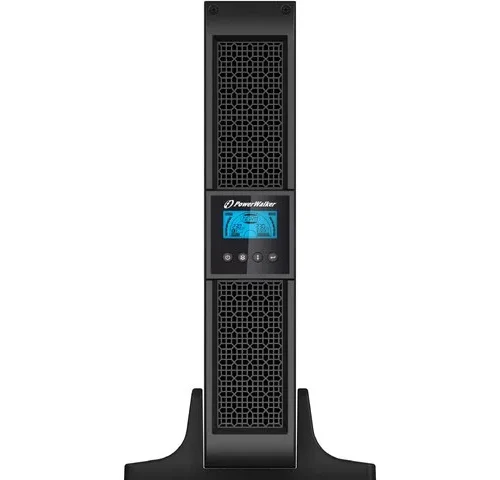

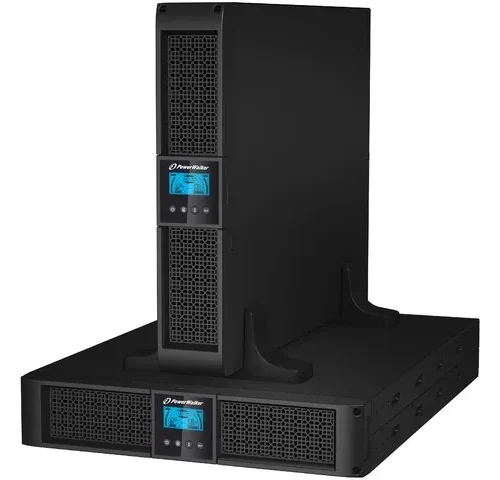

It offers full protection for servers, switches, telephone exchanges, IP cameras, also suitable for industrial applications. Its height is only 2U. UPS can be installed in a 19 “rack (ear mounting kit), also has a base for installation in vertical position (Tower). HID is the primary driver for monitoring the status of devices used for years on Windows, Mac OS, Linux. USB HID allows communication with connected devices without installing additional software. to manage the emergency power supply options are used emergency power supply in the operating system menu, thanks to desktop behaves like a laptop that is connected to the battery. this series is the best choice for devices that do not have the ability to install additional software eg. US, some digital recorders, photo kiosks and ATMs.

Features:
– 1000VA Line-Interactive UPS Tower / 19 “rack, MBS, ATS
– Pure sine wave output power factor of 0.9
– 4x IEC C13 RJ-11 / RJ-45 (in / out)
– Built-in LCD display, the ability to change the display orientation (vertical / horizontal)
– Error messages on the display – blue, red, red blinking – depending on the status of UPS
– Automatic diagnostic system UPS
– Short charging time
– Integrated voltage stabilization AVR
– Automatic restart after power is restored
– Charging mode off
– The “cold start”
– Communication port USB / RS-232
– Software to monitor UPS operation – WinPower Software – in Polish
– Surge Protection RJ-11 / RJ-45
– Energy saving function (the ability to disable the software)
– USB HID

Apparent power: 1000 VA
Active power: 900 Watt
UPS Architecture: line-interactive
Number of phases input: 1 (230V)
No. of batteries: 2
Voltage: 12 Volt
Hold-up time (maks): 13 millisecond
Transfer time (max): 6 millisecond
Backup time (100% load): 3 Minute
Charging time: 8 Hour
Chassis type: Rack
Filters / protection: Surge
Special functions:
Software:

Software: WinPower
– Ability to control and monitor multiple UPS units to the local network and the Internet
– Charts power analysis, event statistics, export data history
– Chart UPS unit data in real time (voltage, frequency, load level, battery level)
– Safe shutdown of the system and data protection against power failure
– Notifications using the system sounds, e-mail, SMS, to all computers on the LAN
– Schedule on / off, battery test, programmable control socket, control audible alarms.
– Access protection with password, remote access and management
– Multi-language support: English, Chinese, French, German, Spanish, Russian, Portuguese, Ukrainian, Italian, Polish, Czech, Turkish
– Operating system: Windows / MAC / Linux / Unix / Solaris / AJX / HP–UX / FreeBSD details at: – http://www.powerwalker.com/winpower.html

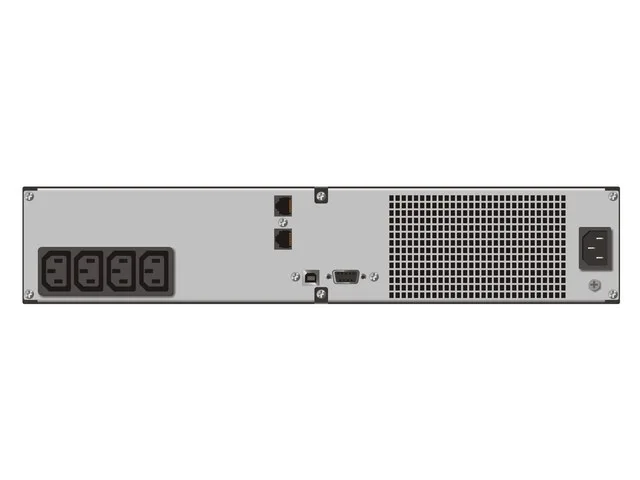

Input power ports: IEC-C14
Output power ports: 4 x IEC-C13
I/O connectors: 1 x RS-232 (COM)
I/O connectors: 1 x USB (Type B)
I/O connectors: 2 x RJ-11/RJ-45
Environment requirements:

– Operating temperature: 0 – 40 &#176, C
– Recommended humidity: 20 – 80%

Accessories included:
Optional accessory:
Color: Black
Dimensions:

436 x 438 x 86.5 mm
