PowerWalker UPS Line-In 3000VA 4X230V PL USB-B

PowerWalker UPS Line-In 3000VA 4X230V PL USB-B

Description:

The PowerWalker Basic VI 600/800/1000/1500/2200/3000 STL series is designed to meet basic market needs. This line-interactive UPS protects the load from power failures and voltage disturbances. It is equipped with a USB port with HID support (allowing easy and instant communication with any OS).

The front panel offers an advanced multi-function button (a single click will illuminate the LCD panel, a double click will silence the alarm and a long press will control the output).

Product features:

• Human Interface Device (HID) support
• Multifunction button (single click, double click or hold to control different functions)
• Equipped with Boost and Buck (AVR) functions
• Cold start (DC) function
• Auto-Dimming screenUPS is woken up by a single button)
• Low self-power consumption in normal mode – ECO function

Apparent power: 3000 VA
Active power: 1800 Watt
UPS Architecture: line-interactive
The shape of the output voltage: Full sine wave
Number of phases input: 1 (230V)
No. of batteries: 4
Voltage: 12 Volt
Battery capacity: 7 Ah
Transfer time (max): 10 millisecond
Backup time (100% load): 1 Minute
Charging time: 8 Hour
Chassis type: Tower
Special functions:

• Automatic voltage regulation (AVR)
• LCD operation indication
• Audible alarms
• Cold start

Software:

PowerMaster

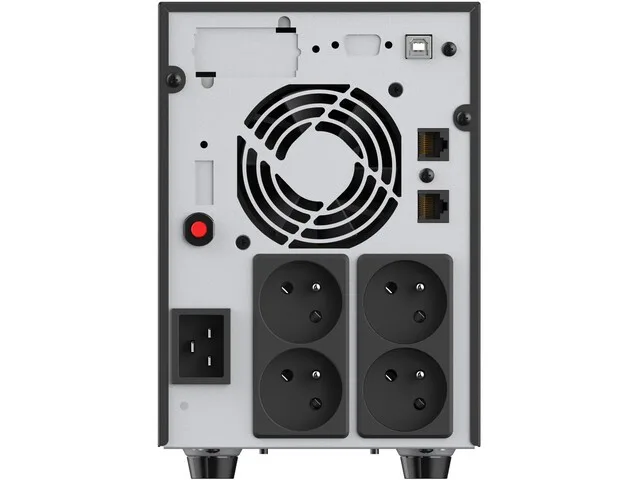

Output power ports: 4 x C/E type
I/O connectors: 2 x RJ-45 LAN
I/O connectors: 1 x USB (Type B)
Environment requirements:

• Recommended ambient temperature: 0 – 40 °C
• Recommended ambient humidity: 0 – 90 %

Accessories included:

• Emergency power supply
• Power cable
• Operating instructions

Color: Black
Dimensions:

394 x 151 x 225 mm

Weight: 18.1 kilogram
Other features:

• Implementation technology: VI
• PowerFactor: 0.6
• Input frequency range: 50 – 60 Hz
• Output frequency: 60 Hz
• Noise level: 45 dB
• Supported operating systems: Windows 8, Windows 7, Windows 11, Windows 10
• Protection class: IP20
