Description:

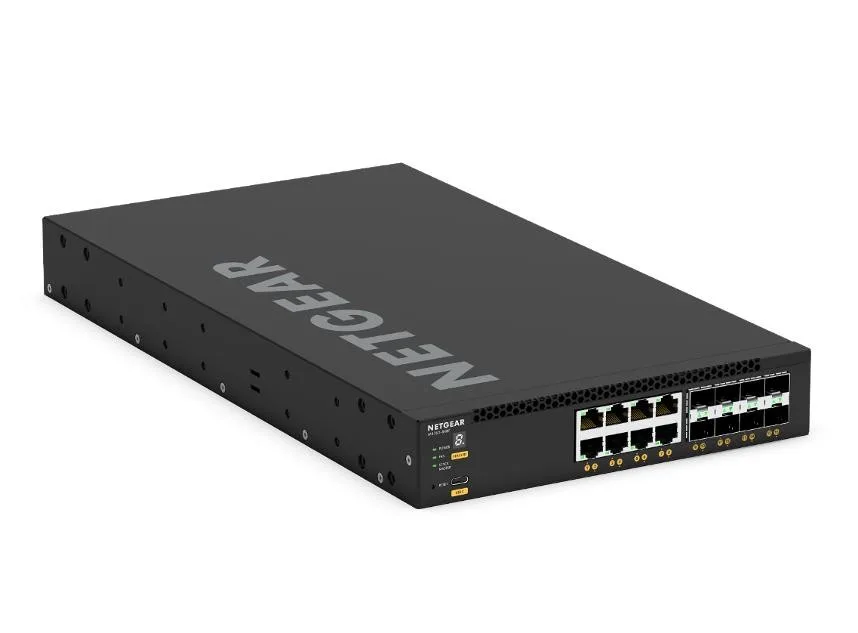

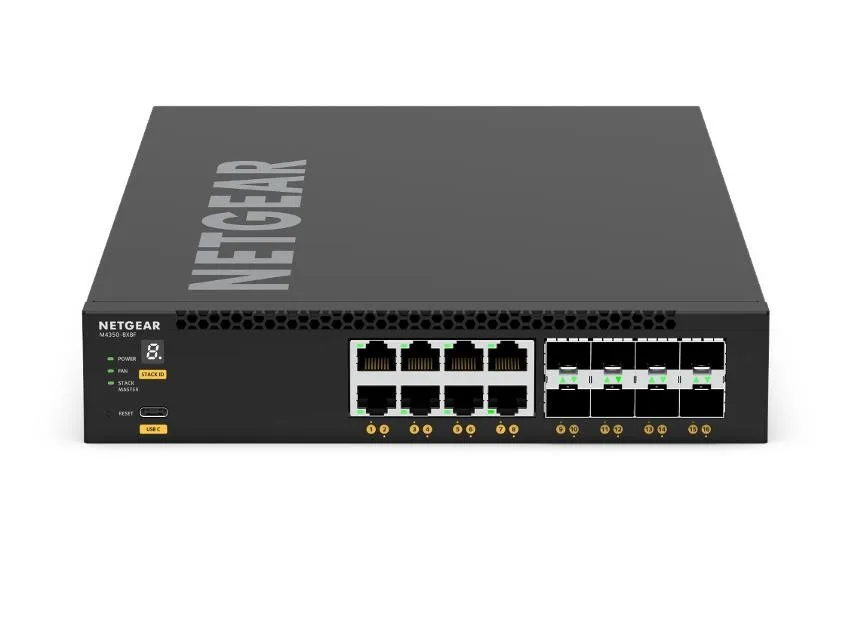

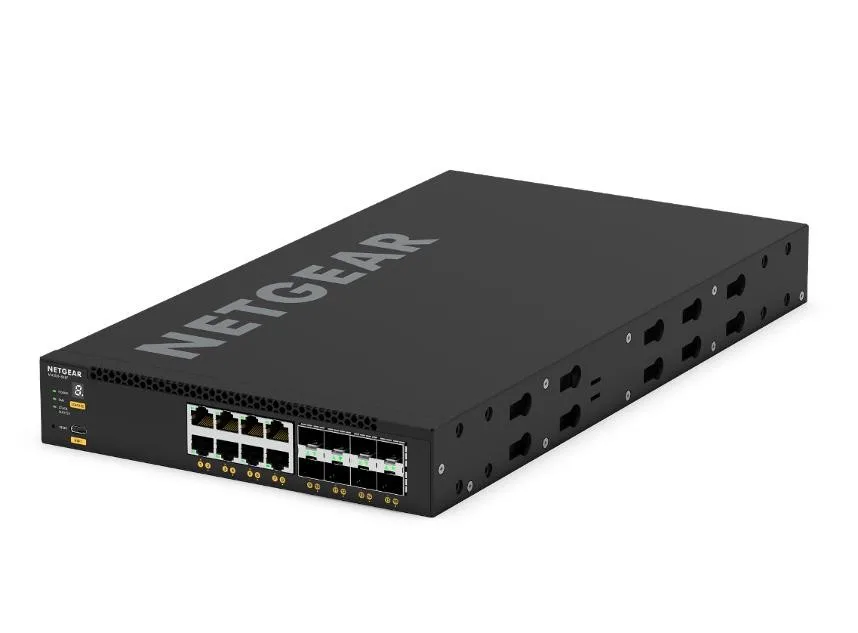

8 x 10G/Multi-Gig and 8 x SFP+ Managed Switch (XSM4316)

• 8 10G/Multi-Gig ports and 8 10GBASE-X SFP+ ports
• Internal 240W power supply
• Half-width enclosure allows one or two switches to be used in one location in a server rack for redundant upper rack space
• Stacking virtual enclosures ensures non-stop forwarding (NSF) and error-free failover
• The Layer 3 feature set includes static, policy-based, and dynamic routing
• NETGEAR IGMP Plus, AV UI and Enable Controller speed up AV installation
• NETGEAR ProSAFE Limited Lifetime Hardware Warranty
• Lifetime next business day hardware replacement service

Power and bandwidth

Stackable platform from one Gigabit to 100 Gigabit, all in a range of 15.75 inches (40 cm) deep.

A groundbreaking AV graphical interface

The simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an instant

NETGEAR IGMP Plus provides multicast functionality out of the box for most AV over IP applications.

Elegant, quiet design

Less fan noise and mounting lugs included for rack mounting.

Automatic configuration

Auto-trunk and auto-LAG feature automatically connects to other M4350 (and M4250) switches.

Fast, easy setup for AV professionals

The simplified interface allows you to assign default AV settings or user-defined AV profiles to individual ports in just a few clicks.

Focus on the event, not the noise of the fan

Most models have a silent mode that significantly reduces fan noise.

Designed for AV OVER IP right out of the box

With built-in NETGEAR IGMP Plus, no configuration is required to ensure seamless video streaming over IP. Enable multicasting right out of the box.

Switch class: Managed
Application: Home and small office
Switch layer: L3
Network architecture: GigabitEthernet
Number of 10Gb ports: 16
Number of PoE ports (PoE & PoE+): None
Number of SFP+ ports: 8
Console port: Yes
Forwarding mode: Store-and-forward
Throughput: 320 Gigabity na sek.
Forwarding rate: 238.08 Mpps
Packet buffer: 32 MegaBajt
MAC address table size: 16000
Support for Jumbo frames: Yes
Jumbo frame size: 12 Kilobajt
Stackability: Yes
Number of VLAN groups: 4000
VLAN:

• Static
• Dynamic
• Voice
• MAC
• GVRP/GMRP
• Double VLAN mode
• Private VLANs

Supported protocols and standards:
QoS:

Auto-VoIP

Access Lists:

• L2 MAC, L3 IP and L4 Port ACLs
• Ingress
• Egress
• Time-based
• 802.3ad (LAG) for ACL assignment
• Binding ACLs to VLANs
• ACL Logging
• Support for IPv6 fields

DiffServ QoS:

• Edge Node applicability
• Interior Node applicability
• 802.3ad (LAG) for service interface
• Support for IPv6 fields
• Ingress/Egress

EEE 802.1p COS:

• 802.3ad (LAG) for COS configuration
• WRED (Weighted Deficit Round Robin)
• Strict Priority queue technology

Single Rate Policing:

• Committed Information Rate
• Committed Burst Size
• Excessive Burst Size
• DiffServ feature applied to class ma

Security:

• Successive Tiering (DOT1X, MAB, Captive Portal)
• DHCP Snooping
• Dynamic ARP Inspection
• IP Source Guard
• Network Storm Protection, DoS
• Broadcast, Unicast, Multicast DoS Protection
• Denial of Service Protection (control plane)
• Denial of Service Protection (data plane)
• DoS Attacks Protection
• CPU Rate Limiting
• ICMP throttling

Management, monitoring, configuration:

• Management ACL (MACAL), Max Rules: 64
• Out of band Management
• Radius accounting
• TACACS+
• Malicious Code Detection

L2 features:

• IEEE 802.1Q VLAN Tagging
• Auto-Trunk
• Protocol Based VLANs: IP subnet, ARP, IPX
• Subnet based VLANs
• MAC based VLANs
• Voice VLAN
• Private Edge VLAN
• Private VLAN
• IEEE 802.1x
• Guest VLAN
• RADIUS based VLAN assignment via .1x
• RADIUS based Filter ID assignment via .1x
• MAC-based .1x
• Unauthenticated VLAN
• Double VLAN Tagging
• Enabling dvlan-tunnel makes interface
• Global ethertype (TPID)
• Interface ethertype (TPID)
• Customer ID using PVID
• GARP with GVRP/GMRP
• Multiple Registration Protocol (MRP)
• Multicast VLAN Registration Protocol (MVRP)
• MVR (Multicast VLAN registration)

L3 features:

L3 Services – Multicast Routing:

• IGMP Proxy
• MLD Proxy
• Any Source Multicast (ASM)
• Source Specific Multicast (SSM)
• Multicast streams routing between subnets, VLANs
• Multicast static routes (IPv4, IPv6)
• Neighbor discovery
• PIM-DM (Multicast Routing – dense mode)
• PIM-DM (IPv6)
• PIM-SM (Multicast Routing – sparse mode)
• PIM-SM (IPv6)
• PIM multi-hop RP support
• PIM Timer Accuracy
• PIM-SM Unhandled Events
• IPMC replication (hardware support)

L3 Services – DHCP:

• DHCP IPv4 / DHCP IPv6 Client
• DHCP IPv4 / DHCP IPv6 Server (Stateless, Stateful)
• DHCP Snooping IPv4 / IPv6
• BootP Relay IPv4 / IPv6
• DHCP Relay IPv4 / IPv6
• DHCP Relay Option 82 circuit-id and remote-id for VLANs
• Multiple Helper IPs
• Auto Install (DHCP options 66, 67, 150 and 55, 125)

L3 Services – Routing:

• Static Routing / ECMP Static Routing IPv4/IPv6
• Multiple next hops to a given destination
• Load sharing, Redundancy
• Default routes
• Static Reject routes
• Port Based Routing
• VLAN Routing
• 802.3ad (LAG) for router port
• VRRP IPv4
• Pingable VRRP interface
• VRRP Route/Interface Tracking
• Loopback Interfaces
• Tunnel interfaces IPv4 / IPv6
• Configured 6to4 tunnels
• Automatic 6to4 tunnels
• 6to4 Border Router
• RIP IPv4
• RIPv1/RIPv2
• Route Redistribution

Other functions:
Chassis type: Rack
Fan : Yes
Power supply : Internal
Power consumption: 240 Watt
Environment requirements:

• Ambient temperature during operation: 0° – 50°C
• Ambient humidity during operation: 90% relative humidity, non-condensing
• Storage temperature: – 20° – 70°C
• Storage humidity: 95% relative humidity, non-condensing

Certificates:

• CE: EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014,
• Class A, EN 61000-3-3:2013, EN 55024:2010
• VCCI : VCCI-CISPR 32:2016, Class A
• RCM: AS/NZS CISPR 32:2013 Class A
• CCC: GB4943.1-2011, YD/T993-1998, GB/T9254-2008 (Class A)
• FCC: 47 CFR FCC Part 15, Class A, ANSI C63.4:2014
• ISED: ICES-003:2016 Issue 6, Class A, ANSI C63.4:2014
• BSMI: CNS 13438 Class A
• CB report / certificate IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
• UL listed (UL 1950)/cUL IEC 950/EN 60950
• CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
• RCM (AS/NZS) 60950.1:2015
• CCC (China Compulsory Certificate): GB4943.1-2011, YD/T993-1998, GB/T9254-2008 (Class A)
• BSMI: CNS 14336-1

Accessories included:

• M4350-8X8F Switch (XSM4316)
• Power cord
• USB Type-C Console Cable
• A set of standard brackets for mounting in a server rack
• Set of longer brackets for flush mounting
• 2 x Switch pairing kit for two M4350 half-width switches in one rack
• 4 x Rubber footrests for mounting on the table top
• Installation Guide

Power supply:
Dimensions:

220 x 43.2 x 400 mm

Weight: 4.05 kilogram
Other features:

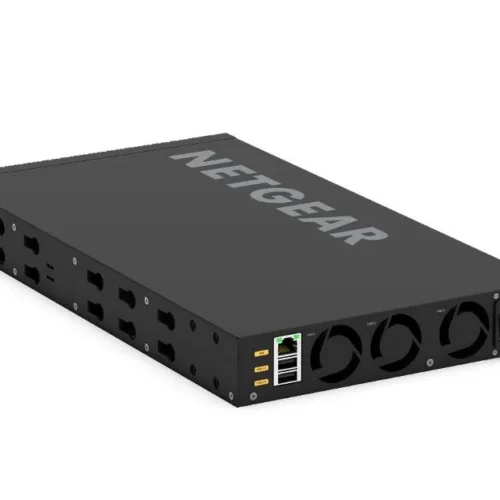

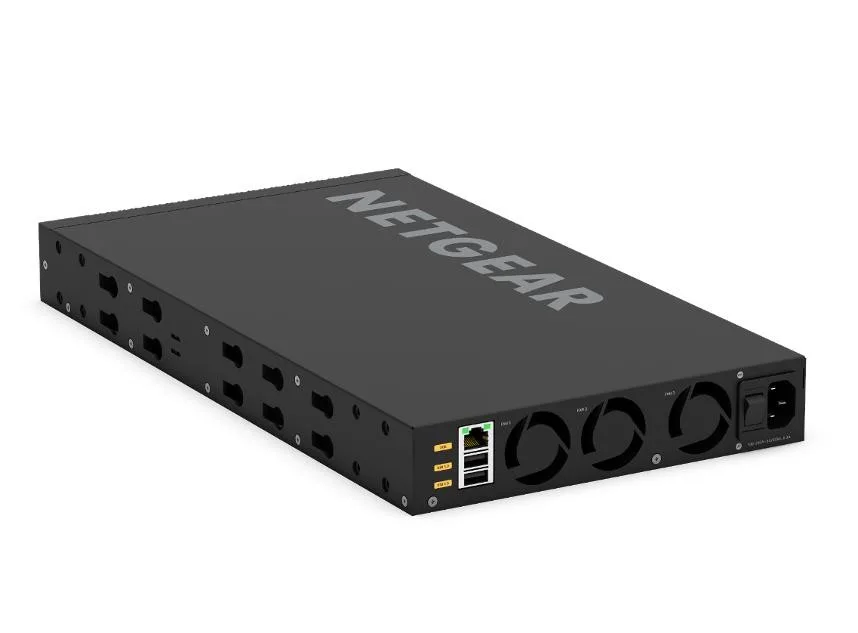

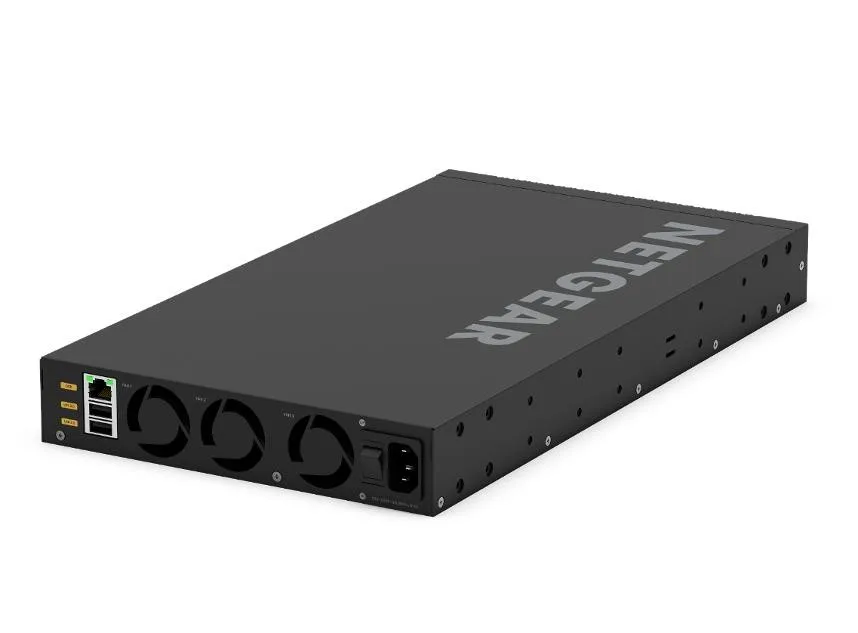

Management ports:

• RJ-45
• USB-C console port
• 2 x USB-A
