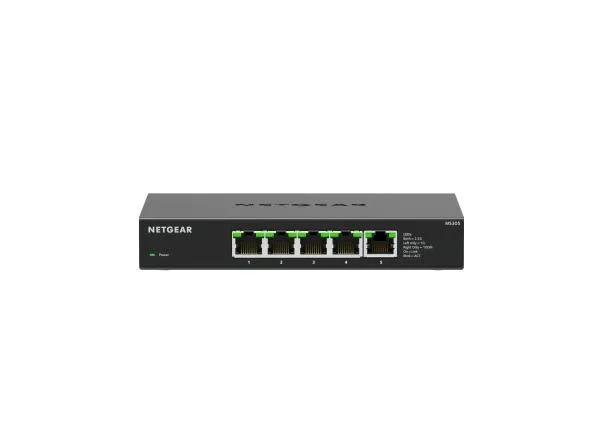

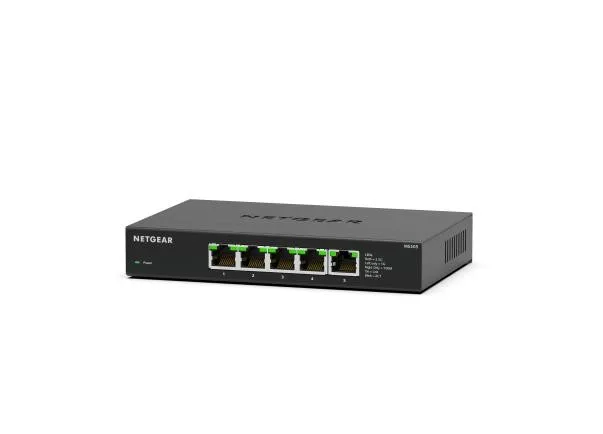

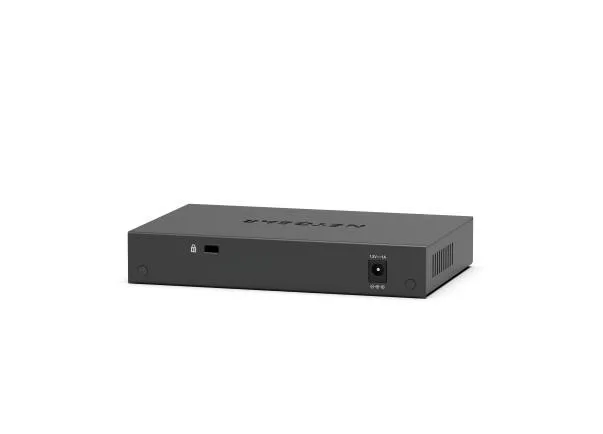

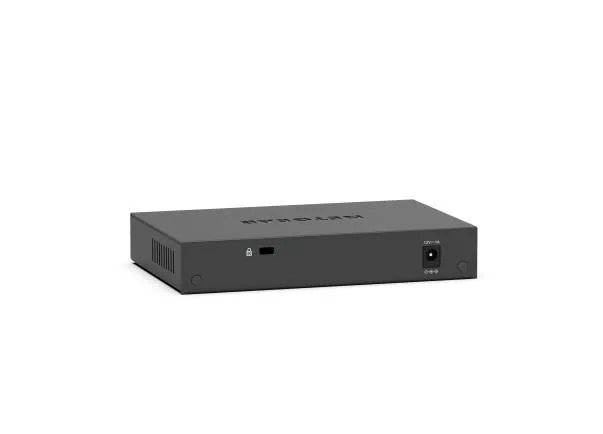

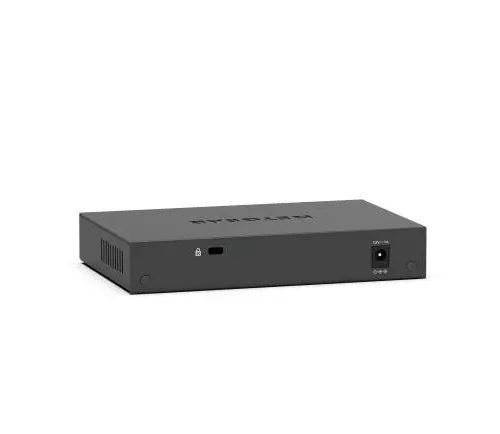

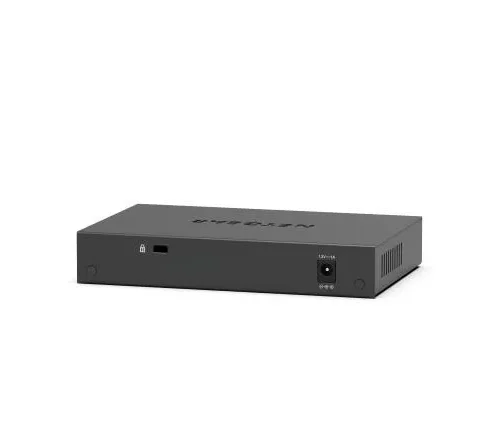

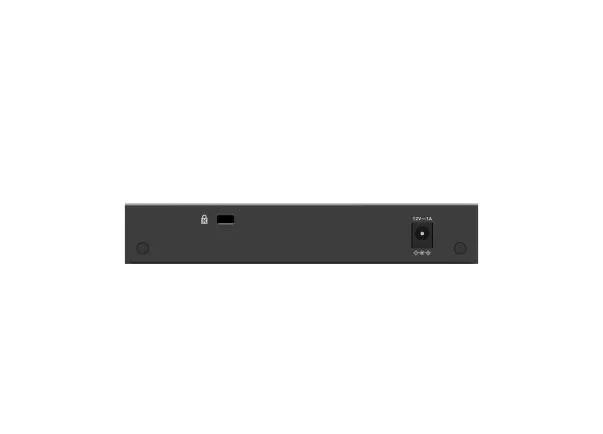

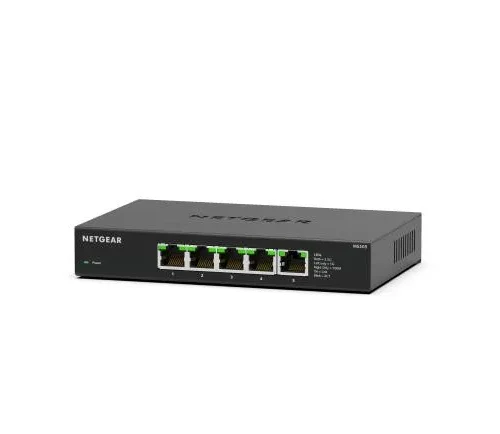

Netgear Switch MS305 5×2.5GE

Netgear Switch MS305 5×2.5GE

Description:

MS305 NETGEAR 5-Port Multi-Gigabit Ethernet 2.5G Unmanaged Switch

The NETGEAR MS305 5-Port Unmanaged Multi-Gigabit Switch helps businesses cost-effectively expand their network at multiple speeds. The MS305 Multi-Gigabit Ethernet Switch features five 2.5G ports in a metal housing and can be placed on a desk or mounted on a wall with the included wall mount kit. This switch is energy efficient, built to last, and thoroughly tested for the reliability businesses need. 801.2p traffic prioritization and jumbo frame support allow seamless integration into more complex networks.

Reliable performance

Superior non-blocking network performance delivers true Multi-Gig speed without compromise

Energy saving

Energy Efficient Ethernet standard (IEEE 802.3az) that reduces power consumption when there is light traffic on an active port or when no link or activity is detected

Plug-and-Play

No software to install. Configuration is not needed. No maintenance required

Quiet operation

Fanless design means no noise, making it ideal for noise-sensitive environments

Versatile mounting options

Install the switch on a desktop or mount it on a wall using the mounting hardware provided in the package

Switch class: Unmanaged
Application: Home and small office
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: None
10/100/1000/2500 Mbps ports: 5
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Throughput: 25 Gigabity na sek.
Packet buffer: 1 MegaBajt
MAC address table size: 16000
Support for Jumbo frames: Yes
Jumbo frame size: 9.72 Kilobajt
Stackability: No
VLAN:
Supported protocols and standards:

• IEEE 802.3 Ethernet
• IEEE 802.3bz 2.5GBASE-T
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.1p Priority
• IEEE 802.3az Energy Efficient Ethernet (deactivated by default)
• IEEE 802.3 CSMA/CD
• IEEE 802.3x Full-duplex Flow Control

QoS:

• 802.1p-based QoS/CoS Supported
• Honors DSCP (DiffServ) Tags

Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Fan : No
Power supply : External
Power consumption: 9.24 Watt
Mean time between failures (MTBF): 1401743 Hour
Accessories included:
Power supply:

12V/1.0A

Dimensions:

158 x 101 x 29 mm

Weight: 0.48 kilogram
Environment requirements:

• Operating temperature: 0° to 40°C
• Operating humidity (RH): 90% maximum relative humidity (RH), non-condensing
• Working altitude: maximum 3000 m
• Storage temperature: -20° to 70°C
• Storage humidity (RH): 95% of maximum relative humidity (RH), non-condensing
• Storage altitude: 3000 m

Certificates:

• Electromagnetic certifications and compliance: CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM
• Safety certificates: CB, CSA, CCC, BSMI, RCM, CE LVD

Other features:
Designation:
