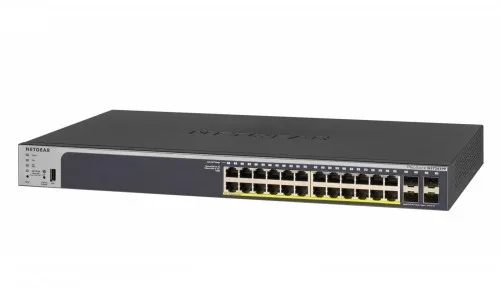

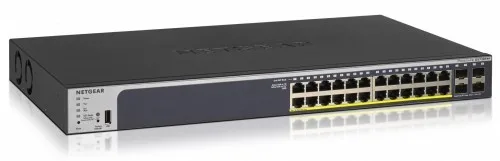

Netgear GS728TPP Smart Switch 24xGE PoE+ 4xSFP

Netgear GS728TPP Smart Switch 24xGE PoE+ 4xSFP

Description:

GS728TPP Smart Switch

NETGEAR Smart Switches offer powerful L2, L2+, PoE, improved performance and usability. They are specially designed for converged networks, in which voice, video and data are transmitted via a single network platform. These switches are optimized for maximum efficiency, operational cost savings and ease of management. The Smart series of switches offers configurations from 8 to 52 ports, both in Fast Ethernet and Gigabit Ethernet options with PoE technology. All switches are supplied with Gigabit SFP ports, which enables the establishment of high-speed fiber optic connections. These switches are ideal for companies looking for the best combination of features, performance and value.

Switch class: SMART
Application: Medium and large companies
Switch layer: L2
Switch layer: L3
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 24
Number of PoE ports (PoE & PoE+): 24
Number of SFP ports: 4
Console port: No
Throughput: 56 Gigabity na sek.
Packet buffer: 8 MegaBajt
MAC address table size: 8000
VLAN:

256

Supported protocols and standards:

• IEEE 802.3 Ethernet
• IEEE 802.3i 10BASE-T
• IEEE 802.3u 100BASE-T
• IEEE 802.3ab
• 1000BASE-T
• IEEE 802.1Q
• VLAN Tagging
• IEEE 802.3x full-duplex flow control
• IEEE 802.3z Gigabit Ethernet 1000BASE-
• SX/LX
• IEEE 802.3ae 10-Gigabit Ethernet
• IEEE 802.3ad Trunking (LACP)
• IEEE 802.1AB LLDP with ANSI/TIA-1057
• (LLDP-MED)
• IEEE 802.1p Class of Service
• IEEE 802.3 af (PoE)
• IEEE 802.1D Spanning Tree (STP)
• IEEE 802.1s Multiple
• Spanning Tree (MSTP)
• IEEE 802.1w Rapid
• Spanning Tree (RSTP)
• IEEE 802.1x Radius
• network access control
• IEEE 802.3 at (PoE Plus)

QoS:
Security:

• IEEE 802.1x
• Guest VLAN
• RADIUS based VLAN assignment via .1x
• MAC-based .1x
• Network Storm Protection
• Broadcast, Unicast, Multicast Protection

Management, monitoring, configuration:

• Password
• management
• Configurable Management VLAN
• Admin access control via Radius and
• TACACS+
• Web-based graphical user interface (GUI)
• Smart Control Center (SCC) for multi-switch management
• IPv6 management
• Dual Software (firmware) image
• Dual Configuration file
• SNTP client over UDP port 123
• SNMP v1/v2
• SNMP v3 with multiple IP addresses
• RMON 1,2,3,9
• Port Mirroring
• Many to One Port Mirroring
• Cable Test utility
• SSL/HTTPS and TLS v1.0 for web-based access
• TFTP/HTTP  File transfers
• (uploads, downloads)
• HTTP Download (firmware)
• Syslog (RFC 3164)

L2 features:
L3 features:
Other functions:
Chassis type: Rack
Fan : Yes
Power supply : Internal
Power consumption: 483.5 Watt
Mean time between failures (MTBF): 247163 Hour
Environment requirements:
Certificates:
Accessories included:
Power supply:

100-240VAC 50-60Hz

Dimensions:

440 x 257 x 44 mm

Weight: 4.36 kilogram
Other features:
Designation:
