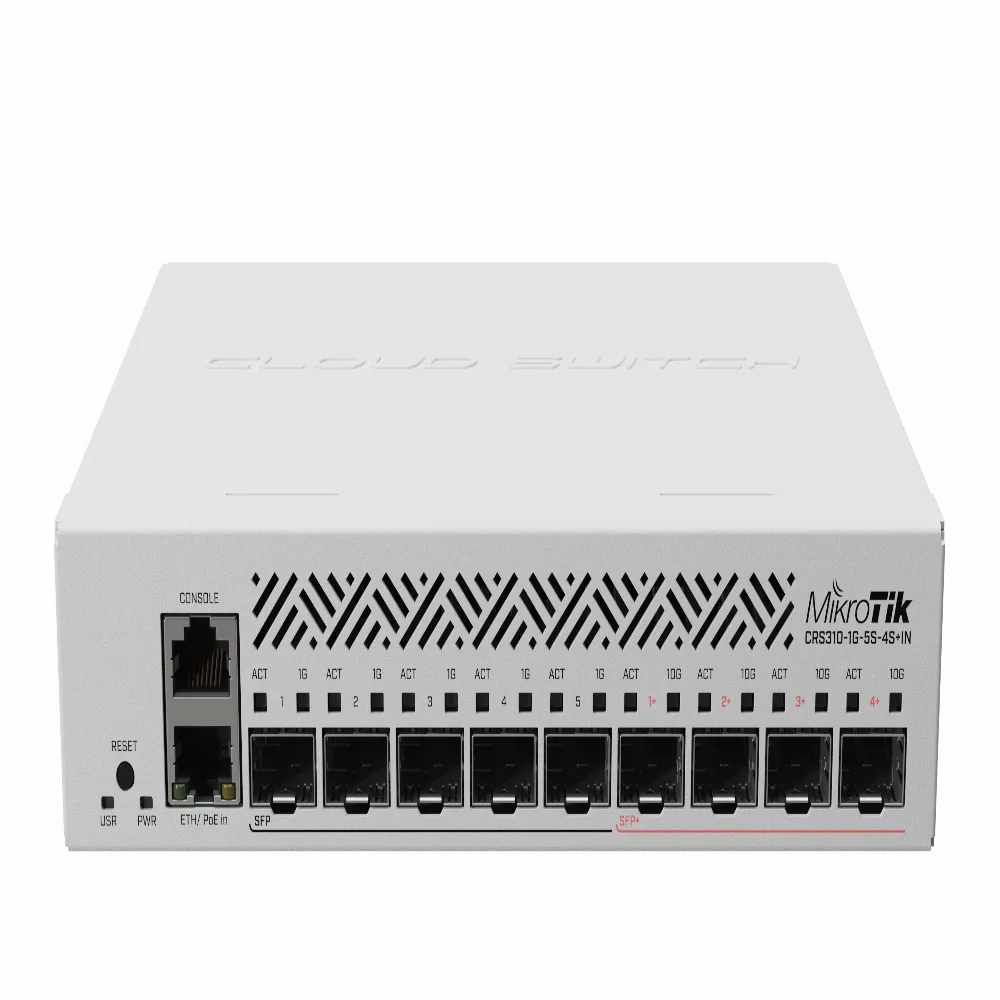

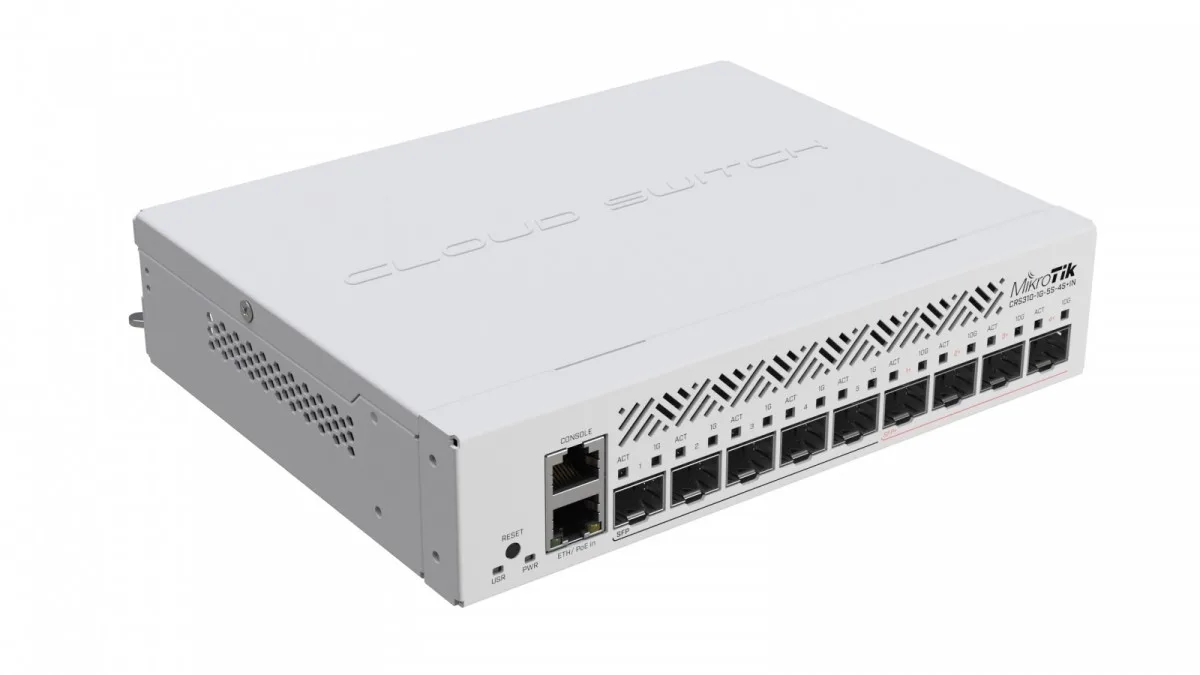

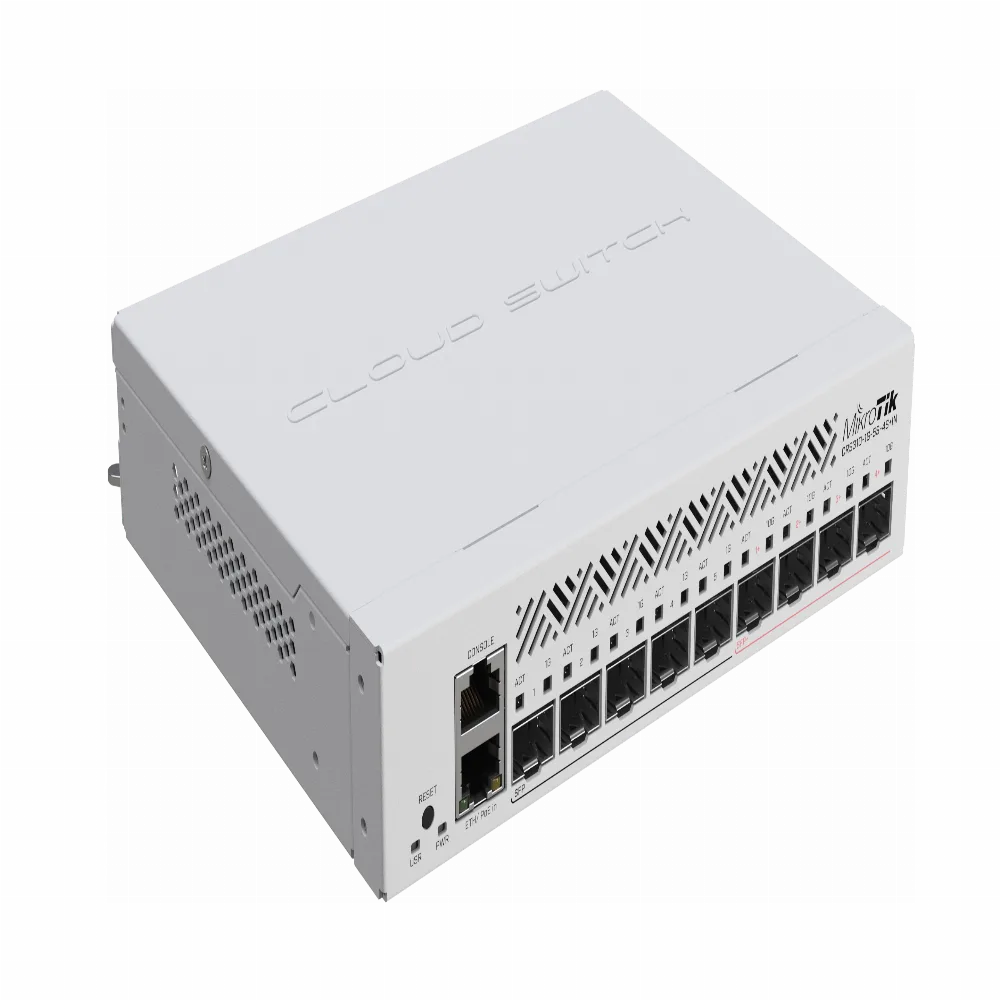

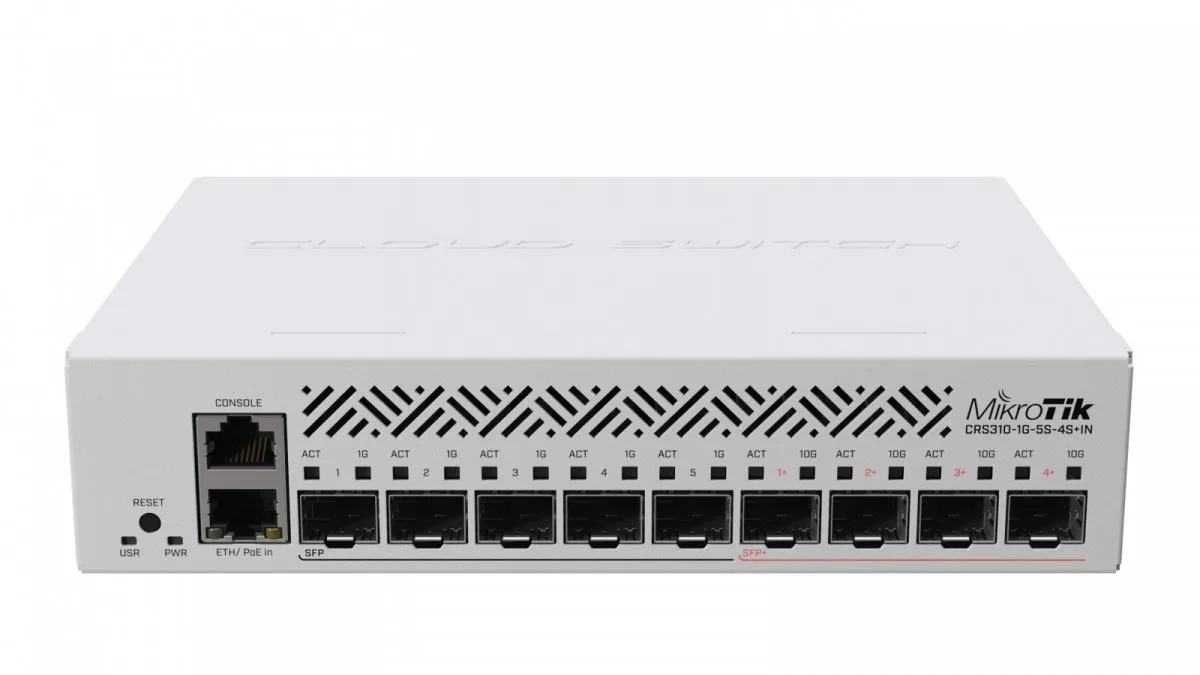

MikroTik Switch 1xGbE 5xSFP CRS310-1G-5S-4S+I

MikroTik Switch 1xGbE 5xSFP CRS310-1G-5S-4S+I

Description:

This switch is an internal variation of the well-known netFiber 9 switch – used by many small and medium-sized ISPs for reliable 10 Gigabit fibre connections over 100 metres. With five 1G SFP ports, four 10G SFP+ ports and an additional Gigabit Ethernet port, this is an ideal upgrade for existing CRS212 configurations. You get a modern ARM v7 processor, 256MB of RAM and improved cooling. The new Marvell switch chips bring phenomenal performance to the table!

The Gigabit Ethernet port has a direct connection to the switch chip – so you can enjoy full Gigabit speeds. It supports PoE-in, providing an additional power option in difficult locations.

You can mount this switch in a standard 1U rack to keep everything tidy. And it has all the power you’d expect from a rack-mounted device: the CRS310 supports hardware VLAN filtering. And it even offloads Layer 3 routing to some devices.

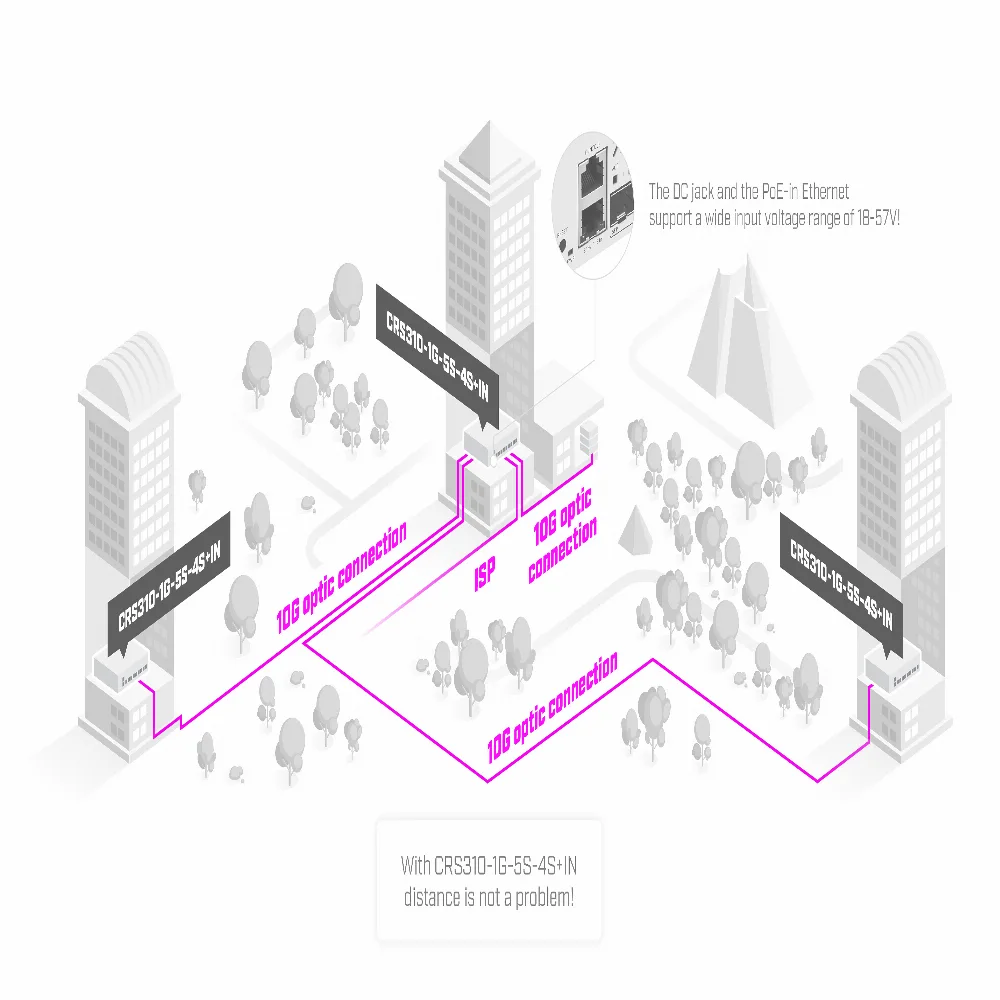

The CRS310-1G-5S-4S+IN is a fantastic tool for anyone working with internal connections over 100 metres, keeping data loss and pings low. Fibre can be a great alternative to copper if you are concerned about electromagnetic interference, sabotage or eavesdropping.

Switch class: Unmanaged
Application: Home and small office
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 1
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): 1
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: 5
Number of SFP+ ports: 4
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Support for Jumbo frames: No
Stackability: No
VLAN:
Supported protocols and standards:

• IP20

Certifications:

• CE
• EAC
• ROHS

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:

• Processor temperature monitor
• PCB temperature monitor
• Voltage monitor

Chassis type: Rack
Fan : Yes
Power supply : Internal
Power consumption: 20 Watt
Mean time between failures (MTBF): 200000 Hour
Accessories included:

• Fastening set K-48
• Brackets

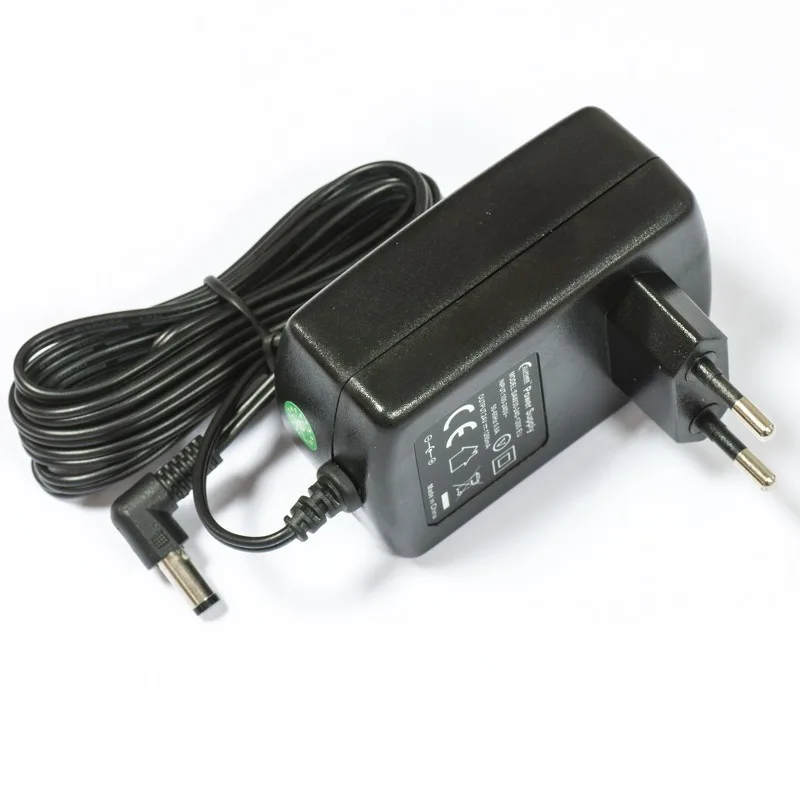

• Power supply 24V 1.2A

Power supply:

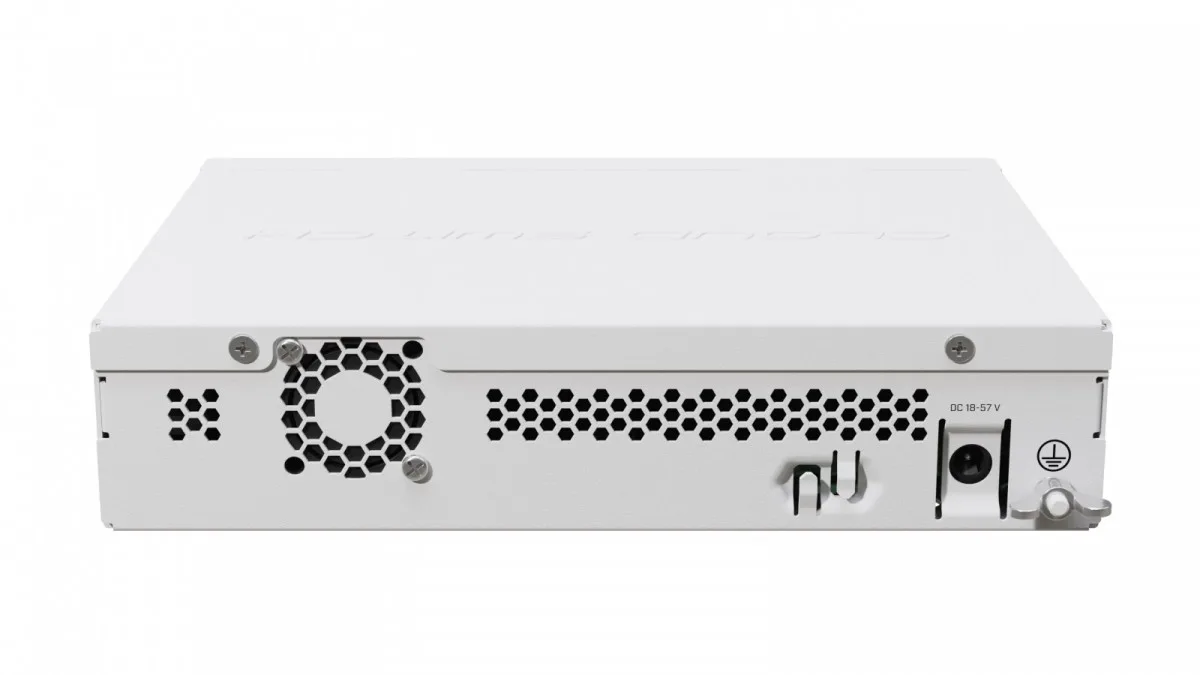

• DC socket input: Voltage 18-57 V
• Maximum power consumption: 20 W
• Maximum power consumption without caps: 8 W
• Input voltage: PoE 18-57 V

Dimensions:

200 x 166 x 45 mm

Other features:

• ARM 32-bit architecture
• Processor 98DX226S
• Number of processor cores 1
• Processor rated frequency 800 MHz
• RouterOS 5 licence
• RouterOS operating system
• RAM size 256 MB
• Memory size 16 MB
• Type of memory FLASH
• Tested ambient temperature -40°C to 70°C
