Legrand UPS Keor SPE Rack 2U 1kVA

Legrand UPS Keor SPE Rack 2U 1kVA

Описание:

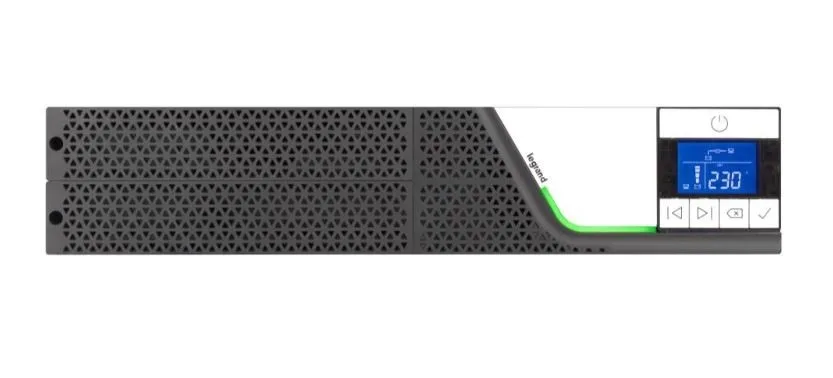

Keor SPE Rack 2U 1kVA uninterruptible захранващ блок

Legrand KEOR SPE R/T 1000 is an uninterruptible UPS захранващ блок made using Line interactive technology with a rated power of 1000VA – 800W. The operation of the device is managed by a high-quality, dedicated microпроцесор. The захранващ блок has the ability to run auto diagnostic tests and a cold start function. The KEOR SPE RT захранващ блок can be used in both tower and rack configurations.

KEOR SPE R/T 1000 is equipped with hermetically sealed lead batteries with an adjustable valve, which guarantee a minimum backup time of 8 minutes at 80% load. The batteries can be easily replaced thanks to special covers located on the front of the UPS.

The presence of an electronic voltage stabilizer (AVR) in the захранващ блок ensures high output voltage stability and effective protection against interference in the electrical network.

The UPS has a number of 2 x output sockets (4 x IEC320-C13), one group of sockets can be programmable. KEOR SPE R/T 1000 can be connected to a PC via an SNMP, USB or RS232 serial port, which allows for convenient monitoring of its operation using free software, as well as emergency shutdown of Windows and Linux operating systems.

The захранващ блок has a 5-button control panel, an LCD screen and 3 LEDs for the захранващ блок status:

• GREEN: Correct operation. The load is secured.
• YELLOW: The load is powered by the UPS battery, but the alarm is active, control is required.
• RED: The load is not powered by the UPS. An emergency condition exists.

The LCD display allows you to read:

• Operating mode
• Measurement:

a) Input and output voltage/frequency

b) Active and apparent power

c) Load percentage

d) Battery voltage

e) Battery charge percentage

f) Hold time

g) Ambient temperature

• Alarms and errors

The KEOR SPE R/T 1000 захранващ блок is CE marked in accordance with Directives 2014/35 and 2014/30 and has been designed and built in accordance with the following standards:

• EN 62040-1 „General and safety requirements for UPS units used in places accessible to the operator“
• EN 62040-2 „Electromagnetic compatibility (EMC) requirements“
• EN 62040-3 „Requirements for performance properties and test methods“

3414972083430
