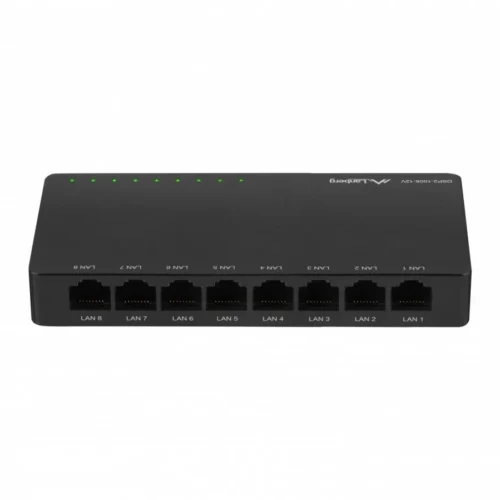

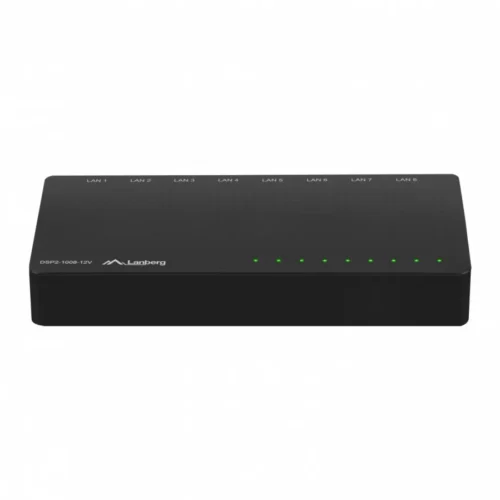

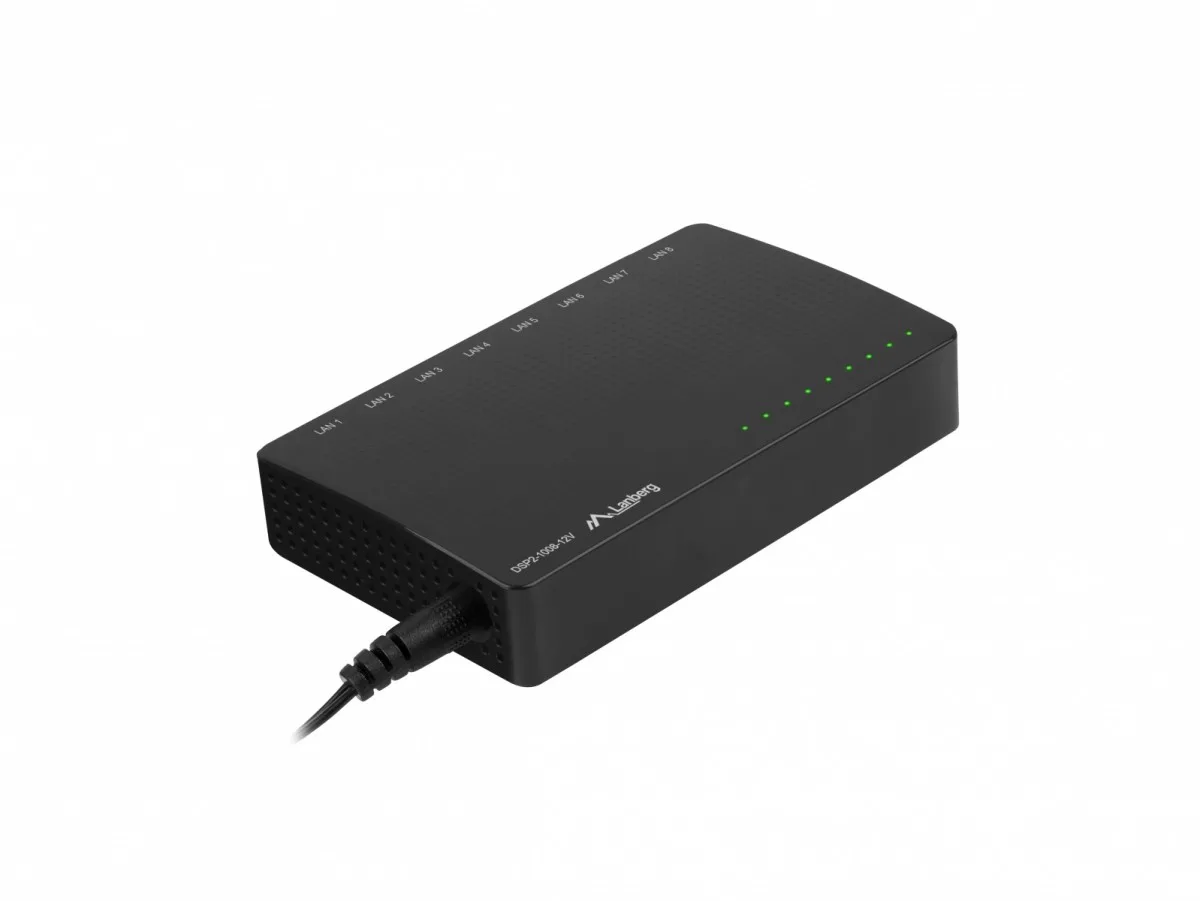

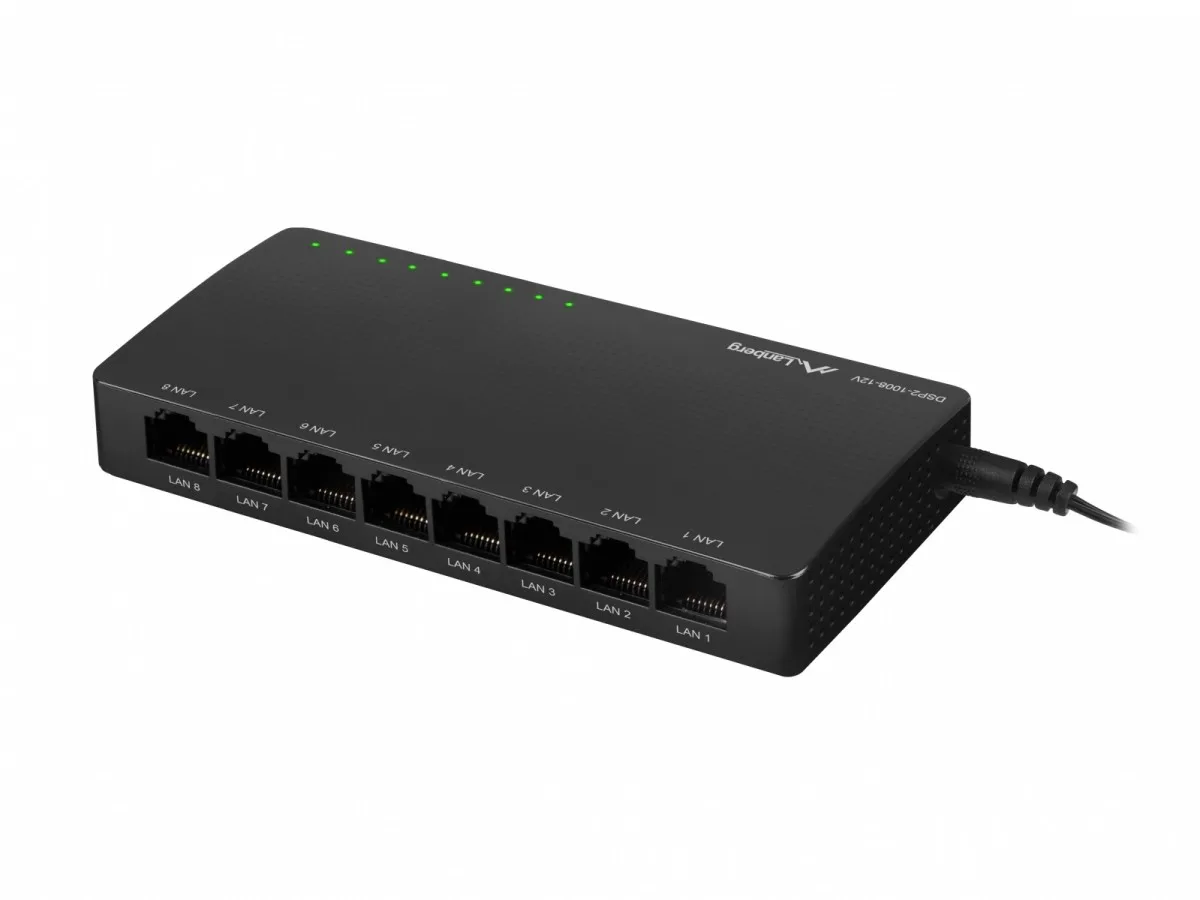

Lanberg Swich DSP2-1008-12V 8X 1GB/S DES. DSP2-1008-12

Lanberg Swich DSP2-1008-12V 8X 1GB/S DES. DSP2-1008-12

Description:

Lanberg DSP2-1008 is a compact, unmanaged desktop switch equipped with 8 x Gigabit Ethernet RJ-45 ports. The device itself is small and handy with Plug & Play operation principles. Product provides switching functions for 8 x 10/100/1000 Mbps RJ-45 ports with automatic connection negotiation and MDI-MDIX support.

The distinctive feature of the DSP1 and DSP2 series switches is the use of universal 12V power supply, used in many other IP and CCTV surveillance, alarm, security, and IT devices. With this solution, the end-users, ISPs, or installers are not forced to use the default power supply, thus the greater freedom in regards to delivering the power to the switch using this voltage. The benefits of using 12V power include:

– 12V voltage is present in alarm systems and older CCTV solutions. In such cases, a collective power supply is used, which eliminates the need for any additional energy sources and allows for easy replacement of the main power adapter in case of failure,

– There are many manufacturers on the market offering 12V buffer power supplies offering a jack cable. Such small devices provide power to compact products such as routers and switches. 12V used in the DSP2 series allows you to connect all sorts of buffer power supplies to maintain the device’s operation after a power outage,

– Increased stability of the equipment and better current efficiency of the device through the use of higher voltage.

Switch is an ideal solution for domestic use due to its modest size and silent passive cooling. On top of that, black color and elegant slim case fits to almost any interior. Moreover, device is suitable for office applications, including SOHO and SMB. Lanberg switch boasts adequate performance, meeting the requirements established by users in the switch segment.

Automatic recognition and adaptation to the type of connected network cable (solid or strand) feature eliminates the requirement to use only one type of Ethernet cabling, as well as a need for uplink ports, allowing simultaneous reduction of unnecessary costs. The switch supports Half-Duplex and Full-Duplex mode for inter-device connections. Flow control feature allows data flow management, thus avoiding any data transmission blocks on the port when one of the receiving devices is unable to receive enough data.

Lanberg desktop switch guarantees a combination of high-quality, automation and a range of features ensuring stable device operation without any excessive user intervention.

Switch class: Unmanaged
Application: Home and small office
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: 8
Number of 10/100/1000 Mbps ports: 8
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 16 Gigabajty na sek.
MAC address table size: 4000
Support for Jumbo frames: No
Stackability: No
VLAN:
Supported protocols and standards:

• IEEE 802.3ab 1000Base-T,
• IEEE 802.3i 10Base-T,
• IEEE 802.3u 100Base-TX,
• IEEE 802.3x (Flow-Control)

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Fan : No
Power supply : External
Power consumption: 4.53 Watt
Accessories included:
Power supply:

AC, AC/DC, network (230V), external

Dimensions:

89 x 137 x 28 mm

Weight: 240 gram
Other features:
Designation:
