Description:

Switch Gigabit 8x 10/100/1000 Mbps RJ45 Desktop Metal

• MDI-X auto-crossing with automatic detection of optimal network speed 10/100/1000
• High performance, full/half duplex mode with Zero-Packet Loss technology
• Full flow control for optimal performance
• Green Ethernet power reduction technology deactivates unused ports and adjusts power levels based on cable length
• Automatic recognition of network configuration
• Support for jumbo frames up to 9 KB
• Store and forward switching architecture
• Capable of handling full bandwidth on all ports
• Fanless design ensures quiet operation
• The solid metal housing ensures maximum durability

Switch class: Unmanaged
Application: Home and small office
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 8
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 16 Gigabajty na sek.
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
VLAN:
Supported protocols and standards:

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3x (Kontrola przepływu oraz Backpressure)

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Fan : No
Power consumption: 2.75 Watt
Environment requirements:

• Operating temperature: 0 – 40°C (32-104°F)
• Humidity: 10 – 90% RH, non-condensing

Certificates:
Accessories included:

• 8-Port Gigabit Ethernet Switch
• External power adapter
• User manual

Power supply:

Input voltage: 5V DC, 1A

Dimensions:

140 x 78 x 28 mm

Weight: 0.34 kilogram
Other features:

• NWay ANSI/IEEE 802.3 autonegotiation
• Full bandwidth support on all ports
• Backpressure flow control for half duplex mode on 10/100 Mbps ports

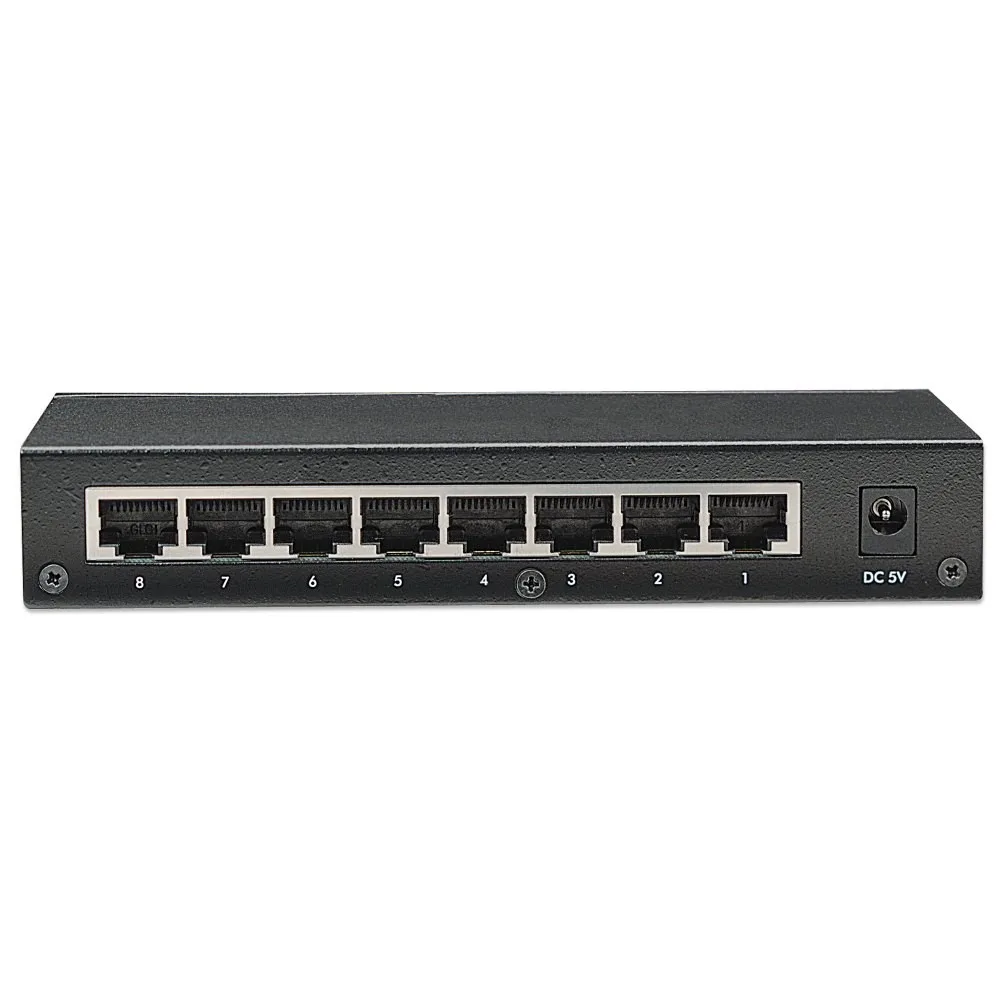

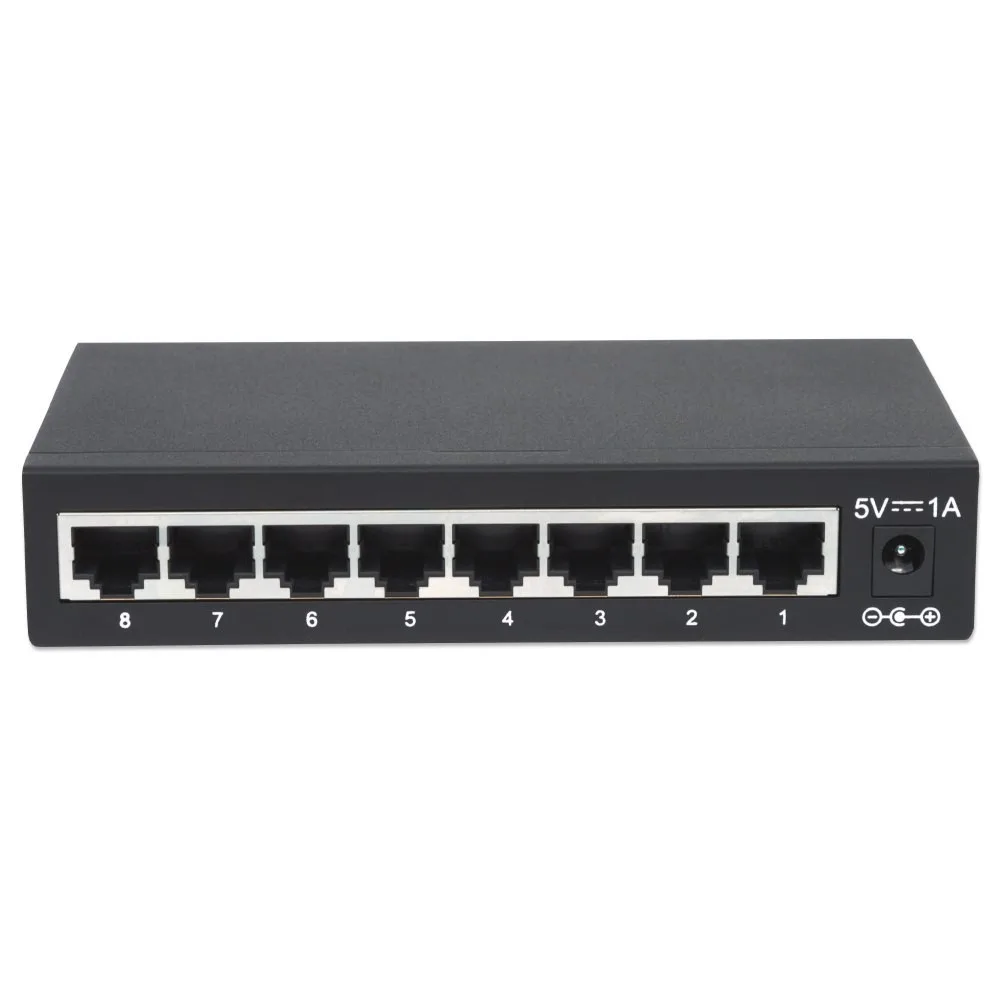

• Ports: 8x 10/100/1000 Mbps RJ45

Network cabling:

• 10Base-T: Cat3, 4, 5 UTP/STP
• 100Base-TX: Cat5 UTP/STP
• 1000Base-T: Cat5e UTP/STP
• Certifications: FCC Class B, CE Mark, RoHS

Switch architecture: store and forward

Internal bus bandwidth: 16 Gbps

Designation:
