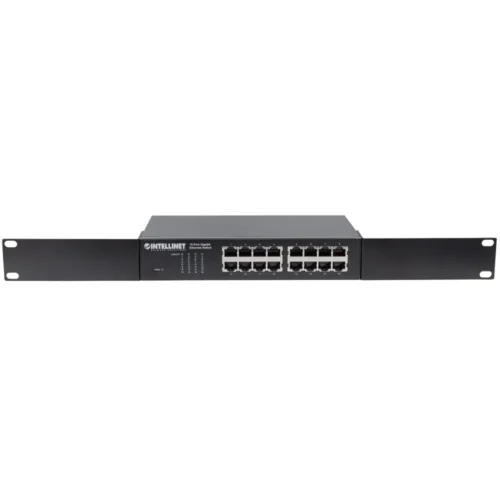

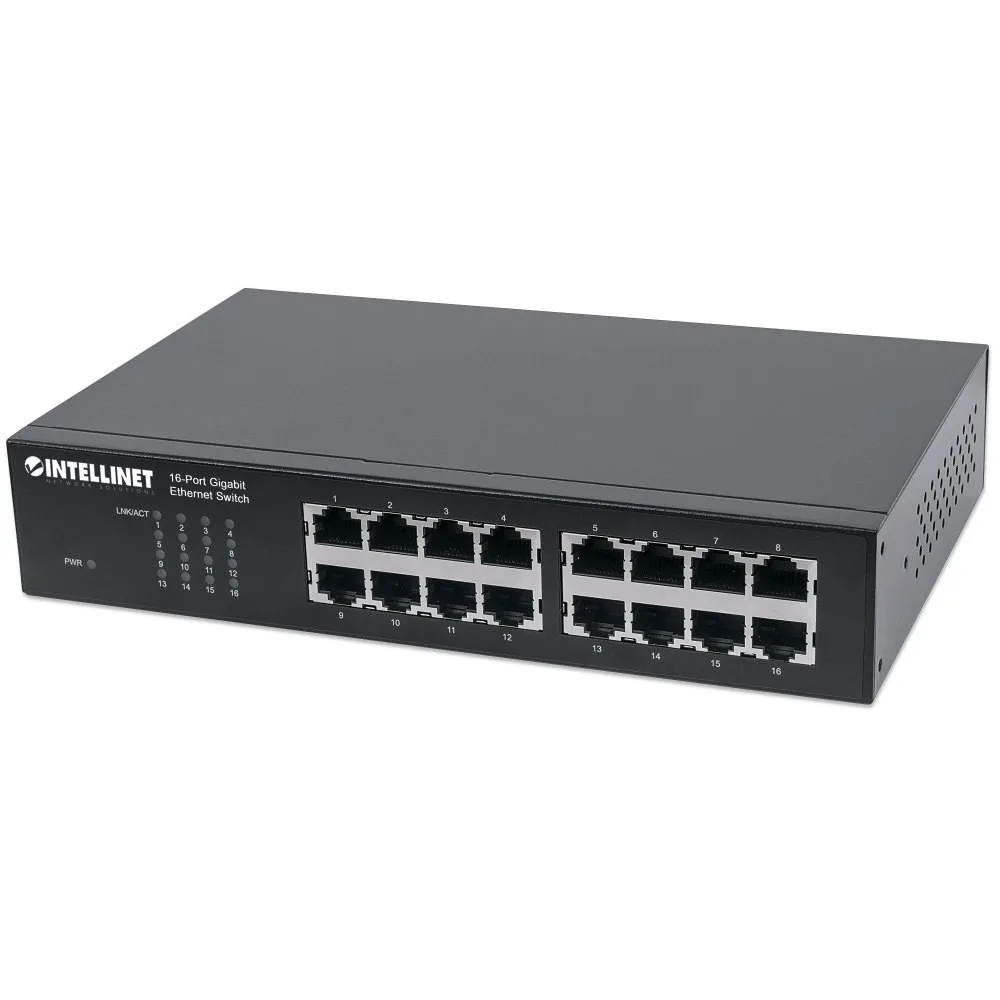

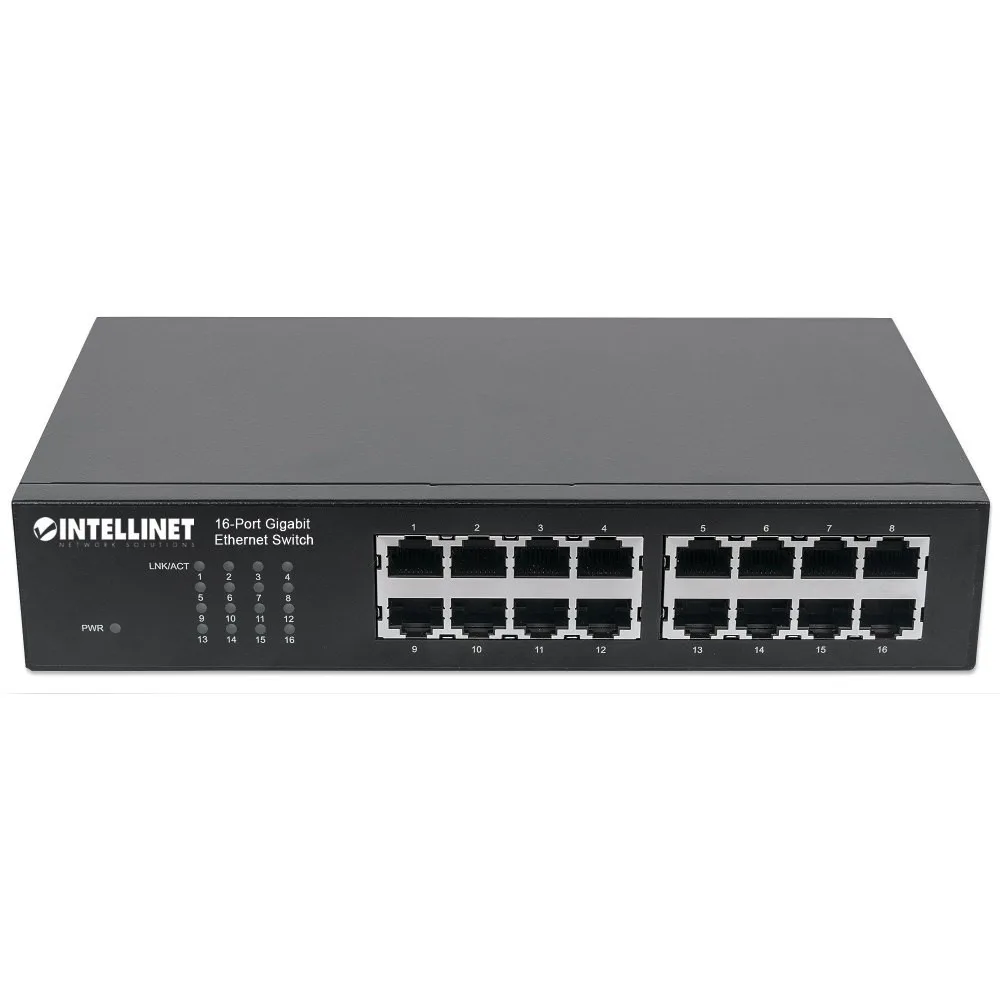

Intellinet Switch Intellinet Gigab it 16x 10/100/1000 RJ45

Intellinet Switch Intellinet Gigab it 16x 10/100/1000 RJ45

Description:

Giga Switch 16x 10/100/1000 RJ45

• 16-Port Gigabit Ethernet Switch
• 10/100/1000 ports with automatic detection of optimal network speed
• MDIX autocrossing on all RJ45 ports (auto uplink)
• For use as a desktop switch or for mounting in a 19″ rack
• NWay auto-negotiation
• Store and forward switching architecture
• Full/half duplex modes
• Support for 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
• Green Ethernet power reduction technology deactivates unused ports and adjusts power levels based on cable length
• Support for jumbo frames up to 9KB
• MAC address table up to 8,192 entries
• 512 kB memory buffer
• MAC address support with auto-learning and auto-aging functions
• Fanless design ensures quiet operation
• 19″ mounting brackets

Switch class: Unmanaged
Application: Home and small office
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 16
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 32 Gigabajty na sek.
Memory buffer: 512 Kilobajt
MAC address table size: 8192
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
VLAN:
Supported protocols and standards:

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Gigabit Ethernet Twisted Pair)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control, full duplex)

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Rack
Fan : No
Power supply : Internal
Power consumption: 9.1 Watt
Environment requirements:

• Operating temperature: 0 – 40°C
• Operating humidity: 10 – 90% RH, non-condensing
• Storage temperature: -20-70°C

Certificates:
Accessories included:

• 16-port Gigabit Ethernet switch
• 19″ mounting brackets
• Power cable
• User manual

Power supply:

Internal power supply: 100 – 240 V AC, 50/60 Hz

Dimensions:

215 x 133 x 44 mm

Weight: 940 gram
Other features:

Broadcast media:

• 10Base-T Cat3, 4, 5 UTP/STP RJ45
• 100Base-TX Cat5 UTP/STP RJ45
• 1000Base-T Cat5e UTP/STP RJ45

Packet forwarding/filtering throughput:

• 1,488,000 p/s (1000 Mb/s)
• 148,800 p/s (100 Mbps)
• 14,880 p/s (10 Mbps)

MAC address table: 8192 entries

Bus bandwidth: 32 Gb/s

Switching architecture: store and forward

Designation:
