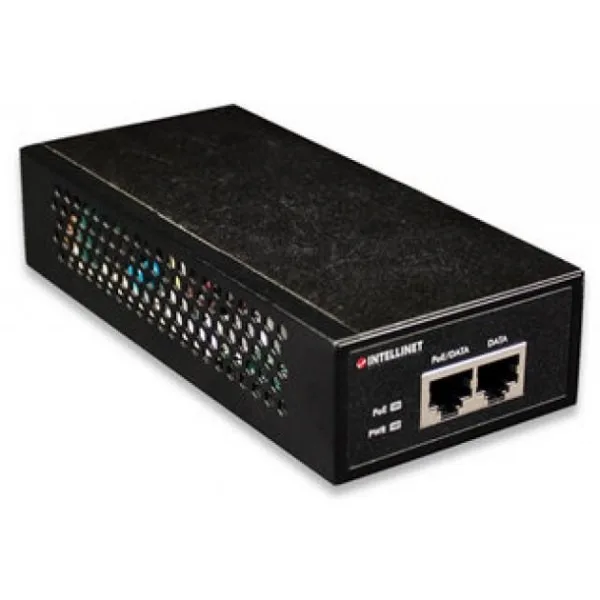

Intellinet PoE injector 1P / 802.3 AT / AF GIGA

Intellinet PoE injector 1P / 802.3 AT / AF GIGA

Description:

– Enables power over the POE Gigabit network,
– Output power up to 30 W,
– Compatible with IEEE 802.3af and 802.3at compliant devices (Access Pointy, VOIP phones, IP cameras),
– IEEE 802.3 at / af detection and protection against short circuit, overload and over voltage,

Dimensions:

154 x 72 x 35 mm

Weight: 0.79 kilogram
Other features:

Transmission Media:
– 100Base-TX Cat5 UTP / STP RJ45, 8 pin
– 1000Base-T Cat5e UTP / STP RJ45, 8 pin

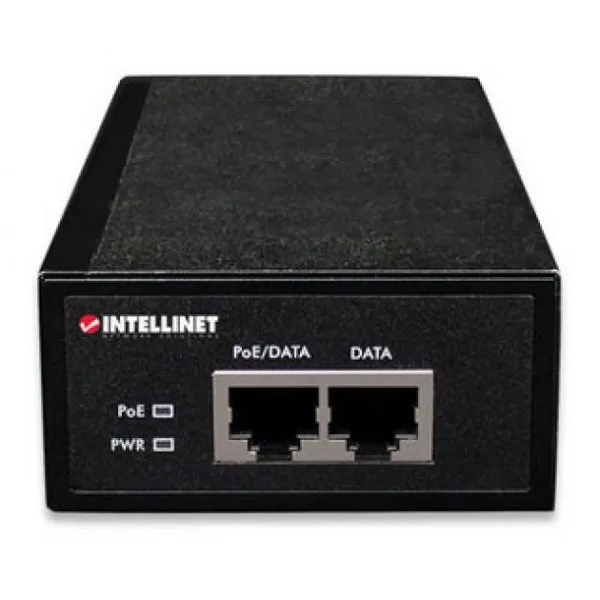

Ports: – 1 x RJ-45 1000 Mbps data input port
– 1 x RJ-45 1000 Mbps data and power port
– 1 x port for external power supply
Security:
– Short circuit protection GND
– Overload protection for currents over 1.8 A
– High voltage protection over 58 V
Compatibility: Wireless Access Points (524735, 524711, 525251)
– PoE + IEEE 802.3at splitter (560443)
– Network Cameras (550932 NBCC30-IR, 550949 NFC30-IR, 550949 NFC30, 550987 NFD30, 551021 NFC31, 551045 NFC31-IR, 551229 NFD130-IR, 551236 NFD130-
Certificates: FCC Class A Part 15, CE 89/336 / EEC

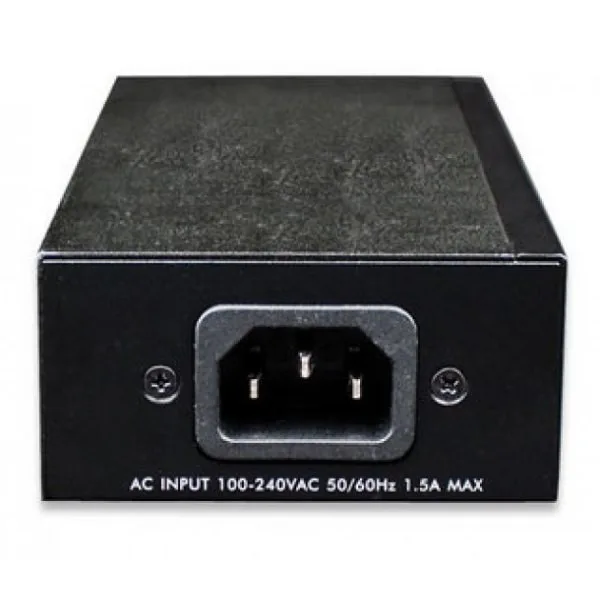

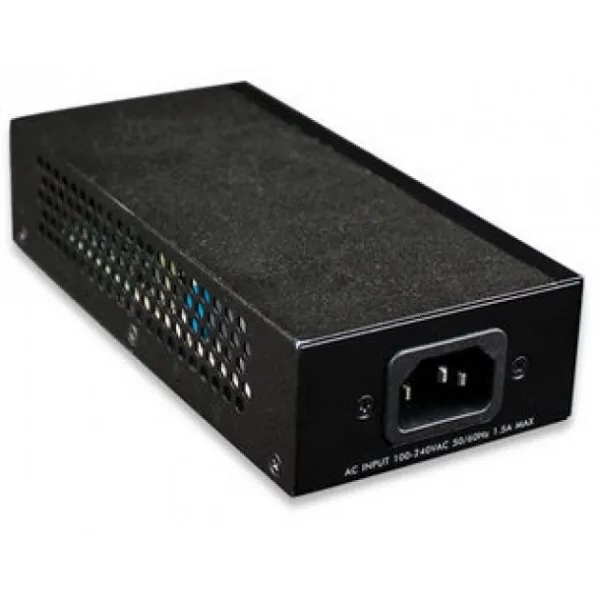

Power supply:

– Input: 100-240 V AC, 50-60 Hz
– Power Consumption: 42 W (maximum)

Designation:
Delivery set:

– Adapter PoE Gigabit 1-Port
– Power cable
– Quick Installation Guide
