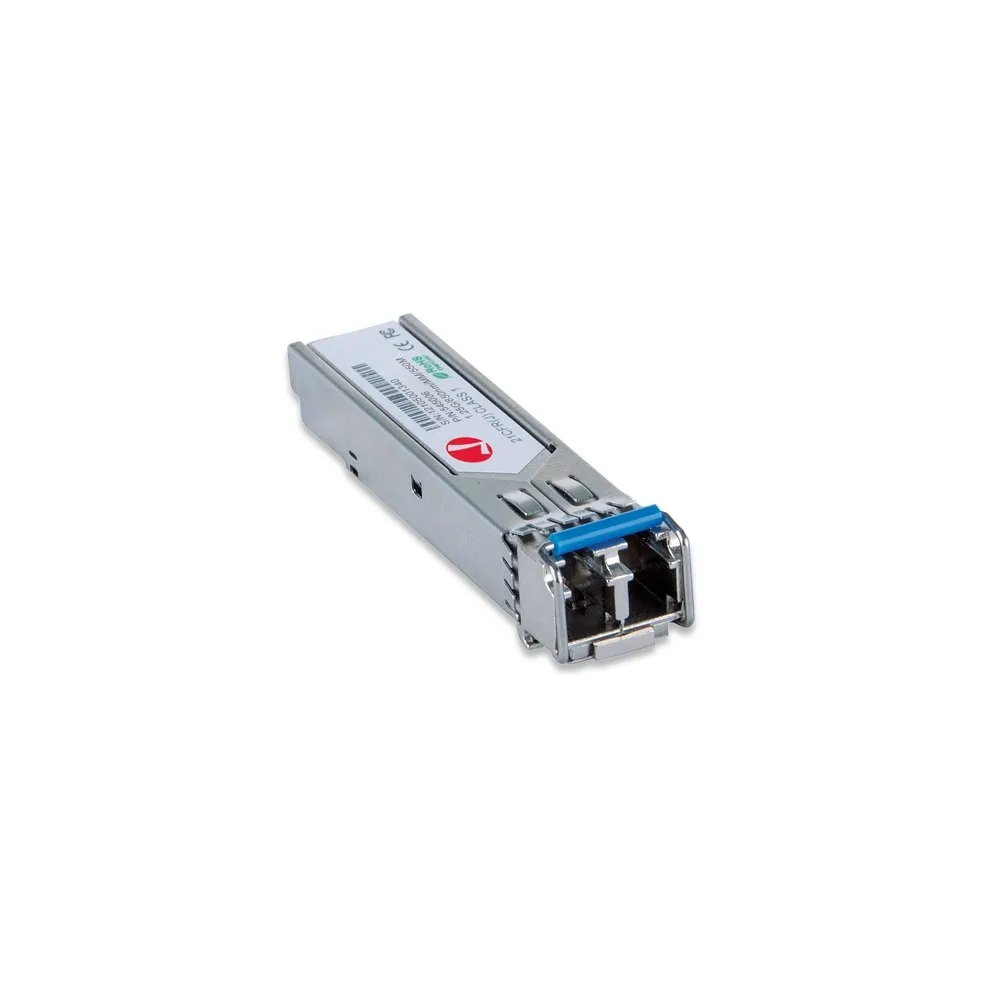

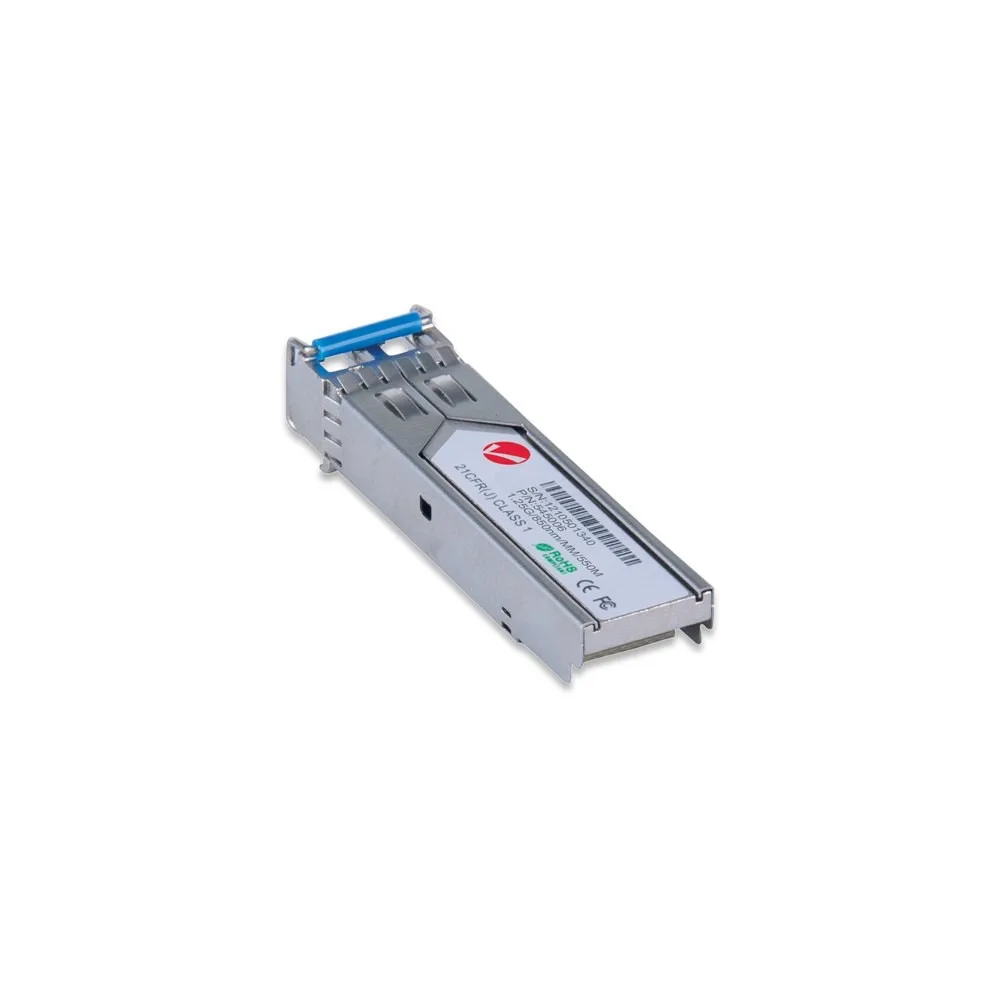

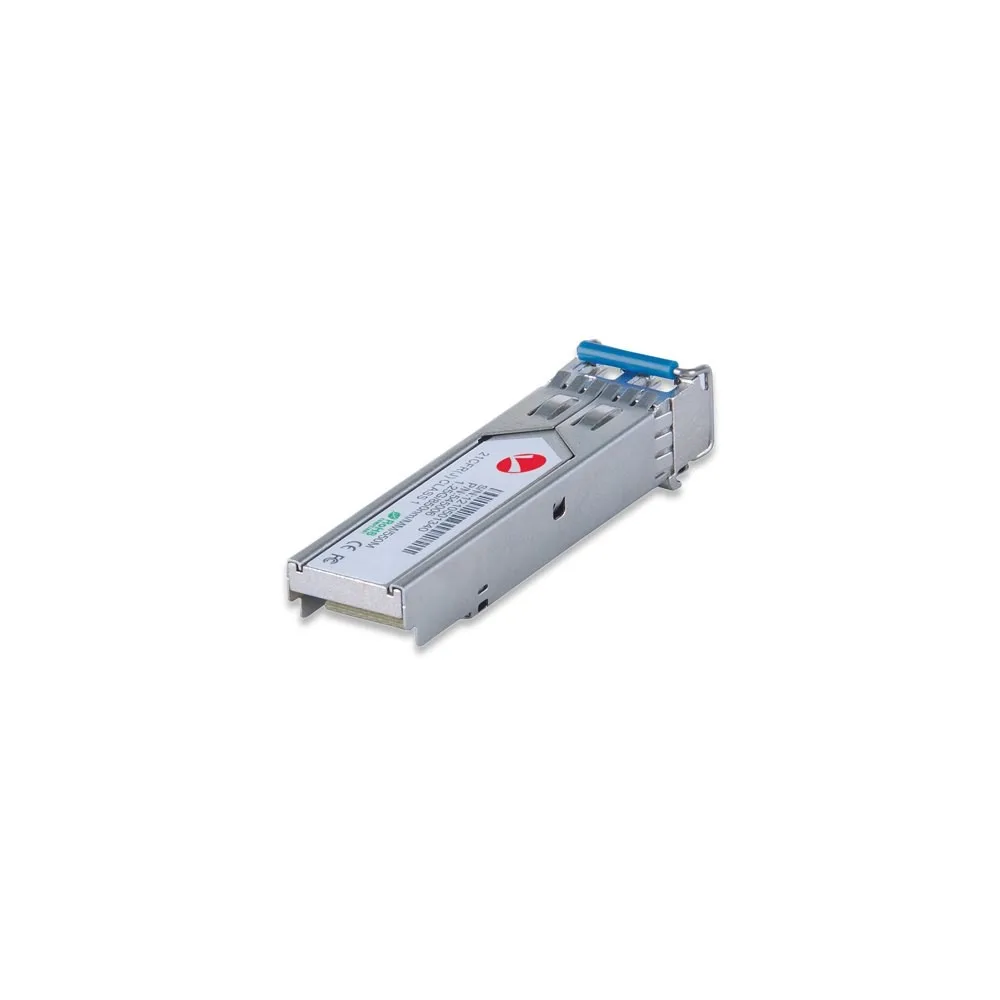

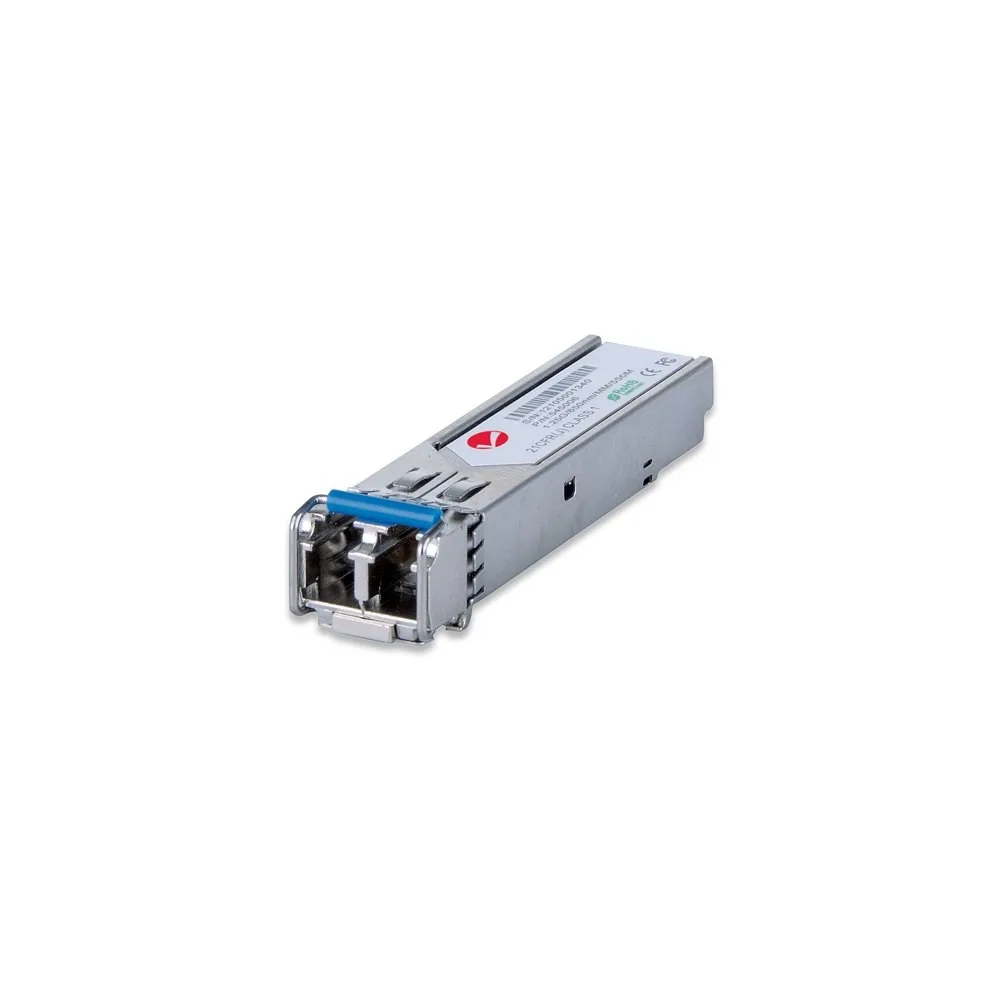

Intellinet Modul Mini GBIC SFP LC Multimode 550m

Intellinet Modul Mini GBIC SFP LC Multimode 550m

Description:

– Bandwidth: 1000 Mbps,
– One 1000Base-SX multimode fiber optic duplex port
– Supported distances: up to 550 m (50/125 microns) or 220 m (62.5 / 125 micron),
– Wavelength: 850 nm,
– Made in SFP (small form factor plugable) standard,
– Hot Plug connection (without switching off the switch),
– For use with the Intellinet Gigabit Switches, models 560801, 560818, 523929,
– Compliant with SFP Transceiver MSA specifications,

Form factor: SFP
Type / wavelength: 850 nm
Range: 550 m
Fiber type: Single-mode
Accessories included:

Mini GBIC module

Other features:

Transmission Media:
– 1000Base-SX multi-mode 50/125 microns
– 1000Base-SX multi-mode 62.5 / 125 micron
Ports: LC fiber duplex port, 1000Base-SX
Distance:
– Maximum transmit power TX: -3 dBm
– Minimum transmission power: – 8 dBm
– Sensitivity: -20 dB
– Supply: 8 dB
Made in SFP (small form factor plugable), 1.25 Gb / s
Certificates: FCC Class A, CE Mark, RoHS

Dimensions:

55 x 13 x 12 mm

Weight: 15 gram
Power supply:

Power supply: 3.3V Power consumption: 1W (max)

Designation:
