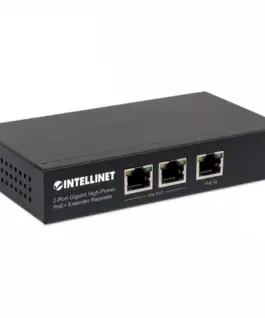

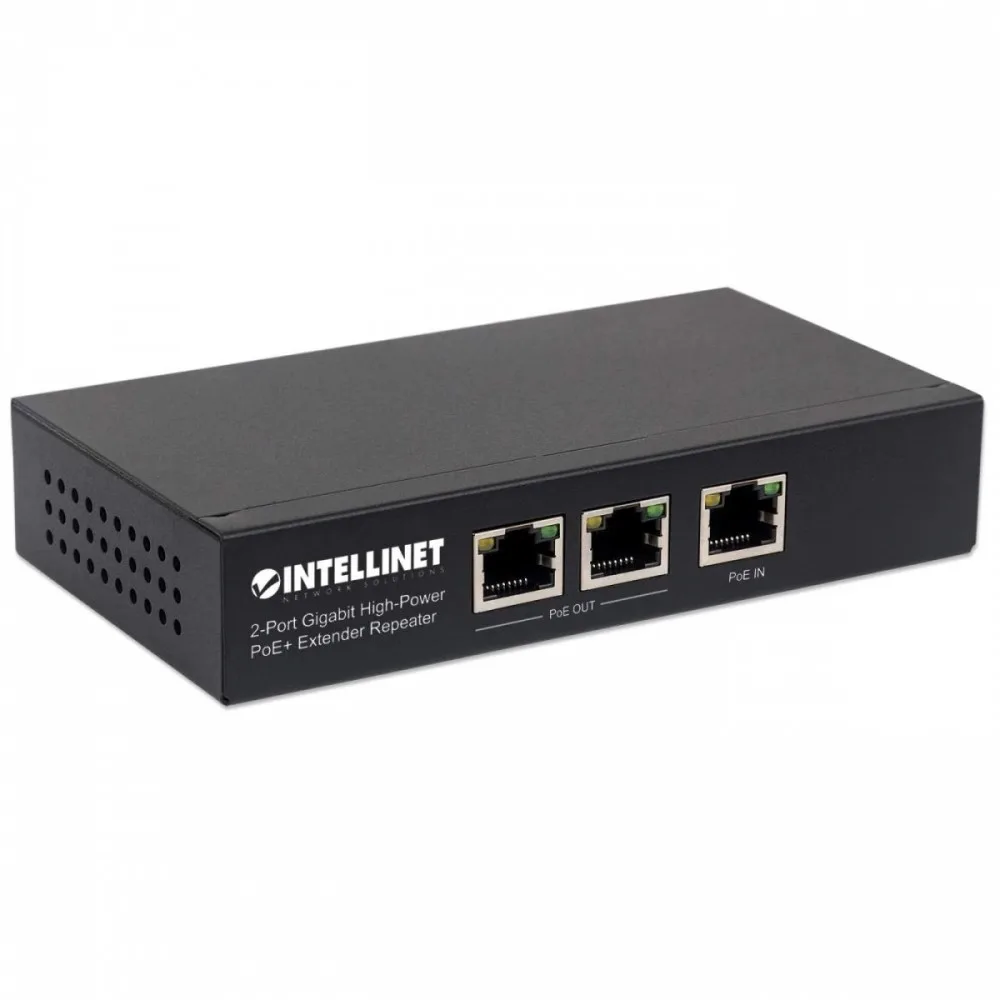

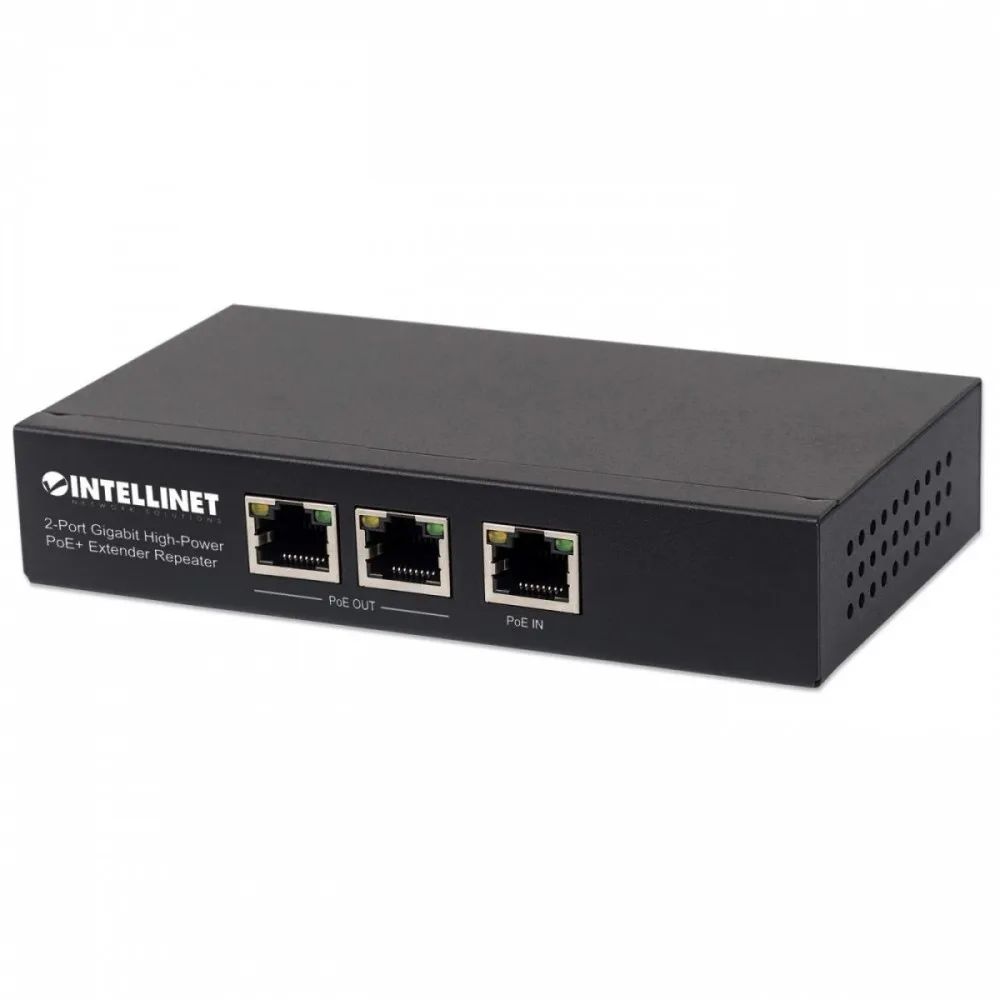

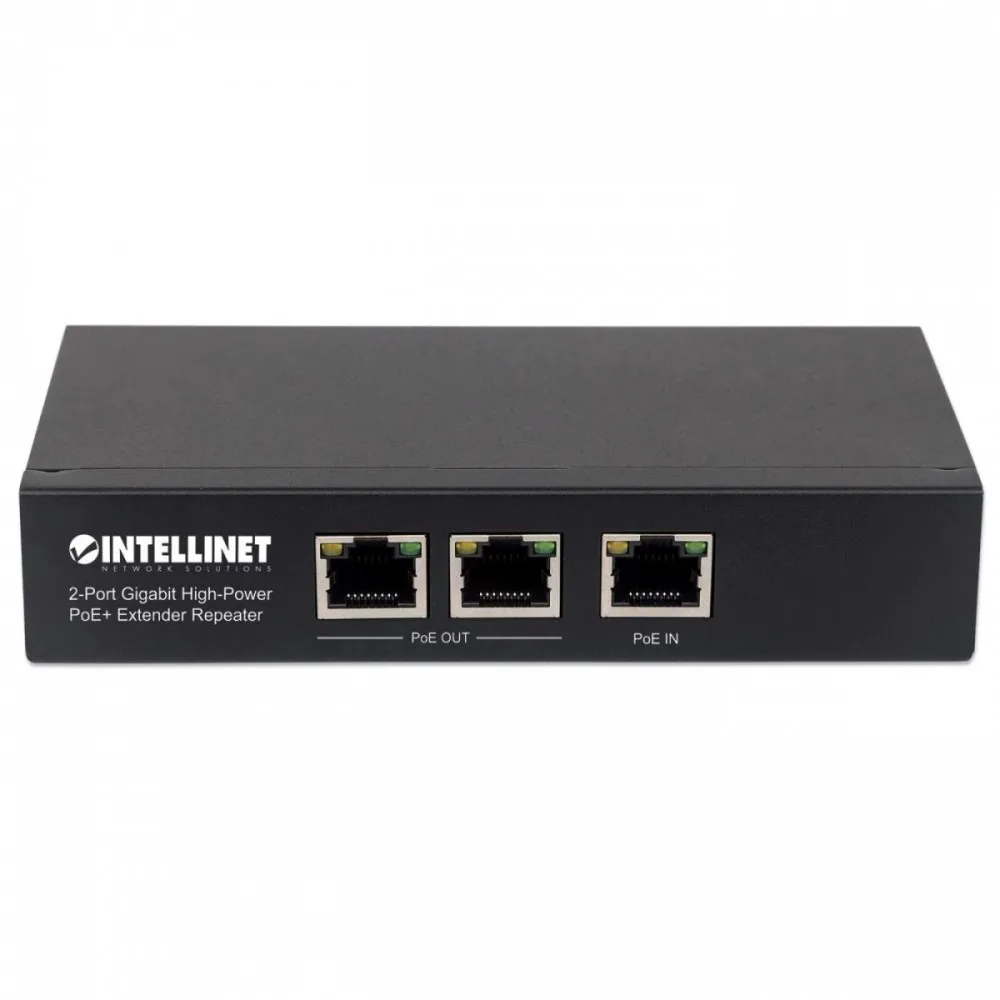

Intellinet Extender PoE+ 2-ports Gigabit 802.3at/af

Intellinet Extender PoE+ 2-ports Gigabit 802.3at/af

Description:

PoE+ 2-Port Gigabit Extender Regenerator

• It allows you to connect and power two PoE devices such as network cameras, wireless access points or VoIP phones from one PoE power supply or the PSE port of a PoE switch
• Doubles the connection distance between PoE devices from 100 meters to 200 meters
• Save time and money by using your existing cable for power and data transmission
• 10/100/1000 Mbps bandwidth, provides up to 25W of power for connected PoE devices
• Allows powering of IEEE 802.3af/at PoE compliant devices only, non-PoE compliant devices can only receive data
• Does not require additional power supply, powered directly from the PoE input port
• Compatible with IEEE 802.3at/af compliant PoE (PSE) adapters and switches
• Compatible with IEEE 802.3at/af compliant devices (PD).
• PoE-powered 3-port Gigabit switch with PoE Passthrough
• Fully NDAA compliant

Network architecture: GigabitEthernet
I/O ports: 3 x 10/100/1000 Mbit/s PoE
Standards: 802.3af
Standards: 802.3at
Standards: 802.3
Standards: 802.3ab
Standards: 802.3u
Number of antennas: Not applicable
Antenna: Not applicable
Security:
Management, monitoring, configuration:
Special functions:

• LED signaling for PoE power supply and data transmission
• Fanless design ensures quiet operation
• Compact metal housing
• Mounting holes on the bottom allow for optional wall or ceiling mounting

Power supply:

• Maximum PD output power: 25W
• Input voltage: compliant with IEEE 802.3af/at PSE, 30W max., 52-55V DC

Software:
System Requirements:
Environment requirements:

• Operating temperature: -10 – 45°C (14 – 113°F)
• Storage temperature: -40 – 70°C (-40,158°F)
• Humidity: 5 – 90% RH, non-condensing

Certificates:

• FCC Class A
• CE

Accessories included:

• PoE+ 2-Port Gigabit Extender Regenerator
• User manual

Color: Black
Weight: 240 gram
Dimensions:

28 x 140 x 77 mm

Other features:

• MAC address table: 2048 entries
• Memory buffer: 256 kB
• Bus bandwidth: 6 Gbps

Designation:
