Intellinet адаптер / захранващ блок Intellinet POE+ 30W 1X Gig

Intellinet адаптер / захранващ блок Intellinet POE+ 30W 1X Gig

Description:

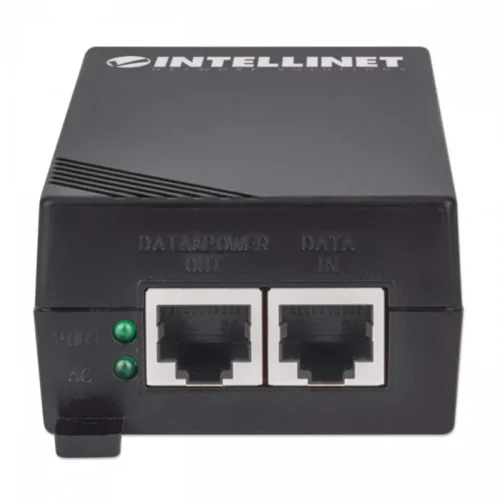

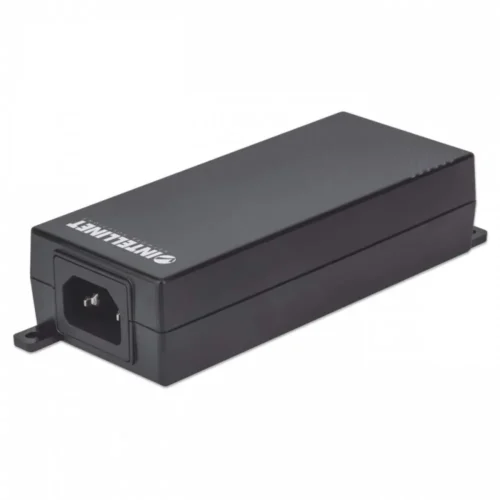

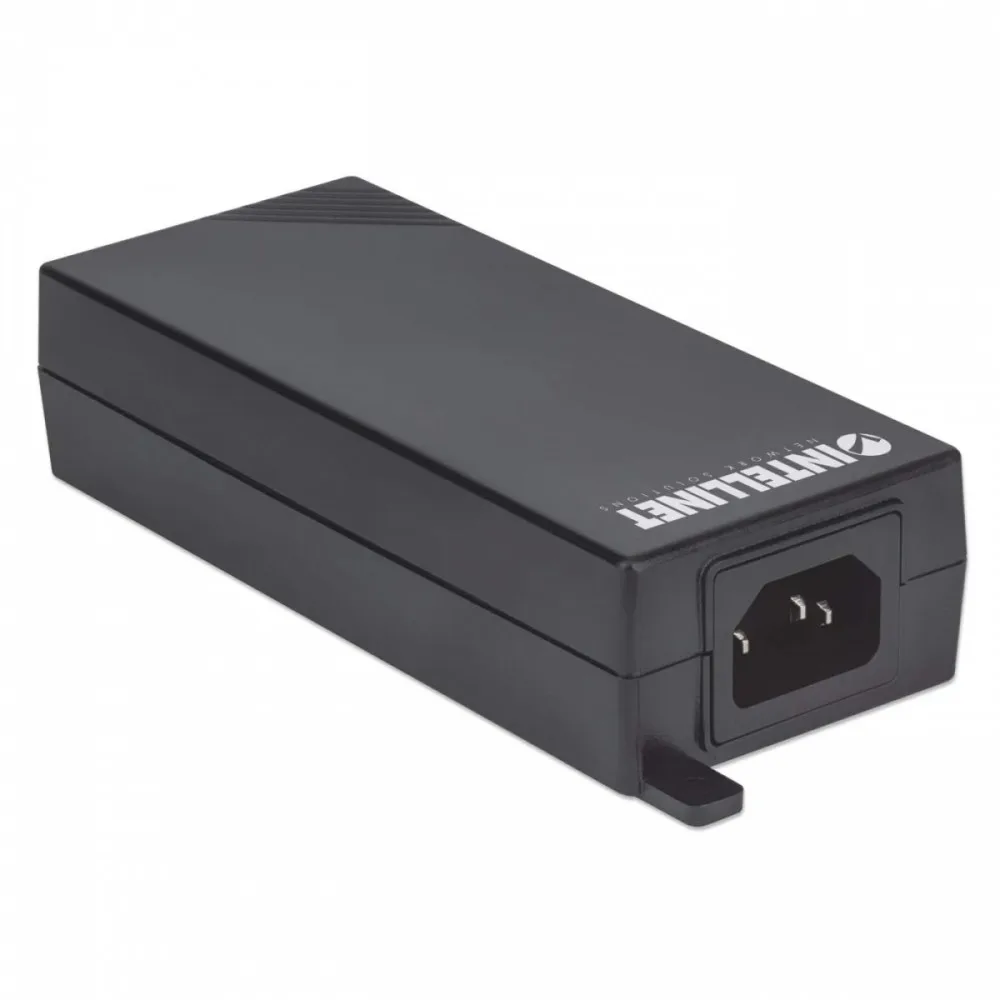

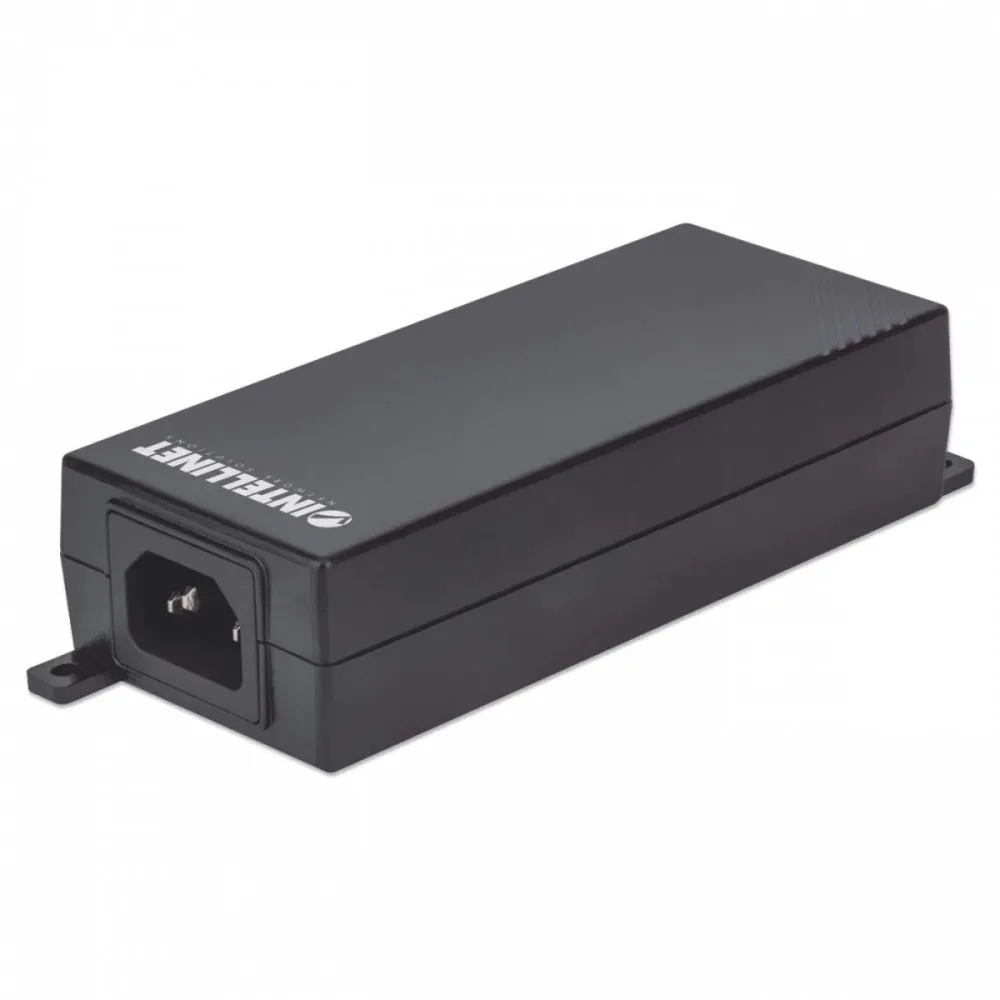

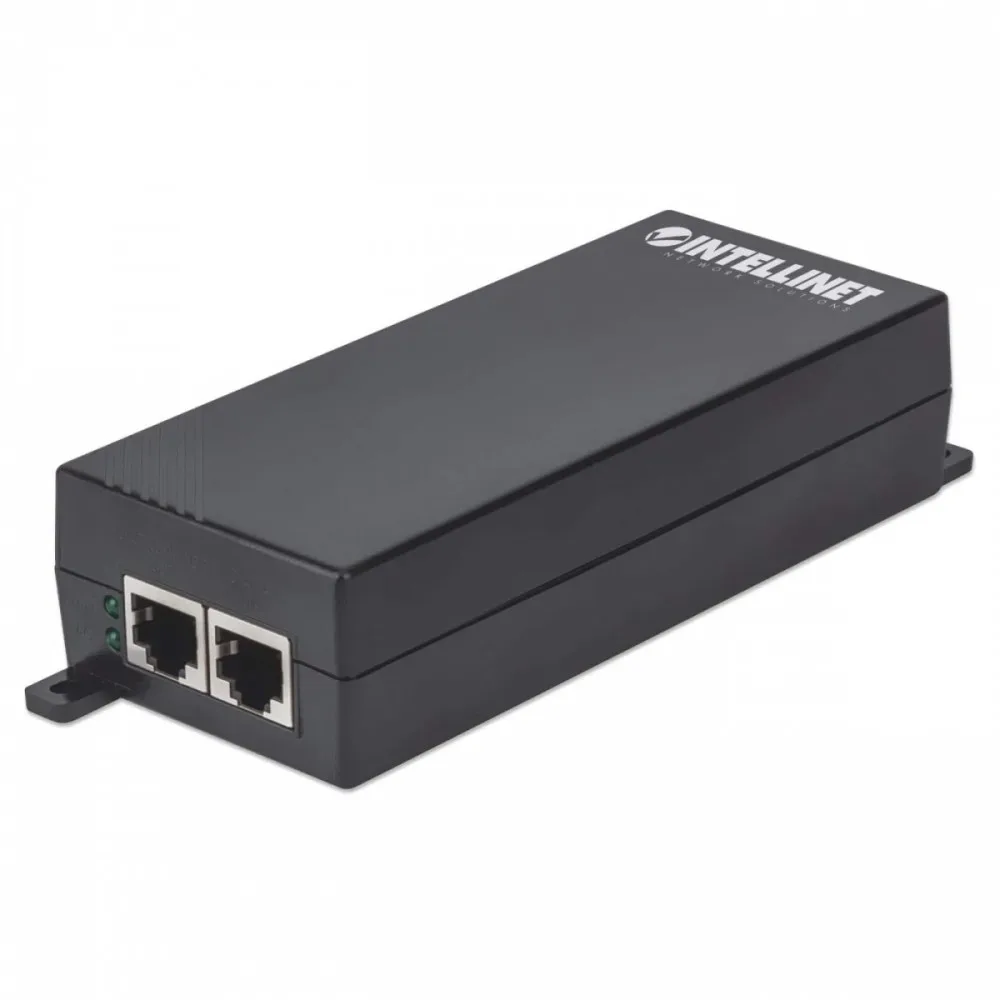

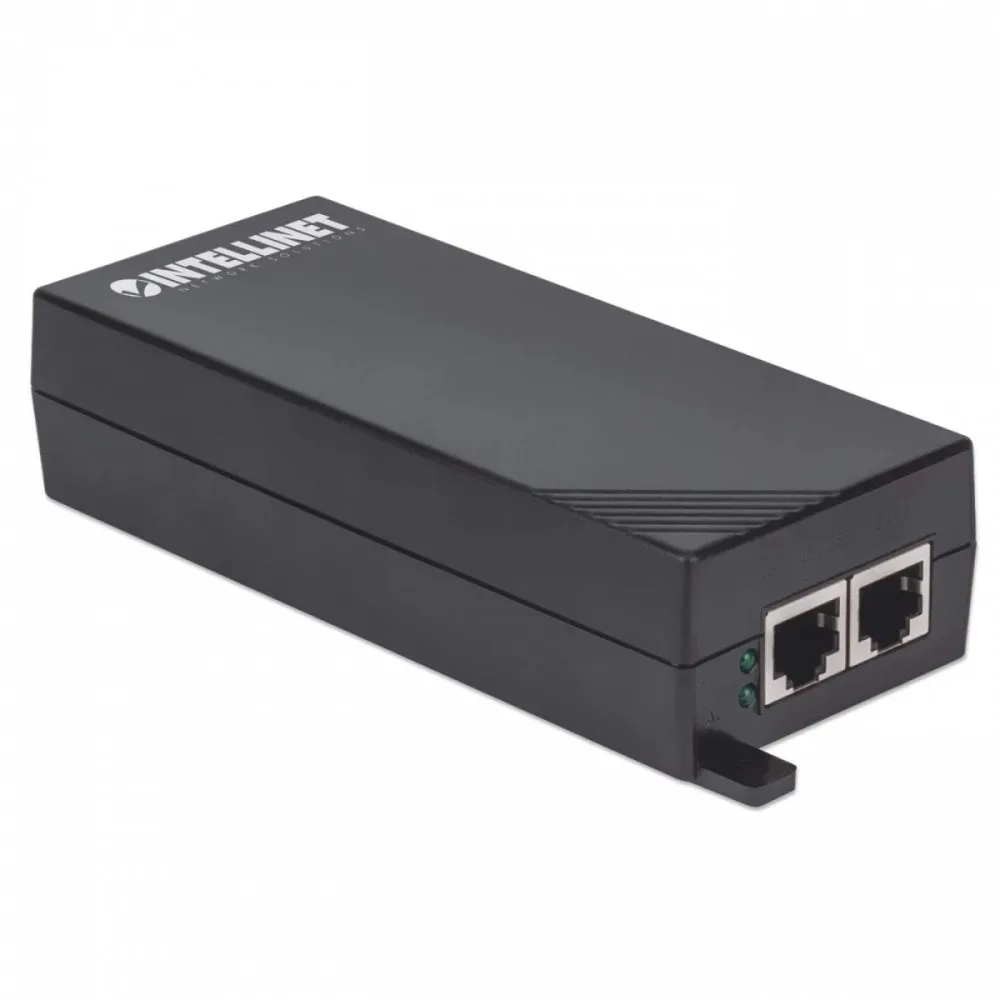

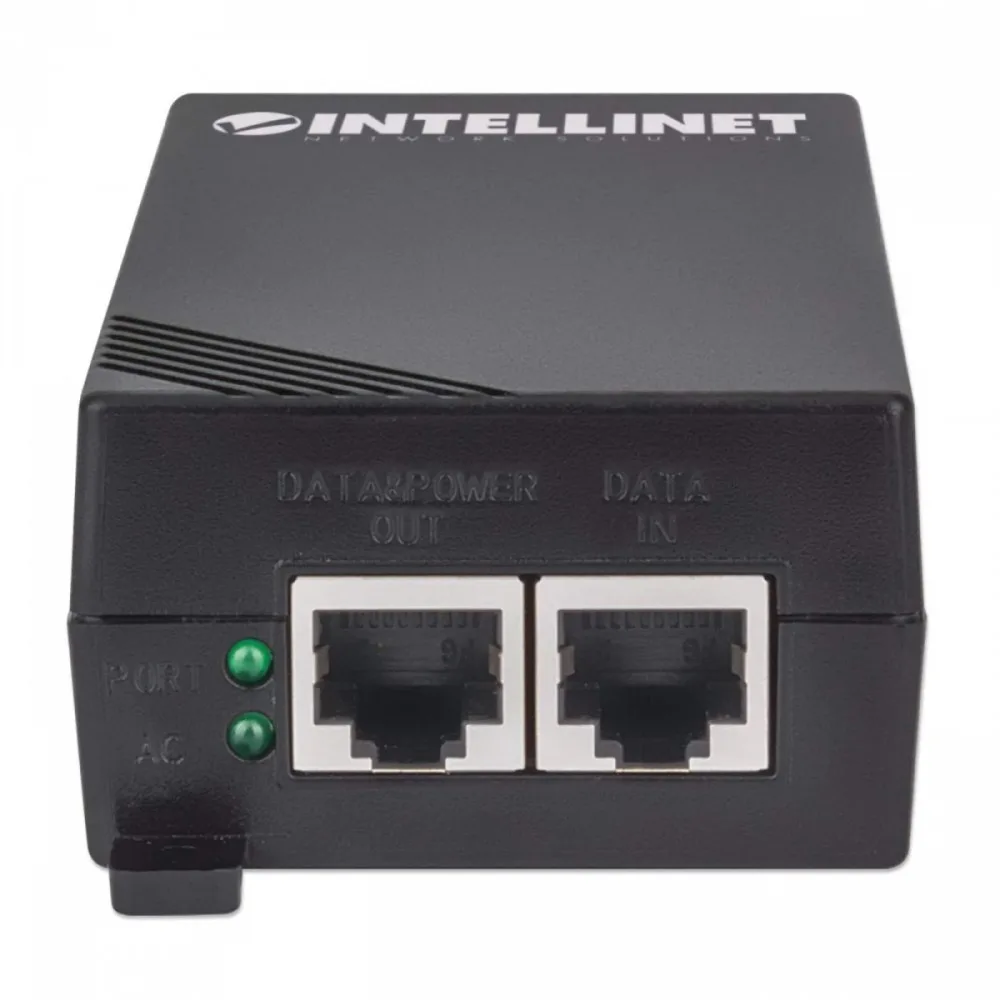

PoE+ Gigabit Power Adapter

One RJ45 Port 30W, IEEE 802.3at/af Compliant, Plastic Housing

The Gigabit PoE+ injector from Intellinet Network Solutions allows you to connect an IEEE 802.3af/at compliant product to a non-PoE LAN switch port. The Power over Ethernet adapter can power and provide network connection to a wireless access point, IP phone, network camera or any PD device powered by the IEEE 802.3af/at standard. This injector has an output power of up to 30 watts. This is enough even for power-hungry PoE devices.

• Save time and money by using your existing cable for power and data transmission
• IEEE 802.3at (PoE+) compliant
• Output power up to 30W
• Support for connection at a distance of up to 100m
• Cooperation with IEEE 802.3at and IEEE 802.3af standard devices (Access Points, VoIP phones, IP cameras)
• Supports IEEE 802.3 at/af detection and protection against short circuit, overload and overvoltage
• Internal power supply
• Fanless design ensures quiet operation
• Fully NDAA compliant

I/O ports: 2 x 10/100/1000 Mbit/s
Accessories included:

• PoE+ Gigabit Power Adapter
• Power cable
• User manual

Height: 34 Millimetre
Width: 67 Millimetre
Depth: 136 Millimetre
Weight: 190 gram
Other features:

Power supply:

• Input voltage: 100 – 240V AC, 50/60Hz
• Power consumption: 35W (maximum)

Supported Standards:

• IEEE 802.3af (Power over Ethernet)
• IEEE 802.3at (High-Power PoE+ Power over Ethernet)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)

Security:

• Short GND surge protection
• Overload protection for current above 0.6A

PoE pin assignment: IEEE 802.3af/at Type A:

• Pin 1: DC (+)
• Pin 2: DC (+
