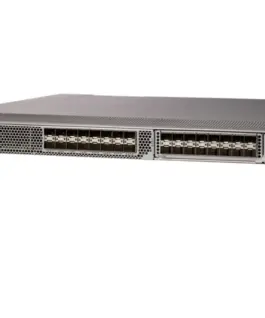

Hewlett Packard Enterprise Switch SN6610C 32G 32/8 32G SFP+ FC v2 Q9D35B

Hewlett Packard Enterprise Switch SN6610C 32G 32/8 32G SFP+ FC v2 Q9D35B

Description:

HPE Storage Fibre Channel Switch C-series SN6610C

HPE SN6610C 32Gb 32/8 32Gb Short Wave SFP+ Fibre Channel v2 Switch

Are you looking for a high performance Fibre Channel switch for the modern storage area network? The HPE Storage Fibre Channel Switch C-series SN6610C delivers 32 Gbps Fibre Channel (FC) switching providing high-speed FC connectivity from the server rack to the SAN core. It empowers midsize, enterprise, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the dual benefits of greater bandwidth and consolidation. The switch offers state-of-art analytics and telemetry capability built into its ASIC platform. For increased flexibility, the HPE Storage Fibre Channel Switch C-series SN6610C scales from 8 to 32 ports. Additionally, investing in this switch for the lower-speed (8 or 16 Gbps) server rack gives you the flexibility to upgrade to 32 Gbps performance in the future.

Switch class: Managed
Network architecture: GigabitEthernet
Number of 32Gb ports: 32
Number of SFP+ ports: 8
Console port: Yes
Throughput: 1024 Gigabity na sek.
Support for Jumbo frames: No
Stackability: No
VLAN:
Supported protocols and standards:
QoS:
Security:

• VSANs
• FC-SP for host-to-switch and switch-to-switch authentication
• Secure FTP (SFTP)
• Port security
• Control-plane security
• Management access: SSHv2, SNMPv3, IP ACLs

Management, monitoring, configuration:

Access methods

• Out-of-band 10/100/1000 Ethernet port
• EIA/TIA-232 serial console port
• In-band IP over Fibre Channel (RFC 2625)

Access protocols

• Command Line Interface (CLI) using the console and Ethernet port
• SNMPv3 using the Ethernet port and in-band IP over Fibre Channel access
• NX-API

Security

• Per-VSAN RBAC using LDAP, RADIUS, and TACACS+-based AAA functionsVSAN-based roles
• SSHv2 implementing AES
• SNMPv3 implementing AES
• Simple File Transfer Protocol (SFTP)

Management Applications

• Cisco MDS 9000 Family CLI
• Cisco Data Center Network Manager
• C-series Data Center Network Manager (optional, requires C-series Data Center Network Manager license, HPE C-series SN6000C Advantage License, or HPE C-series SN6610C/SN6620C Premier License)
• C-series Nexus Dashboard Fabric Controller (optional, requires license which includes Nexus Dashboard Fabric Controller features)

L2 features:
L3 features:
Other functions:
Chassis type: Rack
Fan : Yes
Power supply : Internal
Power consumption: 80 Watt
Environment requirements:
Certificates:
Accessories included:
Power supply:
Dimensions:

1.72 x 17.3 x 20.11 inches

Weight: 9.82 kilogram
Other features:
Designation:
