Description:

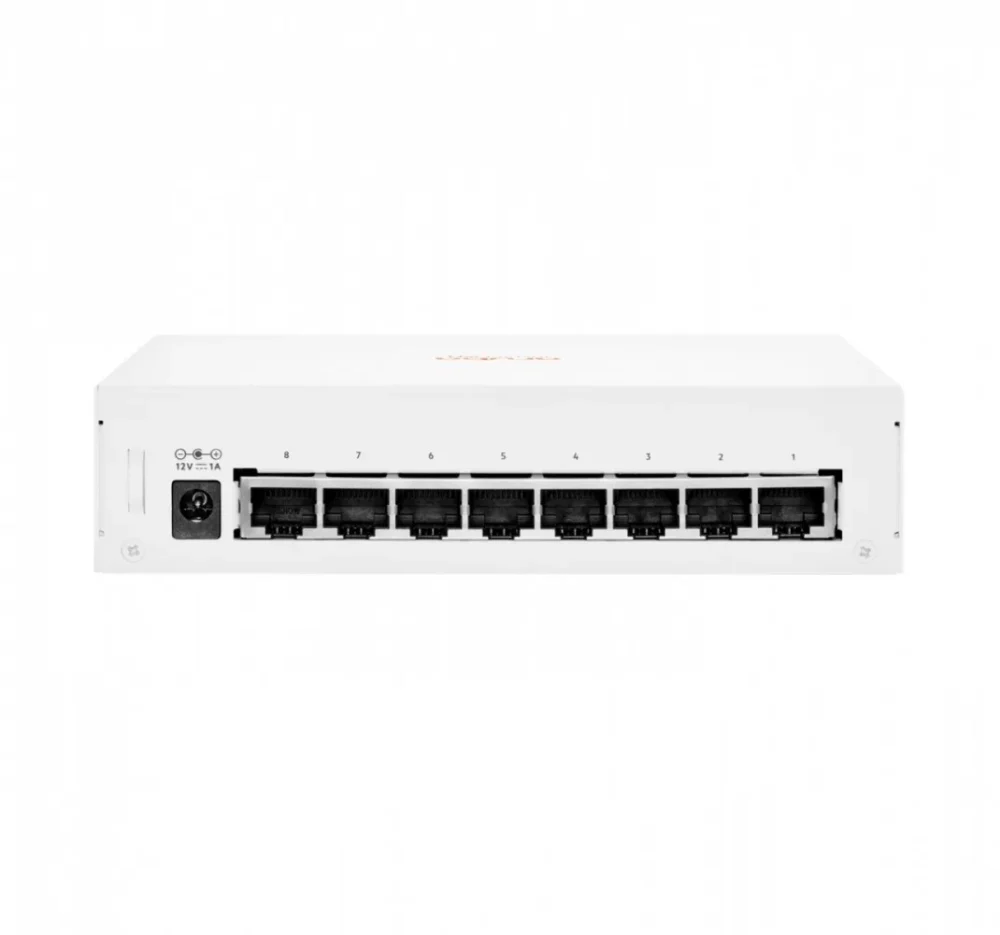

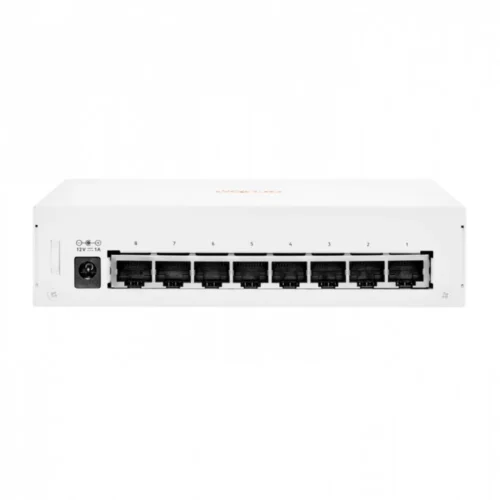

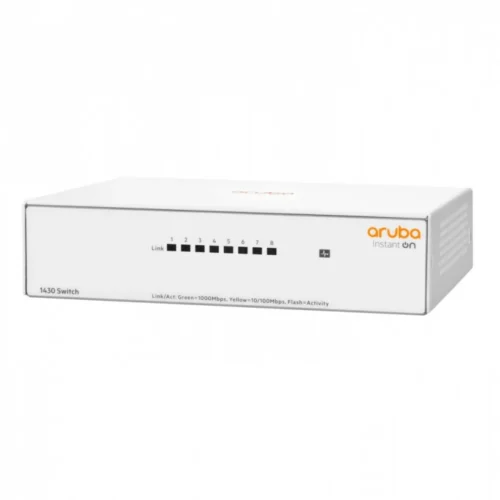

Aruba Instant On 1430 8G Switch (R8R45A)

Switch class: Unmanaged
Application: Home and small office
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 8
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of QSFP+ ports: None
Console port: No
Throughput: 16 Gigabity na sek.
Forwarding rate: 11.9 Mpps
MAC address table size: 8192
Support for Jumbo frames: Yes
Jumbo frame size: 9.216 Kilobajt
Stackability: No
VLAN:
Supported protocols and standards:

• IEEE 802.3i 10 Mbps Ethernet
• IEEE 802.3u 100Base-T Ethernet
• IEEE 802.3z 1000 Mbps Ethernet
• IEEE 802.3ab 1000Base-T
• IEEE 802.3af PoE1 (PoE models only)
• IEEE 802.3at PoE1 (PoE models only)
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy Efficient Ethernet

QoS:

RFC 2474 QoS diffserv (DSCP) mapping

Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Rack
Fan : No
Power supply : External
Power consumption: 12 Watt
Accessories included:
Power supply:

• Frequency: 50Hz/60Hz
• AC voltage: 100-240VAC
• Current: 0.3A (12VDC – 1A)
• Maximum rated power: 12W
• Idle power: 1,7 W

Dimensions:

138 x 157 x 37 mm

Weight: 0.59 kilogram
Environment requirements:

• Operating temperature: 0 °C to 40 °C
• Relative humidity during operation: 15% to 95% (40 °C) non-condensing
• Rest/storage temperature: -40°C to 70°C
• Relative humidity at rest/storage: 15% to 90% (65°C) non-condensing

Certificates:

Safety:

• EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 EN/IEC 62368-1, 2nd. & 3rd. Ed.
• UL 62368-1, 3rd. Ed.
• CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
• EN/IEC 60825- 1:2014 Class 1

Emissions:

• EN 55032:2015/ CISPR 32, Class B
• FCC CFR 47 Part 15: 2018, Class B
• ICES-003, Class B
• VCCI-32, Class B
• CNS 13438, Class B
• KS C 9832, Class B
• AS/NZS CISPR 32, Class B

• Immunity BS/EN 55035, CISPR 35, KS C 9835
• Generic EN 55035, CISPR 35
• EN EN/IEC 61000-4-2
• ESD EN/IEC 61000-4-3
• Radiated EN/IEC 61000-4-4
• EFT/Burst EN/IEC 61000-4-5
• Surge EN/IEC 61000-4-6
• Conducted EN/IEC 61000-4-8
• Power frequency magnetic field EN/IEC 61000-4-11
• Voltage dips and interruptions EN/IEC 61000-3-2
• Harmonics EN /IEC 61000-3-3

Other features:

• Processor and Memory: 128Kb EEPROM
• Packet buffer size: 2.0 Mb
