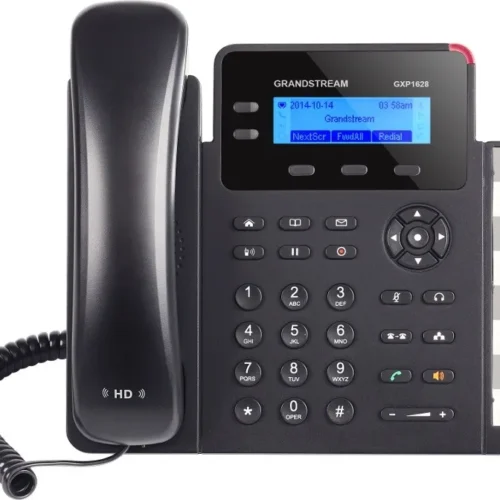

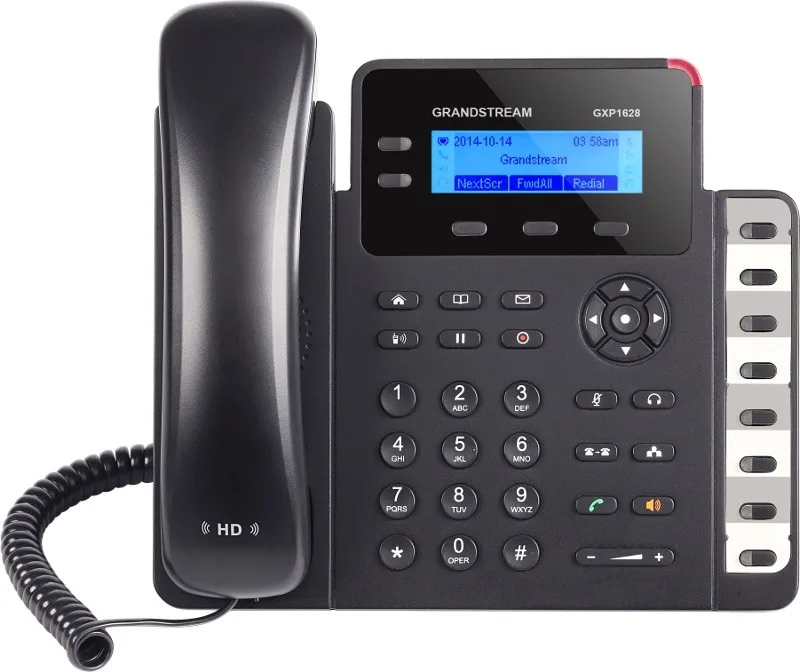

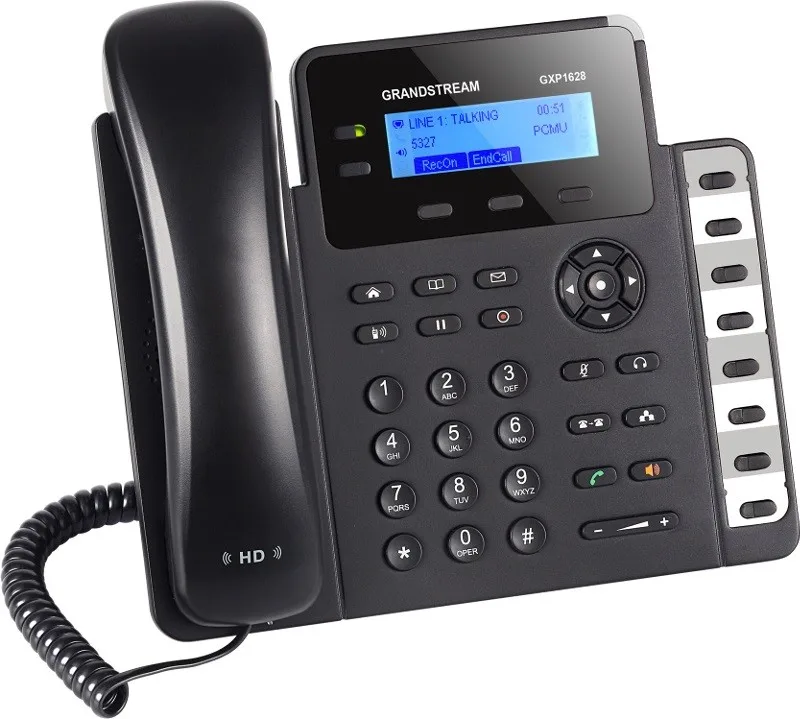

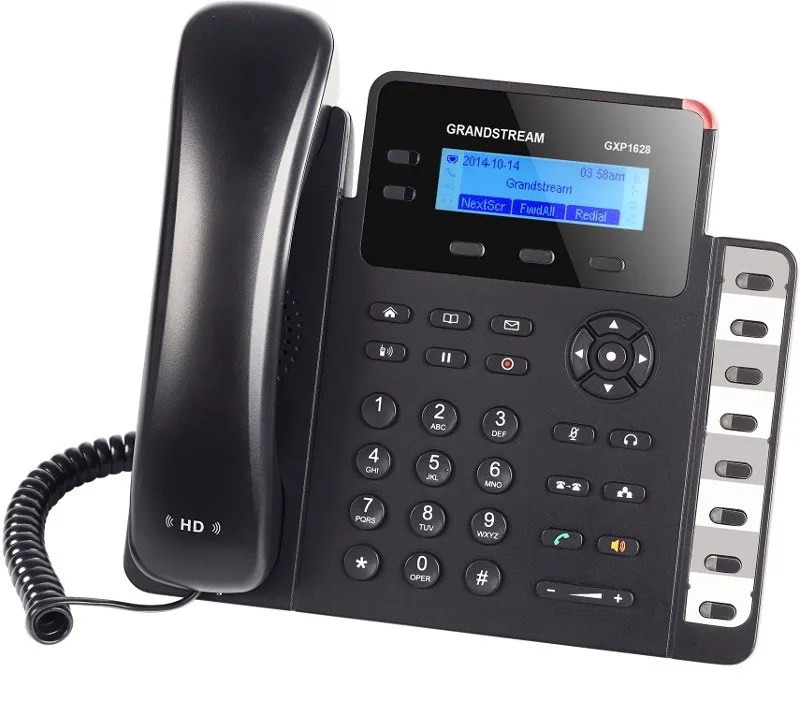

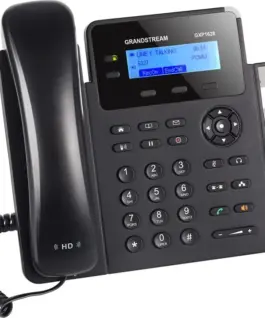

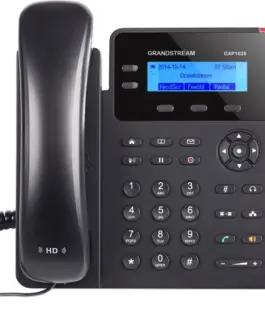

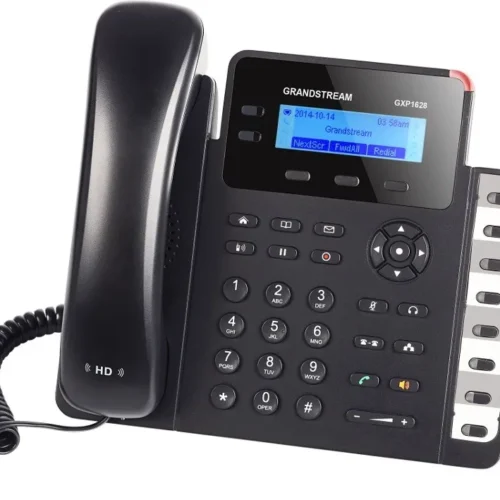

Grandstream Phone IP GXP 1628 HD

Grandstream Phone IP GXP 1628 HD

Description:

Phone IP GXP 1628 HD

The GXP1628is a standard Grandstream IP phone for small businesses. The model runs under Linux and comes with two lines of support, three programmable XML keys, 8 programmable BLF keys, HD audio, and 3 conference calls. The 132 x 48-pixel LCD screen with excellent image quality is handy to handle. The GXP1628 is equipped with two 10/100/1000 Mbps ports and additionally features PoE. With additional features such as support for multiple interface languages, Plantronics headset EHS (Electronic toggle switch) and call waiting, the GXP1628 is a high quality, easy-to-use and reliable IP phone.

Resolution: 132 x 48
Other display parameters:
Protocols support: SIP
Protocols support: STUN
Protocols support: SIP v2.0
Network protocols:

• TCP/IP/UDP
• RTP/RTCP
• HTTP/HTTPS
• ARP/RARP
• ICMP
• DNS (rekord A, SRV, NAPTR)
• DHCP
• PPPoE
• SSH
• TFTP
• NTP
• SIMPLE
• LLDP-MED
• LDAP
• TR-069
• 802.1x
• TLS
• SRT

No. of accounts: 2
Audio codec: G.723
Audio codec: G.711a
Audio codec: G.711u
Audio codec: G.722
Audio codec: G.729b
Audio codec: G.729a
Audio codec: G.726
Headsets support: Wired
Security:

• Access control for users and administrators
• MD5 and MD5-sess authentication
• Configuration file encrypted using AES (256-bit)
• TLS
• SRTP
• HTTPS
• Access control for 802.1x media

IP telephony features:

• Wstrzymanie/Przekazywanie/Przekierowanie
• 3-osobowe połączenia konferencyjne
• Parkowanie/odbieranie połączenia
• Symulacja połączenia SCA/BLA
• Pobieranie książki telefonicznej (XML/LDAP) – max. 500 pozycji
• Połączenie oczekujące
• Rejestr połączeń (do 200 wpisów)
• Automatyczne wybieranie po podniesieniu słuchawki
• Automatyczna sekretarka
• Wybieranie kliknięciem
• Elastyczny plan numeracji
• Współdzielenie telefonu (Hot desking)
• Własne dzwonki muzyczne
• Nadmiarowość i tryb awaryjny serwera

Special functions:
PoE: Yes
I/O ports: 2 x 10/100/1000 Mbit/s PoE
Other I/O ports : 1 x RJ-9
Environment requirements:

• Working temperature: 0 – 40 degrees Celsius
• Storage temperature: -10 to 60 degrees C
• Ambient humidity: 10 – 90% (non-condensing)

Accessories included:

• GXP1628 + corded handset
• Desk stand
• Universal power supply
• Network cable
• Quick Installation Guide
• Brochure
• GPL License

Color: Black
Dimensions:

209 x 184.5 x 76.2 mm

Weight: 0.8 kilogram
Other features:

• Plantronics Headset with EHS function
• HD sound
• QoS: Layer 2 (802.1Q, 802.1P), Layer 3 (ToS, DiffServ, MPLS)
• Firmware Upgrade (TFTP / HTTP / HTTPS)
• Mass configuration using TR-069 / XML

Keys:

• 2 line keys (two color LEDs)
• 3 programmable XML soft keys
• 8 BLF keys
• 5 keys (navigation menu)
• 13 special function keys

Warranty:
