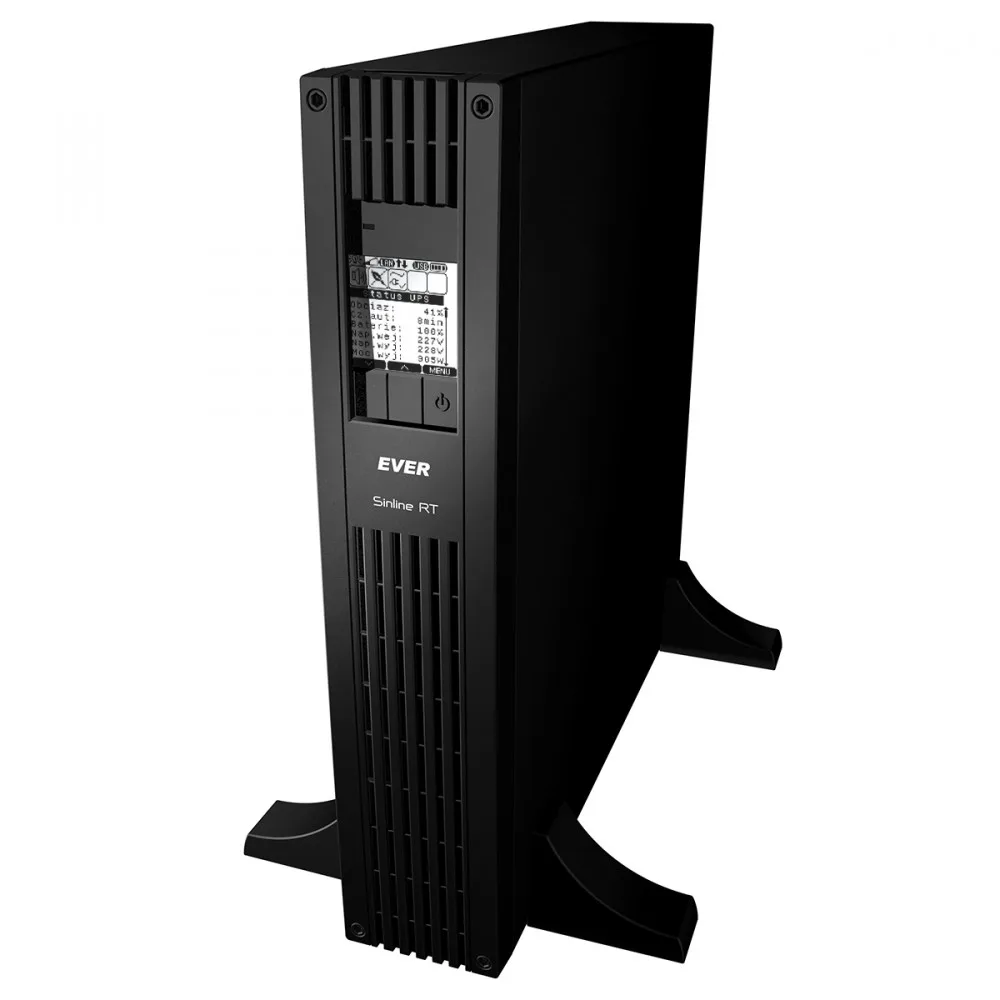

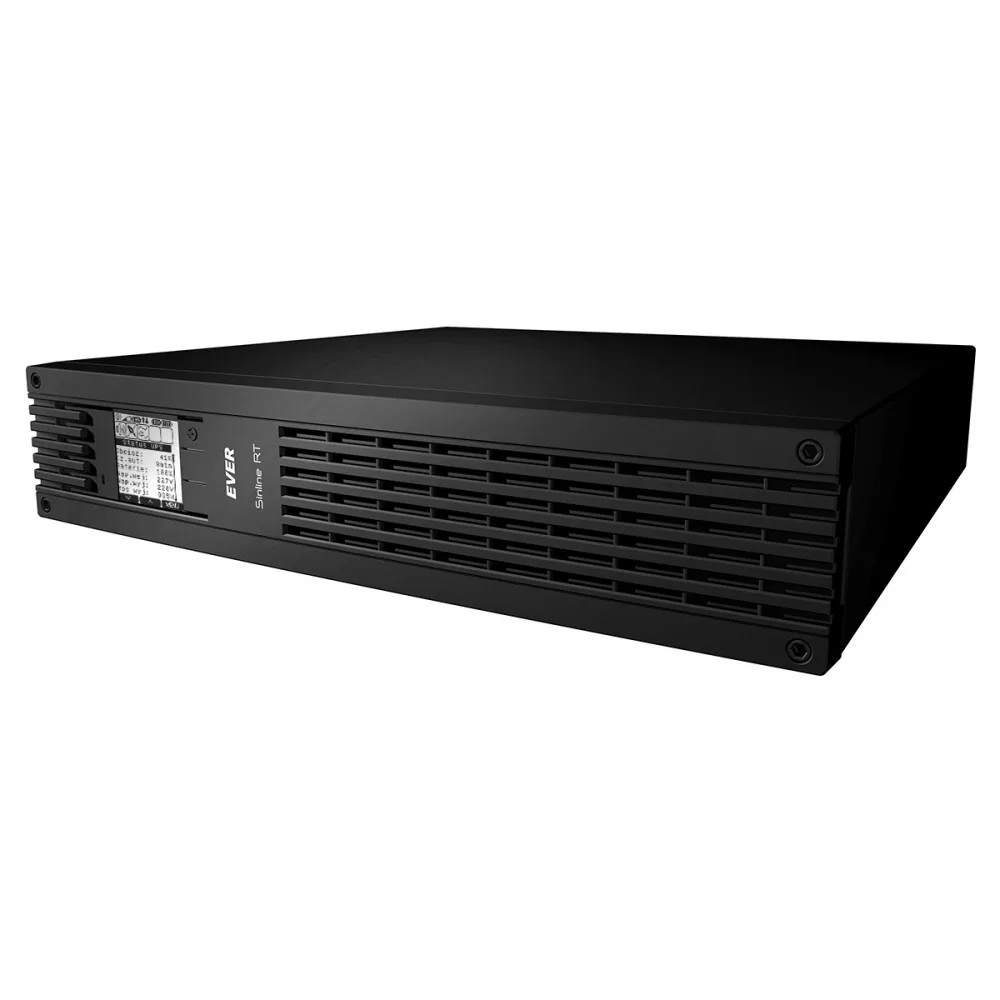

EVER UPS SINLINE RT XL 850VA

EVER UPS SINLINE RT XL 850VA

Description:

SINLINE RT XL is the latest series of advanced power supplies in which the output active power can attain apparent power. These power supplies are designed for servers, small computer networks and workstations as well as other electrical, electronic and IT equipment. In addition, this series has a LAN filter (1Gbit / s), the ability to manage output sockets, connect an additional battery module and replace the battery by the user. The LCD graphic display gives the user complete control over the device.

Thanks to the optional power supply in the RS232 / RS485 communication interface with MODBUS protocol and the potential-free output and control inputs, it is possible to integrate the device into the automation systems. The Rack / Tower housing makes it easy to change the way you install the unit.

The built-in automatic voltage regulation (AVR) allows the input voltage to be adjusted to acceptable levels without consuming battery power. The integrated battery charging system with thermal compensation additionally protects internal batteries, extending their service life.

Power supplies have a built-in communication system via a standard network interface (SNMPv1, HTTP) and a USB HID interface that allows the UPS to work with other devices without the need for software installation. In addition, this series allows you to start the device from the battery without having to connect the UPS to the mains supply. “Cold start”. Optionally, the UPS has the Emergency Power Off (EPO) function.

Apparent power: 850 VA
Active power: 850 Watt
UPS Architecture: line-interactive
Number of phases input: 1 (230V)
No. of batteries: 2
Voltage: 12 Volt
Battery capacity: 7 Ah
Hold-up time (maks): 3 millisecond
Backup time (100% load): 3 Minute
Charging time: 4 Hour
Chassis type: Rack
Chassis type: Tower
Filters / protection: Data line
Filters / protection: Circuit
Filters / protection: Surge
Special functions:

– Output power equal to apparent power (PF = 1)
– Rack / Tower mounting
– Voltage regulation system AVR (boost and lower)
– Graphical LCD display
– Battery charging system with thermal compensation
– Predictive hold time
– Ability to manage output sockets
– Cold start
– Battery replacement by the user
– Support for external battery module (optional)
– EPO input support (optional)
– Network interface as standard (SNMP, HTTP)
– HID USB communication interface
– RS232 / RS485 communication interface (MODBUS) (optional)
– Support for potential-free outputs and control inputs (optional)
– LAN filter (1 Gb/s)
– Firmware update by user

Software:

PowerSoft monitoring and management software

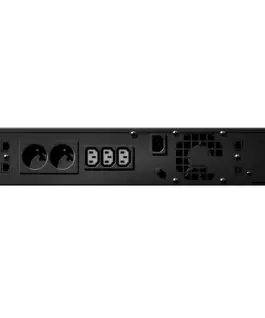

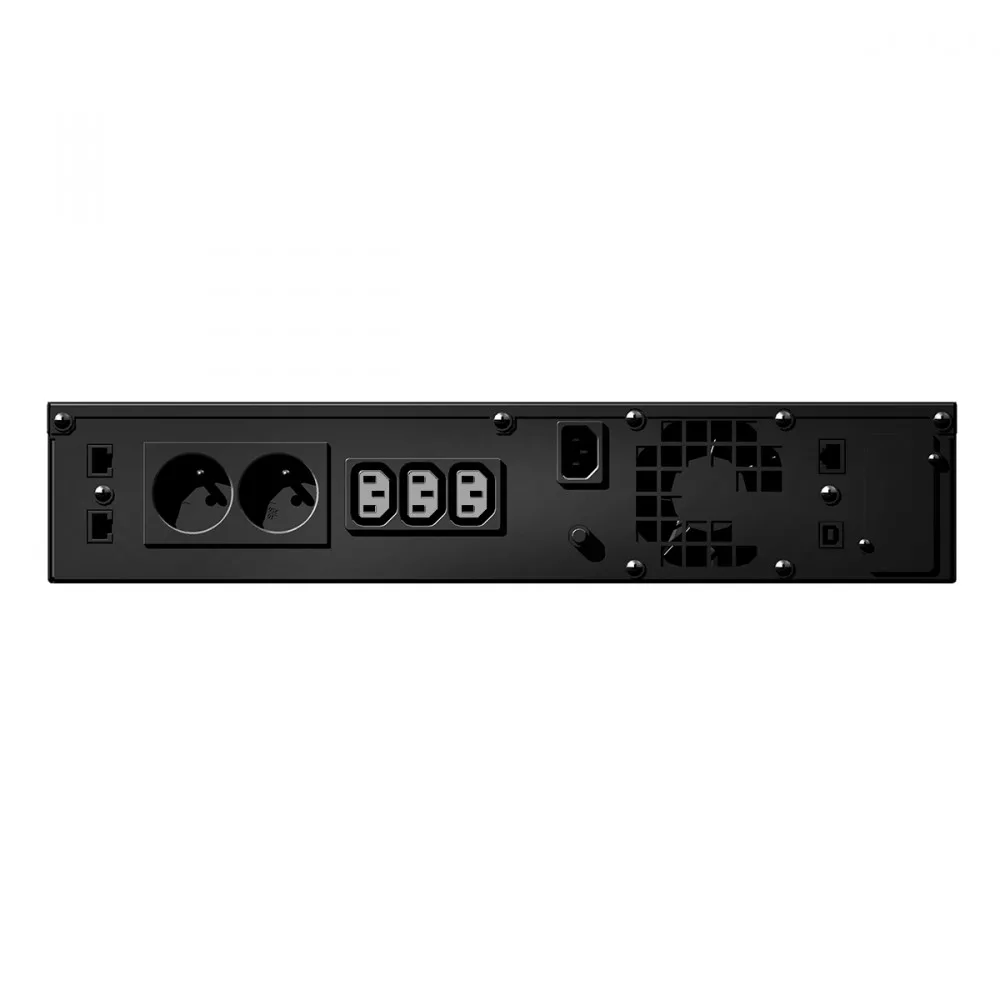

Input power ports: IEC-C14
Output power ports: 3 x IEC-C13
Output power ports: 2 x C/E type
Connectors: SmartSlot
Connectors: RJ-45
Connectors: 1 x USB (Typ B)
Environment requirements:

– Working temperature: 0 – 40 degrees Celsius
– Storage temperature: 0 to 45 degrees C
– Operating humidity: 20 – 80% (non-condensing)
– Storage Ambient Humidity: 20 – 95% (non-condensing)
– Height up to 1000 m

Accessories included:
Color: Black
Dimensions:

– Rack: 88 x 440 x 430 mm (mounting kit to be purchased separately)
– Tower (+ stands): 450 x 260 x 430 mm

Weight: 18 kilogram
Other features:

– Degree of protection: IP20
– Working environment: office / industrial areas with low pollution levels
– Cooling: internal fans
– Input: 230V 50Hz (178 ~ 281V AC 45/55 Hz)
– Output: 230V 50Hz (195 ~ 253V AC 50 Hz)
– Maintenance (80/50%): 4/7 minutes
– Signaling: acoustic-optical

Warranty:

– Door-to-door service
– 3 year warranty on UPS electronics
– 2 year battery warranty
– Repair work done in 2 working days

Designation:
