EVER UPS SINLINE RT 1600

EVER UPS SINLINE RT 1600

Description:

SINLINE RT is the latest series of high-end power supplies for servers, small computer networks and workstations as well as other electrical, electronic and IT products. Thanks to the universal solution of the housing (Rack / Tower) it is possible to change the way of installation of the device in a simple and quick way.

Built-in automatic voltage regulation (AVR) (adjustable and adjustable) allows the input voltage to be adjusted to acceptable levels without consuming battery power. The integrated battery charging system with thermal compensation further protects internal batteries, extending their service life, thus reducing operating costs.

The SINLINE RT series has the ability to replace the battery by the user and a system of extended communication through an integrated network interface as standard (SNMP, HTTP) and a USB HID communication interface that enables the UPS to work with other devices without installing software.

The extensive LCD graphic display gives the user full control over the device, along with real-time UPS autonomy (predictive hold time). In addition, this series allows you to start the device from the battery without having to connect the UPS to the mains supply. “Cold start”.

Apparent power: 1600 VA
Active power: 1250 Watt
UPS Architecture: line-interactive
Number of phases input: 1 (230V)
No. of batteries: 4
Voltage: 12 Volt
Battery capacity: 7 Ah
Hold-up time (maks): 3 millisecond
Transfer time (max): 0 millisecond
Backup time (100% load): 3 Minute
Charging time: 4 Hour

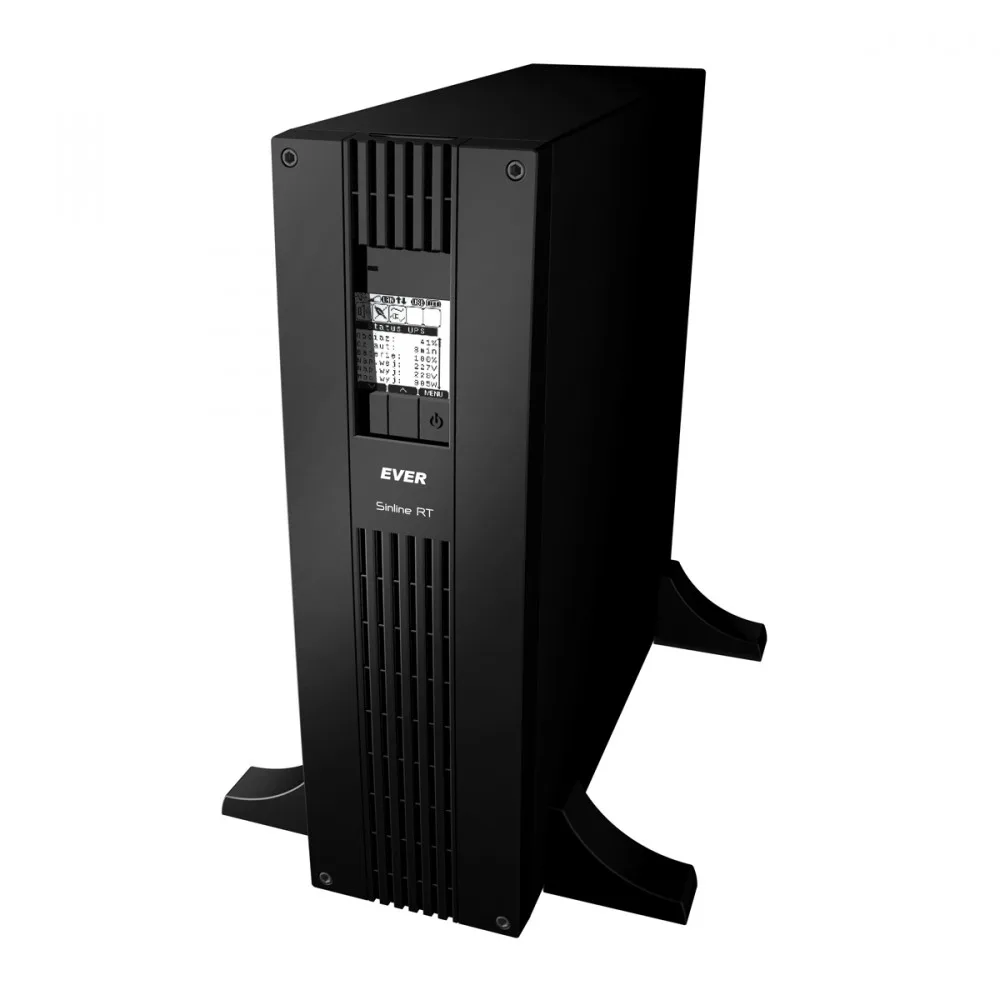

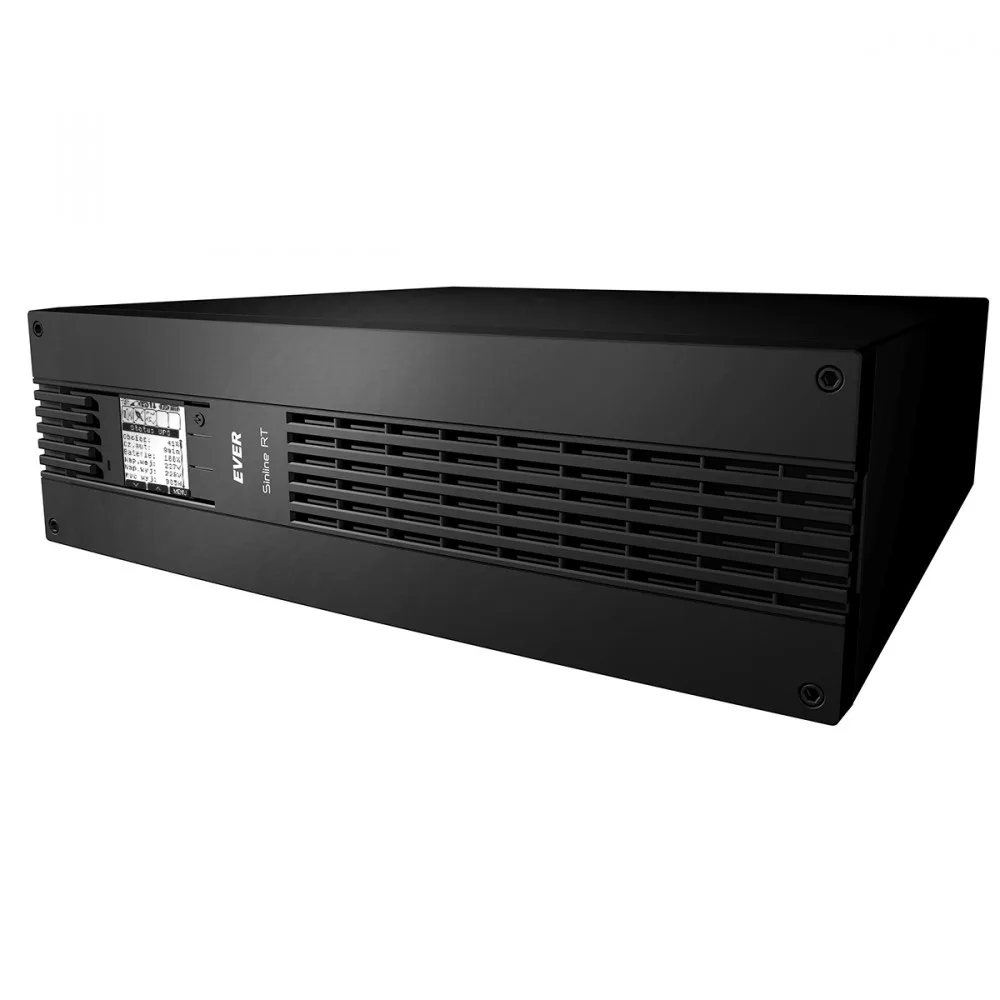

Chassis type: Rack
Chassis type: Tower
Filters / protection: Overload
Filters / protection: Surge
Filters / protection: Circuit
Special functions:

– Rack/Tower housing
– Voltage regulation system AVR (boost and lower)
– Graphical LCD display
– Battery charging system with thermal compensation
– Predictive hold time
– Cold start
– Battery replacement by the user
– Network interface as standard (SNMP / HTTP)
– HID USB communication interface
– Firmware update (by user)

Software:

PowerSoft Professional monitoring and management software

Input power ports: IEC-C20
Output power ports: 6 x IEC-C13
Output power ports: 2 x C/E type
Connectors: 1 x USB (Typ B)
Connectors: RJ-45
Environment requirements:

– Working temperature: 0 – 40 degrees Celsius
– Storage temperature: 0 – 45 degrees Celsius
– Operating relative humidity: 20 – 80% (non-condensing)
– Storage relative humidity: 20 – 95% (non-condensing)
– Height up to 1000 m

Accessories included:
Color: Black
Dimensions:

– Rack 132 x 440 x 460 mm (mounting kit available optional)
– Tower (+ stands): 450 x 304 x 460 mm

Weight: 22 kilogram
Other features:

– Degree of protection IP20
– Designed for office / industrial premises with low pos. pollution
– Built-in cooling fans
– Input: 230V AC 50Hz (178 ~ 281V AC)
– Output: 230V AC 50Hz (195 ~ 253V AC)
– Battery back time (80/50%): 4/8 minutes
– Maximum output cable length:
Warranty:

– Door-to-door service
– 3 year warranty on UPS electronics
– 2 year battery warranty
– Repair work done in 2 working days

Designation:
