Description:

NETLINE RT 1000 T/NETLRT-001K00/00 emergency power supply

NETLINE RT series power supplies are LINE-INTERACTIVE (VI) class devices designed to work with devices powered from a single-phase ~230 V power grid. The UPSs were created to secure the power supply of small and medium-sized IT infrastructure, i.e. servers, small computer networks and workstations, as well as other electrical and electronic devices. Thanks to the universal housing solution (Rack / Tower), it is possible to quickly and easily change the method of installation of the device as a free-standing power supply or an element of the 19 telecommunications cabinet. Additionally, the possibility of connecting up to 10 modules allows for a very long backup time.

CHARACTERISTIC FEATURES OF THE NETLINE RT 1000 UPS:

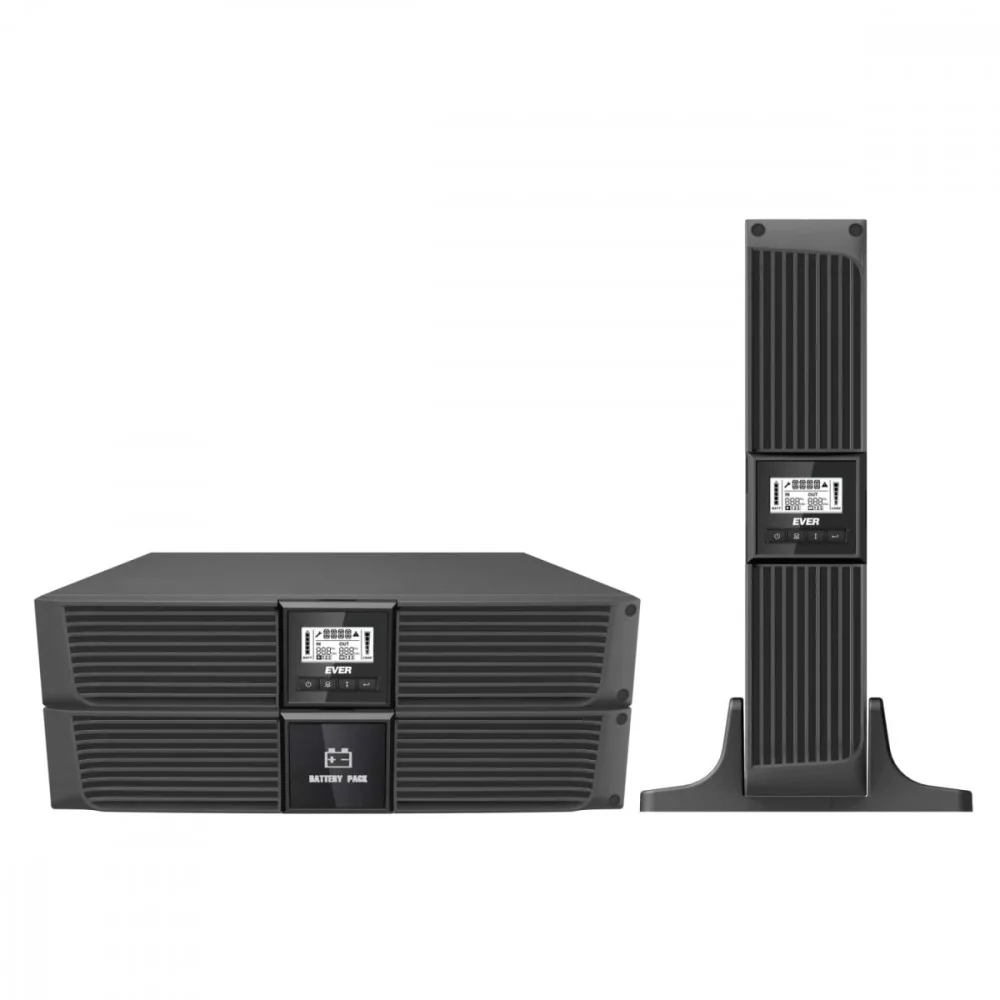

• Rack / Tower housing thanks to the universal housing solution, it is possible to quickly and easily change the method of installation of the device (change of the Rack / Tower mode of the LCD display is carried out without the use of tools).
• HID USB communication interface – the ability to cooperate with other devices without the need to install software.
• The ability to manage output sockets (2 sections) – allows you to properly adjust the operation of the device for more demanding receivers.
• The Start-on-battery function allows you to start the UPS even when the mains power is not available (so-called Cold start).
• Backup time prediction – determining the UPS autonomy time in real time.
• The remote emergency power off function EPO (Emergency Power Off), which allows you to interrupt the supply of energy to receiving devices from the power supply output in extreme situations, such as fire.
• The AVR mains voltage regulation system (increasing and decreasing) – allows you to adjust the incorrect input voltage to a level acceptable by the receivers (without using batteries).
• Scalability (extension) of autonomous operation time thanks to the possibility of connecting up to 10 modules to the UPS.
• LAN network filter (10/100 Base-T) – allows you to protect the network card against the effects of overvoltages.
• The ability to replace the batteries by the user.
• Wide input voltage window (range).
• State communication – allows checking the power supply operating mode and low battery level, e.g. in automation systems.

COMMUNICATION:

• RS232 and USB HID communication interface
• Optional SNMP/HTTP Network Management Card and Potential-Free Contacts Card

Apparent power: 1000 VA
Active power: 900 Watt
UPS Architecture: line-interactive
The shape of the output voltage: Modified sine wave
Number of phases input: 1 (230V)
No. of batteries: 3
Voltage: 12 Volt
Battery capacity: 9 Ah
Hold-up time (maks): 6 millisecond
Transfer time (max): 0 millisecond
Backup time (100% load): 7 Minute
Charging time: 3 Hour

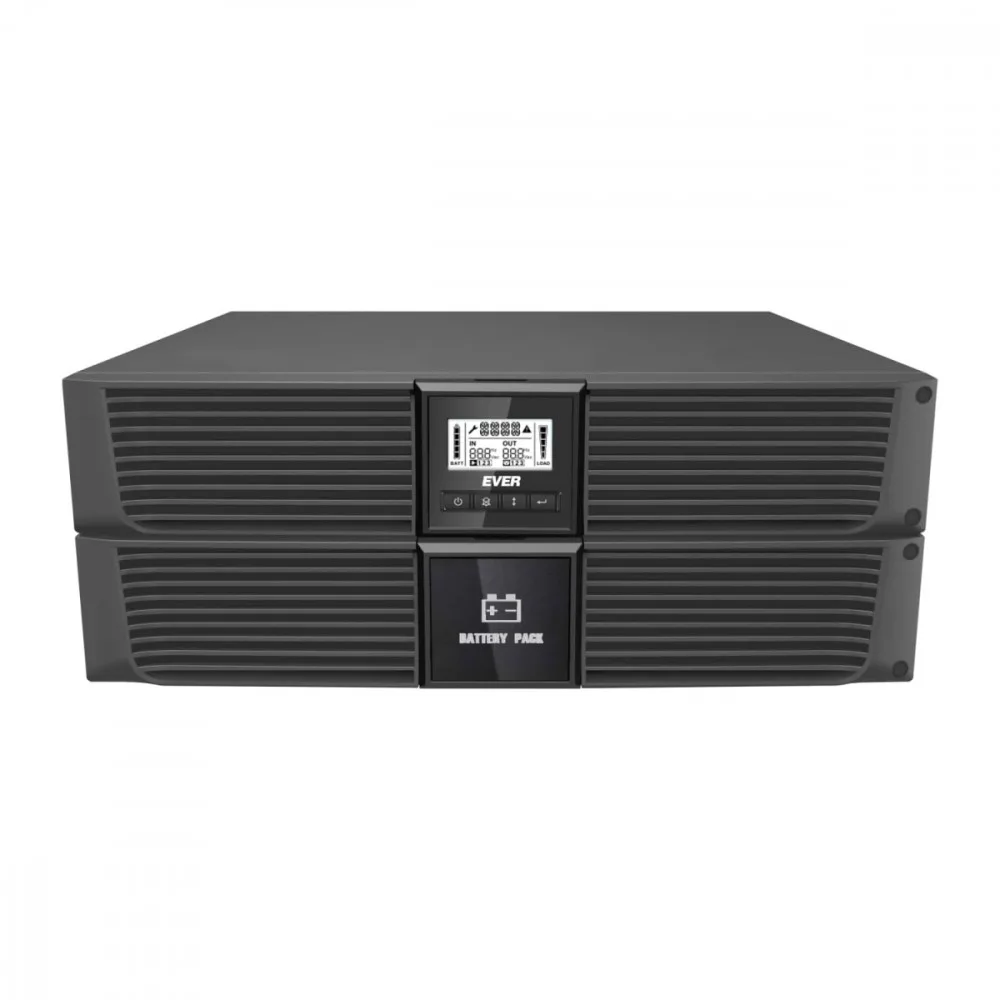

Chassis type: Rack

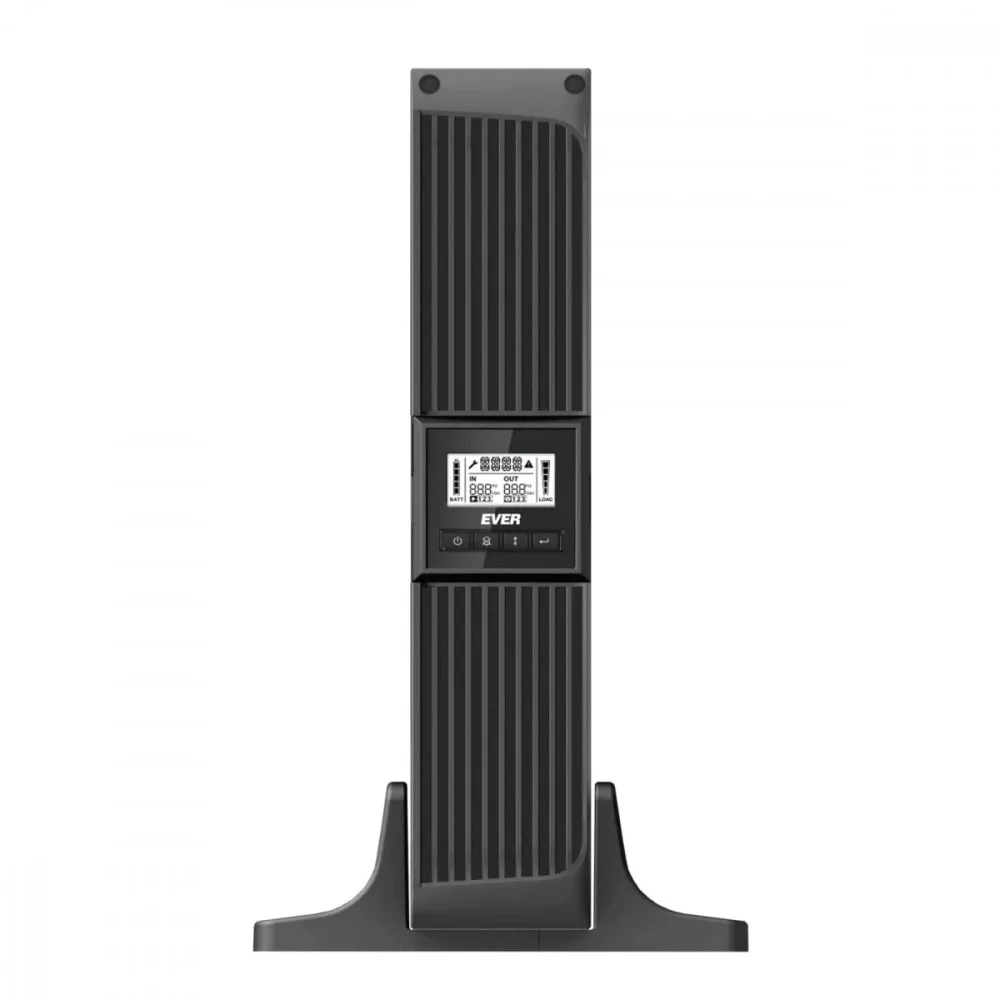

Chassis type: Tower
Filters / protection: Circuit
Filters / protection: Overload
Filters / protection: Surge
Filters / protection: Automatic Voltage Regulation (AVR)
Special functions:

• DC input protection (internal batteries) [A / V DC]: overcurrent protection
• Acoustic-optical signalling
• LCD display

Software:

WinPower

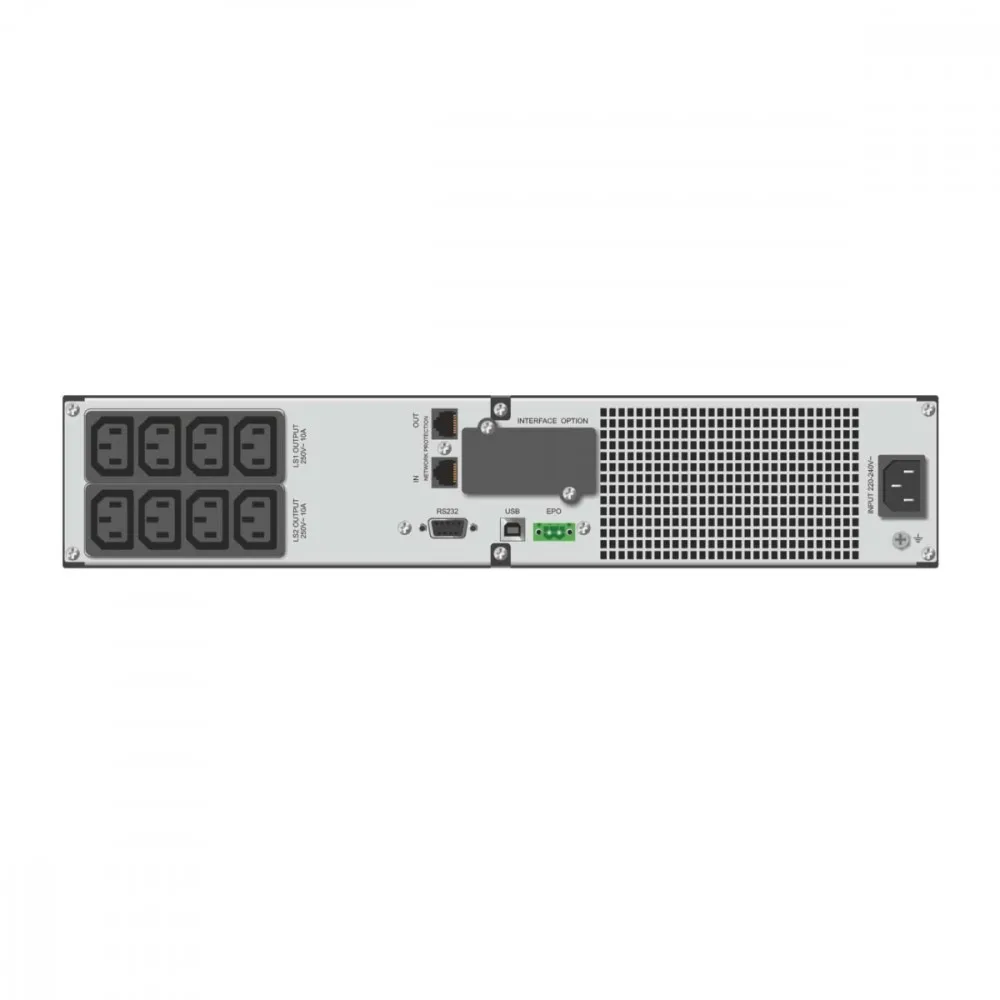

Input power ports: IEC-C14
Output power ports: 8 x IEC-C13
I/O connectors: 1 x USB (Type B)
I/O connectors: 2 x RJ-11/RJ-45
I/O connectors: 1 x EPO
I/O connectors: 1 x RS-232 (COM)
Environment requirements:

• Operating temperatures [°C]: 0 ÷ +40
• Cooling: forced, internal fans

Accessories included:
Color: Black
Dimensions:

86 (2U) x 438 x 436 mm

Weight: 17.5 kilogram
