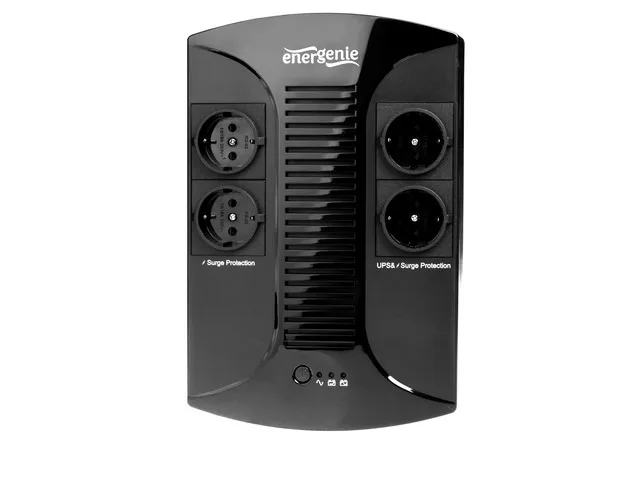

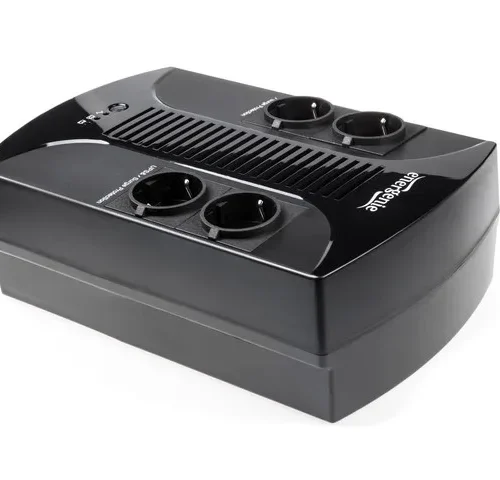

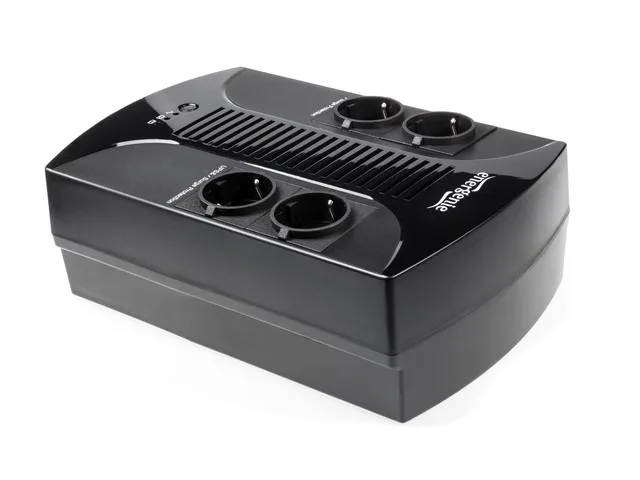

Energenie UPS 650VA Line-Interactive,4xSchuko,LED

Energenie UPS 650VA Line-Interactive,4xSchuko,LED

Description:

Emergency power supply Energenie UPS EG-UPS-001

Apparent power: 650 VA
UPS Architecture: line-interactive
Number of phases input: 1 (230V)
No. of batteries: 1
Voltage: 12 Volt
Battery capacity: 7 Ah
Hold-up time (maks): 10 millisecond
Backup time (100% load): 10 Minute
Charging time: 12 Hour
Chassis type: Tower
Filters / protection: Overload
Filters / protection: Surge
Filters / protection: Circuit
Special functions:

– Uninterruptable 650 VA power supply with modified sine wave output
– Automatic AC voltage regulation (AVR)
– Intelligent surge-, overload- and short-circuit protection
– Audible and visual alarms
– LED status indication
– Intelligent battery management with overcharge and over-discharge protection
– Wall mountable

Software:
Input power ports: IEC-C14
Output power ports: 4 x C/F type (Schuko)
Environment requirements:

– Operating temperature: 0&#176,C &#126, 40&#176,C
– Surrounding humidity: 20 &#126, 90% RH (no condensation)

Accessories included:

– UPS
– Charging cable
– User manual

Color: Black
Dimensions:

280 x 185 x 95 mm

Weight: 4.5 kilogram
Other features:

– Power: 650 VA (390 W)
– Input: 220 V AC &#177, 25%, 50 / 60 Hz &#177, 10%
– Output: 220 V AC &#177, 10%, 50 / 60 Hz &#177, 1% (220 V AC &#177, 5 % at inverter mode)
– Backup time: 10…30 mins (depends on the load)
