MikroTik MikroTik Wired Router CCR2004-16G-2S+PC

MikroTik MikroTik Wired Router CCR2004-16G-2S+PC

Model:

CCR2004-16G-2S+PC

Description:

CCR2004-16G-2S+PC router

Up to 300% faster than existing CCR1009 routers! The luxury you deserve, at a price you can afford. 16 Gigabit Ethernet ports, 2x10G SFP+.

Like other models in the CCR2004 series, this one is also equipped with the Amazon Annapurna Labs Alpine v2 processor with 4x 64-bit ARMv8-A Cortex-A57 cores. Although this processor runs at 1.2 GHz, the router can be 3 times faster than the previous generation CCR. Enjoy the power of real CCR in peace and quiet. Get rid of the noise in your office, studio, server room or home lab without sacrificing performance!

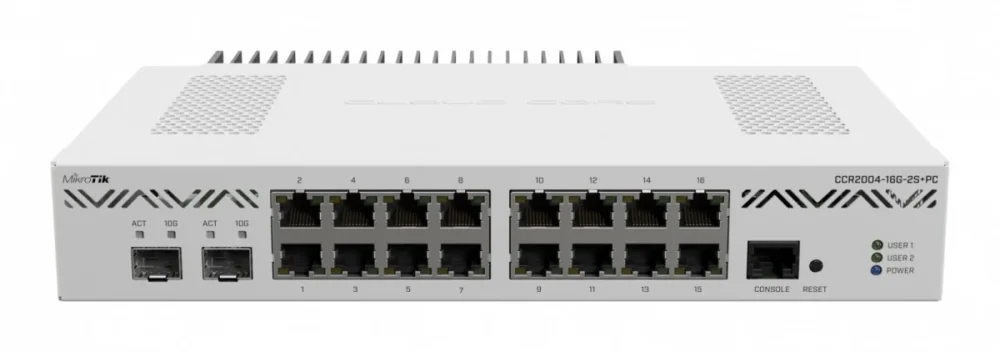

The new router has 18 wired ports, including 16 Gigabit Ethernet ports and two 10G SFP+ cages. It also has an RJ-45 console port on the front panel.

Each group of 8 Gigabit Ethernet ports is connected to a separate switching chip from the Marvell Amethyst family. Each switch chip has a 10 Gbps full-duplex line connected to the processor. The same applies to each SFP+ frame, a separate full-duplex 10 Gb/s line. The boards are equipped with 4 GB of DDR4 RAM and 128 MB of NAND memory.

One of the most common uses for this device is: Gigabit Ethernet ports for the internal network, SFP+ ports for downlink and uplink. The perfect, comprehensive solution for small and medium-sized companies. Easy and efficient.

With the new CCR2004 you can take your office network to the next level.

Type: xDSL
Network architecture: GigabitEthernet
I/O ports: 16 x 10/100/1000 Mbit/s
I/O ports: 2 x SFP
I/O ports: 1 x Console port (RJ-45)
Security:
Management, monitoring, configuration:
Special functions:
Power supply:

• Number of DC inputs: 2 (DC socket, 2-pin terminal)
• DC jack input Voltage: 3657 V
• Input with 2-pin terminal Voltage: 3657 V
• Maximum power consumption: 36 W
• Maximum power consumption without accessories: 30 W
• Cooling type: Passive

Software:
System Requirements:
Environment requirements:

Tested ambient temperature: -20°C to 60°C

Certificates:
Accessories included:
Color: White
Dimensions:

272 x 195 x 44 mm

Other features:

• Processor: AL32400
• Number of CPU cores: 4
• Nominal processor frequency: 1200 MHz
• Operating system: RouterOS v7
• RAM size: 4 GB
• Memory size: 128 MB
• Memory type: NAND
• MTBF: Approximately 200,000 hours at 25°C

Designation:
