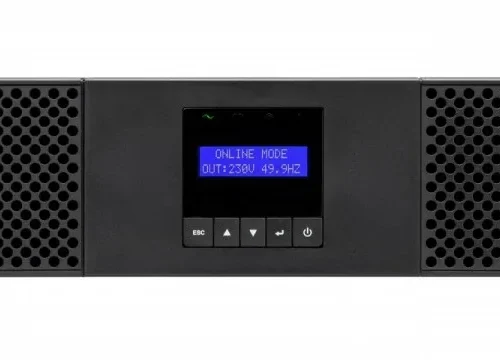

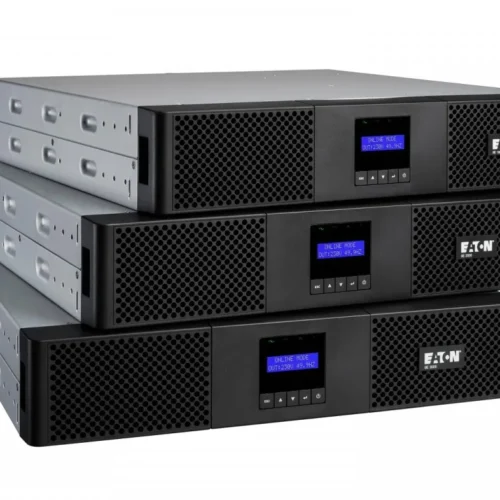

Eaton UPS 9SX 1000i Rack2U LCD/USB/RS232

Eaton UPS 9SX 1000i Rack2U LCD/USB/RS232

Description:

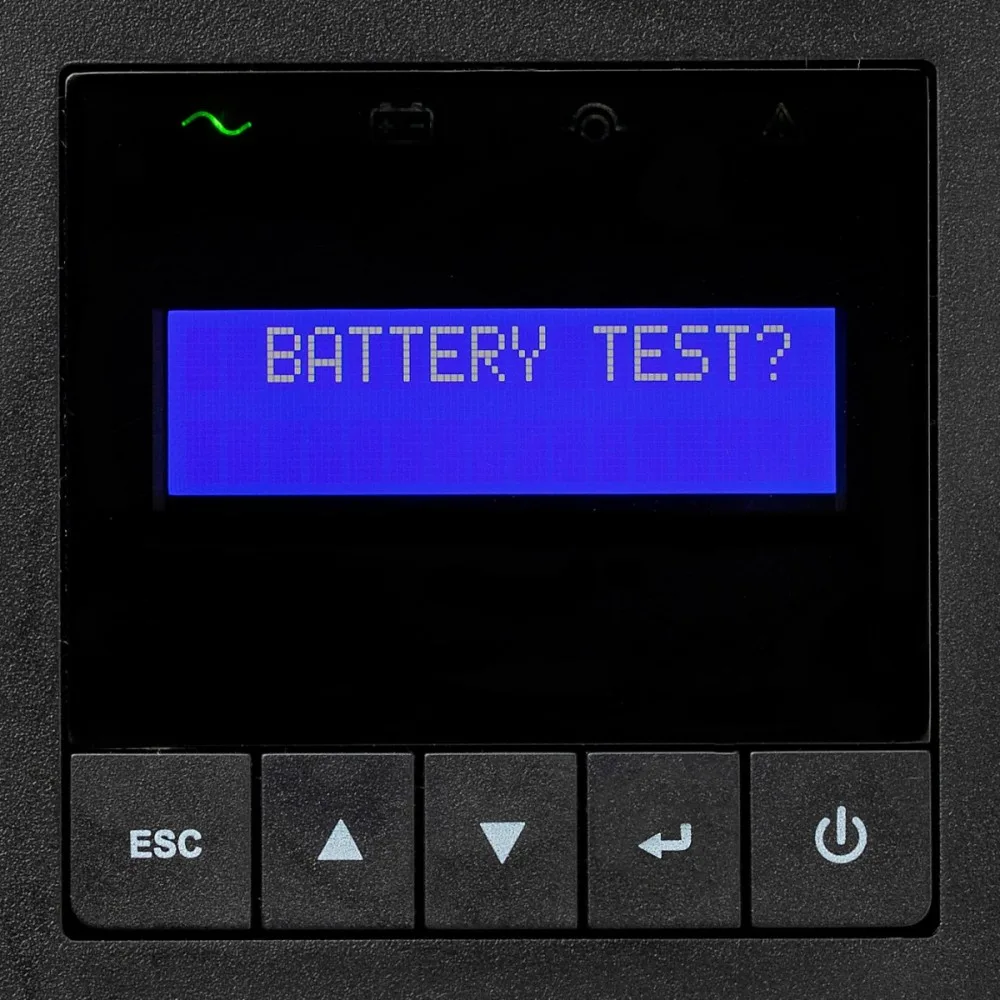

Double conversion online UPS, 2U Rackmount, 2000 VA / 1800 W, multilingual LCD display, energy meter, 6 IEC 10 A sockets (2 manageable groups), optional management board slot, USB and serial ports, potential-free contacts, RPO connector , power management software compatible with the virtual environment, batteries replaceable during operation, long emergency response time with four optional EBM modules, all accessories for mounting in the rack Rack in the set.

Apparent power: 2000 VA
Active power: 1800 Watt
UPS Architecture: on-line double conversion
Number of phases input: 1 (230V)
Voltage: 230 Volt
Charging time: 45 Minute
Chassis type: Rack
Filters / protection: Overdischarge
Special functions:
Software:
Input power ports: IEC-C14
Output power ports: 8 x IEC-C13
I/O connectors: 1 x USB 2.0
I/O connectors: 1 x RS-232 (COM)
Environment requirements:

• Temperature during operation: 0-40°C
• Noise level: 45 dB

Accessories included:

• 2 IEC10A output wires (1.8 m),
• Rack mounting kit,
• 1 USB cable (1.8 m),
• 1 serial cable (1.8 m),
• Short instruction manual,
• Safety instructions.

Color: Black
Dimensions:

86,5 x 438 x 608 mm

Weight: 26.5 kilogram
Other features:

• 1 mini-terminal block for remote power off (configurable)
• 1 block of mini-terminals to the output relay
• 1 socket for the optional communication module
