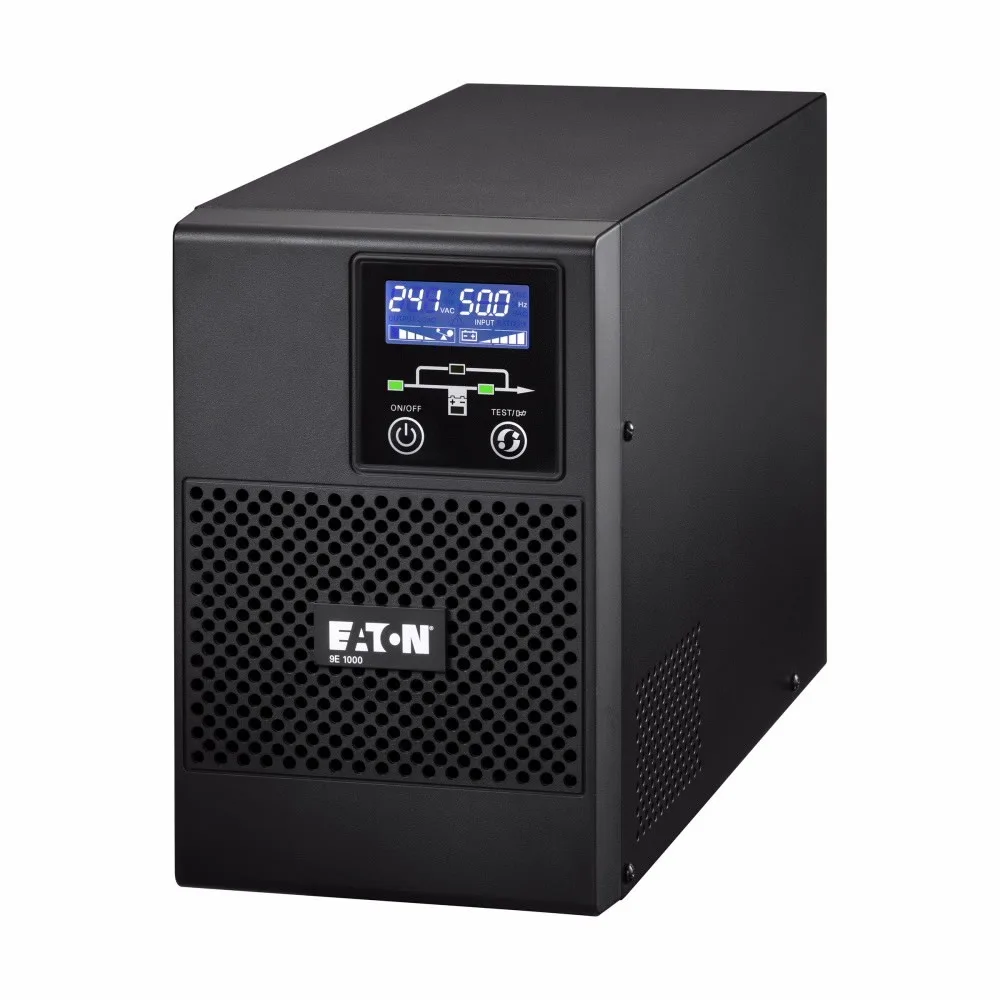

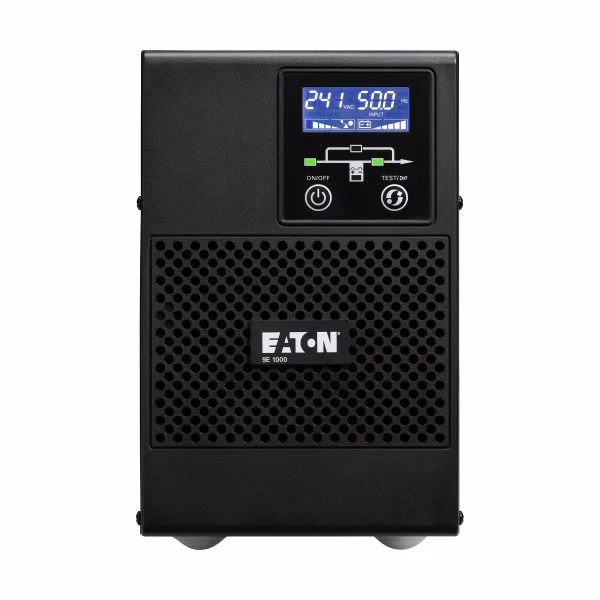

Eaton UPS 9E 1000 VA 800 W 9E1000I

Eaton UPS 9E 1000 VA 800 W 9E1000I

Description:

Eaton 9E UPS, 1000 VA, 800 W, input: C14, output: 4 x C13, tower

Apparent power: 1000 VA
Active power: 800 Watt
UPS Architecture: on-line double conversion
The shape of the output voltage: Full sine wave
Number of phases input: 1 (230V)
No. of batteries: 2
Voltage: 12 Volt
Battery capacity: 9 Ah
Backup time (100% load): 5 Minute
Chassis type: Tower
Filters / protection: Overdischarge
Special functions:

• Double conversion topology
• Continuously monitors power supply conditions and regulates voltage and frequency
• Internal bypass ensures continuous operation in the event of a UPS failure

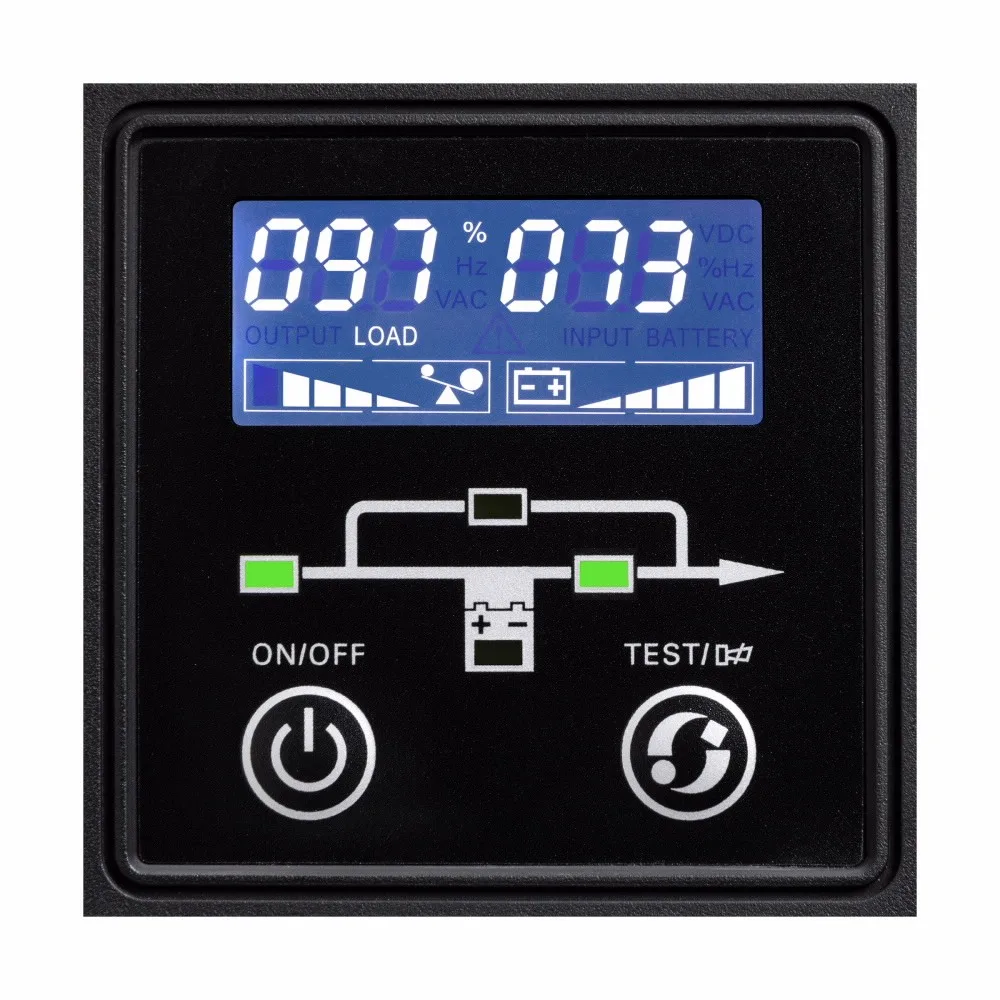

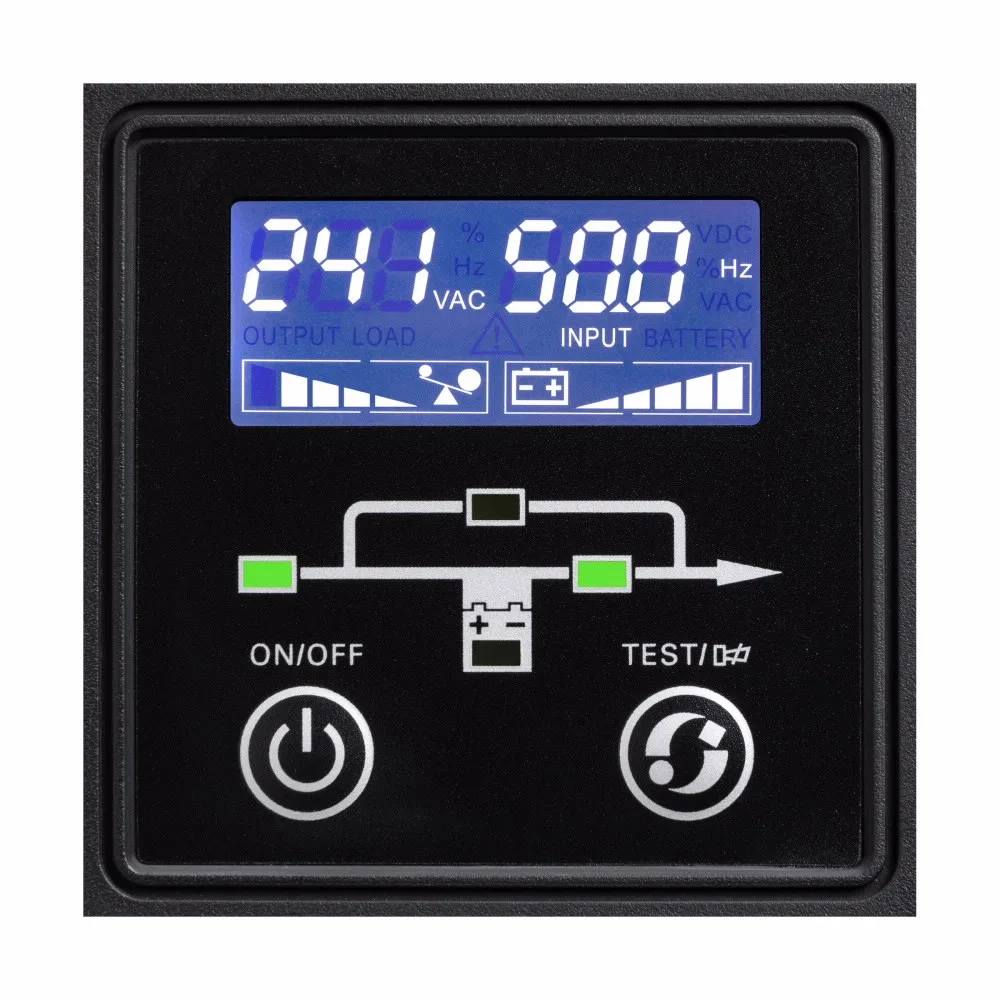

• LCD display showing status and measurements in real time
• Compatibility with virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
• Automatic battery test

Software:

Intelligent Power Editions

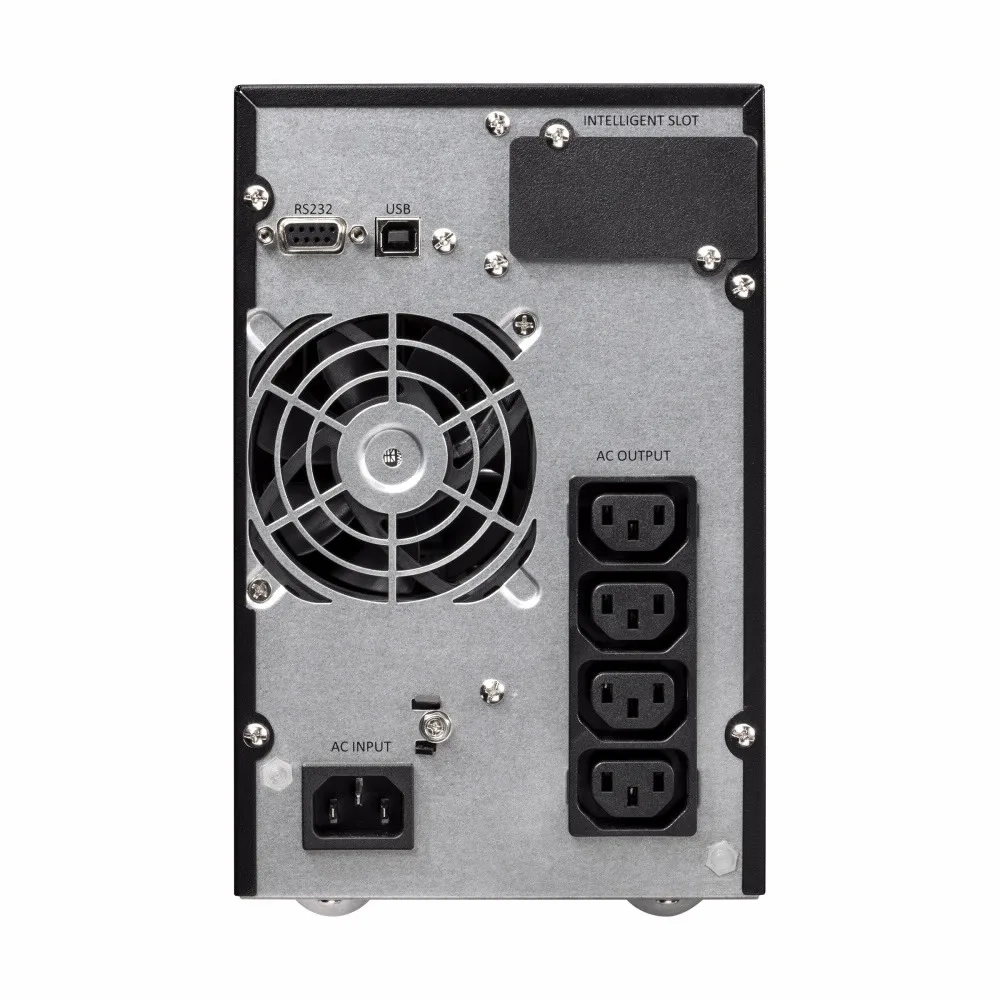

Input power ports: IEC-C14
Output power ports: 4 x IEC-C13
I/O connectors: 1 x USB (Type B)
I/O connectors: 1 x RS-232 (COM)
Environment requirements:

• Operating temperature: 0 to 40°C
• Relative humidity: 0-95%, non-condensing
• Altitude: 3,000 m

Accessories included:

• UPS
• USB cable
• Serial cable
• Quick start guide
• Safety instructions

Color: Black
Dimensions:

356 x 228 x 144 mm

Weight: 9.5 kilogram
Certificates:

• IEC/EN 62040-1
• IEC/EN 62040-2
• CE
• EAC
• TUV

Other features:

Slot for optional communication card: Network-M2, ModBus-MS or Relay-MS
