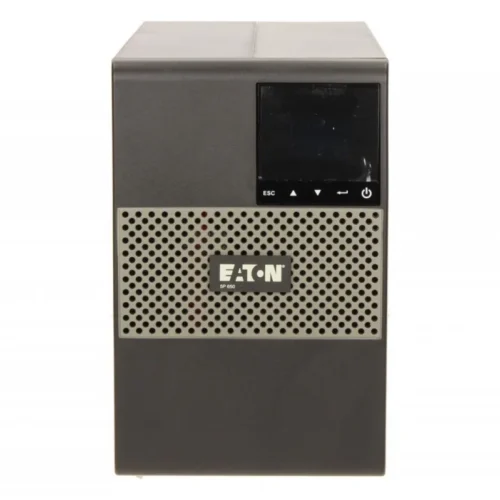

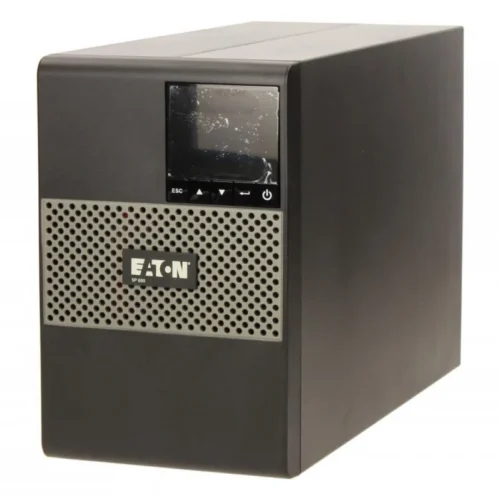

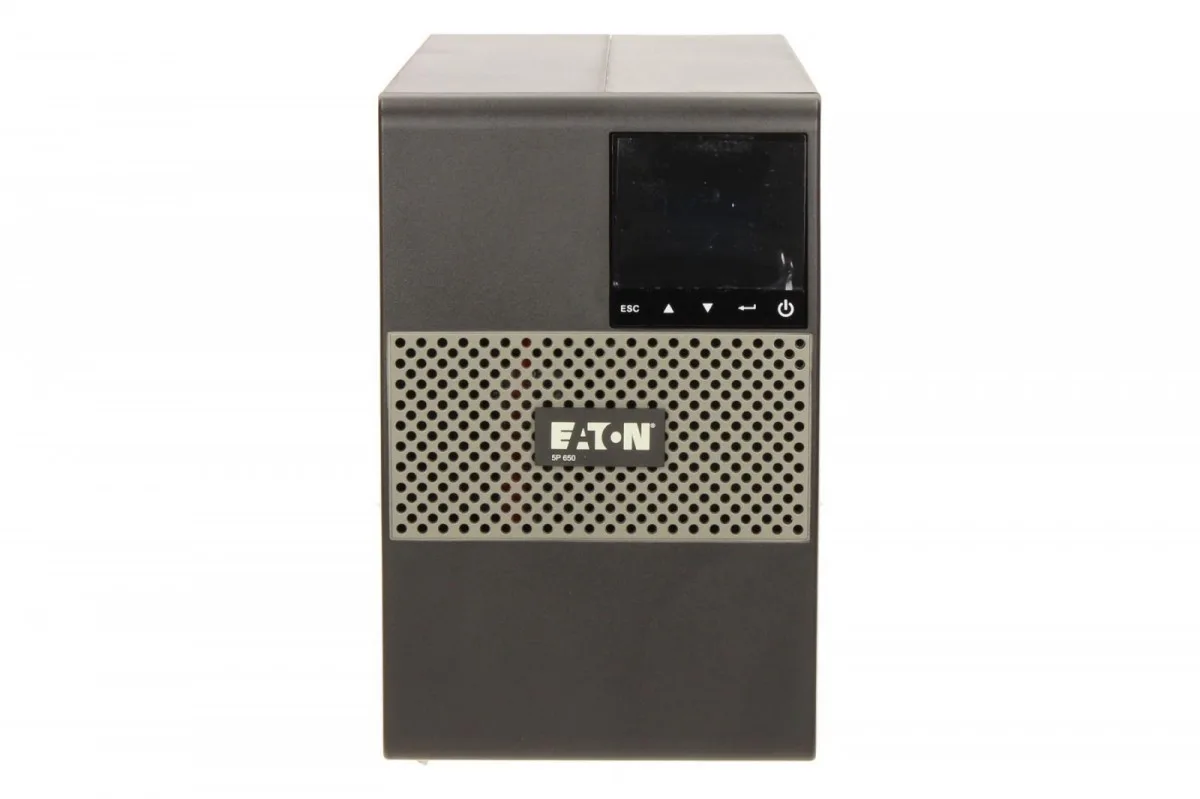

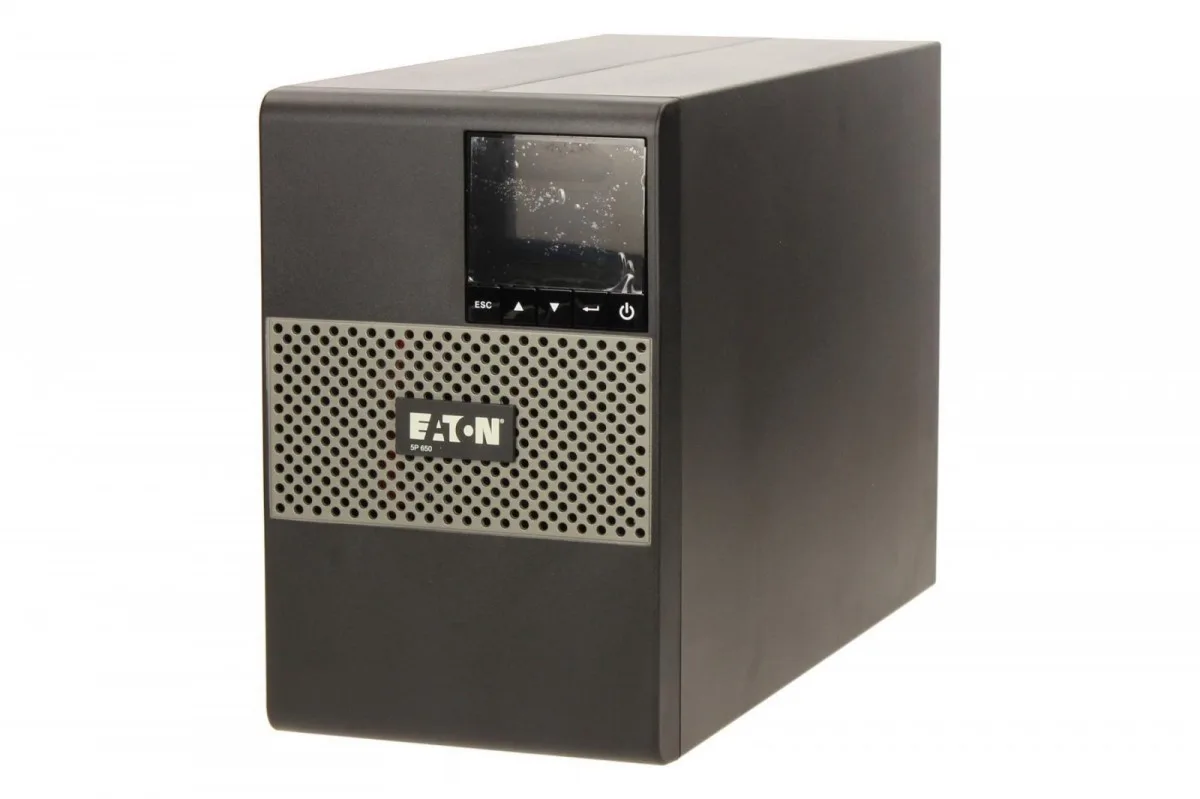

Eaton UPS 5P 650 Tower 5P650i 650VA/420W, RS232, USB

Eaton UPS 5P 650 Tower 5P650i 650VA/420W, RS232, USB

Description:

Eaton 5P 650i VA – stackable version

New Eaton 5P is a new generation of UPS line-interactive power of 650 VA-1550 VA, with modern LCD equipped with a function of energy measurement. 5P is the ideal power supply for protection of IT equipment and network, such as servers, switches, routers and data storage devices, performed tower and rack-mounted.

Link to the specifications: http://powerquality.eaton.com/5P650i.aspx?CX=65

Apparent power: 650 VA
Active power: 420 Watt
UPS Architecture: line-interactive
Number of phases input: 1 (230V)
Backup time (100% load): 2 Minute
Chassis type: Tower
Filters / protection: Overdischarge
Special functions:

– Graphic LCD display (7 languages)
– Energy efficiency up to 98%
– Energy measurement
– Discontinuous charging
– Switchable group of outlets
– Sinusoidal waveform output
– Multiple communication options (compatible with virtual environments)
– Warranty 3 years electronics, 2 years on batteries

Software:

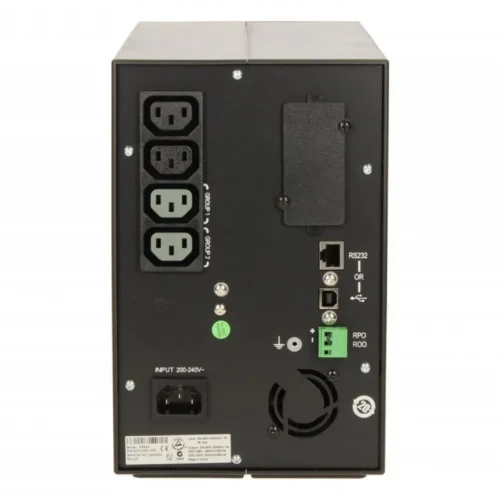

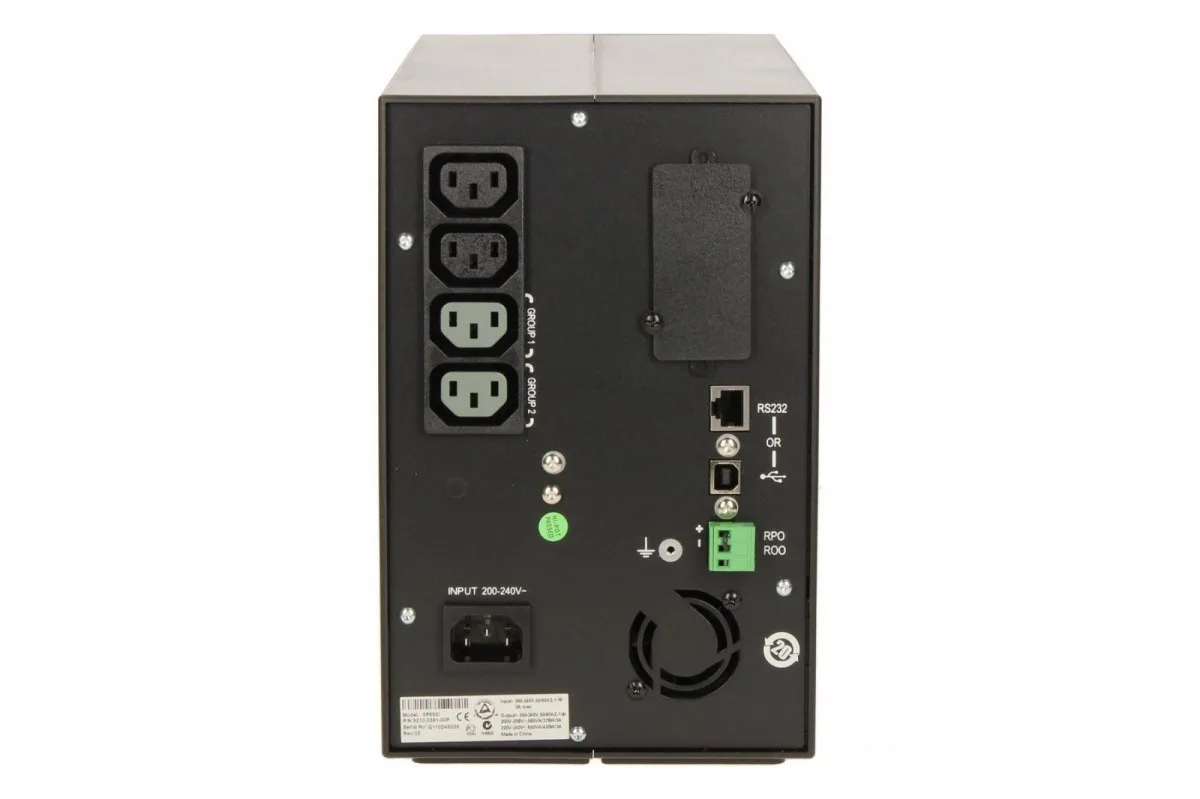

Input power ports: IEC-C14
Output power ports: 4 x IEC-C13
Connectors: RS-232 (COM)
Connectors: 1 x USB (Typ B)
Environment requirements:

– Operating Temperature: 0 to 35 degrees C
– Noise level: &lt,40 dBA

Accessories included:
Color: Black
Dimensions:

– Height: 230 mm
– Width: 150 mm
– Depth: 345 mm

Weight: 7.8 kilogram
Other features:

– Input voltage without the use of batteries: 160-294V 47-70Hz
– Output voltage: 200/208/220/230 / 240V, 50/60 Hz
– Two groups of outlets 2 x IEC C13 (10A)
– Automatic battery test
– 1 mini terminal block for remote on. / Off. and the Remote Emergency Power Off
– 1 card slot Communication Network–MS, ModBus–MS, MS–Relay
