Digitus RACK PDU monitoring strip vertical plug DIN49440 sockets 18xNF-C61-314 (E) 16A

Digitus RACK PDU monitoring strip vertical plug DIN49440 sockets 18xNF-C61-314 (E) 16A

Description:

RACK PDU monitoring strip vertical plug DIN49440 sockets 18xNF-C61-314 (E) 16A

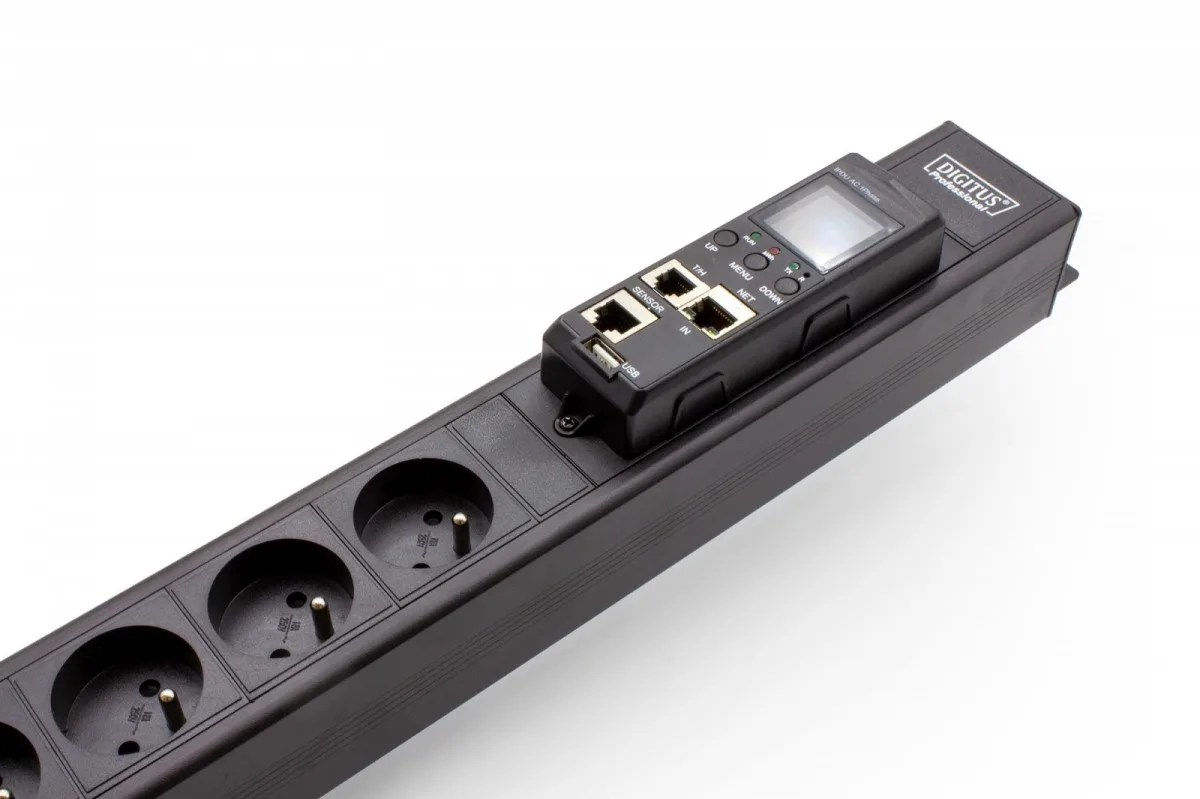

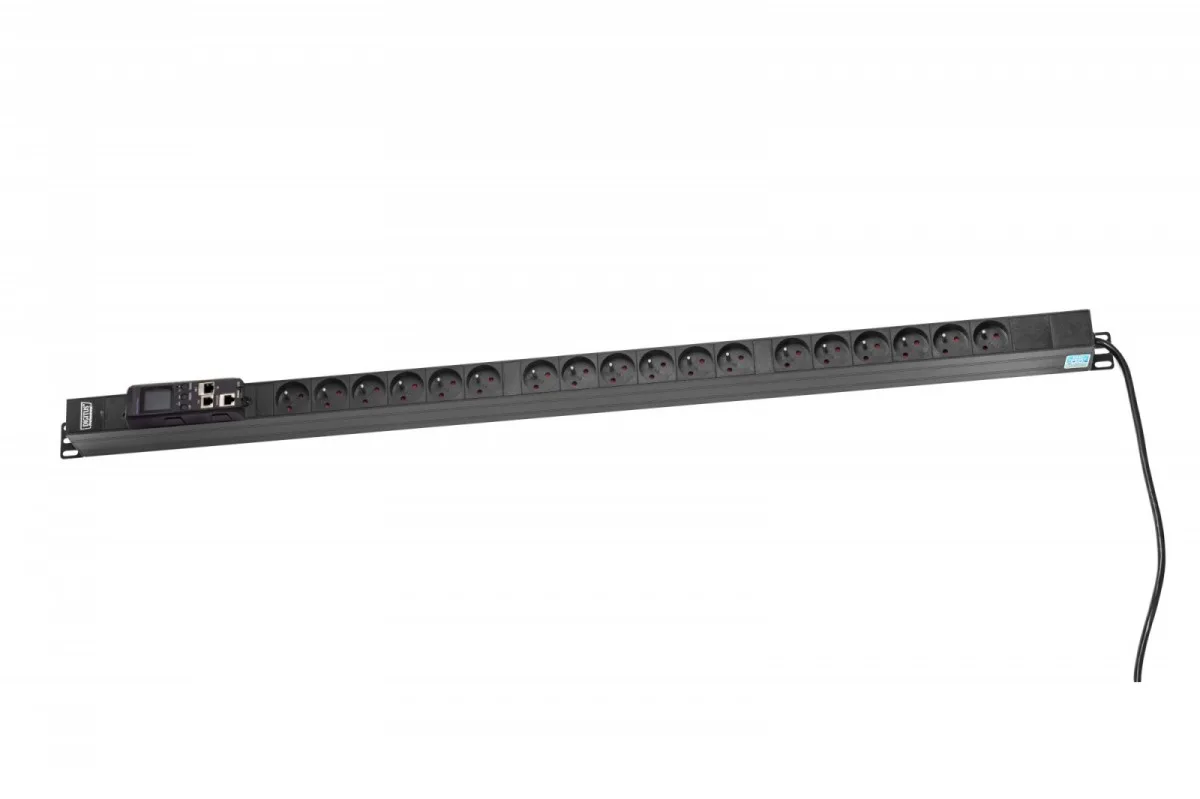

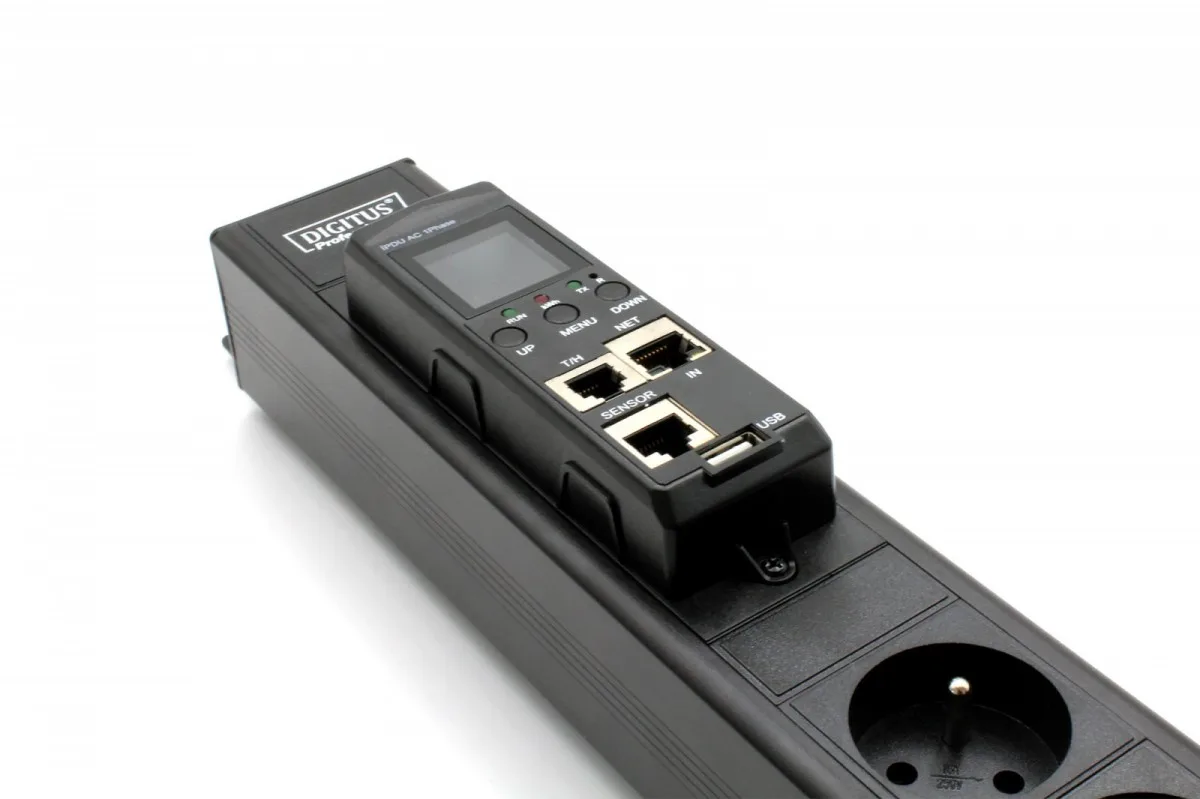

The IPDU V series enables remote monitoring and management of the electricity distribution system over a TCP / IP network. The front panel is equipped with 18x NF-C61-314 (E). The power ports are individually monitored via a network interface, RS 485 serial interface, SNMP or a button directly on the management panel. The sensor interface allows monitoring of ambient temperature and humidity using optional sensors.

No. of type F (Schuko) sockets: 18
Cable length: 3 Meter
Plug: Schuko
Filters / protection: No
Switch: No
Mounting: Rack
Other I/O ports : 1 x RJ-12
Other I/O ports : 3 x RJ-45
Accessories included:

• Power cable
• Mounting bracket for 19 “rack
• Short instructions in the EN language

Color: Black
Dimensions:

1187 x 44,5 x 68 mm

Other features:

• Remote network management
• Cascade connection management
• SNMP v1
• Input voltage monitoring
• Monitoring of total load current
• Total power monitoring [KW]
• Monitoring of energy consumption (KWH)
• Total power factor monitoring
• Setting the current alarm threshold
• Setting the temperature and humidity alarm threshold
• Environmental port: Temperature and humidity sensor (1T / H)
• SNMP v1 network
• Remote telnet, ssh or modbus access

Input:

• Power plug: DIN49440
• Maximum load: 16A
• Input voltage: 230V 1-phase
• Power: 3680W

Output:

• Supply voltage: 230V
• Power sockets: 18x NF-C61-314 (E)

Designation:
