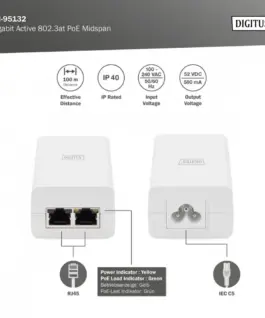

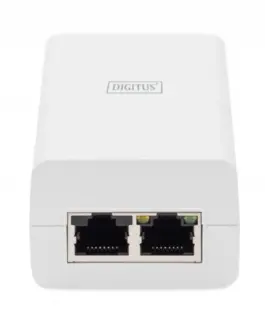

Digitus PoE+ Injector 802.3at DN-95132

Digitus PoE+ Injector 802.3at DN-95132

Description:

The effective connection distance is 100 meters on Cat5e/Cat6 cable. The solution is small but very effective.

The DN-95132 is an active indoor PoE midspan injector power supply designed specifically for complex backhaul and networking applications. Provides 52 V DC, 0.58 A power for external devices requiring PD power through 2 pairs of output sockets. The solution supports both 10/100 Base-T and Gigabit compatible devices. The solution works with devices that support PD PoE with a power of 30 W, such as wireless access points, WLAN routers, network cameras, IP phones, radio devices and other end devices compatible with power over Ethernet. The solution is fully compliant with the PoE IEEE802.3af standard. The device has a plastic housing protected against fire with a protection level of IP40. The solution supports a wide input voltage range of 100-240 V AC, 50 or 60 Hz. It has a detection chip inside that recognizes and classifies a power-demanding device (PD) before power is supplied to that device. Provides power only when a device supporting the PD (Power Delivery) standard is detected.

• provides 52 V DC, 0.58 A power for external devices requiring PD power through 2 pairs of output sockets
• support for both 10/100 Base-T and Gigabit compatible devices
• the solution supports a wide input voltage range of 100-240 V AC, 50 or 60 Hz
• Easy-to-use combination of power and data cables in one cable
• Each output port offers output current limit function, short circuit protection, full powered device detection and classification (PD)
• Injector can be used regardless of the operating system

I/O ports: 1 x 10/100/1000 Mbit/s
I/O ports: 1 x 10/100/1000 Mbit/s PoE
Output voltage: 52 Volt
Rated current: 580 mA
Output power: 30 Watt
Input voltage range: 100~240 VAC 47~63 Hz
Accessories included:

• 1 x network cable
• 1 x User Manual

Height: 34 Millimetre
Width: 56 Millimetre
Depth: 107.3 Millimetre
Weight: 146.8 gram
Other features:

• IEEE802.3 10Base-T Ethernet
• IEEE802.3u 100Base-Tx Fast Ethernet
• IEEE802.3ab 1000Base-T Gigabit Ethernet
• Full compatibility with the IEEE802.3af/at PoE standard
• RoHS compliant
• WEEE compliant
• Input: 100-240V AC 1.0A 50/60Hz
• Output: 52V DC 580mA
• Power pins: 4/5(+), 7/8(-)
• Data transfer rate: 10/100/1000 Mbps
• Operating temperature: 0°C to 40°C
• Air humidity during operation: from 20% to 80%, non-condensing
• Storage temperature: from -20°C to +70°C
• Storage humidity: 10% to 90%, non-condensing
• Working altitude: up to 2000 meters
• Homologations/approvals: CE/FCC
• Body: Plastic
• White color
• IP protection class: IP40

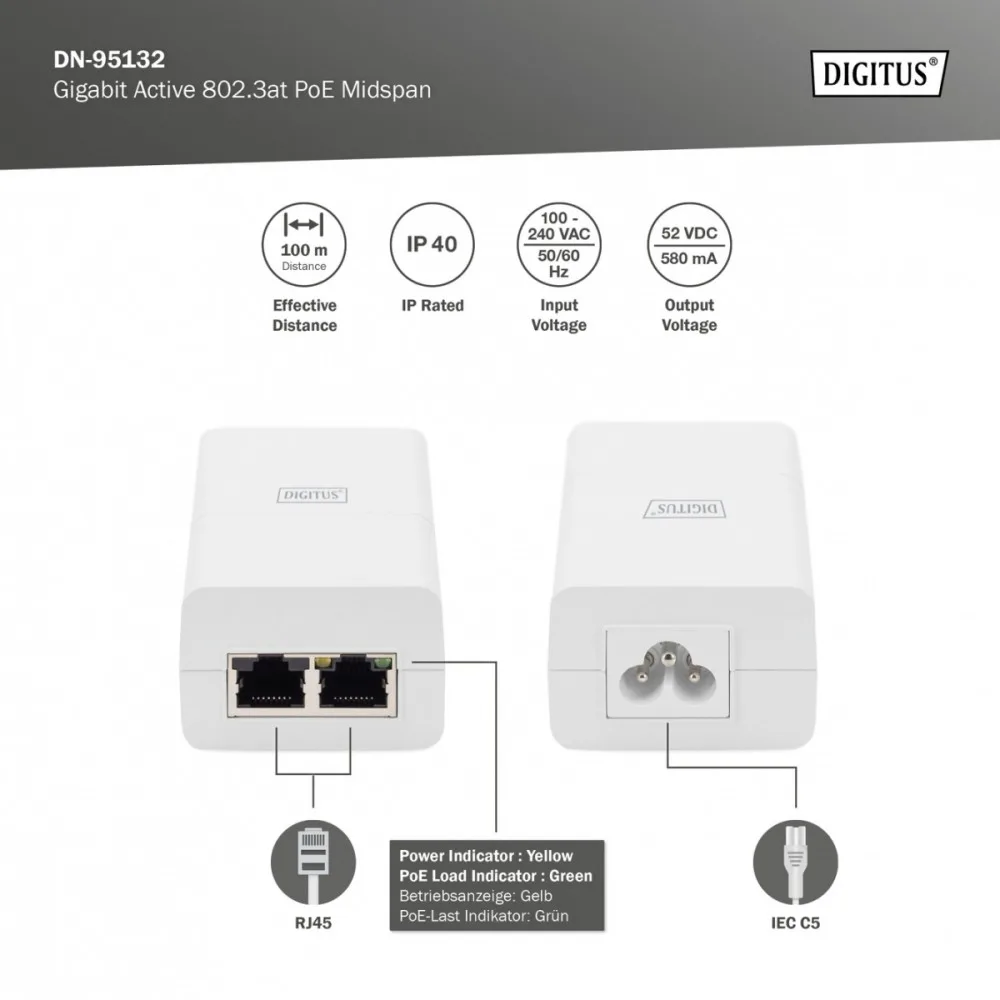

• Operating mode indicator light: Yellow
• PoE load indicator light: Green
• PoE power budget: 30W
• PoE standard: IEEE802.3at (PoE+)
• Ethernet transmission speed: Gigabit Ethernet
