Digitus PCI Express Network Card DN-10135

Digitus PCI Express Network Card DN-10135

Description:

The PCIe Gigabit Network Adapter from DIGITUS provides maximum performance for network applications requiring high data throughput. It is ideal for streaming high definition content. The integrated LAN connectors (RJ45) are compatible with the IEEE802.3u standard for Fast Ethernet and the IEEE802.3ab standard for Gigabit Ethernet at up to 2.5Gbps. It also supports Full Duplex Flow Control IEEE802.3x and Wake-on-LAN. The card can be installed in full installation height slots and an additional low profile slot cap for half installation height is included.

• Connection: 1 x Gigabit LAN (RJ45)
• 10/100/1000/2500 Mbps network support with auto-sensing
• Ideally suited for streaming and gaming applications requiring high network bandwidth
• Supported operating systems: Windows 7/8/10 (32- / 64-bit), Windows Server 2008 R2/2012 R2/2016, Linux 4 and later version

Type: LAN
Chipset type:

Realtek RTL8125B kontroler 2500Base-T Ethernet

Interface: PCIe
I/O ports: 1 x 10/100/1000/2500 RJ-45 port
Standards: 802.3ab
Standards: 802.3u
Standards: 802.1Q
Standards: 802.3
Standards: 802.3x
Supported operating systems: Linux
Supported operating systems: Windows 10
Supported operating systems: Windows 7
Supported operating systems: Windows Server 2016
Supported operating systems: Windows Server 2012
Supported operating systems: Windows 8
Supported operating systems: Windows Server 2008
Accessories included:

1 x low-profile slot cover

Dimensions:

12 x 9,8 x 2,2 cm

Weight: 35.2 gram
Other features:

• Auto MDI/MDIX crossover support
• PCI Express 2.1 compatible
• Wake-on-LAN (WOL) support

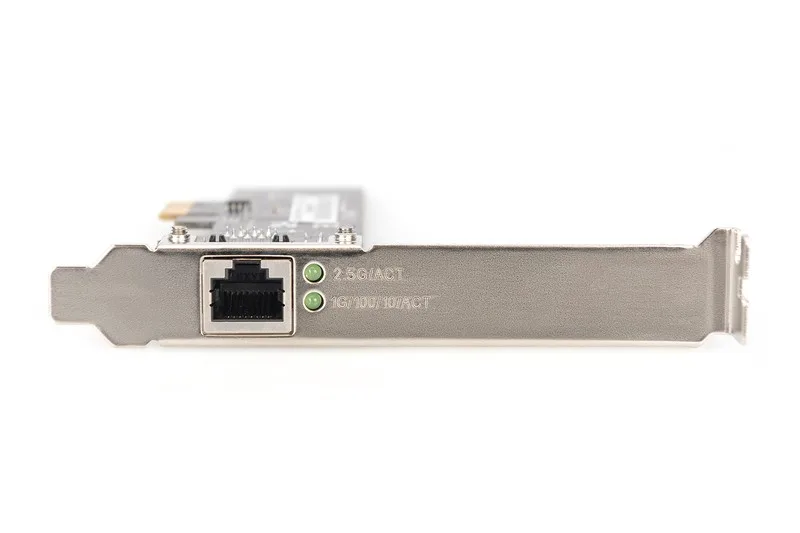

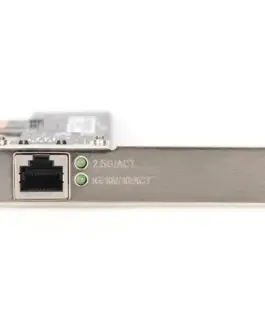

• LED indicating operating mode: active device / data transfer / 2.5G data transfer
• Operating temperature: 5°C to +50°C
• Operating humidity: 20% to 80%
