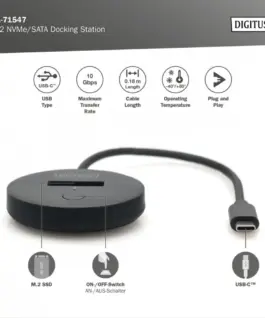

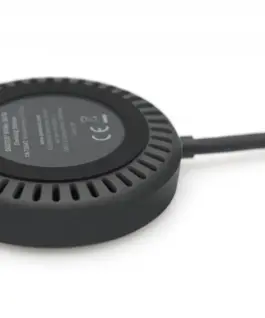

Digitus NVMe Docking Station DA-71547

Digitus NVMe Docking Station DA-71547

Description:

Manage M.2 NVMe and M.2 SATA SSDs via USB-C

The DIGITUS SSD docking station enables the installation of M.2 SSD drives of the NVMe or SATA standard with a capacity of up to 4 TB. NVMe SSDs with B+M Key & M-Key and SATA SSDs with B+M-Key are supported, each in 2242, 2260, 2280 & 22110 formats. Easily expand the storage capacity of numerous USB-C devices, such as computers, notebooks, TV equipment, consoles and routers.

• SATA M.2 support. NVMe SSD with B+M key and NVMe SSD with M key
• Supported formats: 2242, 2260, 2280 and 22110
• Supports NVMe SSDs and SATA SSDs with a capacity of up to 4 TB
• High data transmission speed – up to 10 Gbps (U.A.S.P + T.R.I.M support)
• Data storage formats: NTFS, FAT, FAT32
• USB-C connector: USB 3.2 Gen2
• Systems: Windows 11/10/8/8.1/7/XP, macOS 10.0 or later
• Perfect memory expansion for notebooks, PCs, consoles, TV equipment, NAS and routers (USB-C)
• Plug and Play – no drivers required

No. of slots: 1
Form factor (width): M.2 2242
Form factor (width): M.2 22110
Form factor (width): M.2 2260
Form factor (width): M.2 2280
HDD interface: M.2
HDD interface: SATA
I/O connectors: 1 x USB (Type C)
Accessories included:

• 1 x SSD docking station
• 1 x Quick Start Guide

Color: Black
Dimensions:

• W: 6 x D: 6 x H: 1.45 cm
• Connection cable length: 18 cm

Weight: 40 gram
Other features:

• 1 x M.2 slot for NVMe / SATA SSD (B+M key / M key)
• Capacity: max. 4TB
• USB-C connectors 1 x USB-C 3.2 Gen2 for data transfers, 1 x USB-C port for power
• Backwards compatible with the USB 3.0 / USB 2.0 standard
• Maximum USB-C data transfer speed: 10 Gbps
• Supports U.A.S.P and T.R.I.M.
• Supports Hot Swap (push in and out while running)
• LED lights indicating data transfers to/from the hard drive (blue) and power (blue)
• Application areas: PC, notebook, TV, router or game consoles (with USB-C connector)
• Housing: aluminum / ABS plastic
• Operating temperature: -40°C ~ 80°C
• Manufacturer’s recommendations: Not all USB-C ports support all features of the USB Type-C standard. Please ensure that your notebook’s USB-C port supports DisplayPort Alternate Mode (DP-Alt Mode) and USB Power Delivery (PD)
