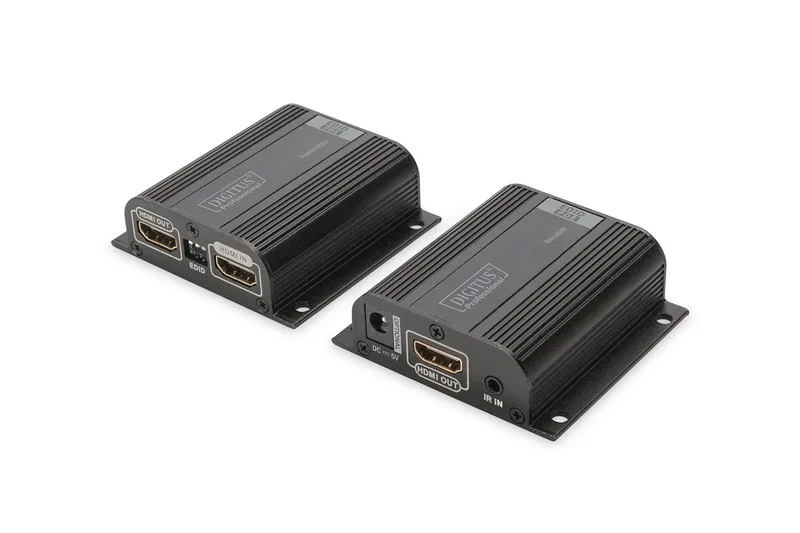

Digitus Extender AV HDMI pover Cat.5e

Description:

HDMI extension kit, 50 m via network cable (CAT 6/6a/7), EDID, 1x HDMI Loop Out, FHD 1080p

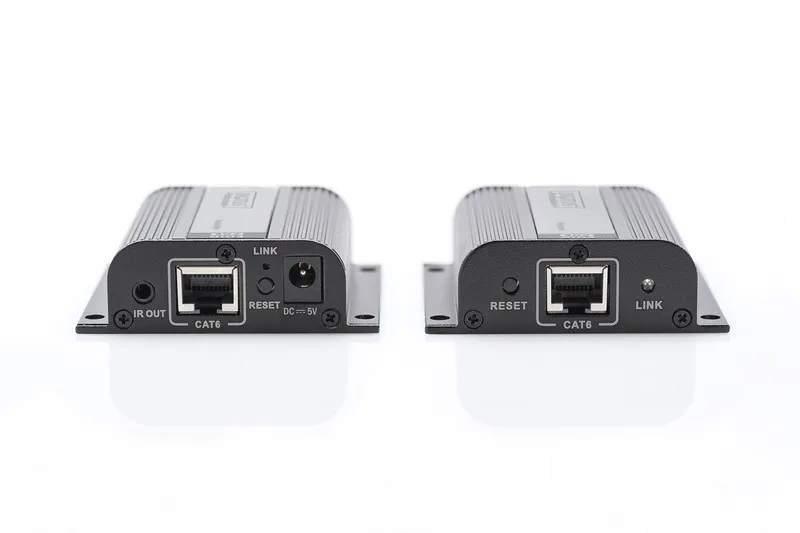

Increases the maximum length of the HDMI cable to 50 m, with only a single network cable between the transmitter and the receiver.

• Increases the maximum length of the HDMI cable to 50 m via a single network cable
• Highest supported video resolution: 1080p / 60 Hz
• Supports CAT 6, CAT 6A network cables

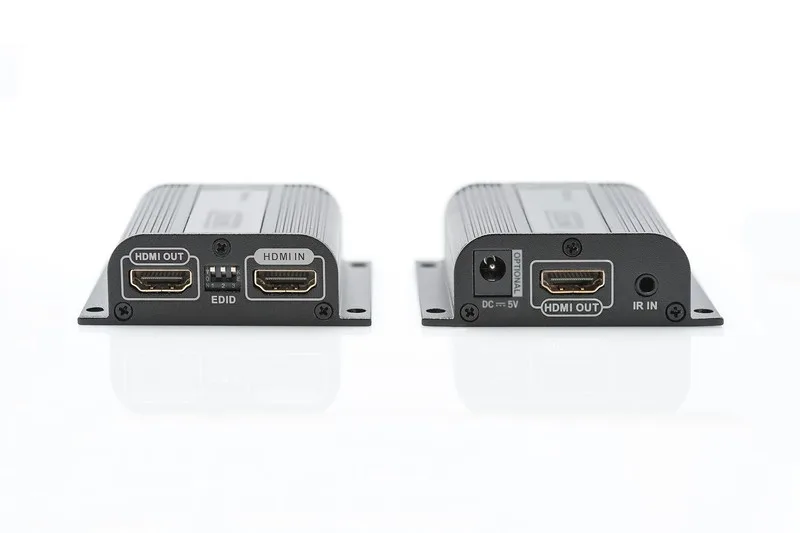

• EDID-Switch allows you to set the resolution and audio format on the transmitter unit
• HDMI Loop Out allows you to connect a local monitor to the transmitter unit.
• It supports PoE (Power over Ethernet) cable so you do not need the receiver’s power supply

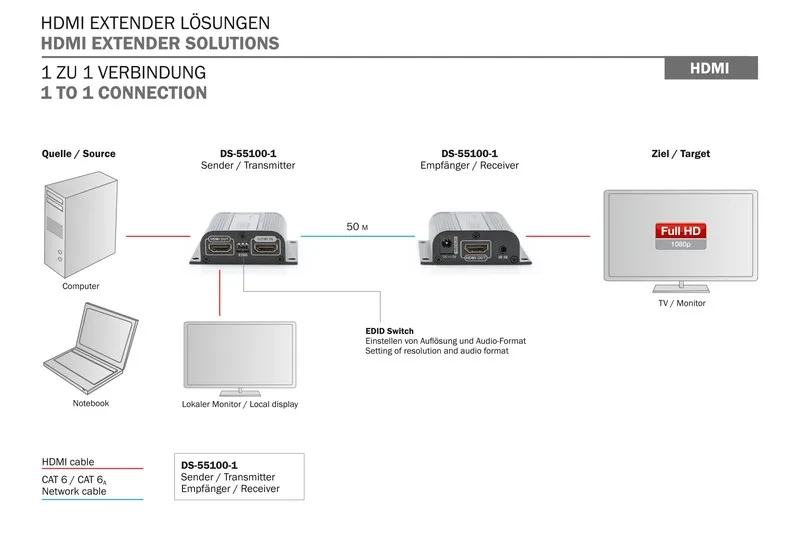

The Digitus HDMI, Full HD extension kit is a solution for extending video signal up to 50 m to meet the highest requirements. It transmits digital video and audio signals up to a maximum length of 50 m. The highest supported video resolution is 1080p / 60Hz. On the unit of the transmitter there is an EDID-Switch, through which you can adjust the resolution and the audio format of the output signal. There is also an HDMI Loop Out port on the transmitter that allows you to connect a local monitor. Thanks to the PoC (power over cable) support, the transmitter unit must have an electric power supply. The set includes two bi-directional infrared modules (transmitter, receiver) through which the remote control of the connected input signal source can be controlled remotely.

Type: Adapter
Usage: Video
Connectors #1: RJ45 Female
Connectors #1: HDMI Type A Female x2
Connectors #2: HDMI Type A Female
Standard: HDMI High Speed with Ethernet
Color: Black
Dimensions:

7,2 x 6,7 x 2,3 cm

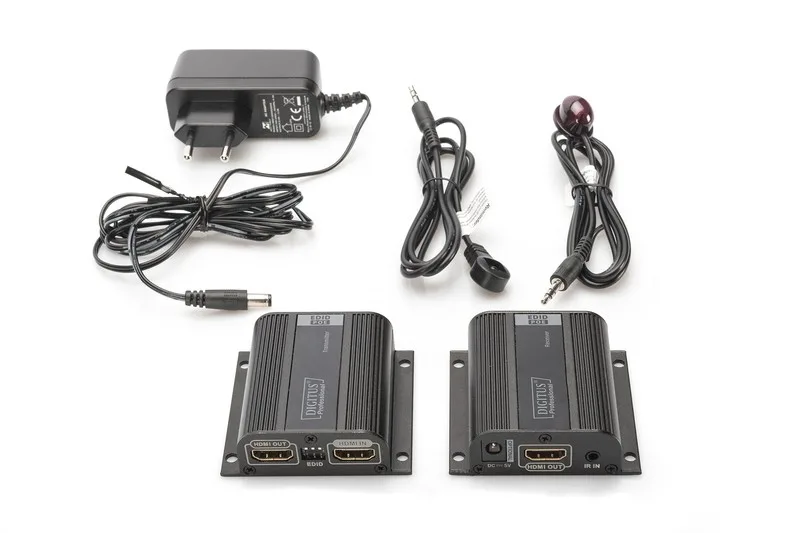

Accessories included:

• HDMI video extender transmitter
• Receiver HDMI video extension cable
• Power supply: DC 5V / 2A
• Infrared transmitter
• Infrared receiver
• User manual

Other features:

• HDCP 1.2a support
• Bandwidth: 4.95 Gbps
• Color depth: 8 bits
• It supports uncompressed audio signals, such as LPCM
• Metal housing
• Compact dimensions, simple operation and installation
• Power supply: DC 5V / 2A
