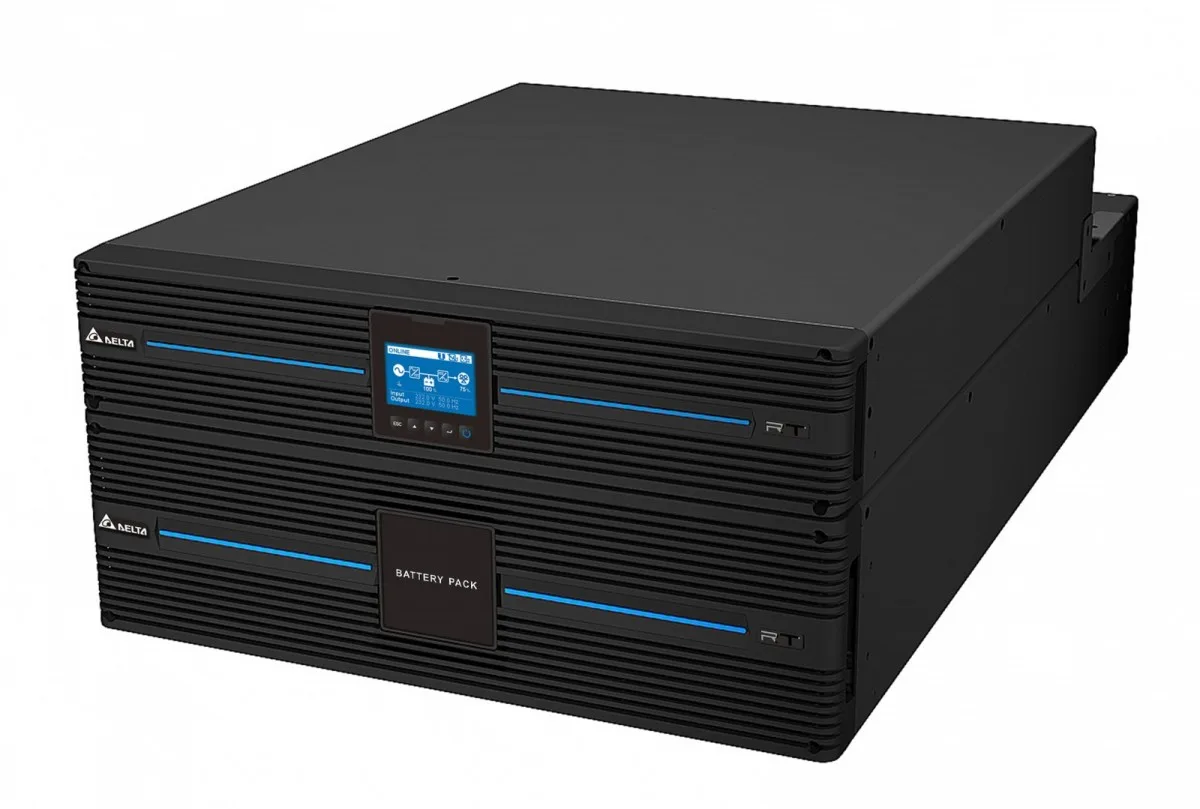

DELTA ELECTRONICS UPS UPS103R2RT0B035 Amplon RT-10K Standard, battery module 20x9Ah and bypass with distribution C13x6, C19x5
Description:
Apparent power: 10 kVA
Active power: 10000 Watt
UPS Architecture: on-line double conversion
Number of phases input: 1 (230V)
No. of batteries: 20
Battery capacity: 9 Ah
Backup time (100% load): 3.5 Minute
Chassis type: Rack
Special functions:
Graphical LCD display with LED indicators
Software:
Input power ports: Terminal
Output power ports: 5 x IEC-C19
Output power ports: 6 x IEC-C13
I/O connectors: 1 x inpot dry contact
I/O connectors: 1 x RS-232 (COM)
I/O connectors: 1 x REPO
I/O connectors: 1 x RS-485
I/O connectors: 1 x Mini Slot
I/O connectors: 1 x USB (Type B)
I/O connectors: 3 x output dry contact
Environment requirements:
Accessories included:
Color: Black
Dimensions:
440 x 750 x 218 mm
Weight: 85.5 kilogram
