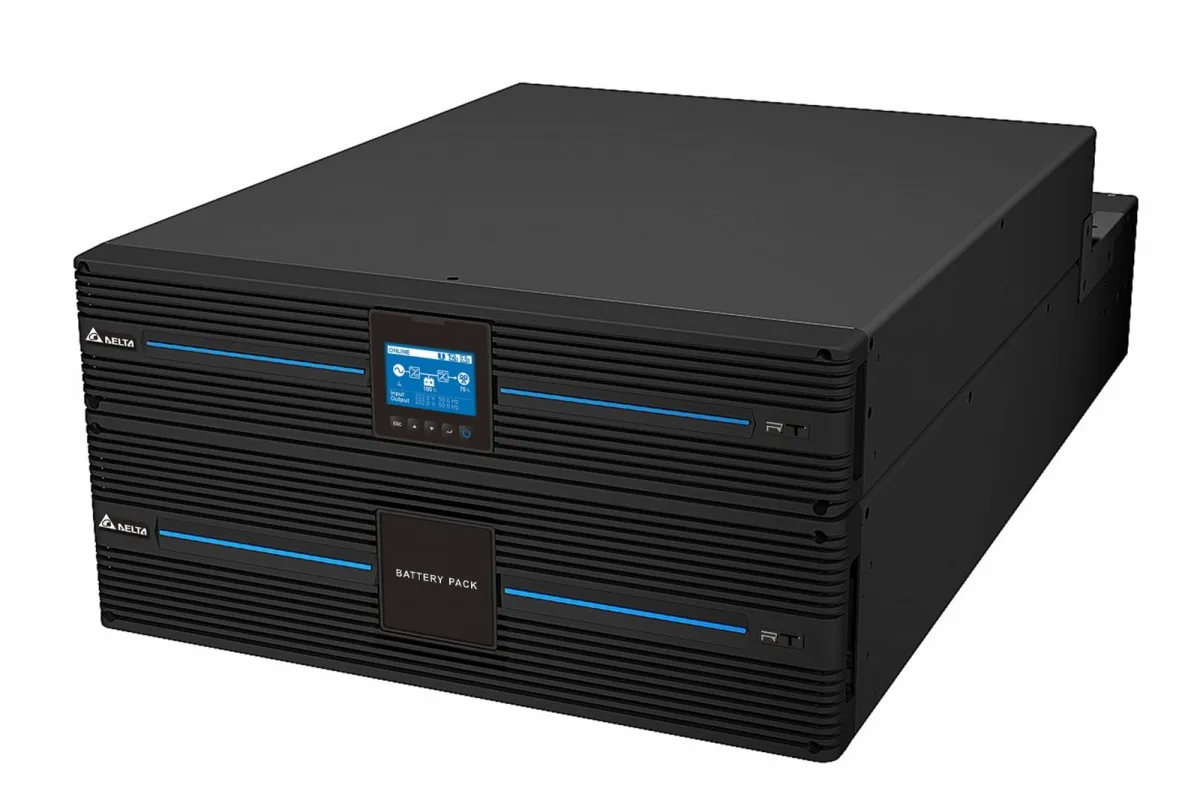

DELTA ELECTRONICS UPS New RT-8K Standard

DELTA ELECTRONICS UPS New RT-8K Standard

Description:

A total solution for reliable power with high availability and performance

 The Amplon RT Series 5-20kVA is an online double-conversion UPS that provides best-in-class designs in compact 2U size, high power density, system efficiency, and versatile configurations to fulfill customers’ requirements. Unity output power factor maximizes capacity for more critical loads, while outstanding energy savings can be achieved based on the AC-AC efficiency of up to 96.5% and 99% in ECO mode. In addition, RT Series 5-20kVA UPS is the first in the market that offers standard Li-ion external battery cabinets, which deliver better power density and sustainability. Along with the parallel capacity of up to four units, the new series is the ideal small power UPS for mission-critical applications, such as servers, data centers, telecommunications, and manufacturing.

Apparent power: 8 kVA
Active power: 8000 Watt
UPS Architecture: on-line double conversion
Number of phases input: 1 (230V)
No. of batteries: 20
Battery capacity: 9 Ah
Backup time (100% load): 5 Minute
Chassis type: Rack
Chassis type: Tower
Filters / protection: Suppression
Filters / protection: Voltage drop
Special functions:
Software:
Input power ports: Terminal
Output power ports: 1 x Terminal
Output power ports: 6 x IEC-C13
Output power ports: 5 x IEC-C19
I/O connectors: 1 x RS-485
I/O connectors: 1 x RS-232 (COM)
I/O connectors: 1 x LPT (Parallel)
I/O connectors: 1 x USB 2.0
Environment requirements:

• Operating Temperature 0 ~ 55°C
• Relative Humidity 5~ 95 % RH (non-condensing)

Accessories included:
Color: Black
Dimensions:

440 x 750 x 218 mm

Weight: 85.5 kilogram
Other features:
Designation:
