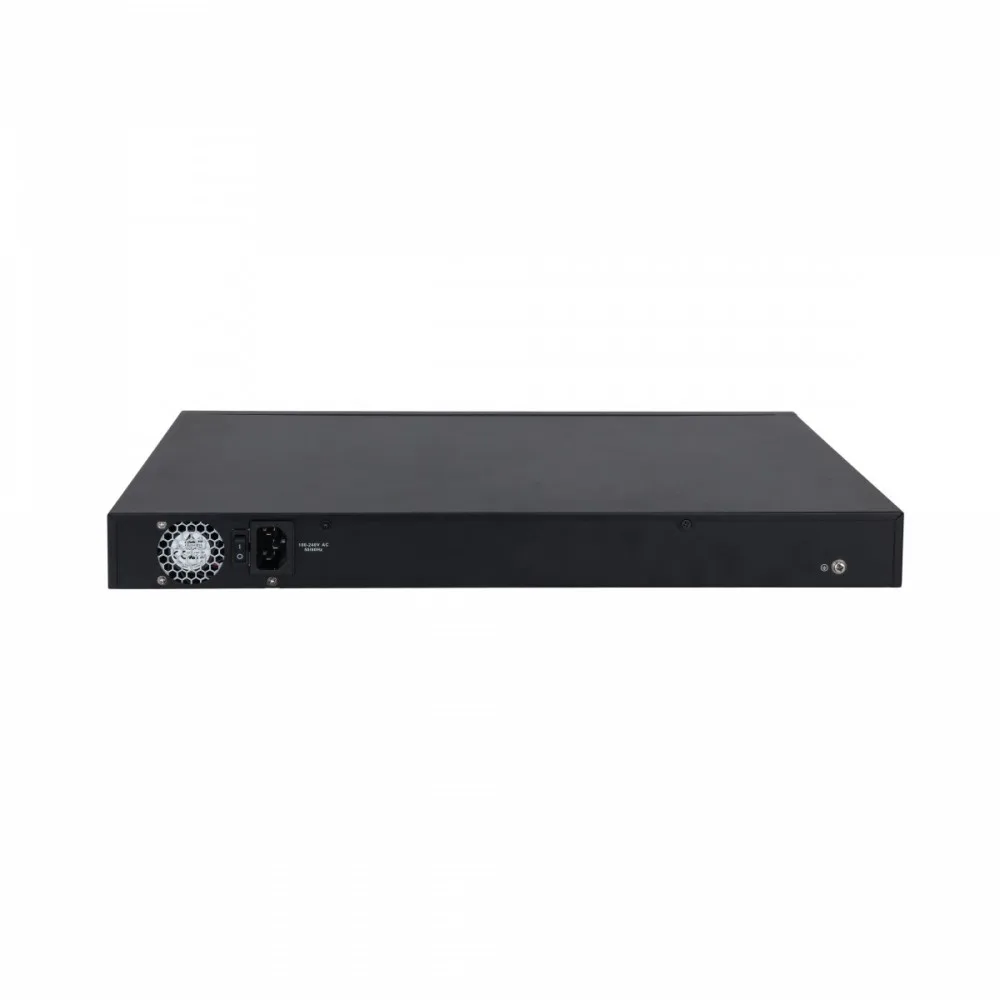

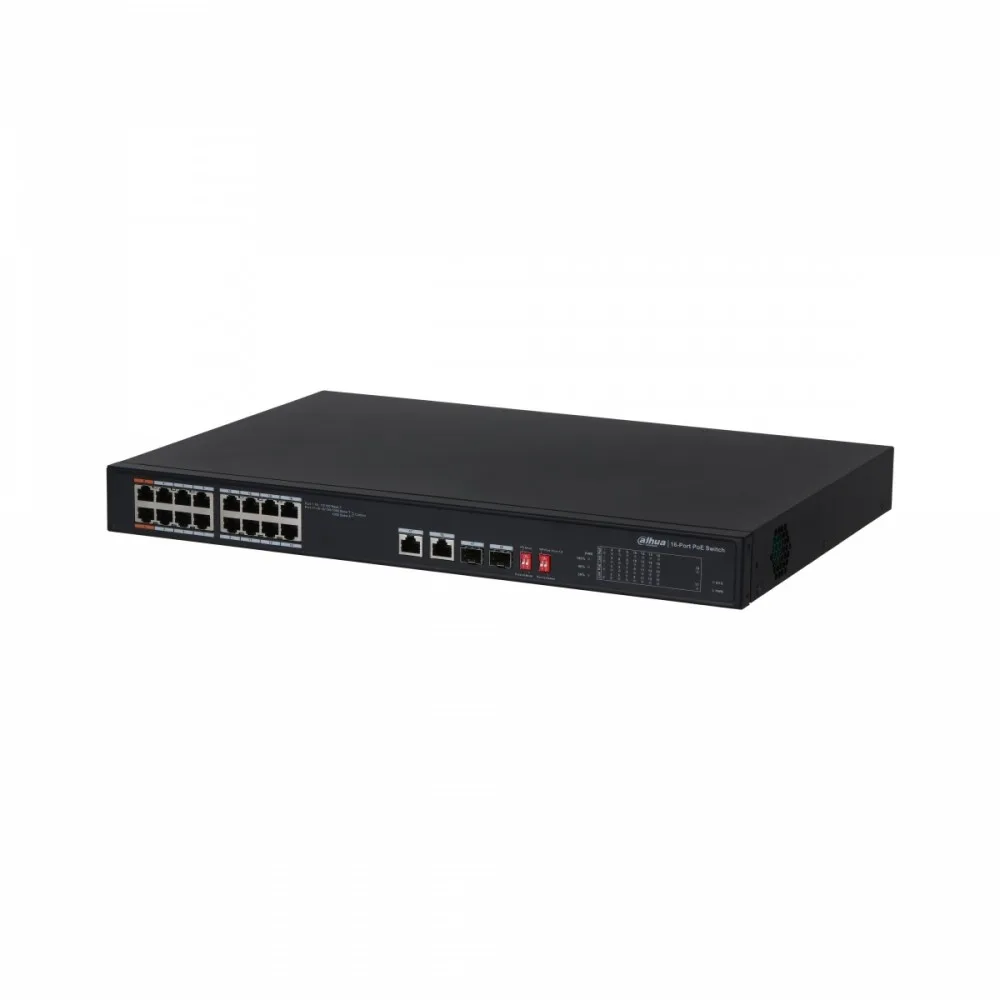

Dahua PFS3218-16ET-135 switch POE

Dahua PFS3218-16ET-135 switch POE

Description:

PoE switch 16-port + 4 combo ports RJ45/SFP Dahua PFS3218-16ET-135

The Dahua PFS3218-16ET-135 16-port PoE Switch + 4 RJ45/SFP combo ports is a cost-effective Layer 2 PoE switch that has been developed for IP surveillance systems. The PFS3218-16ET-135 is equipped with 16 RJ45 10/100Mbps ports with PoE 802.3af/at (power over ethernet) support and 2 RJ45 Uplink 1 Gbps shared (Combo) ports with 2 SFP insert ports. The total PoE power budget for connected devices is 135W. The device supports IEEE 802.3af, IEEE 802.3at and Hi-PoE standards (first 2 ports).

The Dahua PFS3218-16ET-135 PoE switch is equipped with features such as PoE Watchdog, port isolation capability, QoS for VIP ports and support for long-distance 250m mode. It uses 16 PoE ports that allow the target device to be powered with a power consumption not exceeding 30W (the exception being the first 2 ports with Hi-PoE support, which can supply up to 60W). The switch uses intelligent PoE ports, which continuously regulate power consumption in the event of an overload. If all powered devices exceed 135W, the switch will automatically disconnect the lowest priority communication port.

Features PFS3218-16ET-135:

• Intelligent PoE
• PD Alive (PoE Watchdog)
• PoE transmission over long distances
• Smooth transmission
• Wide operating temperature: 10 to 55 ° C (14 ° F to 131 ° F)
• Port isolation

Switch class: Unmanaged
Application: Medium and large companies
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: 16
Number of 10/100/1000 Mbps ports: 2
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: 2
Number of SFP+ ports: None
Number of QSFP+ ports: None
Console port: No
Throughput: 7.2 Gigabity na sek.
Forwarding rate: 5.3568 Mpps
Memory buffer: 4 MegaBajt
MAC address table size: 8000
VLAN:
Supported protocols and standards:
QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Accessories included:
Power supply:

Power supply: 100 V AC 240 V AC

Dimensions:

440 × 300 × 44 mm

Other features:

• Layer: Layer 2
• Managed: No
• Standards compliance: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
• Hardware function: Hardware function
• Standard Power Supply: Yes
• PoE: Yes
• Ethernet Port: 16
• Optical port: 2
• Ethernet port speed: 100 Mbps
• Optical port speed: 1 Gbps
• Operating temperature: 10°C to 55°C
• Operating humidity: 1090%
• Storage Humidity: 595%
• PoE Standard: IEEE802.3af, IEEE802.3at, Hi-PoE
• PoE pin assignment: PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• PoE long distance transmission: yes
• VLAN: Port isolation
• QoS: Yes
• System maintenance: PD Alive

Number of card slots:

• Port 1-16: 16 × RJ45 10/100 Mbps
• Port 1718: 2 × RJ45 10/100/1000 Mbps (uplink)
• Port 1718: 2 × SFP 1000 Mbps (uplink) (combo)

Power consumption:

• Idle: 5 W
• Full load: 135 W.

PoE budget:

• Port 1-260W, Port 31630W,
• Total 135W

ESD:

• Air discharge : 8 kV
• Contact Discharge: 6 kV

Lightning:

• Common mode : 4 kV
• Differential mode : 2 kV
