Dahua Camera IP IPC-HDW1431S-0280B-S4

Dahua Camera IP IPC-HDW1431S-0280B-S4

Description:

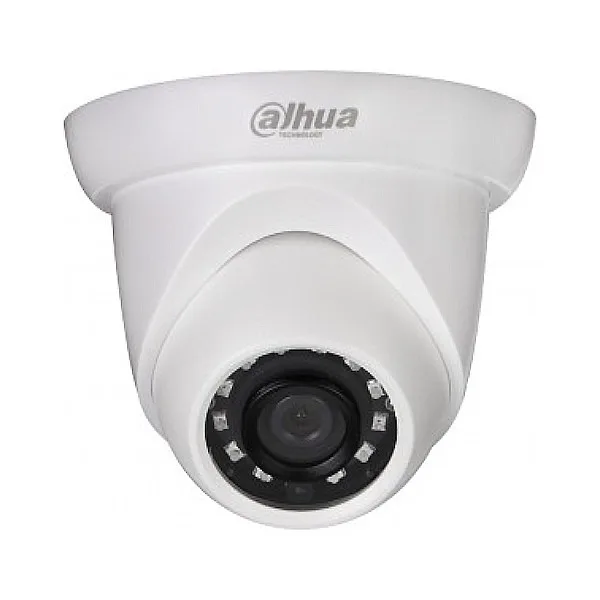

Dahua IP Camera IPC-HDW1431S-0280B-S4

The Dahua IPC-HDW1431S-0280B-S4 IP camera is equipped with a 4MP 1/3″ CMOS image sensor that provides high resolution in low light. It has a state-of-the-art 2.8mm focal length lens and uses Smart IR to provide colourful and vivid images even in total darkness (IR range up to 30m). The use of IR LEDs allows for automatic adjustment of exposure and light sensitivity.

The Dahua IPC-HDW1431S-0280B-S4 IP camera has an IP67 water and dust protection rating, making it suitable for indoor and outdoor applications. When moving objects appear in the monitored image, Dahua Motion Technology will trigger an alarm or record.

Features:

• Resolution: 2688×1520 @ 20 fps
• Sensor: 1/3″ 4MP Progressive Scan CMOS
• Lens: 2.8mm
• IR range: 30 m
• AWB, AGC, BLC, HLC, 3D NR, WDR 120dB, RoI
• H.265+/ H.265/ H.264+/ H.264/ MJPEG
• Mechanical infrared filter ICR
• Bitrate: 32Kbps ~ 6144Kbps (H.264), 12Kbps ~ 6144Kbps (H.265)
• Motion detection, Privacy zones
• ONVIF, CGI, Milestone, Genetec, RTSP, P2P
• IP67
• Power supply: 12V DC or 48V PoE (802.3af)

type: PTZ
Resolution: 2688 x 1520
Frames per second: 20
Sensor:

1/3″ 4MP progressive CMOS

Lens:

• Type of lens: Fixed focal length
• Mounting type: M12
• Focal length: 2.8 mm
• Maximum aperture: F2.0
• Field of view: Horizontal: 93° Vertical: 53° Diagonal: 111°
• Iris type: Fixed
• Close-up distance: 0.8 m

Viewing angle, vertical: 53 Degrees
Viewing angle, horizontal: 93 Degrees
Microphone: No
Speakers built-in : No
Night mode: Yes
Motion detection: Yes
Minimum illuminance: 0.03 Lux
Security:
Management, monitoring, configuration:

• Motion detection: OFF / ON (4 areas, rectangular)
• Region of Interest (RoI): (4 areas)
• Image rotation: 0 ° / 90 ° / 180 ° / 270 ° (support 90 ° / 270 ° with 2688 × 1520 resolution)
• Privacy Masking: 4 zones
• Interoperability: ONVIF (Profile S/Profile G), CGI, Milestone, Genetec, P2P
• User/Host: 20
• Edge Storage: Dahua Cloud, FTP, NAS
• Browser: IE, Chrome, Firefox
• Management Software: Smart PSS, DSS, DMSS

Network protocols:

• HTTP
• TCP
• ARP
• RTSP
• RTP
• UDP
• RTCP
• SMTP
• FTP
• DHCP
• DNS
• DDNS
• PPPoE
• QoS
• UPnP
• NTP
• RTMP
• Multicast
• HTTPS
• SFTP
• ICMP
• IGMP

Standards: 802.1x
Standards: IPv4
Standards: IPv6
Mobile support: iOS
Mobile support: Android
Special functions:
Internal memory: 128 MegaBajt
Memory card reader: No
Connectors: RJ-45
Protection class: IP67
Power supply:

• 12V DC/POE (802.3af)
• Power consumption: < 4.9W

System Requirements:
Accessories included:
Color: White
Dimensions:

84.9 x 108 mm

Weight: 0.27 kilogram
Other features:

Rotation range: Horizontal: 0°-355°, Tilt: 0°-78°, Rotation: 0°-360°

Designation:
