Dahua Camera IP IPC-HDBW5249R-ASE-NI- 0360B

Dahua Camera IP IPC-HDBW5249R-ASE-NI- 0360B

Description:

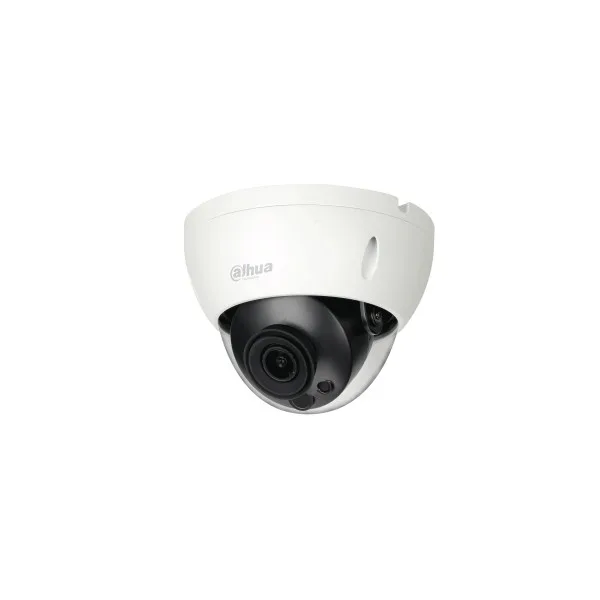

Dahua IP Camera IPC-HDBW5249R-ASE-NI-0360B

The Dahua IPC-HDBW5249R-ASE-NI-0360B IP camera is equipped with a 2MP 1/2.8″ CMOS image sensor that provides high resolution in low light. It has a 3.6mm focal length lens and with Full Color technology, which guarantees images with vivid colours even in very difficult lighting conditions.

The Dahua IPC-HDBW5249R-ASE-NI-0360B IP camera uses Starlight technology, which has been developed for use in harsh environments, even in minimal light. In extreme low-light conditions, Starlight technology is able to provide colour images in near total darkness. The IPC-HDBW5249R-ASE-NI-0360B also benefits from face recognition. It supports SD card storage.

The Dahua IPC-HDBW5249R-ASE-NI-0360B IP camera features IP67 and IK10 water and dust protection, making it suitable for indoor and outdoor applications. The camera uses Dahua ePoE technology, which enables long-distance transmission of power, video, audio and control signals over 800 metres at 10 Mb/s or 300 metres at 100 Mb/s over Cat5 or coaxial cable by using advanced 2D-PAM3 encoding modulation.

Features:

• Sensor: 1/2.8″ 2MP Progressive Scan CMOS
• Resolution: 1920×1080 @ 25/30 fps
• Lens: 3.6mm
• Perimeter protection, face detection, people counting, SMD+ (human/vehicle object classification, alarm filter)
• IR 40 m, Smart IR
• AWB, AGC, BLC, HLC, 3D DNR, WDR 120dB, RoI, Defog
• Supports microSD / microSDHC / microSDXC cards up to 256GB
• Compression: H.265+/ H.265/ H.264+/ H.264/ MJPEG
• Heat map
• Audio inputs/outputs: 1/1
• Alarm inputs/outputs: 1/1
• Bitrate: 32Kbps ~ 8192Kbps (H.264), 19Kbps ~ 8192Kbps (H.265)
• Power supply: 12V DC/PoE
• IP67 / IK10

type: PTZ
Resolution: Full HD 1080p
Frames per second: 30
Sensor:

1/2,8″ 2 MP progressive CMOS

Lens:

• Type of lens: Fixed
• Mounting type: M16
• Focal length: 3.6 mm
• Maximum aperture: F1,0
• Field of view: Horizontal: 88°, Vertical: 47°, Diagonal: 105°
• Close focusing distance: 1,7 m

Viewing angle, vertical: 47 Degrees
Viewing angle, horizontal: 88 Degrees
Microphone: No
Speakers built-in : No
Night mode: Yes
Motion detection: Yes
Minimum illuminance: 0.001 Lux
Security:
Management, monitoring, configuration:

• Bit rate control: CBR / VBR
• Privacy Masking: 4 areas
• Motion detection: Off. / On (4 zones, rectangle)
• Region of Interest (RoI): 4 areas
• Image rotation: 0 ° / 90 ° / 180 ° / 270 ° (supports 90 ° / 270 ° with 1080p resolution and lower)
• User/Host: 20 users
• Storage: Cloud, FTP, SFTP, 256 GB Micro SD Card
• Browser: IE (versions later than IE8), Chrome, Firefox, Safari (versions later than Safari 12)
• Management software: Smart PSS, DSS, DMSS

Network protocols:

• HTTP
• HTTPS
• TCP
• UDP
• ARP
• RTP
• RTSP
• RTCP
• RTMP
• SMTP
• FTP
• SFTP
• DHCP
• DNS
• DDNS
• QoS
• UPnP
• NTP
• Multicast
• ICMP
• IGMP
• NFS
• SAMBA
• PPPoE
• SNMP

Standards: 802.1x
Standards: IPv4
Standards: IPv6
Mobile support: None
Special functions:

• Perimeter protection
• Face detection
• Counting of persons
• SMD+ (human/vehicle object classification, alarm filter)

Internal memory: 128 MegaBajt
Memory card reader: Yes
Memory standard: SD
Memory standard: SDHC
Memory standard: SDXC
Connectors: RCA
Connectors: RJ-45
Protection class: IP67
Power supply:

Power consumption: 12V DC / PoE (802.3af)

System Requirements:
Accessories included:
Color: White
Dimensions:

122 x 88,9 mm

Weight: 453 gram
Other features:

Rotation range: Horizontal: 0°-355°, Vertical: 0°-75°, Rotation: 0°-355°

Designation:
