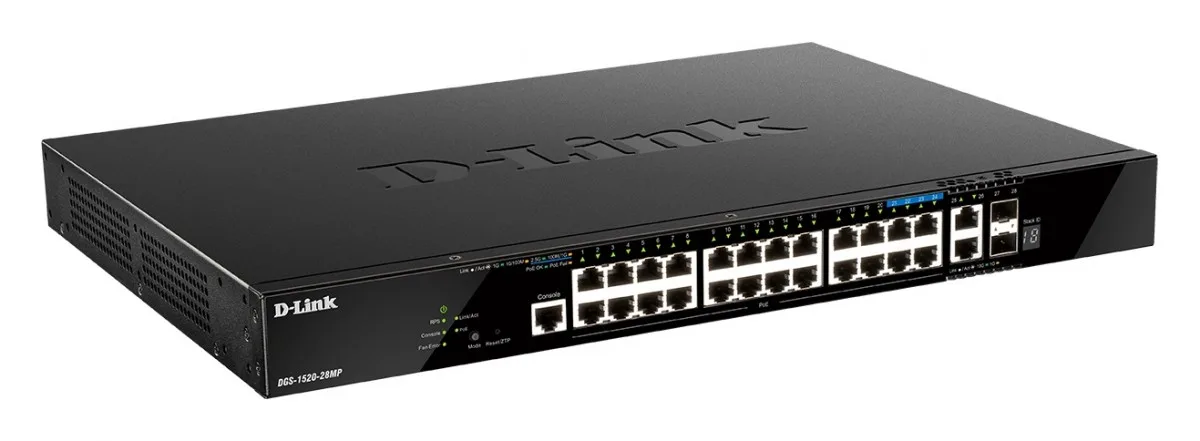

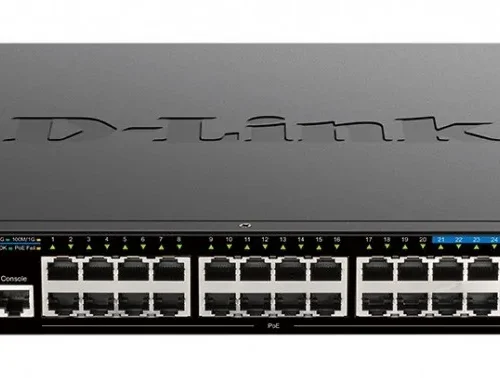

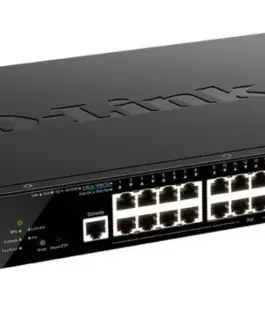

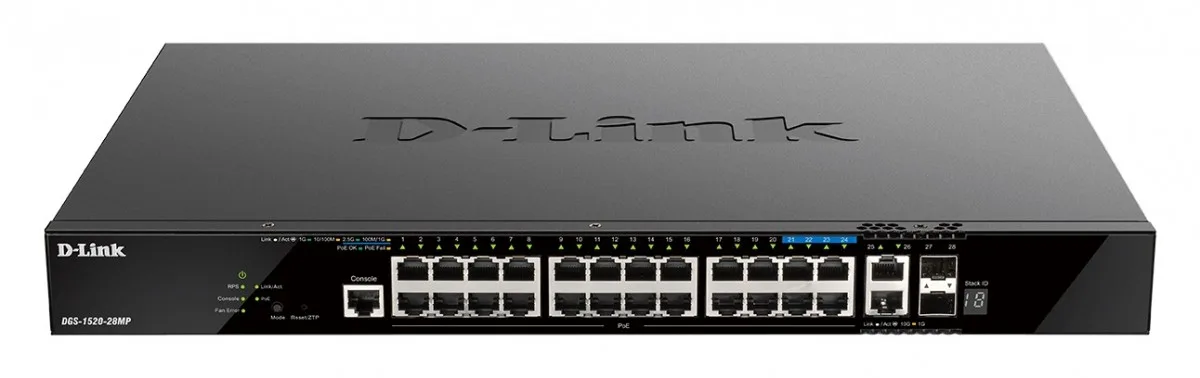

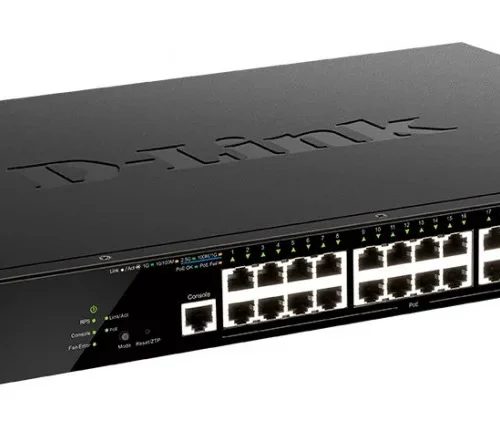

D-Link Switch Smart DGS-1520-28MP 20GE PoE 4×2.5GE 2x10GE 2SFP+

D-Link Switch Smart DGS-1520-28MP 20GE PoE 4×2.5GE 2x10GE 2SFP+

Description:

Smart L3 Managed Stackable Switches DGS-1520 Series

Stacking

Physically stacking up to 8 switches for expansion and redundancy.

Touchless installation

Seamless multi-site deployment with automatic configuration download.

Large PoE budget

Power over Ethernet (PoE) budget up to 370W allows you to power multiple devices.

10G connections

Four 10-gigabit ports for stacking or uplinking.

Multi-gigabit PoE ports

Four 2.5G PoE ports, ideal for Gigabit Wi-Fi 6 access points.

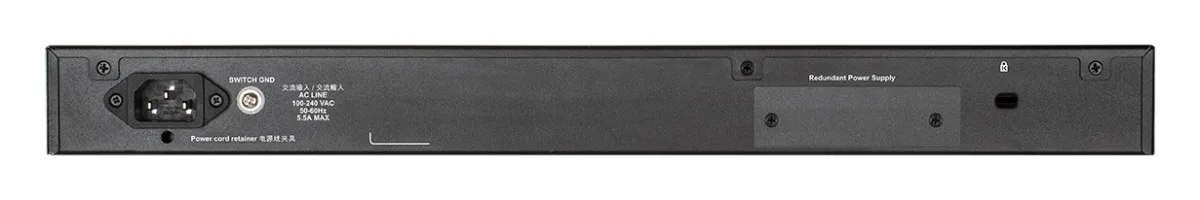

Redundant power

An optional redundant power supply ensures uninterrupted operation.

Advanced L2 and L3 features

Easily adapt to network changes with selectable Q-in-Q, VRRP, RIP and OSPF features.

Limited Lifetime Guarantee

Register your product to take advantage of Lifetime Limited’s lifetime warranty.

A new dimension in Managed Smart Switches

Expandable network with high-performance 10-gigabit stackable switches to increase productivity and uptime.

x8

Eight connected switches form a redundant stack with up to 384 gigabit ports.

188Gbps

High throughput data transfer between connected devices at up to 188 Gbps.

x4

Four 2.5G PoE ports (PoE models), ideal for Wi-Fi 6 access points.

High availability

Simplification of management and cabling increases the efficiency and reliability of the network. Physical stacking up to 8 switches with a total bandwidth of 80G.

Designed with Wi-Fi 6 in mind

The multi-gigabit 2.5G ports on the DGS-1520 series PoE switches eliminate potential bottlenecks in connecting to WiFi 6 gigabit access points.

Touchless deployments

For multi-site network expansion, the latest firmware and network configurations for the DGS-1520 series switches can be downloaded without the need to involve on-site IT personnel, making deployments easier and faster.

Advanced L2 and L3 features

Advanced, selected software features – Q-in-Q, VRRP, RIP and OSPF enable adaptation to changes in the network. For businesses with increasing bandwidth and network expansion requirements, the DGS-1520 series switches are a cost-effective upgrade option with 10-gigabit connections for network infrastructure.

Hybrid staking

Stack up to eight DGS-1520 switches using 10GBASE-T copper and/or SFP+ fiber ports. Hybrid stacking support increases cabling capability and lower cost by using copper instead of fiber.

Simplified management

Centrally manage multiple large networks with wired or wireless devices using D-View 7 to reduce cost and maintenance. There is also a D-Link Network Assistant (DNA) available to simplify setup and management of smaller networks.

Switch class: SMART
Application: Medium and large companies
Switch layer: L2
Switch layer: L3
Switch layer: L2+
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 20
10/100/1000/2500 Mbps ports: 4
Number of 10Gb ports: 2
Number of PoE ports (PoE & PoE+): 24
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: 2
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: Yes
Forwarding mode: Store-and-forward
Throughput: 140 Gigabity na sek.
Forwarding rate: 104.16 Mpps
MAC address table size: 16384
Support for Jumbo frames: Yes
Jumbo frame size: 12 Kilobajt
Stackability: Yes
Maximum number of units per stack: 8
Number of VLAN groups: 4000
VLAN:

• Max. 4K VLAN groups
• Max. 1~4094 VIDs
• GVRP: Max. 4K dynamic VLAN groups
• Double VLAN (Q-in-Q): Port-based Q-in-Q
• Selective Q-in-Q
• 802.1Q
• Auto Surveillance VLAN
• Port-based VLAN
• 802.1v Protocol-based VLAN
• Voice VLAN
• MAC-based VLAN
• Subnet-based VLAN
• VLAN translation
• Multicast VLAN (ISM VLAN for IPv4/IPv6)
• Asymmetric VLAN
• Private VLAN
• VLAN Trunking
• Super VLAN

Supported protocols and standards:

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
• IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
• IEEE 802.3x Flow Control
• IEEE 802.3ae 10 Gigabit Ethernet
• IEEE 802.3af/at

QoS:

• 802.1p
• 8 queues per port
• Queue Handling:
• Strict Priority
• Weighted Round Robin (WRR)
• Strict + WRR
• Weighted Deficit Round Robin (WDRR)

Congestion Control:

• Weighted Random Early Detection (WRED)
• 802.1Qbb Priority-based FlowControl (PFC) [10G ports only]

Policy Map:

• Remark 802.1p priority
• Remark IP precedence/DSCP
• Rate limiting
• Time based QoS

CoS based on:

• Switch port
• Inner/Outer VID
• Inner/Outer 802.1p Priority
• MAC address
• Ether type
• IP address
• DSCP
• ToS/IP preference
• Protocol type
• TCP/UDP port
• IPv6 traffic class
• IPv6 flow label

Bandwidth Control:

• Port-based (ingress/egress, min. granularity 8 Kbps)
• Flow-based (ingress/egress, min. granularity 8 Kbps)
• Per queue bandwidth control (min. granularity 8 Kb/s)

Three Color Marker:

• CIR/PIR minimum granularity: 8 kbps
• trTCM
• srTCM

Security:

• Port Security: Supports up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• D-Link Safeguard Engine
• DHCP Server Screening
• IP Source Guard
• DHCP Snooping
• IPv6 Snooping
• Dynamic ARP Inspection (DAI)
• DHCPv6 Guard
• IPv6 Route Advertisement (RA) Guard
• IPv6 ND Inspection
• Duplicate Address Detection (DAD)
• ARP Spoofing Prevention: Max. 64 entries
• L3 Control Packet Filtering
• Unicast Reverse Path Forwarding (URPF)
• Traffic Segmentation
• BPDU Attack Protection
• DOS Attack Prevention

SSL:

• Supports TLS 1.0/1.1/1.2
• Supports IPv4/IPv6 access

SSH:

• Supports SSH v2
• Supports IPv4/IPv6 access

Management, monitoring, configuration:

• Cable Diagnostics
• Optical Transceiver Digital Diagnostic
• Monitoring (DDM)
• Command Line Interface (CLI)
• Telnet Server/Client for IPv4/IPv6
• TFTP Client for IPv4/IPv6
• DNS Client for IPv4/IPv6
• Secure FTP Server/Client for IPv4/IPv6
• SNMP Traps
• System Log for IPv4/IPv6 Syslog Server
• sFlow
• Multiple Images & Configurations
• RMON v1: Supports 1,2,3,9 groups
• RMON v2: Supports ProbeConfig group
• LLDP/LLDP-MED
• BootP/DHCP Client
• DHCP Auto-Configuration/Auto Image
• DHCP/DHCPv6 Local Relay
• DHCP Relay Option 60/61/62/125
• Flash File System
• D-Link Discover Protocol (DDP)
• Debug command
• Support IPv4/v6 SNTP Server
• NTPv3/v4
• Password recovery/encryption
• DHCP server: Support for IPv4/IPv6 address assignment
• Command Logging
• SMTP
• DHCPv6 Prefix Delegation (PD)
• Ping/ Traceroute for IPv4/IPv6
• Microsoft Network Load Balancing (NLB)
• PD Alive (PoE Models Only)
• Zero Touch Provisioning (ZTP)

SNMP:

• Support v1/v2c/v3
• Support for IPv4/IPv6 access

Web-based GUI:

• Support IPv4/IPv6 access
• Support SSL (HTTPS)

L2 features:

• MAC Address Table: 16,384 entries
• Jumbo Frames up to 12,288 Bytes
• 802.1AX/802.3ad Link Aggregation: Max. 32 groups per device, 8 ports per group
• Loopback Detection
• Flow mirroring: Supports Ingress Mirroring only
• VLAN Mirroring
• RSPAN
• L2 Protocol Tunneling
• Ethernet Ring Protection Switching (ERPS) v1/v2

Flow Control:

• 802.3x Flow Control
• HOL Blocking Prevention

Spanning Tree Protocols:

• 802.1D STP
• 802.1w RSTP
• 802.1s MSTP
• BPDU Filtering
• Root Guard
• Loop Guard

Port Mirroring:

• Supports One-to-One, Many-to-One
• Supports Mirroring for both Tx/Rx
• Supports 4 mirroring groups

L2 Multicasting

IGMP Snooping:

• IGMP v1/v2/v3 Snooping
• Supports 512 IGMP groups
• Host-based IGMP Snooping Fast Leave
• Supports 128 static IGMP groups
• Per VLAN IGMP Snooping
• Data Driven Learning
• IGMP Snooping Querier
• Report Suppression

MLD Snooping:

• MLD v1/v2 Snooping
• Support 256 MLD Groups
• Host-based MLD Snooping Fast Leave
• Supports 64 static MLD groups
• MLD Snooping Querier
• Per VLAN MLD Snooping
• MLD Proxy Reporting

L3 features:

• IPv4 ARP Entries: 8192
• 256 Static ARP
• IPv6 ND Entries:4096
• 128 Static ND Entries
• IP Interface: Supports 16 interfaces
• Gratuitous ARP
• Loopback Interface
• Proxy ARP: Support local ARP proxy
• VRRP v2/v3
• IP Helper

L3 Routing

• Supports 1024 hardware routing entries shared by IPv4/IPv6:
• 1 entry consumed by each IPv4 route
• 2 entries consumed by each IPv6 route
• Supports up to 4096 hardware L3 forwarding entries shared by IPv4/IPv6:
• 1 entry consumed by each IPv4 route
• 2 entries consumed by each IPv6 route
• IPv4/IPv6 Static Route:
• Max. 512 IPv4 entries
• Max. 256 IPv6 entries
• Equal-Cost Multi-Path Route (ECMP)
• Weighted-Cost Multi-Path Route (WCMP)
• IPv4/IPv6 Default Route
• Policy-based Route (PBR)
• Null Route
• Route Preference
• Route Redistribution
• RIPv1/v2/ng

OSPF:

• OSPF v2/v3
• OSPF passive interface
• Stub/NSSA area
• Supports Equal-Cost Multi-Path Route (ECMP)
• Text/MD5 authentication

L3 Multicasting:

• IGMP v1/v2/v3
• IGMP Proxy
• MLD v1/v2
• MLD proxy
• DVMRP v3
• PIM Sparse-Dense Mode (PIM-SDM)
• PIM-SM/DM/SSM for IPv4/IPv6

Other functions:

Physical Stacking:

• 10GBase-T and SFP+
• Up to 8 units per stack
• Stacking throughput up to 80 Gbps
• Ring/chain topology support

Virtual Stacking:

• Managing one D-Link IP address (SIM)
• Up to 32 units per virtual stack

Chassis type: Rack
Fan : Yes
Power supply : Internal
Power consumption: 453.3 Watt
Mean time between failures (MTBF): 333946 Hour
Accessories included:
Power supply:

100 – 240 VAC

Dimensions:

441 x 308.5 x 44 mm

Weight: 4.29 kilogram
Environment requirements:

• Operating temperature: -5 – 50°C
• Storage temperature: -40 – 70°C
• Operating Humidity: 10% – 95% RH
• Storage humidity: 5% – 95% RH

Certificates:

• CE Class A
• FCC Class A
• IC Class A
• RCM Class A
• VCCI Class A
• BSMI Class A

Other features:

PoE Budget: 370W, 740W (with RPS)
