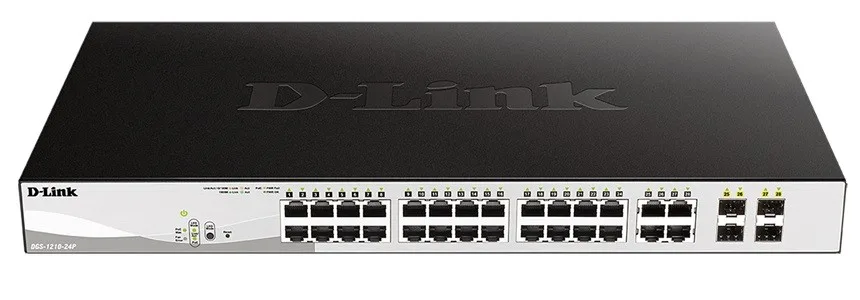

D-Link Switch DGS-1210-24 24GE PoE 4SFP

D-Link Switch DGS-1210-24 24GE PoE 4SFP

Description:

DGS-1210 Series Gigabit Managed Smart Switches

• Layer 2 management and security
• Browser-based graphical user interface
• PoE option
• Dual configuration files
• Lifetime-Limited warranty upon registration

A large PoE power budget and extensive Layer 2 features make the DGS-1210 family switches a flexible and cost-effective solution for expanding any business network.

Exceptional Layer 2 features

The DGS-1210 family switches offer a complete set of Layer 2 features including IGMP Snooping, Port Mirroring, Spanning Tree and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function enables direct connections between servers and switches, resulting in fast and stable data transfers. With a transfer rate of 2,000 Mbit/s in full duplex, the Gigabit ports enable very fast data transfers to the servers with minimal loss. Network maintenance features include Loopback Detection and Cable Connection Diagnostics tools. Loopback Detection automatically detects loops and closes infected ports. Cable Link Diagnostics, designed primarily for administrators and customer service representatives, helps diagnose cable quality and determine the type of error.

Fibre optic Uplink ports

Network expansion to suit the needs of any business is possible thanks to fibre optic uplink ports with advanced management and security features.

PoE

The DGS-1210 switch family includes switches with a large PoE power budget to facilitate the installation of IP phones, wireless access points and IP cameras.

D-View 7: free network design and management system

D-Link’s free Network Assistant (DNA) system provides information about all connected devices and speeds up initial configuration. The free D-View 7 network management system comes with a licence for 25 nodes and 2 probes and full access to management tools. An optional licence upgrade allows for expanded network and analysis capabilities.

Energy saving

D-Link’s DGS-1210 family of switches with D-Link Green technology enables energy savings without affecting performance or functionality.

Surveillance Mode

Select Surveillance Mode in the graphical user interface to take advantage of easy-to-use monitoring features that also allow you to easily manage your surveillance network. The devices that make up the security system are automatically detected and grouped in a dedicated Auto Surveillance VLAN, ensuring that surveillance traffic is secured and is transmitted without hindrance.

Switch class: SMART
Application: Medium and large companies
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 28
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): 24
Number of PoE+ ports: None
Number of COMBO ports: 4
Number of SFP ports: 4
Number of SFP+ ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 56 Gigabity na sek.
Forwarding rate: 41.7 Mpps
Packet buffer: 4.1 MegaBajt
MAC address table size: 8000
Support for Jumbo frames: Yes
Jumbo frame size: 10 Kilobajt
Stackability: No
Number of VLAN groups: 256
VLAN:

• 802.1Q Tagged VLAN
• VLAN Group
• Max. 256 static VLAN groups
• Max. 4094 VIDs
• Management VLAN
• Asymmetric VLAN
• Auto Voice VLAN
• Auto Surveillance VLAN

Supported protocols and standards:

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3x Flow Control for Full-Duplex Mode
• IEEE 802.3af compliance
• IEEE 802.3at compliance

QoS:

• 802.1p Quality of Service
• Queue Handling
• Strict
• Weighted Round Robin (WRR)
• 8 queues per port
• Bandwidth Control
• Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 16 Kb/s)
• CoS based on
• 802.1p Priority Queues
• DSCP
• ToS
• TCP/UDP port number
• IPv6 traffic class

Security:

• Port Security
• Supports up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• Static MAC
• D-Link Safeguard Engine
• DHCP Server Screening
• Trusted Host
• ARP Spoofing Prevention
• Max. 64 entries
• SSL
• Supports v1/v2/v3
• Supports IPv4/IPv6 Traffic Segmentation
• Smart Binding
• Discover connected devices and click to bind
• ARP Packet Inspection: 256 entries
• IP/4/IPv6 Packet Inspection: 127/63 entries
• Supports DHCP Snooping

Management, monitoring, configuration:

• Web-based GUI
• Telnet Server
• TFTP Client
• IPv6 Neighbor Discovery
• Configurable MDI/MDIX
• SNMP
• Supports v1, v2, v3
• SNMP Trap
• System Log
• BootP/DHCP Client
• D-Link Network Assistant support
• SNTP
• ICMPv6
• IPv4/v6 Dual Stack
• DHCP Auto Configuration
• RMON v1

L2 features:

• MAC Address Table: 8K
• Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention
• Jumbo Frame up to 10,000 Bytes
• IGMP Snooping
• IGMP v1/v2 Snooping
• IGMP Snooping v3 Awareness
• Supports 256 IGMP groups
• Supports at least 64 static multicast addresses
• IGMP per VLAN
• Supports IGMP Snooping Querier
• MLD Snooping
• Supports MLD v1/v2 awareness
• Supports 256 groups
• Fast Leave
• Spanning Tree Protocol
• 802.1D STP
• 802.1w RSTP
• Loopback Detection
• 802.3ad Link Aggregation
• Port Mirroring
• One-to-One, Many-to-One
• Supports Mirroring for Tx/Rx/Both
• Multicast Filtering
• Forwards all unregistered groups
• Filters all unregistered groups
• LLDP, LLDP-MED

L3 features:
Other functions:
Chassis type: Rack
Fan : Yes
Power supply : Internal
Power consumption: 247.4 Watt
Mean time between failures (MTBF): 469262 Hour
Accessories included:
Power supply:
Dimensions:

440 x 250 x 44 mm

Weight: 3.75 kilogram
Environment requirements:

• Operating temperature: -5 to 50 C (23 to 122 F)
• Storage temperature: -20 to 70C (-4 to 158F)
• Operating humidity: 0% to 95% non-condensing
• Storage humidity: 0% to 95% non-condensing

Certificates:

• CE Class A
• cUL
• CE LVD

Other features:

• PoE standard: IEEE 802.3af and IEEE 802.3at
• PoE ports: 1 to 24 – up to 30 W
• Maximum PoE budget: 193 W
