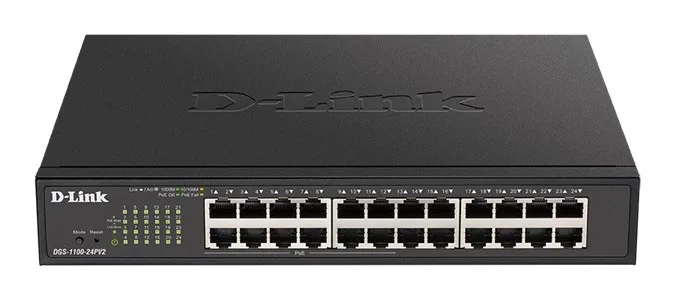

D-Link Switch DGS-1100-24PV2 24GE PoE

D-Link Switch DGS-1100-24PV2 24GE PoE

Description:

DGS-1100 Series Gigabit Managed Smart Switches

• Easy Layer 2 management
• Browser-based graphical user interface
• Optional PoE power supply
• Lifetime-Limited warranty upon registration

Simple. Easy. Smart.

The DGS-1100 family of switches is an affordable solution for SOHO and SMB businesses, as well as for deployments in branch offices, conference rooms of large enterprises, wherever basic management functions are required.

Intuitive graphical user interface

The DGS-1100’s graphical user interface enables easy management of Layer 2 features such as VLANs, Spanning Tree Protocol (STP) and link aggregation (static). With powerful security features in the form of IGMP snooping, Static MAC and Storm Control tools, the DGS-1100 family switches are a versatile tool for environments requiring uncomplicated deployment and easy configuration solutions without unnecessary complexity.

Easy deployment and management

D-Link’s free Network Assistant (DNA) provides information about all connected devices and speeds up initial configuration. The free D-View 7 network management system comes with a licence for 25 nodes and 2 probes and full access to management tools. An optional licence upgrade allows for expanded network and analysis capabilities.

PoE budget

The DGS-1100 switch family includes switches with a large PoE power budget for easy installation of IP phones, wireless access points and IP cameras.

Easy troubleshooting

With loop detection and cable connection diagnostics, the DGS-1100 switch family effectively supports administrators in troubleshooting network problems. The loop detection function detects the formation of a loop on a port and automatically closes it.

Cable connection diagnostics, on the other hand, allows the quality of copper cables to be tested, the type of cables to be recognised and errors to be detected.

Energy saving

D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

Switch class: SMART
Application: Medium and large companies
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 24
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): 12
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of QSFP+ ports: None
Console port: No
Throughput: 48 Gigabity na sek.
Forwarding rate: 35.71 Mpps
Packet buffer: 4.1 MegaBajt
MAC address table size: 8000
Support for Jumbo frames: Yes
Jumbo frame size: 10 Kilobajt
Stackability: No
Number of VLAN groups: 128
VLAN:

• Port-based VLAN
• 802.1Q tagged VLAN
• Auto Surveillance VLAN
• Voice VLAN
• Management VLAN
• Asymmetric VLAN
• VLAN Group
• Supports 128 static VLAN groups
• Max. 4094 VIDs

Supported protocols and standards:

• IEEE 802.3 for Ethernet
• IEEE 802.3u for Fast Ethernet
• IEEE 802.3ab for Gigabit Ethernet
• IEEE 802.3z for Gigabit fiber
• IEEE 802.3af/at (DGS-1100-24PV2 ports 1 to 12 only)
• IEEE 802.3az compliant
• Auto-negotiation
• Auto MDI/MDIX
• IEEE 802.3x Flow Control supports full-duplex mode
• Supports half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps)

QoS:

• 802.1p Quality of Service
• 8 queues per port
• Queue handling: Strict / Weighted Round Robin (WRR)
• Port-based bandwidth control (rate limiting): Ingress: 16 Kbps / Egress: 16 Kbps

Security:

• D-Link Safeguard
• Traffic segmentation
• Broadcast/Multicast/Unknown Unicast Storm Control
• DoS attack prevention
• SSL

Management, monitoring, configuration:

• Web-based GUI (supports IPv4/IPv6)
• Client-based D-Link Network Assistant (DNA)

L2 features:

Flow Control

• 802.3x Flow Control
• HOL Blocking Prevention

Jumbo frames up to 10,000 Bytes

IGMP Snooping

• IGMP Snooping V1/V2/V3 awareness
• Supports 128 Groups
• IGMP Snooping Querier

802.3ad Link Aggregation:

• Support max 8 groups per device and 8 ports per group

Loopback Detection

Cable diagnostics

LLDP

Port Mirroring

• One-to-One
• Many-to-One

Statistics

• Tx Ok
• Tx Error
• Rx Ok
• Rx Error

Spanning Tree Protocol

• 802.1D STP
• 802.1w RSTP

L3 features:
Other functions:
Chassis type: Desktop
Chassis type: Rack
Fan : No
Power supply : Internal
Power consumption: 131.5 Watt
Mean time between failures (MTBF): 255003 Hour
Accessories included:
Power supply:

100 to 240 V AC, 50 to 60 Hz internal power supply

Dimensions:

280 x 230 x 44 mm

Weight: 2 kilogram
Environment requirements:

• Operating temperature: -5 to 50 °C (23 to 122 °F)
• Storage temperature: -40 to 70 °C (-40 to 158 °F)
• Operating humidity: 0% to 95% non-condensing
• Storage humidity: 0% to 95% non-condensing

Other features:

PoE:

• IEEE 802.3af/802.3at
• Ports 1 – 12
• PoE budget: 100 W (30 W max. per port)

Certificates:

• EMI: FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, CCC
• Safety: cUL, CE LVD, CB, BSMI, CCC
